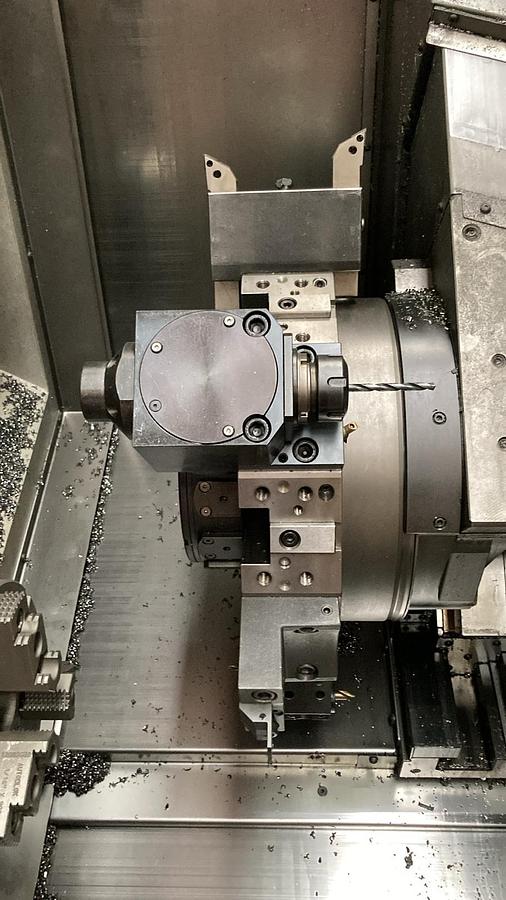

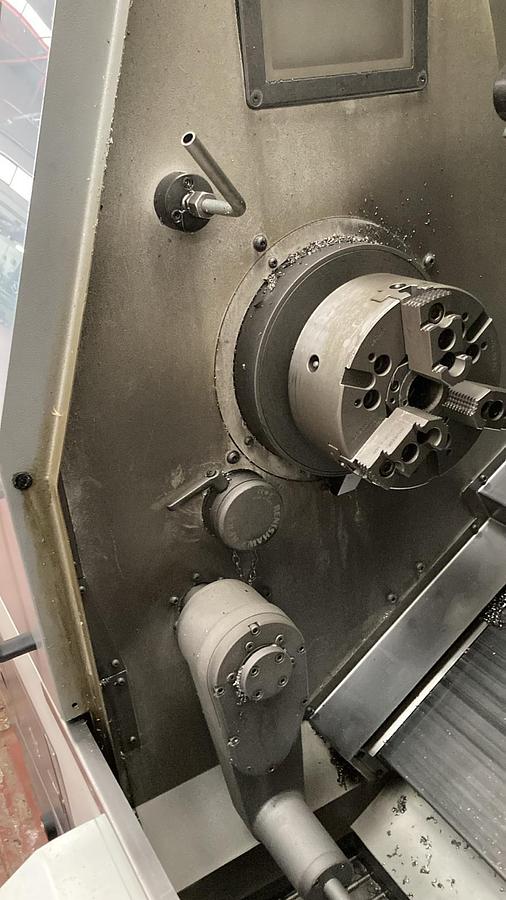

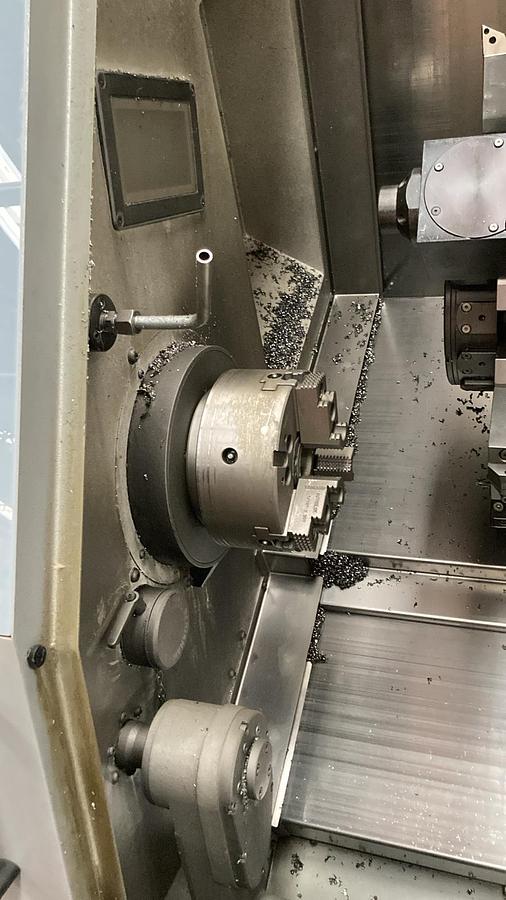

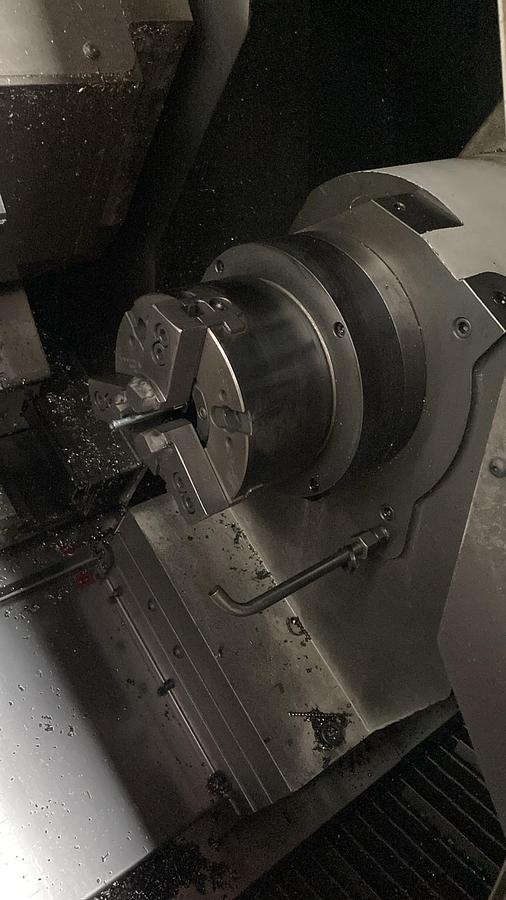

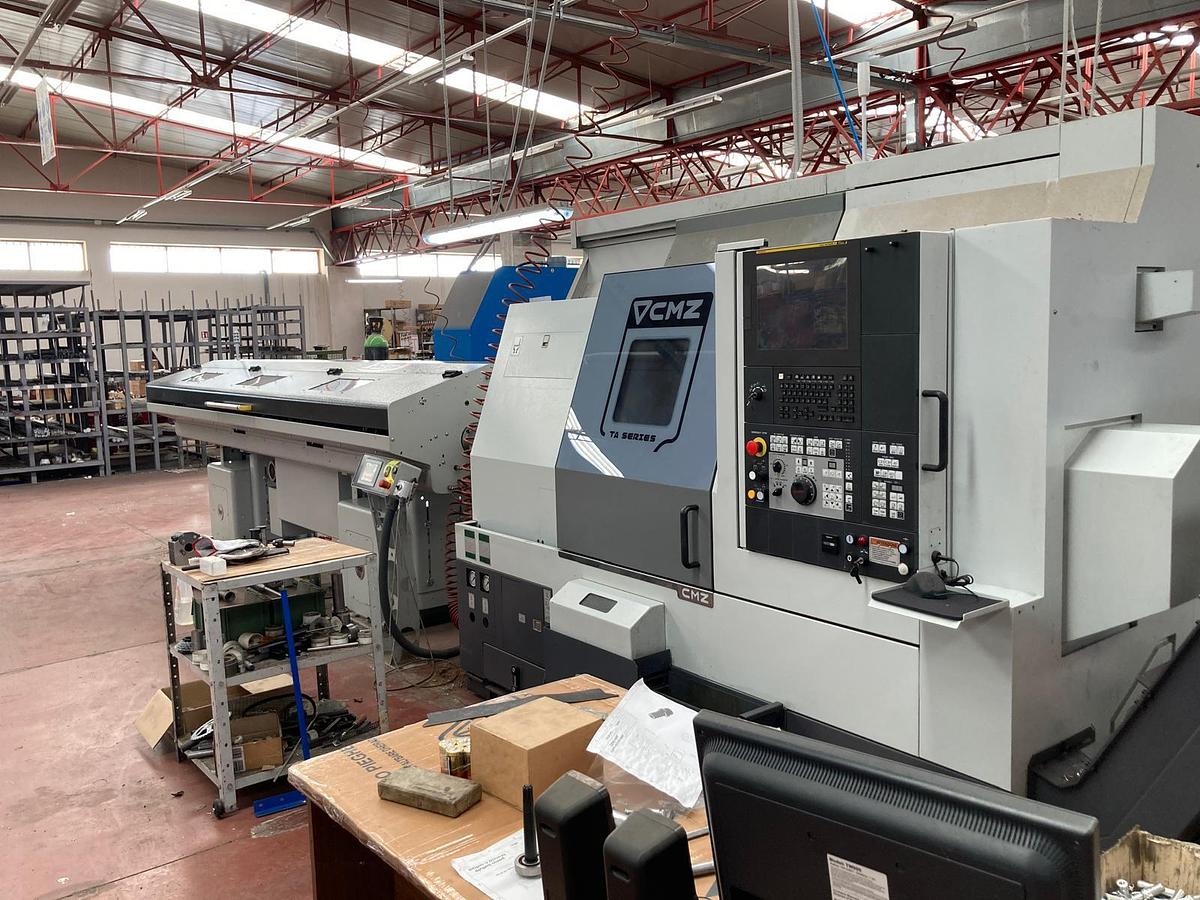

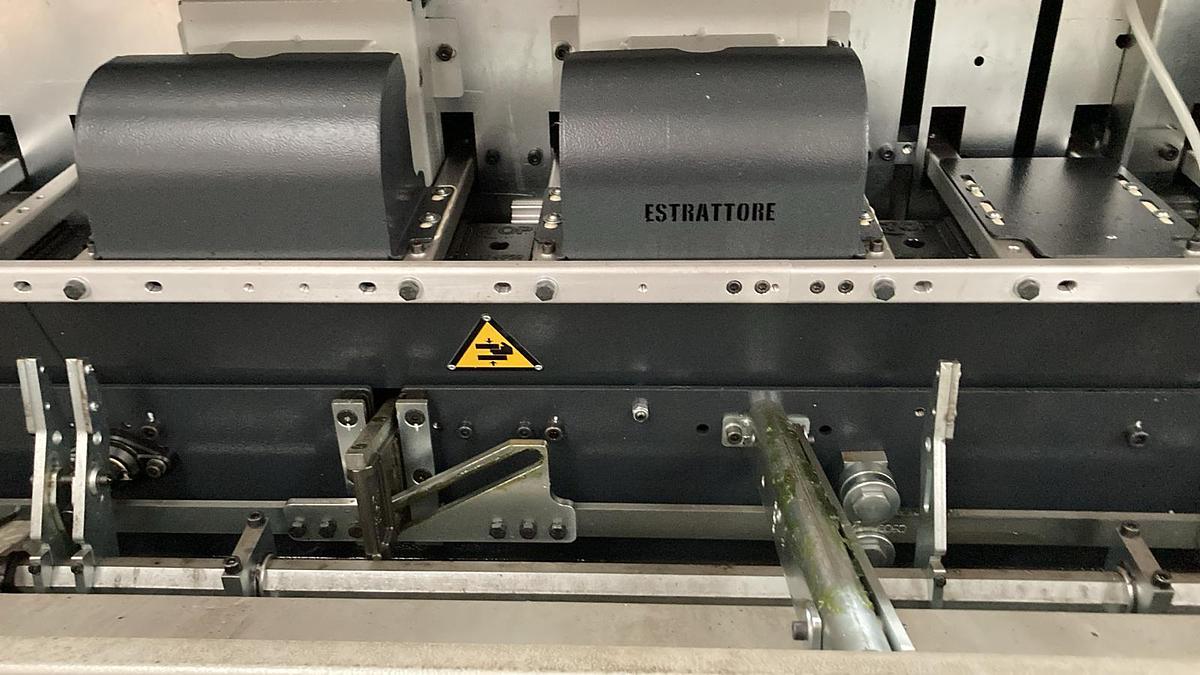

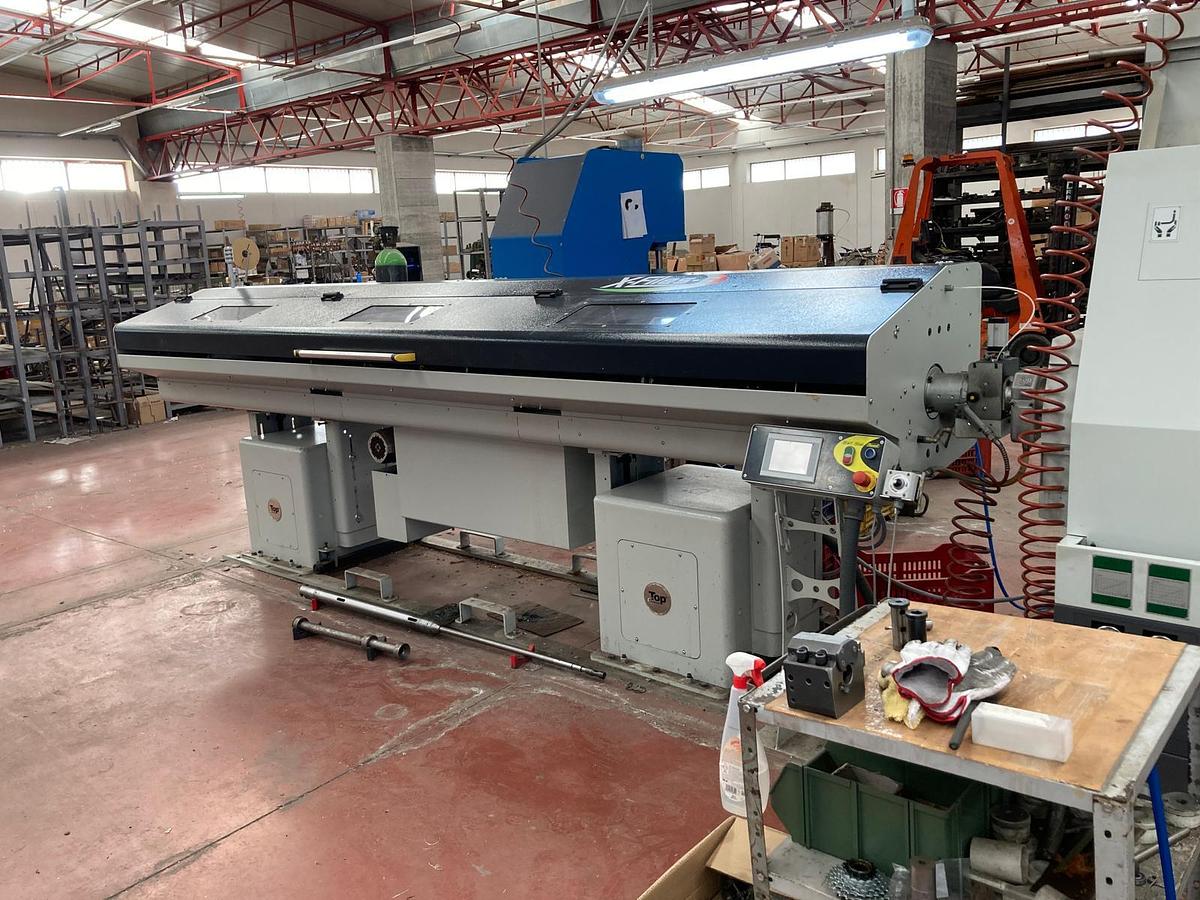

LATHE CMZ model TA-20-YS-640

Diam. max overhang on bench 760 mm Diam. max. overhang on carriage 600 mm Diam. max. turning 460 mm Distance between spindle faces 649 mm X-axis stroke 310 mm Z-axis stroke 640 mm Y-axis stroke +70/-50 B-axis stroke 640 mm Rapid traverse X axis 30 m/min Rapid traverse Z axis 30 m/min Rapid traverse Y axis 15 m/min Rapid traverse B axis 30 m/min Axis acceleration 1g=9.8 m/s2 Maximum rotation speed 4000 rpm External diameter of front bearings 170 mm Internal diameter of front bearings 110 mm Spindle nose ASA6″ A2 Internal bore of machine 73 mm Bar passage 66 mm Spindle diameter 210 mm Spindle bore passage 66 mm Spindle power 22/15 kW Max torque 366 N◊m (286 S6 40%) Turret positions 12 Tool station section turret 25×25 (“Ø”050) Tool change time 30° 0.2s Max clamping force at 45 bar 5090 Kgf Number of motorized positions 12 Maximum spindle speed 12000 rpm Tool controlled power Kw 11.3/8.1 Max torque of controlled tools 75 Nm Max speed of counter-spindle rotation 4500 rpm “Ø” external front bearings 150 mm “Ø” internal front bearings 100 mm Spindle nose ASA 6″ A 2 “Ø” inner spindle bore 61 mm Useful bar passage 62 mm Spindle diameter 175 mm Spindle bore passage 56 mm Spindle power 14/8 Kw Max torque 292/153 Nm Coolant reservoir capacity 230 l at 200 post. Hydraulic oil reservoir capacity 10 l Lubrication oil reservoir capacity 4 l Operating voltage 230V 50 Hz + 5% Operating temperature 35° MACHINE EQUIPMENT: CNC Fanuc 32Itb Standard turret 12 positions Standard tool holder equipment Standard main spindle hydraulic cylinder (TA 20 Autoblock VNL 150-67) Directed air blast located on main spindle Autoblock 3-jaw self-centering chuck BBD 210 Autoblock 3-jaw self-centering chuck BBD 175 Presetting Chip ejector side exit for pallet from Z=640 (carpet type) Machine status lamp Cutting force monitor for wear or tool breakage High-pressure coolant pump (6 bar 55 l/min) Coolant filter 250 μm with manual scraper for cleaning Piece picker arm with pneumatic/manual actuation (piece unload diameter 80 mm Length 220 mm max weight 8 kg) UNIMAG interface for advanced bar management Spring mechanical expeller in counter-spindle Exhaust tube 100 mm diameter fume suction interface TD/10300/43 Double tool holder for internal diameter 32 mm TL20 10/400/08 Motorized axial inverse tool holder (for counter-spindle) with internal cooling with traction DIN 1809, to be used with ESX/ER 32 grippers, (grippers excluded) max 12000 rpm TL20 10400/09 Motorized radial tool holder with cooling with traction DIN 1809, to be used with ER 32 grippers (grippers excluded) max 12000 rpm TL20 10400/10 Motorized radial tool holder with universal milling cutter shank “Ø” 22 (max 4000 rpm) 1 set of 3 reversible hard jaws for BBD175 self-centering 1 set of 3 reversible hard jaws for BHD 210 and BBD 210 self-centering CHIA-MO internal broaching tool with D=20mm + D.8 ES.5 adjustment BAR FEEDER TOP AUTOMAZIONI model XFILES-S364 SX single-plane height 300 mm for bar length max 3200 mm and min 1200 mm. “Ø” bar workpiece max 64mm and min 10 mm WEIGHT 6300 Kg DIMENSIONS 2542x1760x2120 mm NON-BINDING DATA TO BE VERIFIED
