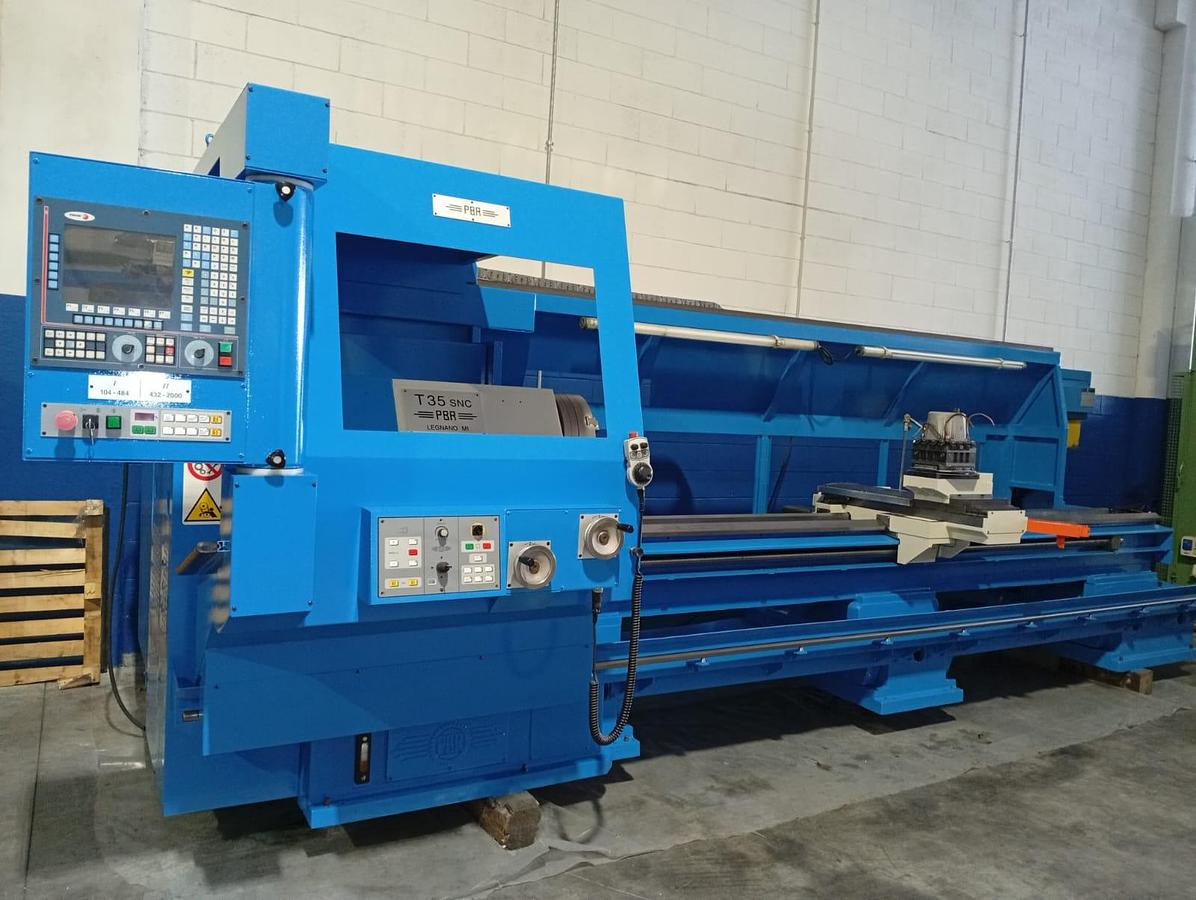

2002 LATHE PARALLEL PBR mod.T35 SNCX3000

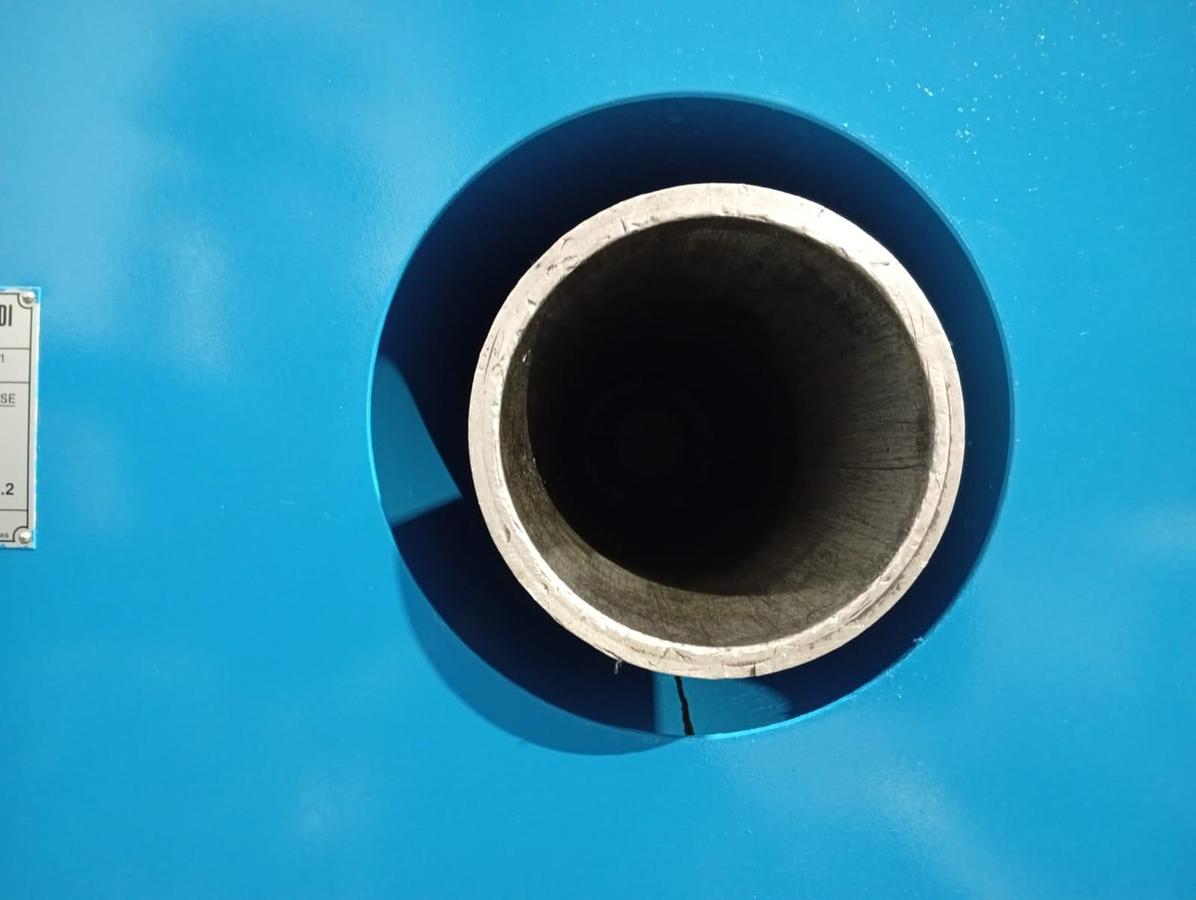

YEAR 2002 N/S 35S/183 WEIGHT 5900 Kg Tip height 350 mm Distance between tips 1500 / 6000 mm Maximum removable diameter 700 mm Maximum pass-through diameter on pallet 720 mm Maximum diameter on cross slide 425 mm Tool bed width 450 mm Carriage width 750 mm Carriage guide width 970 mm Cross slide stroke 450 mm Longitudinal and transverse feed 1/6000 mm./1′ Longitudinal and transverse rapid travel 6500 mm./1′ Cam lock nose 8″ Spindle bore diameter 105 mm Speed ranges 2 Rotation speed rpm/1 0/2000 Barrel diameter on counter spindle 100 mm Counter spindle travel 250 mm Chipping passage on bed 80/320 mm Chipping passage on carriage 30/210 mm Allowed weight with counter spindle about 4000 NON-ENGAGING DATA TO BE VERIFIED
