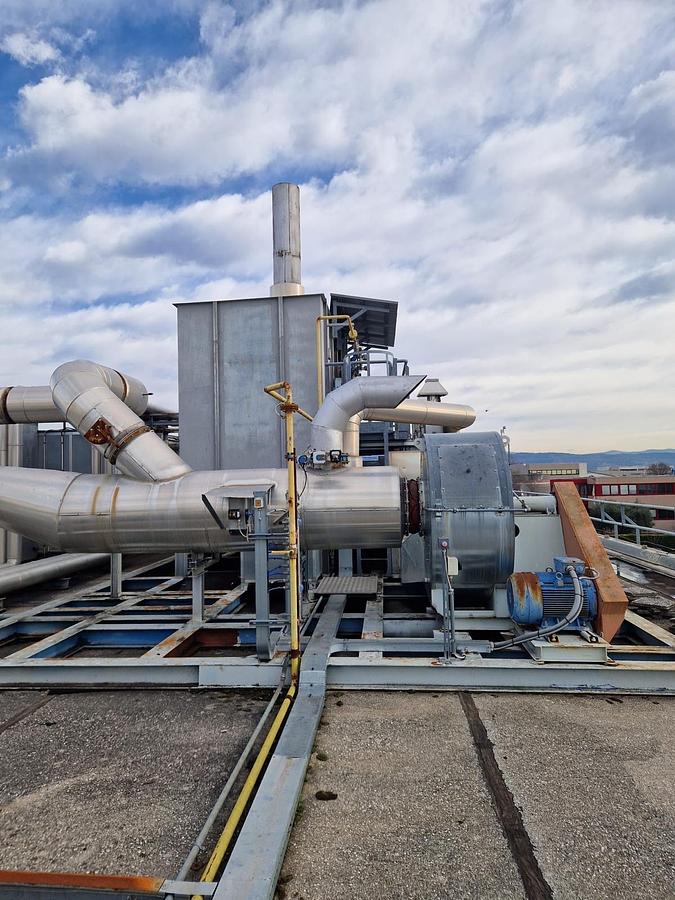

Post Combustion System / Thermal Oxidizer – BROFIND Industrial Post Combustor

Manufacturer: BROFIND S.p.A.

Type: Post Combustor / Thermal Oxidizer (Post Combustione)

Condition: Used – Good working condition

Application: Industrial air treatment / VOC abatement / emission control

Description

Industrial post-combustion thermal oxidizer system designed for the treatment and purification of industrial exhaust gases containing volatile organic compounds (VOC / SOV) generated during manufacturing processes.

The system ensures high destruction efficiency of pollutants through controlled high-temperature oxidation, making it suitable for applications such as:

• Printing and coating lines
• Chemical and pharmaceutical industries
• Packaging production
• Paint and solvent processes
• Industrial drying systems

The unit operates with optimized combustion control and thermal efficiency, allowing self-sustaining operation when sufficient solvent concentration is present.

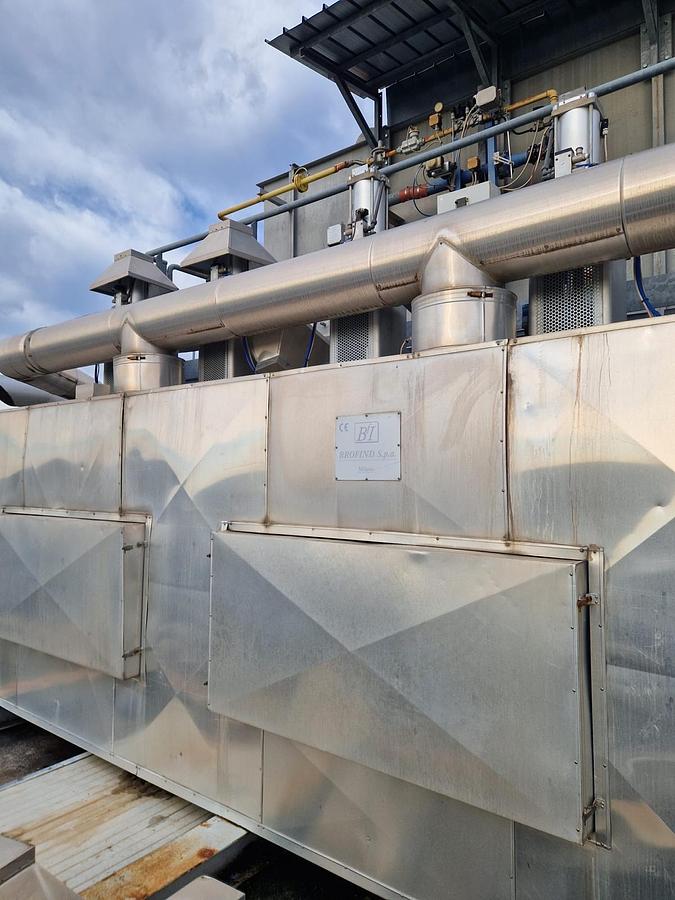

Robust industrial construction with stainless steel ducting, combustion chamber, extraction fan, and integrated gas management system.

Technical Specifications

(from manufacturer documentation)

• Average VOC concentration: 3 g/Nm³
• Maximum VOC concentration: 10 g/Nm³
• Oxidation temperature: approx. 800°C
• Residence time in combustion chamber: > 0.7 sec
• Thermal efficiency: 94%
• Self-sustaining concentration: 2.3 g/Nm³
• Stack temperature: 200 – 300°C (depending on VOC concentration)
• Guaranteed system depression: approx. −50 mm H₂O

Utilities

Electrical Supply

• 380 V
• 50 Hz
• 3 Phase
• Installed power: 65 kW
• Absorbed power: 45 kW

Compressed Air

• Pressure: 6 bar
• Dew point: −30°C

Methane Consumption

• Self-sustaining operation possible
• Start-up consumption:
• After 48 h stop: 65 m³
• After 24 h stop: 29 m³
• After 16 h stop: 23 m³
• After 8 h stop: 18 m³

Noise Level

≤ 70 dB(A) at 1 meter

Approximate Dimensions

12,000 x 4,000 x 5,800 mm (H)

Main Features

• High VOC destruction efficiency
• Energy-efficient thermal oxidation
• Industrial heavy-duty construction
• Suitable for continuous operation
• Complete ducting and fan system included
• Ideal retrofit solution for emission compliance

Status: Installed – available for inspection

Loading: To be verified according to dismantling layout

non-binding information to be verified at purchase
