CTS ITALY COATING MACHINE – 1800 MM WEB WIDTH – 2013 – FILM TRANSFER COATING LINE

High-quality CTS Italy coating machine for film transfer applications, designed for coating film materials to be transferred onto textile substrates. This industrial coating line with doctor blade system is suitable for technical textiles, transfer films, laminated materials and specialty coated films.

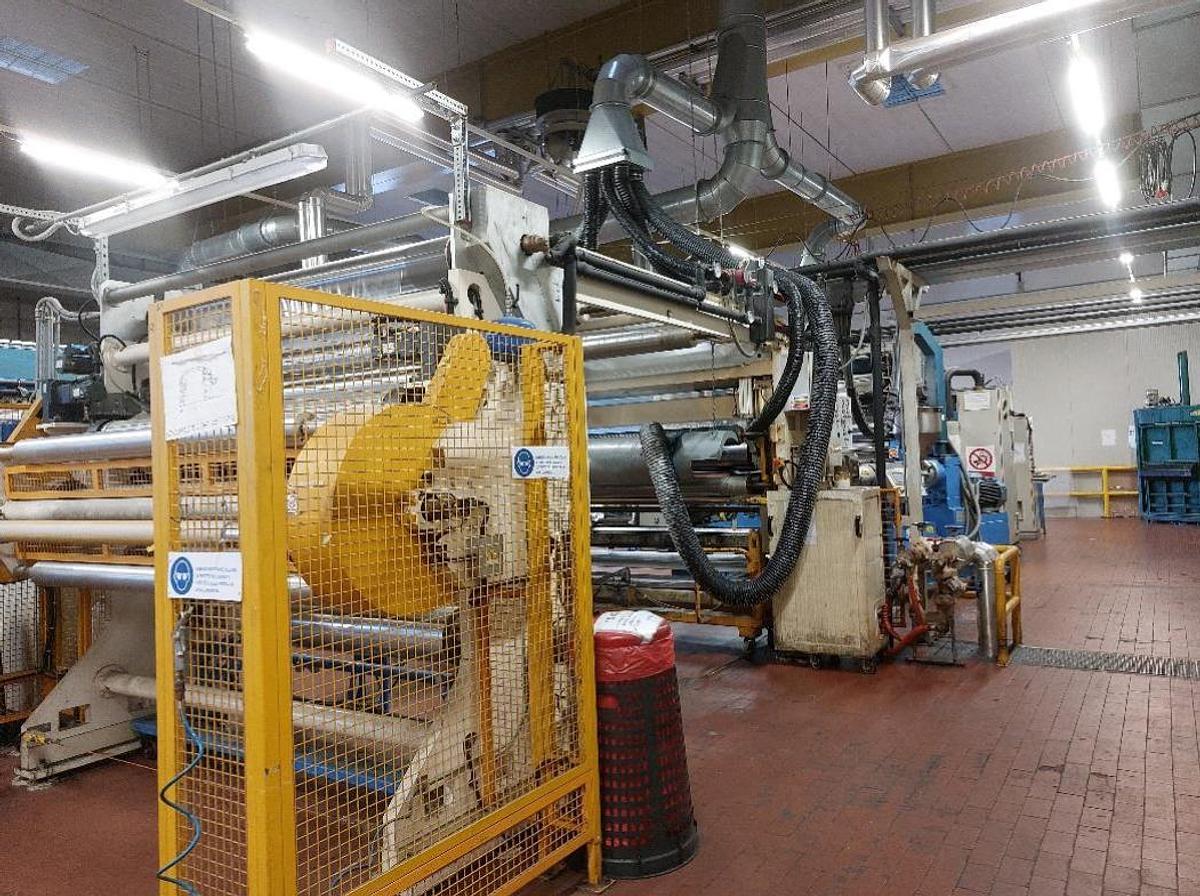

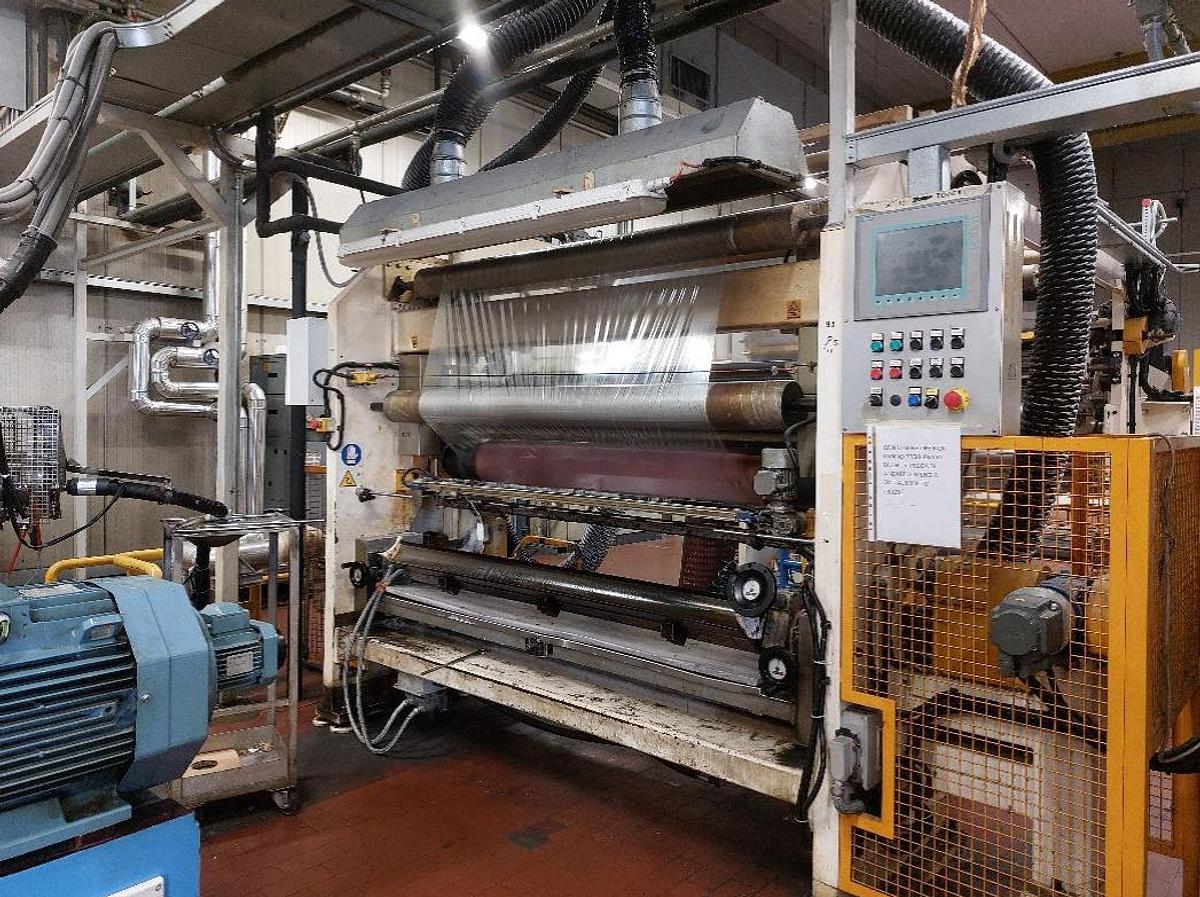

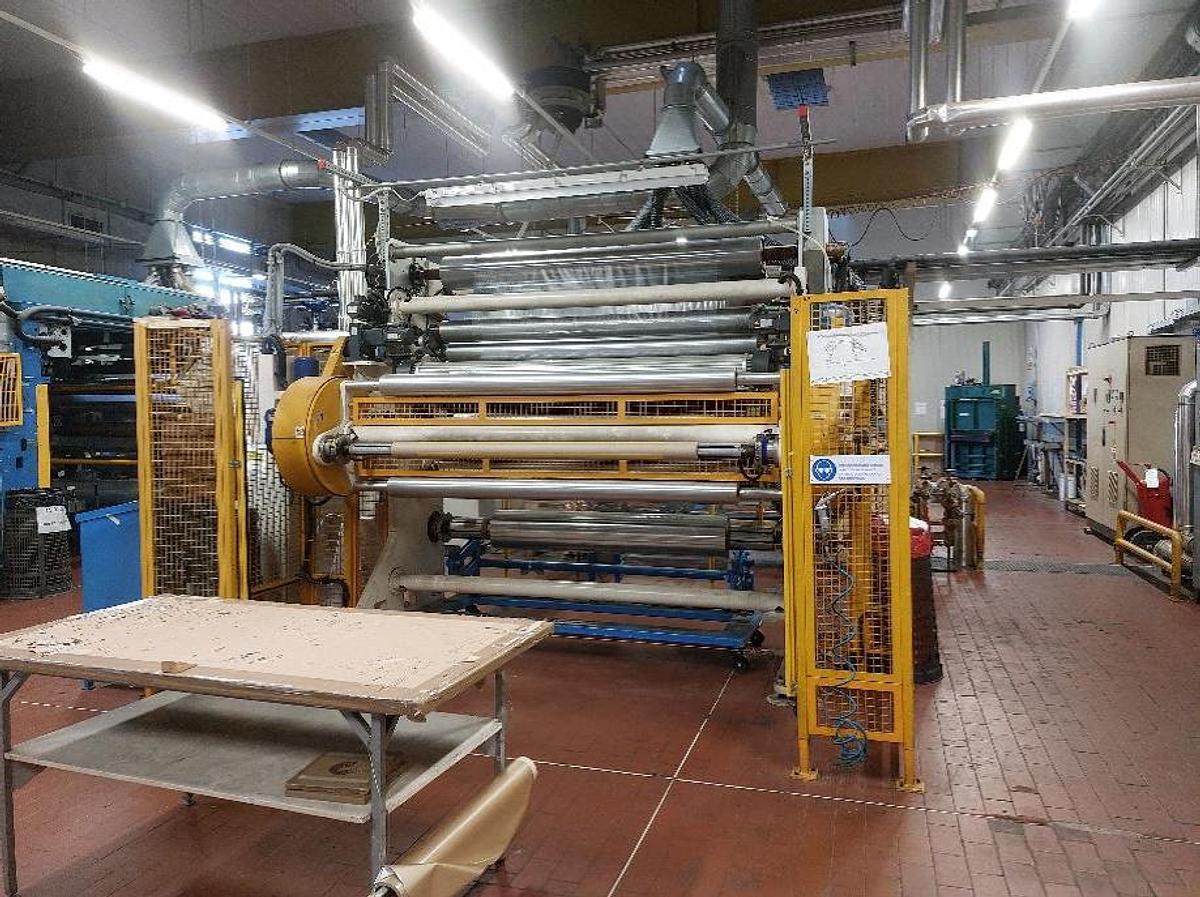

The machine can be seen in operation.

General Information

Manufacturer: CTS Italy

Year of manufacture: 2013

Max web width: 1800 mm

Repeat length: 540 – 640 mm

Max mechanical speed: 30 m/min

Configuration & Technical Details

Unwind:

Single shaft unwind

Max reel diameter: 800 mm

Core diameter: 6”

Coating unit:

1 coating station with doctor blade system

Rubber pressure roller

Exhaust hood

Chiller included

Rewind:

Automatic rewinder

Max reel diameter: 300 mm

Core diameter: 3”

This film coating and transfer machine is designed for applying coating layers onto film that will later be transferred to fabric. Ideal for applications in textile finishing, technical fabrics, decorative films and industrial laminated materials.

Machine available for inspection under power.

Further technical details available upon request.

Non-binding information to be verified at purchase.
