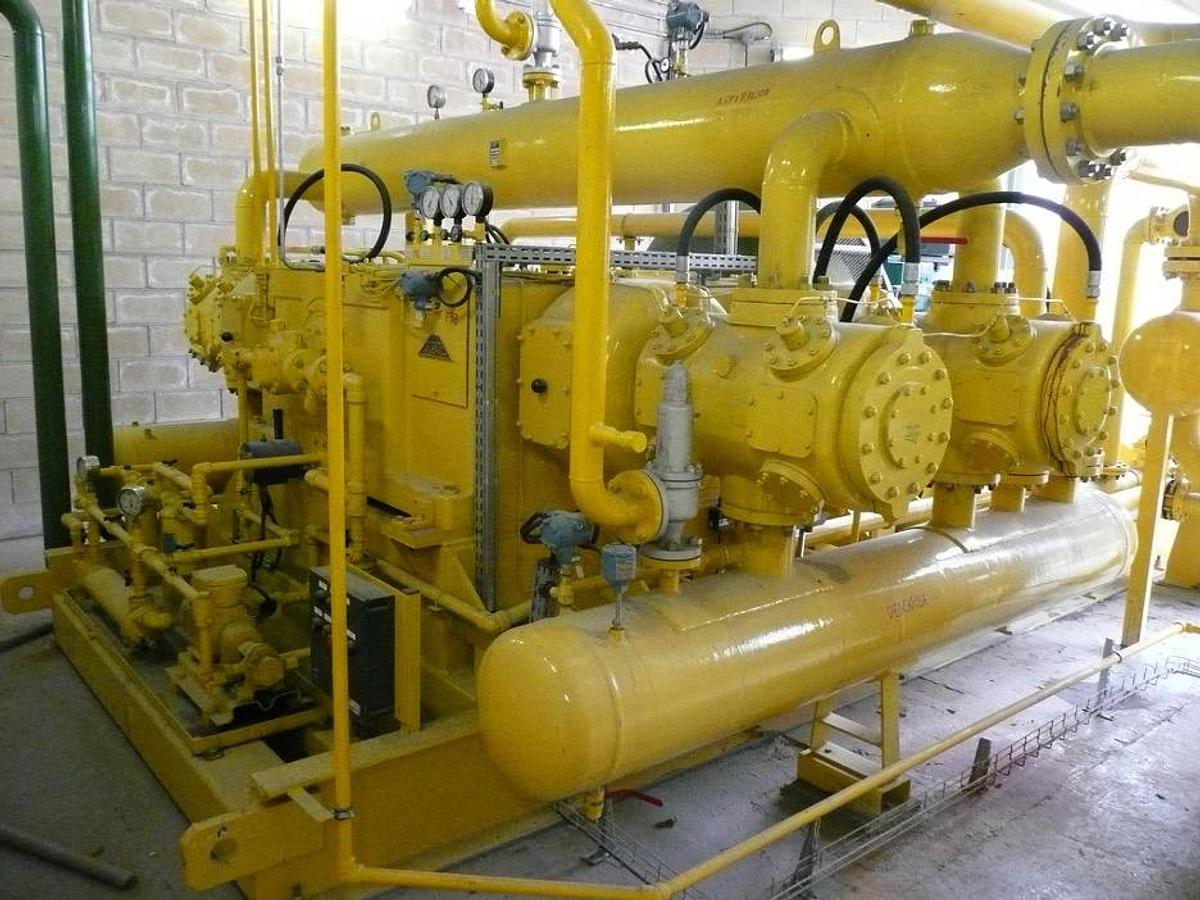

ABC (Arizaga, Bastarrica y Cia., S.A.). 1EHP-2-GT / 175.

Main Motor: ABB brand, model M3HP 355 LKA 4 B3. Power: 310 kW (400 V, 525 AMP) at 1490 RPM (50 HZ). Features EEx e II T3 protection for explosive atmospheres.

Performance: Flow rate of 13,000 NM³/Hour, with a compressor speed of 465 RPM. Suction pressure from 30 to 46 Bar and discharge pressure from 46 to 48 Bar.

Compressor Block: 175 mm diameter cylinders made of EN-GJS-500-7 cast iron. Crankshaft made of EN-GJS-700-2 nodular cast iron. Connecting rod made of GS 60-DIN 1681 steel.

Safety Valves: Nacional brand, model 3-5211. Designed with set pressures of 54.00 Bar and a maximum of 64.00 Bar.

Pressure Vessels: 15,000-liter vertical accumulator tank, 140-liter suction filter, 525-liter suction manifold, and discharge manifolds of 225 and 295 liters. All designed to withstand a maximum allowable pressure of 64 Bar.

●      Lubrication System: ITUR lubrication pump, model RC-1. Suitable for SAE 30 HD oil and ATEX certified.

●      Certifications: Complies with the ATEX directive for potentially explosive atmospheres and the 97/23/EC pressure equipment directive.
