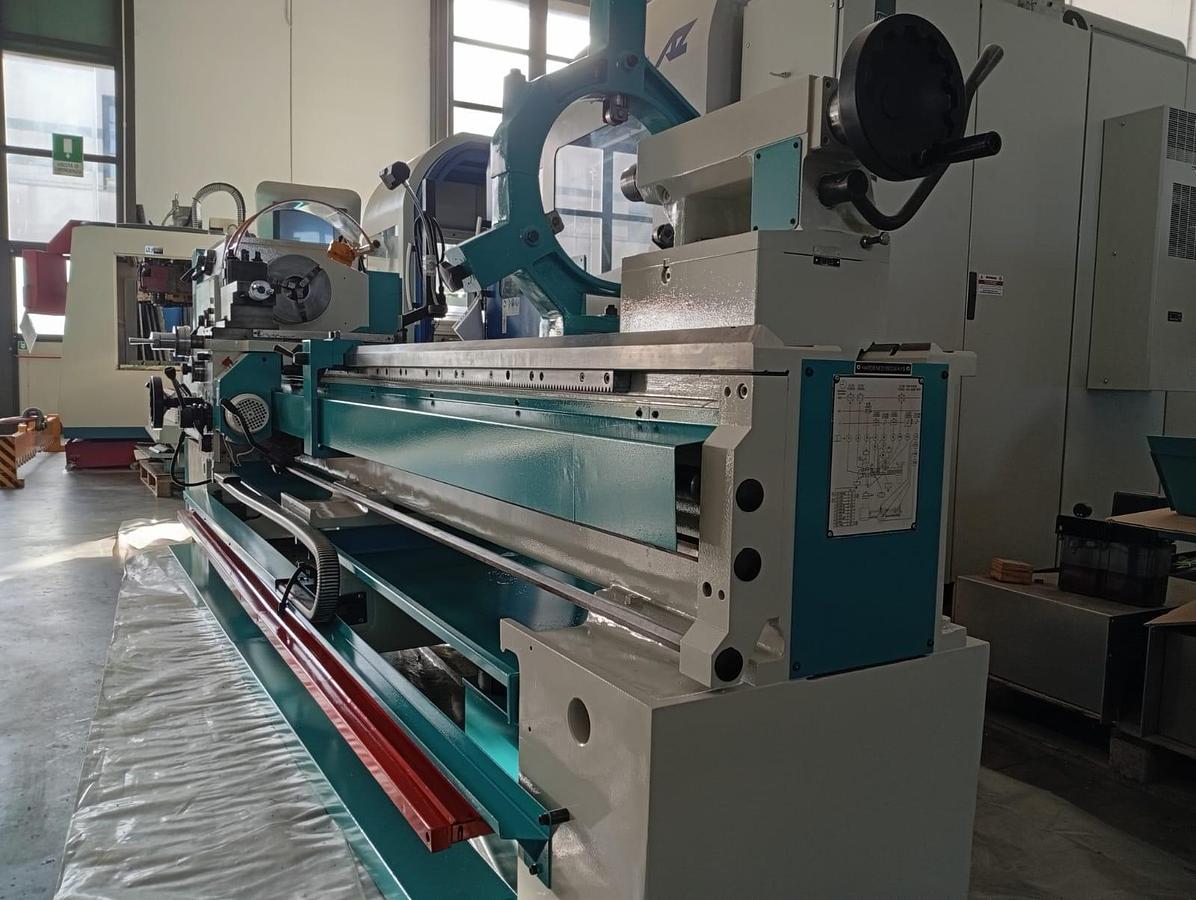

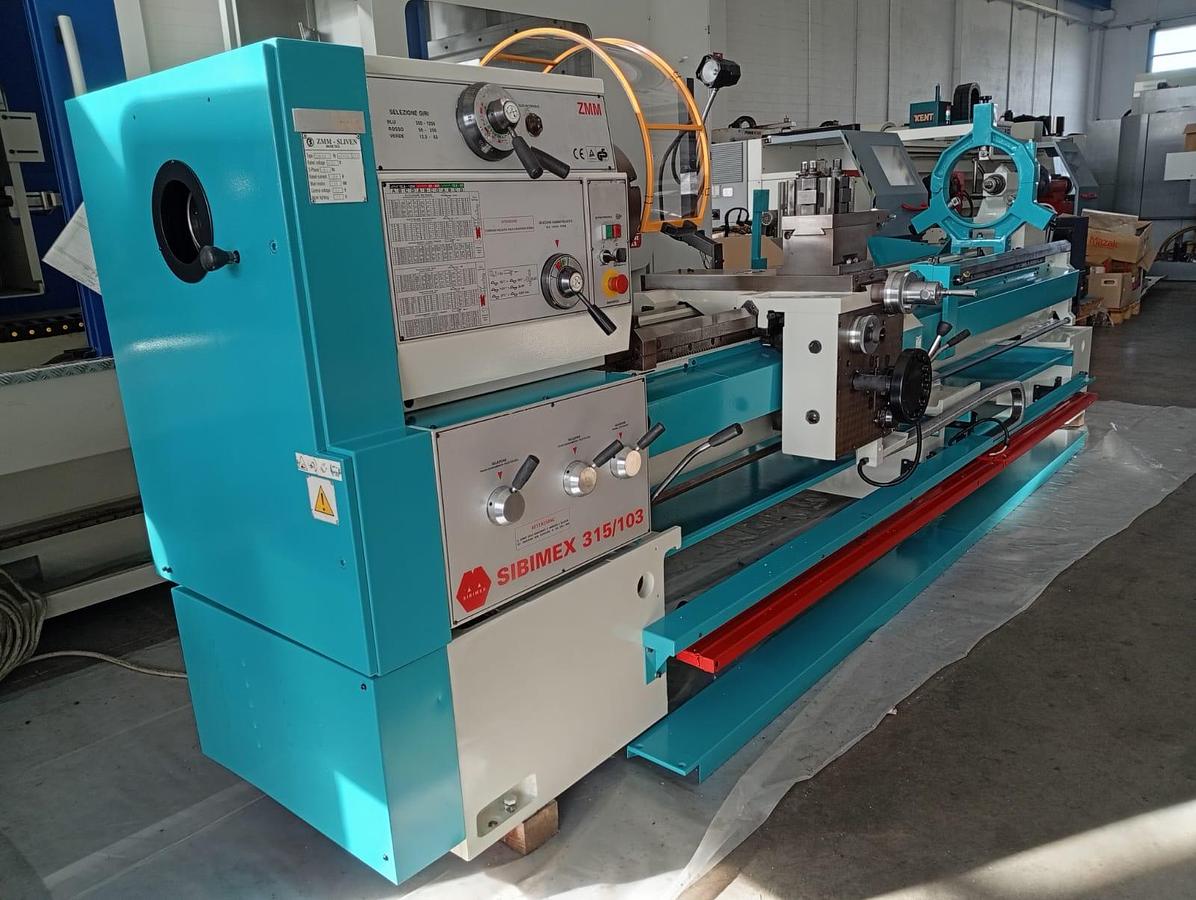

2001 PARALLEL LATHE SBIMEX model.CU630 X 3000 HOLE 103

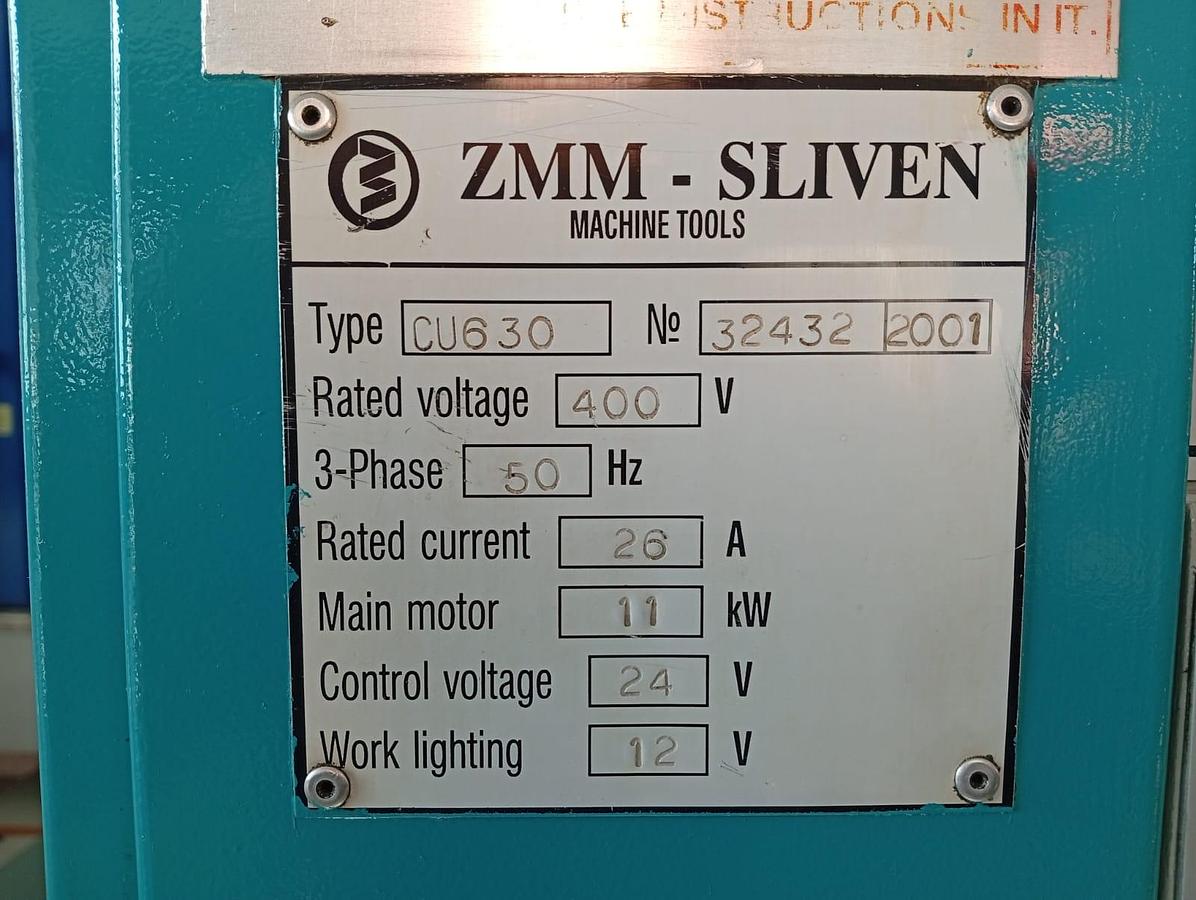

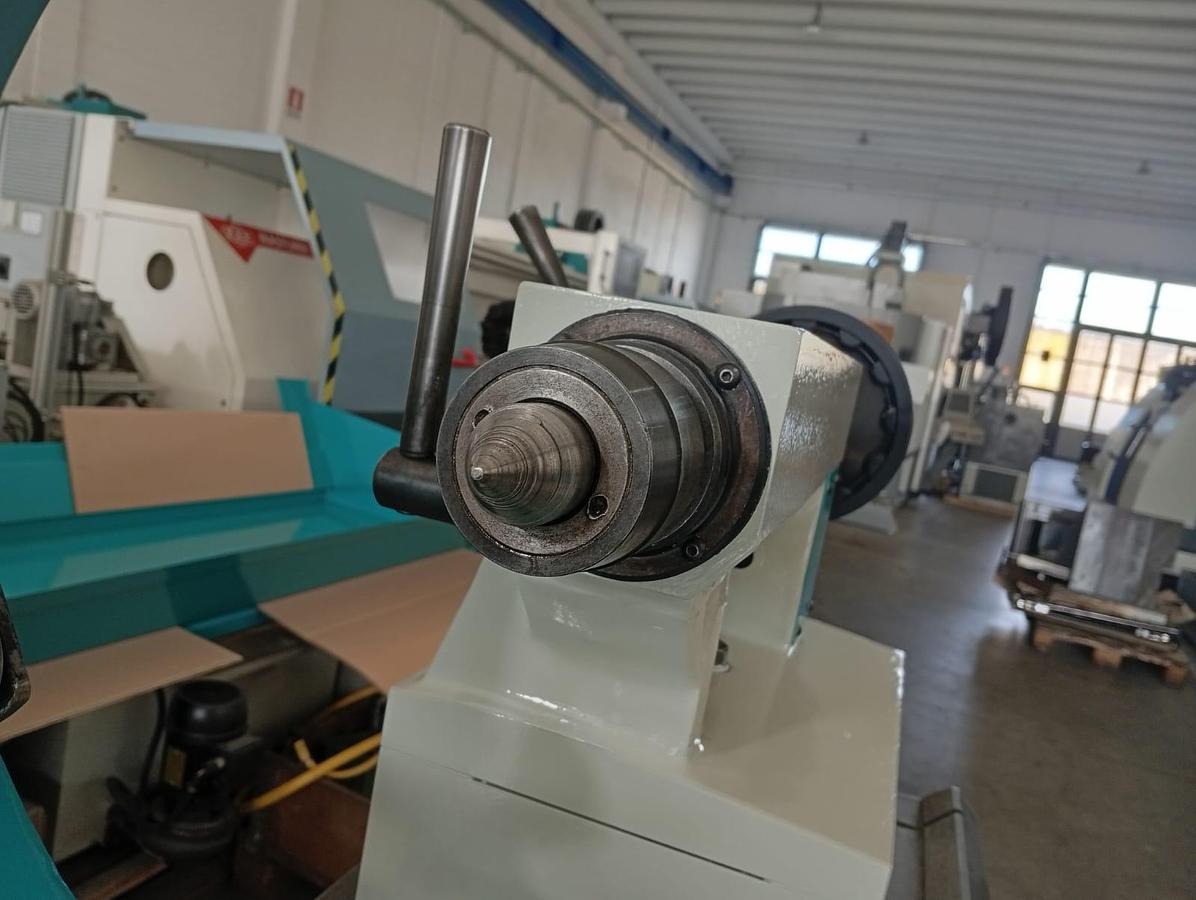

Year 2001 N/S 32432 Tip height 315 mm Spindle diameter on the bed 630 mm Spindle diameter on the carriage 430 mm Spindle diameter in the bore 830 mm Bed width 400 mm Distance between centers 3000 mm Spindle nose CAM LOCK 11 Spindle bore diameter 103 mm Internal spindle taper 120 Spindle speed number 21 Spindle speed range 12.5-1250 rpm Main motor power 11 kW Number of feedrates 120 Longitudinal feed range 0.4-12 mm/rev Cross feed range 0.02-6 mm/rev Rapid traverse longitudinal 3800 mm/rev Rapid traverse cross 1900 mm/rev Thread pitch numbers 64 Metric pitches 0.5-120 mm Imperial pitches 60-1/4 t.p./1" Module pitches 0.125-30 Module Diametral pitches 240-1 DP Cross travel 315 mm Upper carriage travel 130 mm Dead center bore diameter 90 mm Dead center bore travel 230 mm Dead center bore cone 5 Morse DP length 2000 mm 5600 Width 1250 mm Height 1400 mm Weight per distance between centers 2000 mm 3310 kg NON-BOUNDING DATA TO BE VERIFIED
