Centrica 1.26 MW Natural Gas Trigeneration Plant (CHP) + Carrier Absorption Chiller

1.26 MW TRIGENERATION PLANT – MTU 12V4000 L33 + CARRIER ABSORPTION CHILLER

General Overview

Complete natural gas trigeneration system (Electricity + Heat + Cooling) manufactured by Centrica Business Solutions, installed and never commissioned.

The plant is designed for high-efficiency energy production in continuous operation, with simultaneous generation of:

• Electrical power
• Thermal energy (hot water)
• Chilled water via absorption technology

Condition: New – 0 operating hours (installed, not yet commissioned)

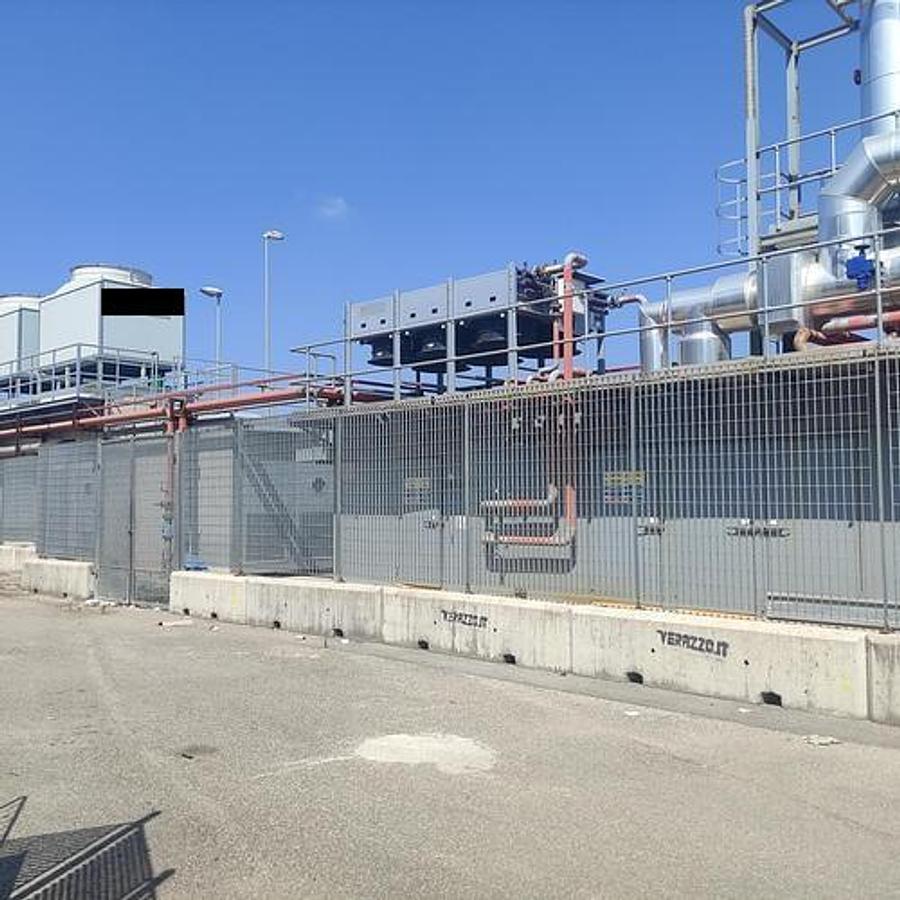

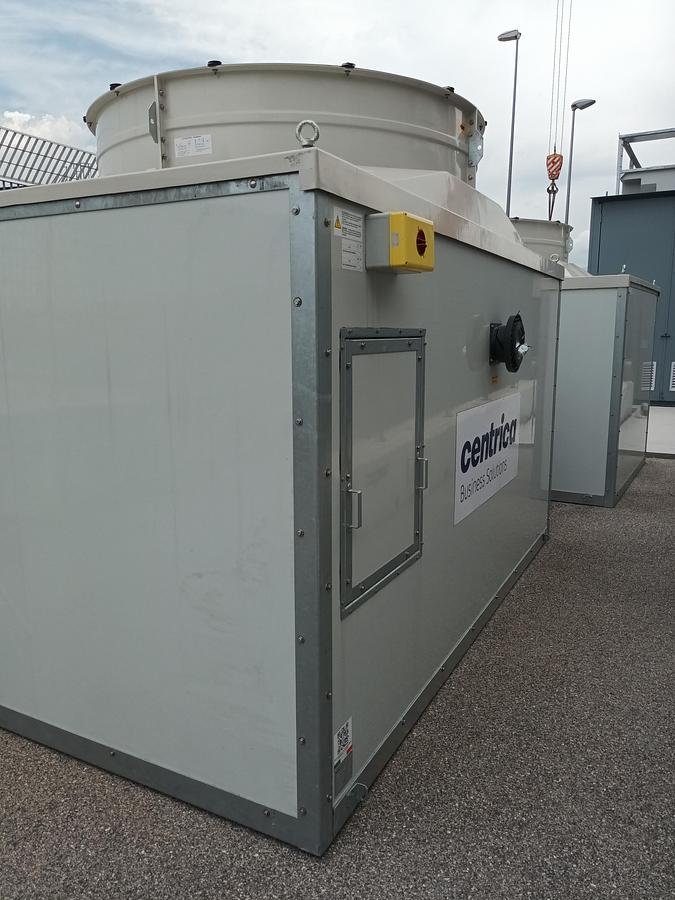

Configuration: Containerized CHP plant + separate absorption chiller

COGENERATION UNIT (CHP)

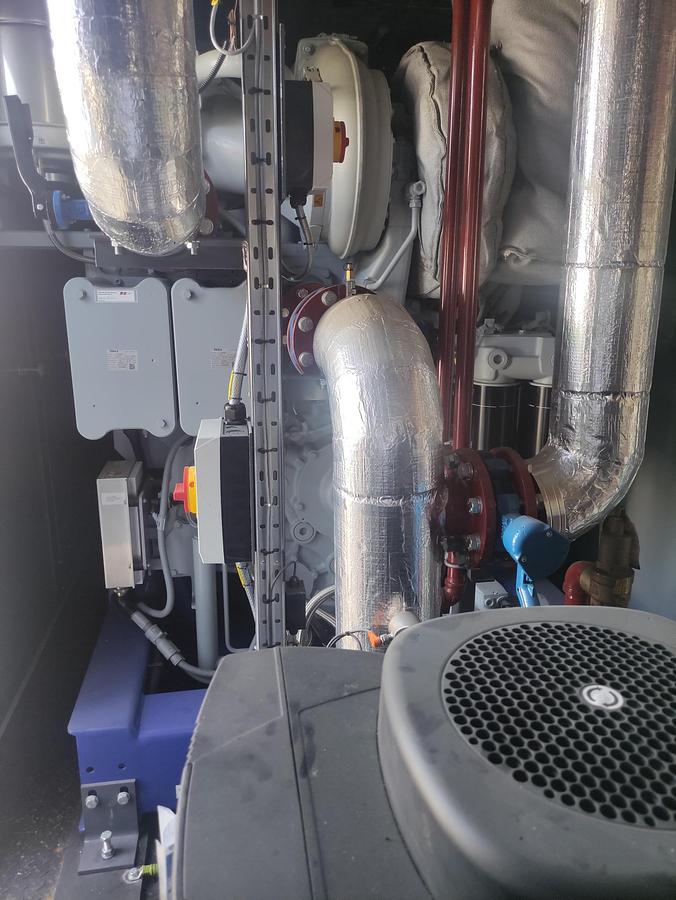

MTU 12V4000 L33 Natural Gas Genset

High-efficiency gas-fired combined heat and power unit for grid-parallel base load operation.

Electrical & Thermal Performance

• Electrical Output: 1,262 kW
• V02_E1265 250NOx L33 Technical …
• Thermal Output: 1,355 kW
• V02_E1265 250NOx L33 Technical …
• Electrical Efficiency (cos φ = 1.0): 42.1%
• V02_E1265 250NOx L33 Technical …
• Thermal Efficiency: 45.2%
• V02_E1265 250NOx L33 Technical …
• Total Efficiency: up to 87.3%
• V02_E1265 250NOx L33 Technical …

Fuel Consumption (Natural Gas)

• 100% load: 299 Nm³/h
• 75% load: 232 Nm³/h
• 50% load: 167 Nm³/h

Engine & Generator

• Engine: Rolls-Royce MTU 12V4000 L33 gas engine
• Configuration: V12
• Max engine power: 1320 kW
• Generator: Stamford PE734E-312
• Type: Three-phase, synchronous, brushless, 4-pole
• Rated voltage: 400 V
• Frequency: 50 Hz
• Rated apparent power: approx. 1935 kVA

Physical Data

• Dimensions (L x W x H): 12,800 x 2,700 x 2,900 mm
• Containerized industrial execution

Description

The MTU 12V4000 L33 gas genset is a complete CHP system for simultaneous production of electricity and heat. Designed for continuous grid-parallel operation, it serves as a primary energy source and is already configured for integration with an absorption chiller for trigeneration (Power + Heat + Cooling).

ABSORPTION CHILLER UNIT

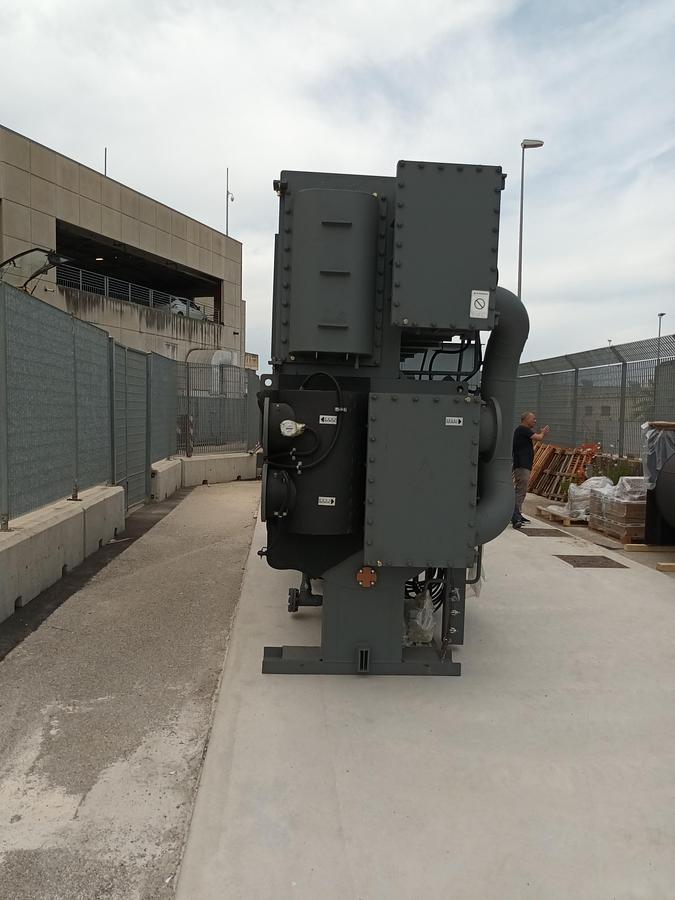

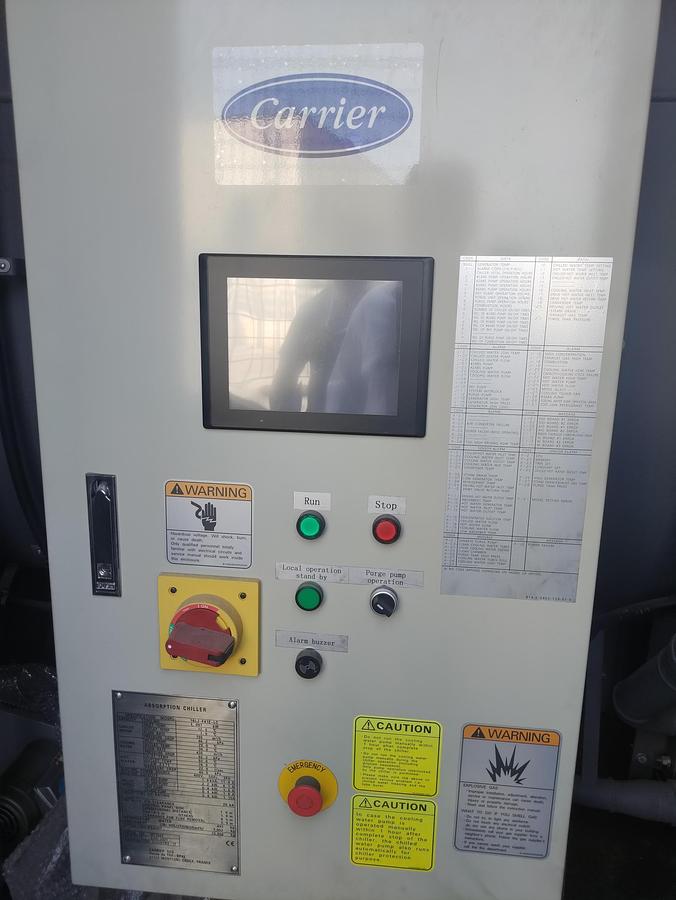

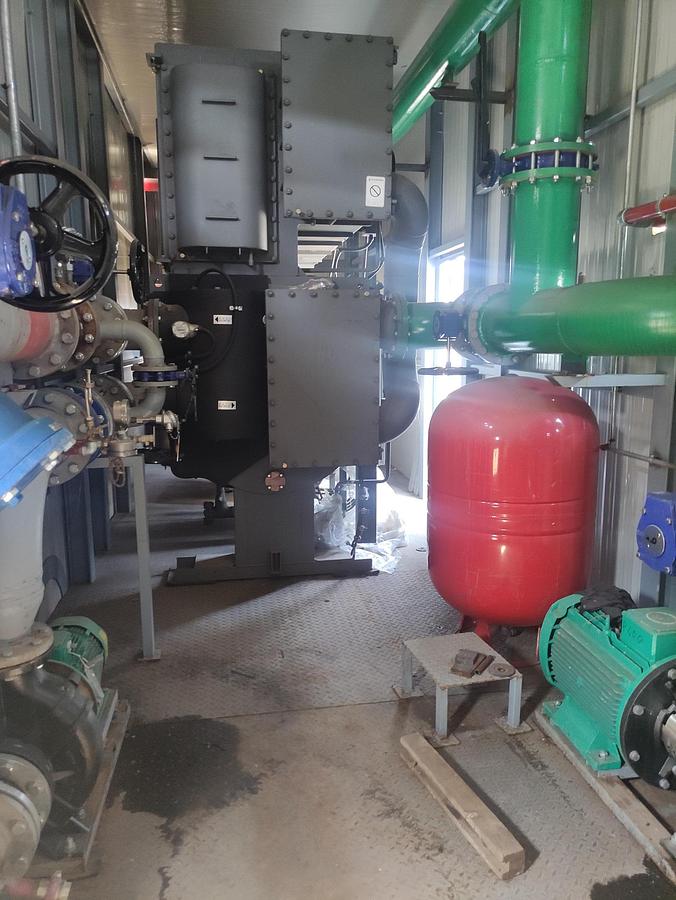

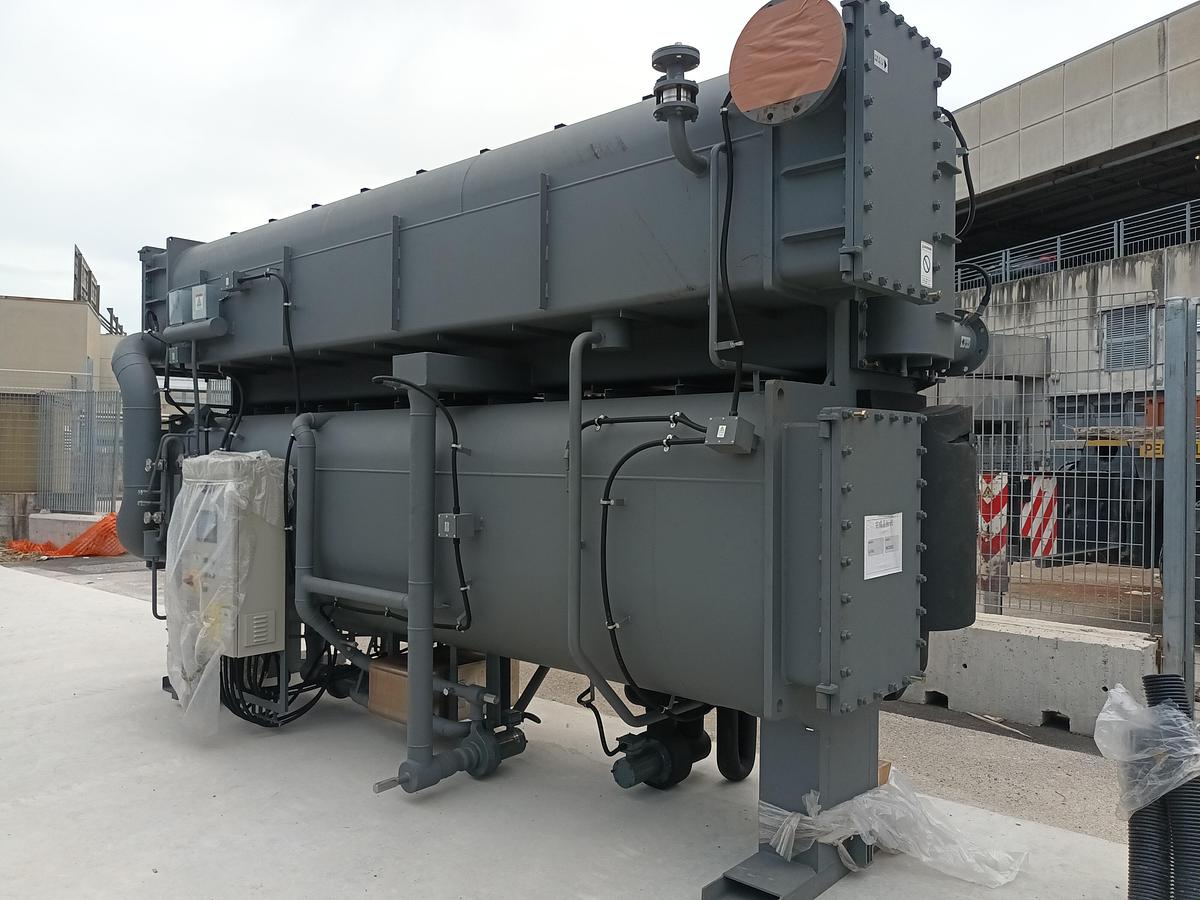

Carrier 16LJ-F41 – Single Effect Hot Water Absorption Chiller

The absorption chiller uses recovered heat from the CHP (engine cooling water and exhaust heat) to produce chilled water without mechanical compression.

Cooling Capacity

• Nominal Cooling Capacity: 1,178 kW

Chilled Water Circuit

• Flow rate: 56.4 L/s
• Pressure drop: 45 kPa
• Connection: 8” DIN
• Retention volume: 0.48 m³

Cooling Water Circuit

• Flow rate: 93.1 L/s
• Pressure drop: 117 kPa
• Connection: 10” DIN
• Retention volume: 1.39 m³

Electrical Supply

• 400 V – 3 phase – 50 Hz
• Electrical absorption: 12.8 A

Installed Pumps

• Absorbent pump No.1: 3.0 kW
• Absorbent pump No.2: 0.4 kW
• Refrigerant pump: 0.4 kW
• Purge pump: 0.4 kW
• PD cell heater: 0.038 kW

Physical Data

• Dimensions (L x H x W): 5,330 x 3,080 x 1,690 mm
• Weight: 13,700 kg

Description

The Carrier 16LJ-F41 absorption chiller operates using a lithium bromide–water absorption cycle. Unlike compression chillers, cooling is produced using thermal energy recovered from the cogenerator, with minimal electrical consumption. The system converts waste heat into chilled water, completing the trigeneration process and significantly increasing overall plant efficiency.

SYSTEM ADVANTAGES

✔ Very high total efficiency (~87%)

✔ Simultaneous production of electricity, heat and cooling

✔ Reduced operating costs and fuel consumption

✔ Low electrical demand for cooling production

✔ Industrial-grade equipment from MTU, Stamford and Carrier

✔ Ideal for hospitals, industrial plants, hotels, shopping centers, district energy systems

Plant Type: Natural Gas Trigeneration System

Electrical Power: 1.262 MW

Thermal Power: 1.355 MW

Cooling Power: 1.178 MW

non-binding information to be verified at purchase
