1996 DRENT Gazelle S 316

DRENT Gazelle S 316

Year of construction: 1996

Type: Gazelle S 316

Equipment:

1 paper unwinder for max. 120 cm roll diameter

maximum paper width 500 mm

maximum print width 480 mm

Sleeve diameter 70 mm

Paper weight from 40 – 150 g/m2

2 compressed air expansion axes for 70 mm sleeve diameter of the unwind

1 compressed air expansion axis for 70 mm sleeve diameter of the reel

1 web edge control device with remote adjustment

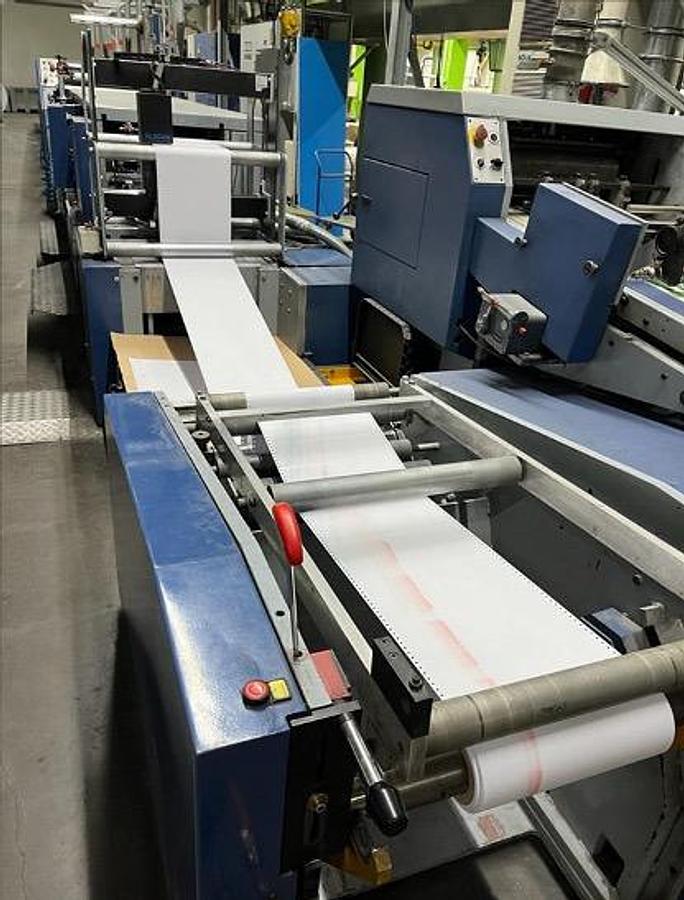

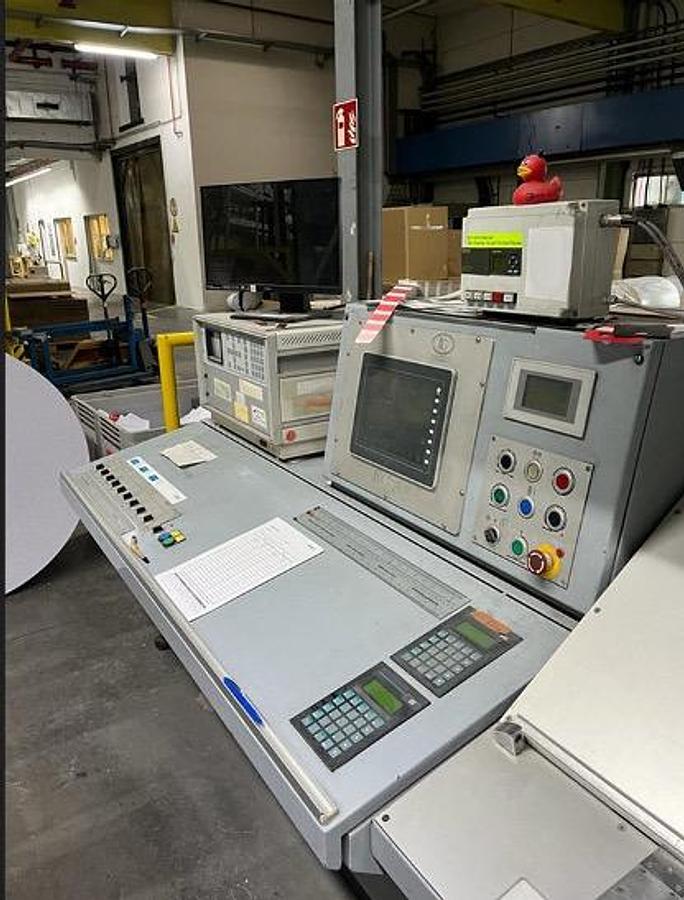

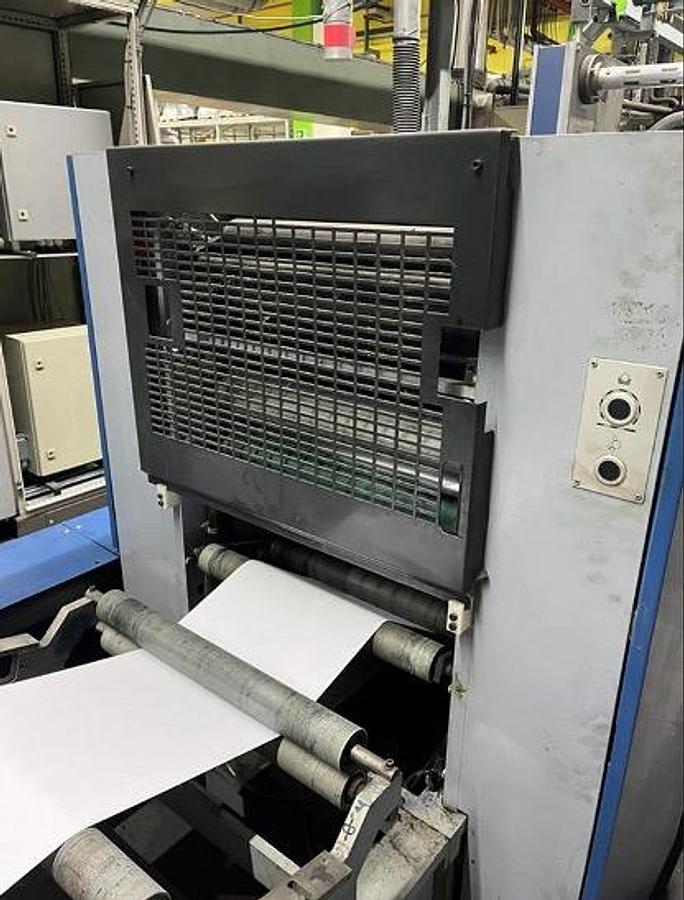

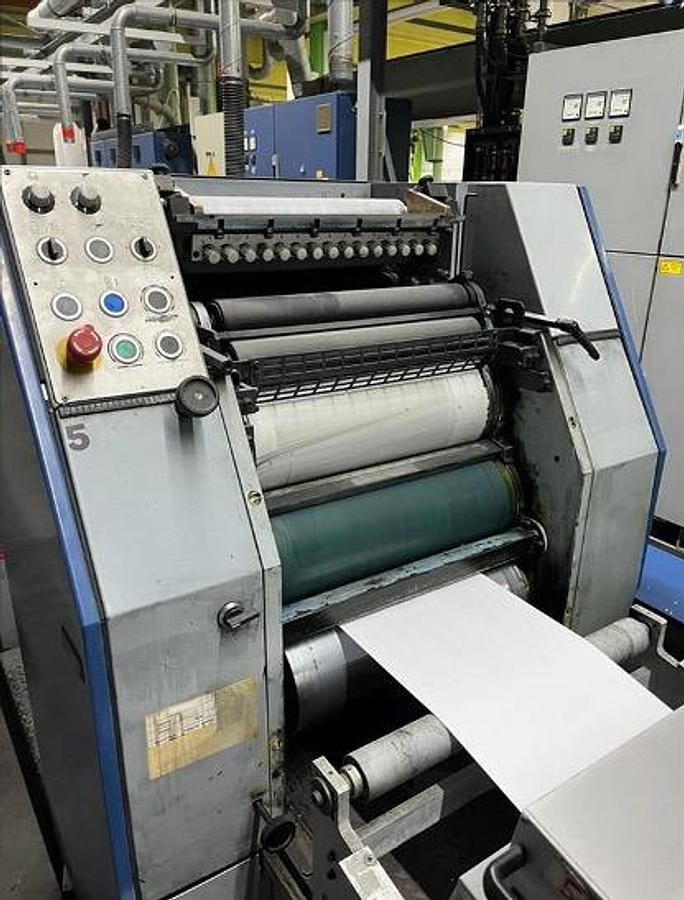

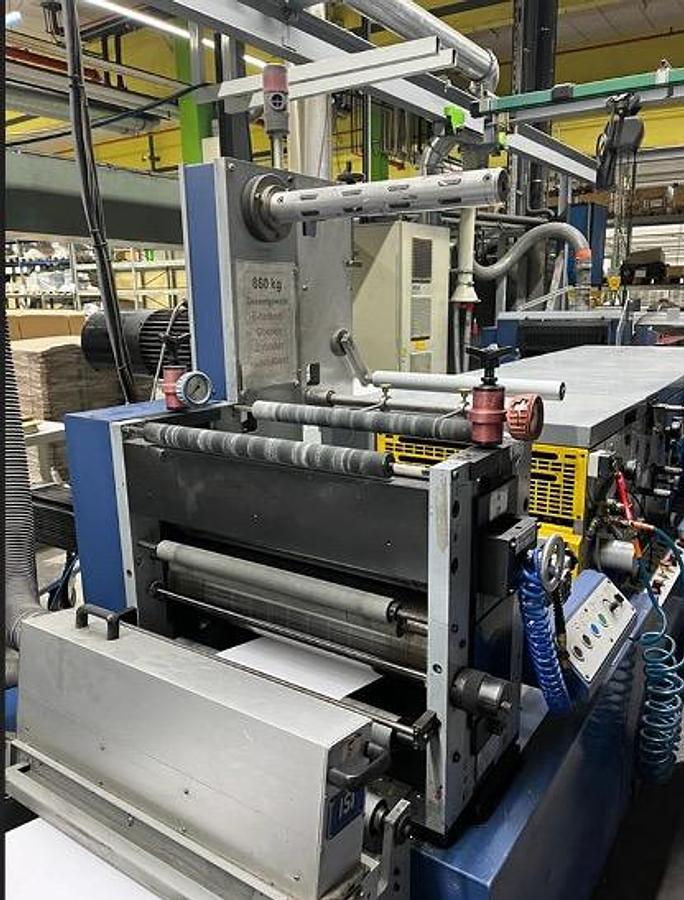

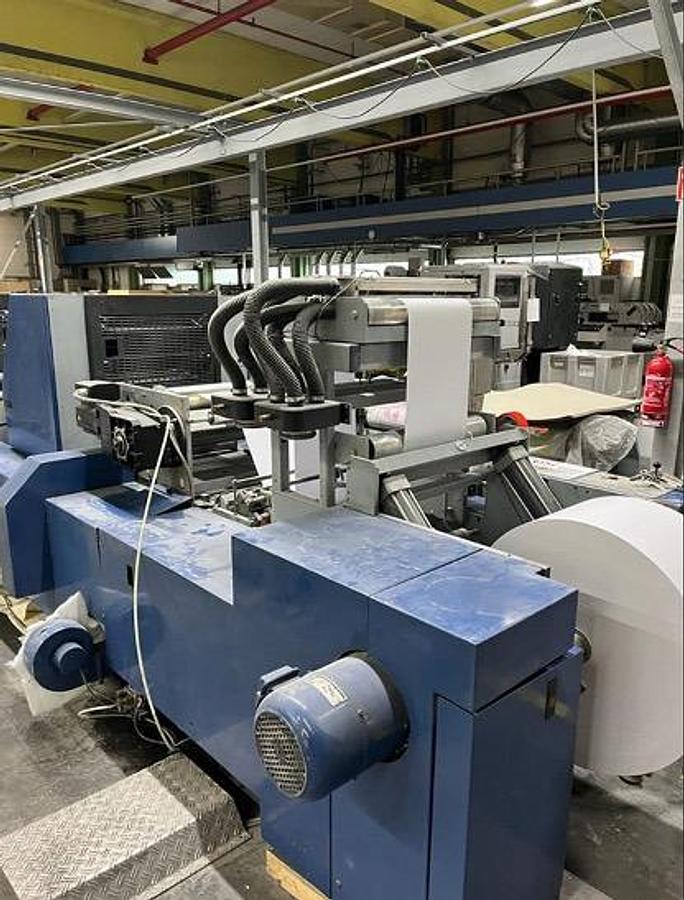

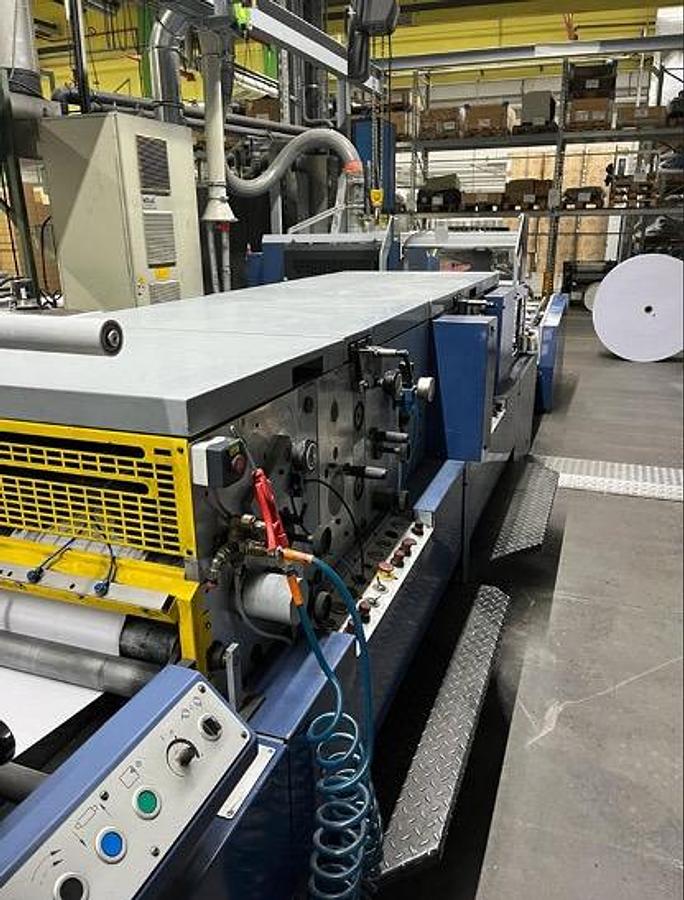

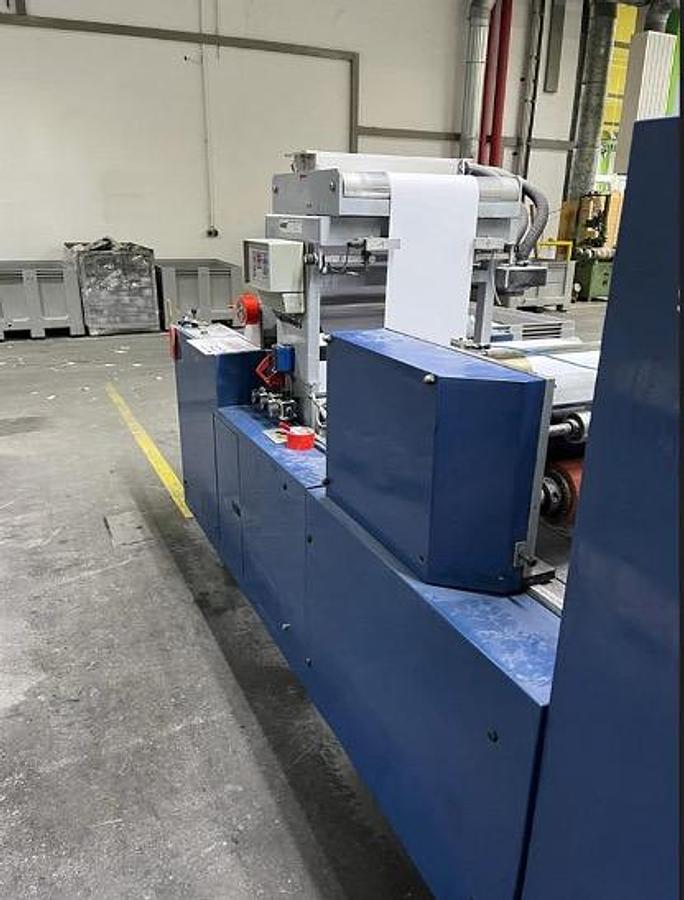

9 wet offset printing units with alcohol dampening unit

in 16 2/3 inches, 24 inches and 25 inches

Print: 9/0 colored

8/1 colored

7/2 colored

6/3 colored

5/4 colored

The paper web runs in a straight line with a final dryer.

4 turning crosses in printing unit 1 - 4

9 wet offset printing inserts with 25 inch cylinder circumference

Offset plate thickness 0.3 mm

Clamping channel 9.0 mm

UV drying

1x2 end dryer + 1x3 end dryer can be used variably

1 ink roller temperature control system for each printing unit

Tool group

1 pull unit

1 filing hole – punching stations equipped with:

1 filing hole insert 25 inches with 2 pairs of tools

for head and side filing holes at 4 / 6 / 8 and 12 inches

Remaliner punching station

Trimming device for shear cutting with 2 pairs of knives

Longitudinal perforation with pneumatic knife holders

Cross cutting cylinder circumference 16 2/3 inches

Transverse perforation cylinder circumference 25 inches

Punching unit GAP Master 25 inch magnetic cylinder

Gap size 0.48 mm

Rewinding for 1200mm roll diameter

Web video camera BST for railway observation front and back

max. running speed 250 m/min roll/single sheet

250 m/min roll/roll

max. production speed 250 m/min roll / single sheet

250 m/min roll/roll

Drent Gazelle interchangeable units

24 inches

9 wet offset printing insert 24 inch cylinder circumference

Offset plate thickness 0.3 mm

Clamping channel 10.0 mm

max. printing width 480 mm

1 magnetic punching unit GAP Master 24 inches, gap size 0.48 mm

1 cross cutting cylinder 16 2/3 inch circumference with 7.8mm cutout

1 filing hole slot 20 inches

with 1 pair of tools for 6 2/3 inch filing holes

16 2/3 inches

9 wet offset printing trays 16 2/3 inches

Gazelle single sheet delivery

DIN formats delivery:

DIN A3

A4

DIN A5 with separating cut via cutting cylinder

A cutout is also possible. This means formats such as A4 and A5 are also possible

Customs formats display:

24 inches, 12 inches, 8 inches

25 inches, 12.1/2 inches, 8.1/3 inches

Max. width for single sheet delivery: 480mm

Max. speed of single sheet delivery 150m/min

Maximum grammage: 120g/m²
