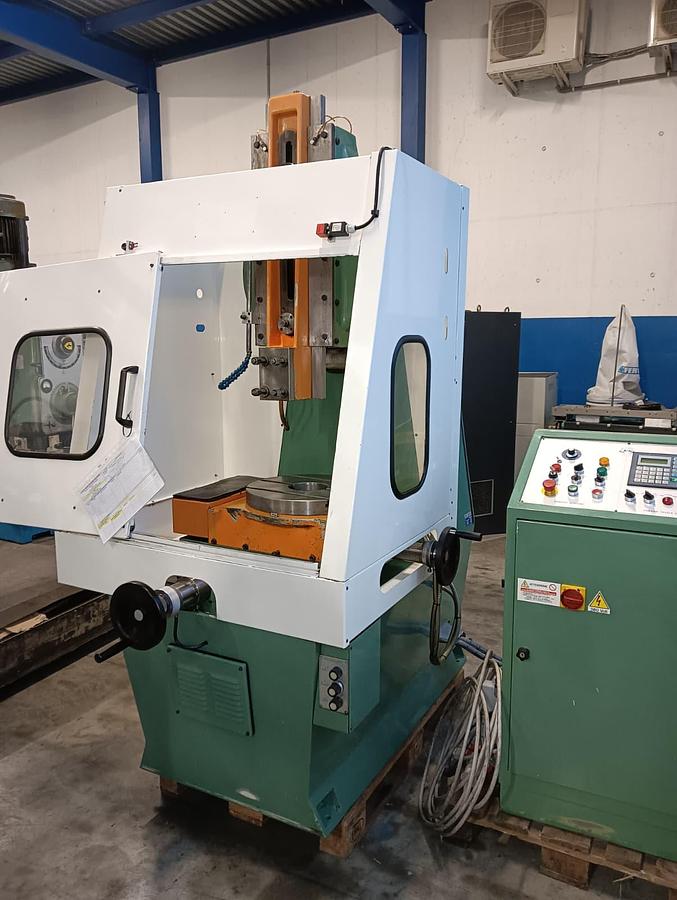

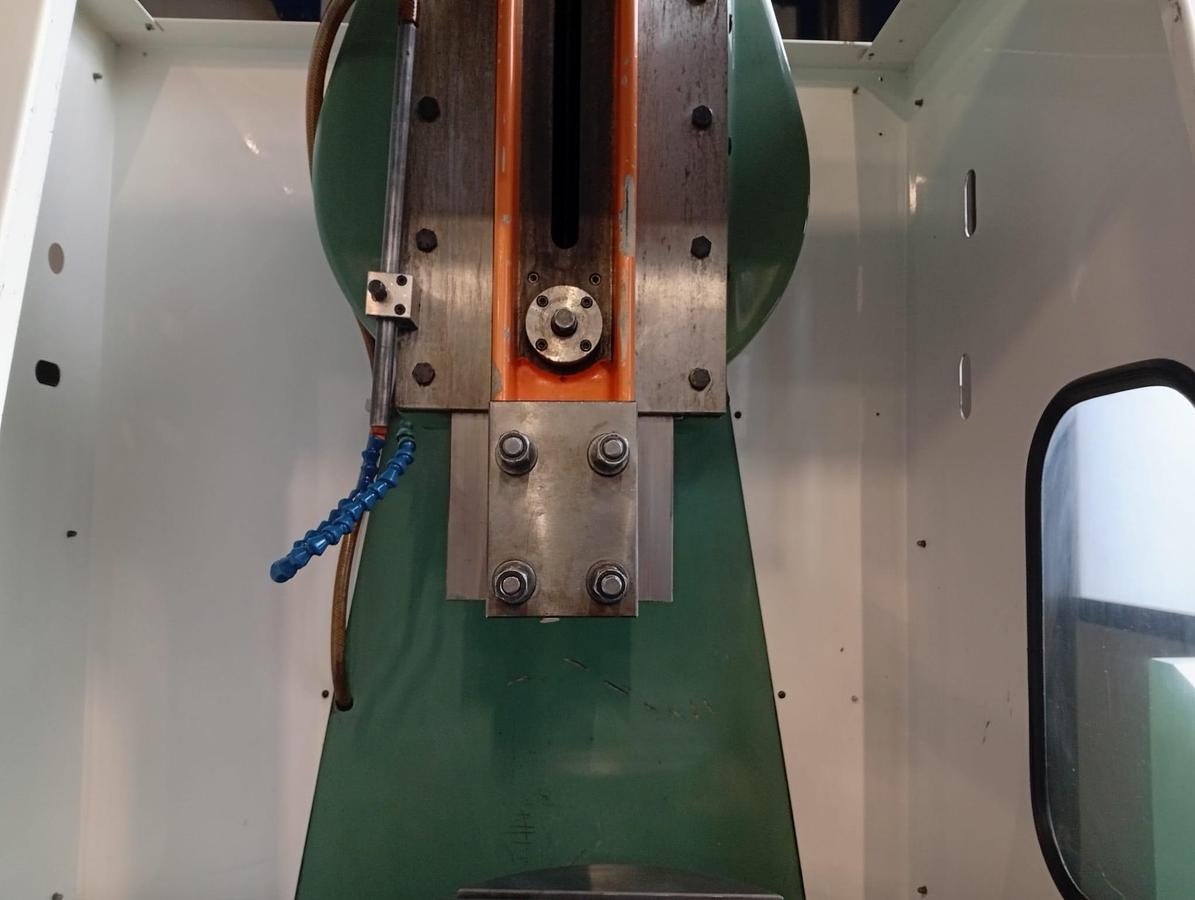

1995 CAMS SLOTHING MACHINE mod.300 SACTE

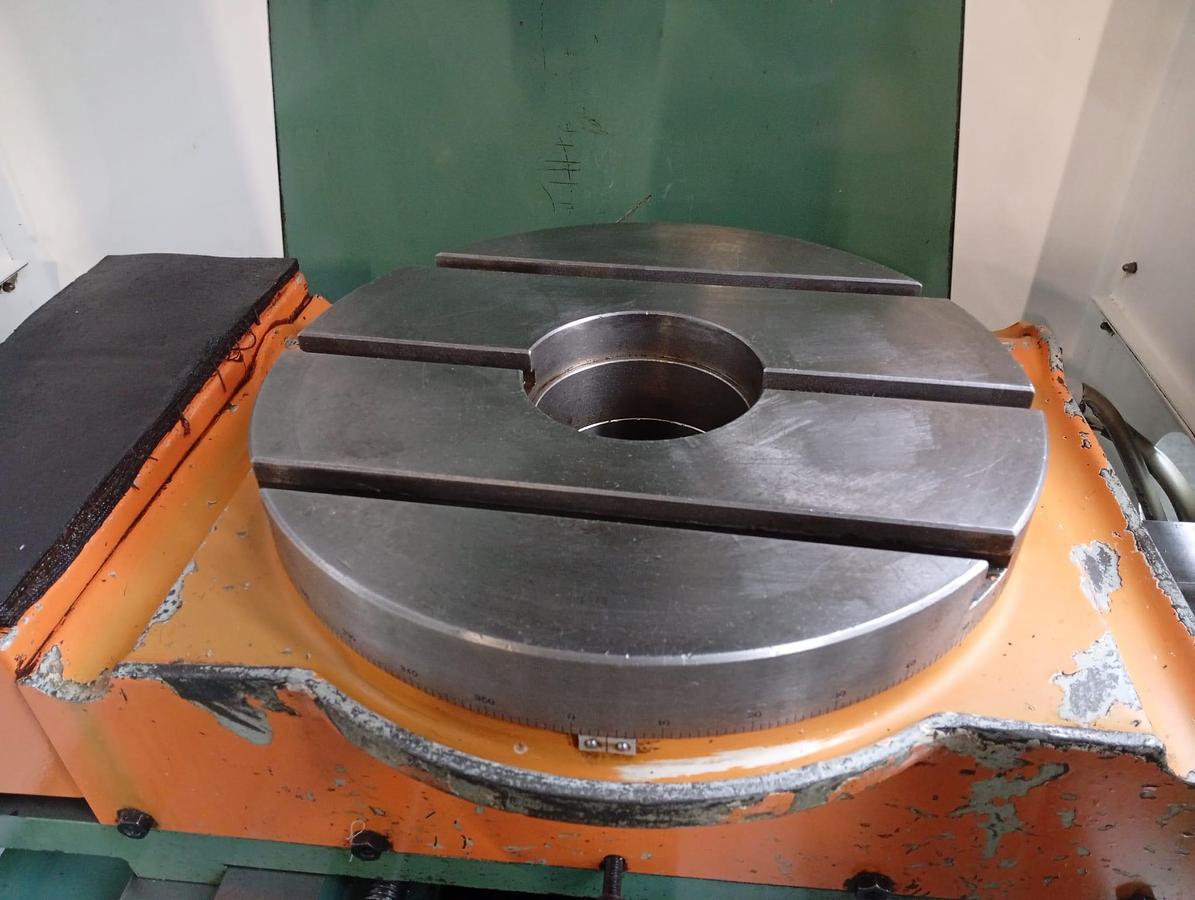

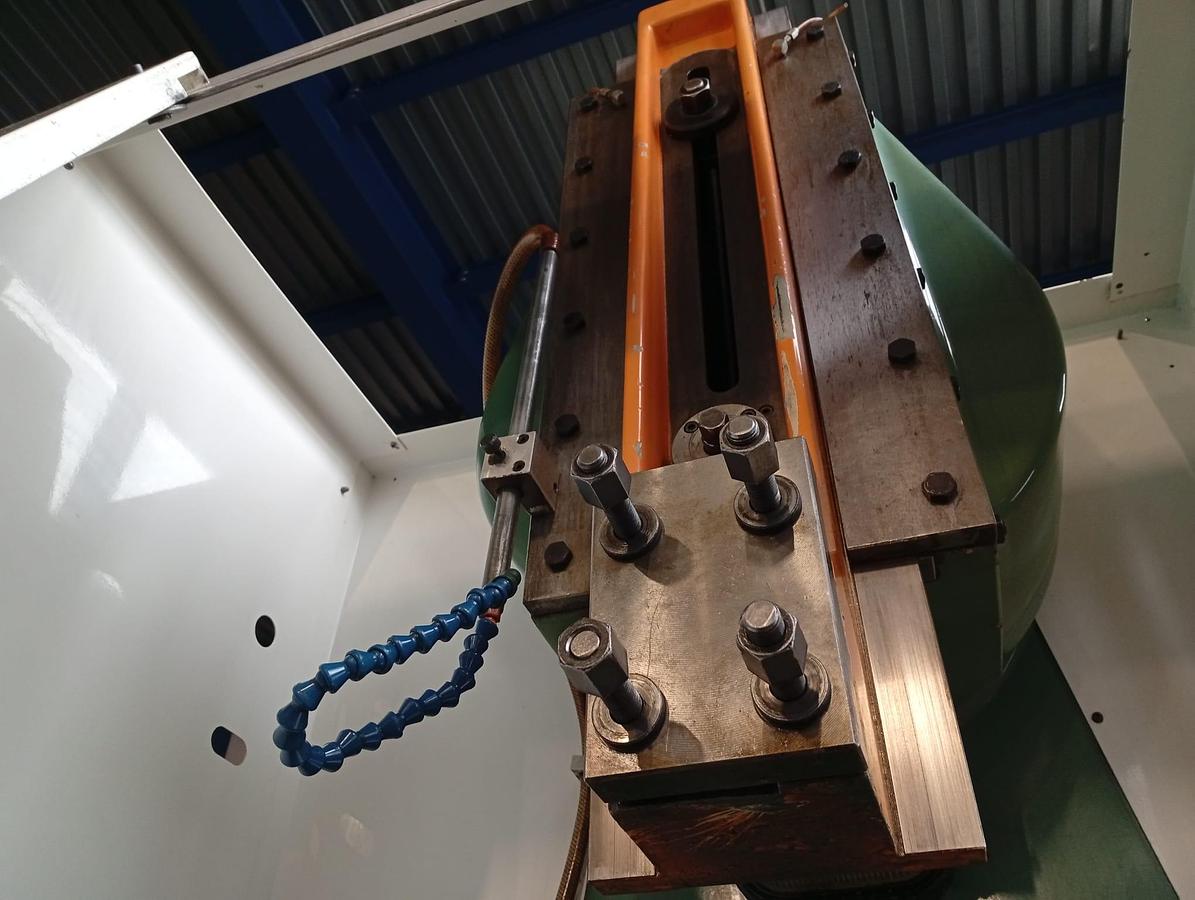

YEAR 1995 Tool release and automatic longitudinal feed Rotary table incorporated in automatic cycle DC table rotation Automatic ram lubrication pump Tool stroke adjustable from 0 to 300 mm Column-tool holder distance: 500 mm Ram vertical movement: 500 mm Table dimensions: 400 x 650 mm Rotary table diameter: 450 mm Longitudinal table travel: 400 mm Transversal travel: 400 mm Automatic longitudinal travel: 30 mm Feed from 0 to 0.25 mm Motor power (6-pole): 5.5 HP OVERALL DIMENSIONS: 1100 x 1700 x 2900 mm Weight: 2100 kg THIS DATA IS NON-BINDING, MUST BE VERIFIED
