2010 CTP Kodak Magnus 800 Quantum SquareSpot with MCU 2010 / CTP Kodak Magnus Platesetter 800 Quantum SquareSpot with MCU 2007-

No longer available

2010 CTP Kodak Magnus 800 Quantum SquareSpot with MCU 2010 / CTP Kodak Magnus Platesetter 800 Quantum SquareSpot with MCU 2007-

Location:Suzhou, China

Description

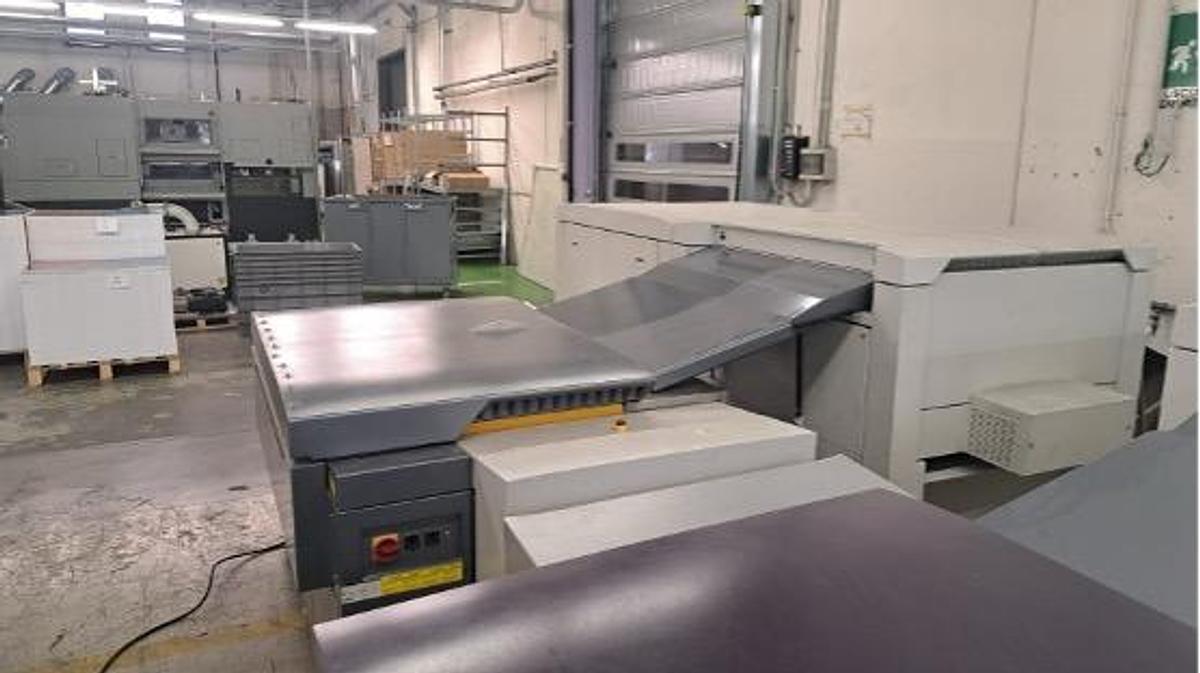

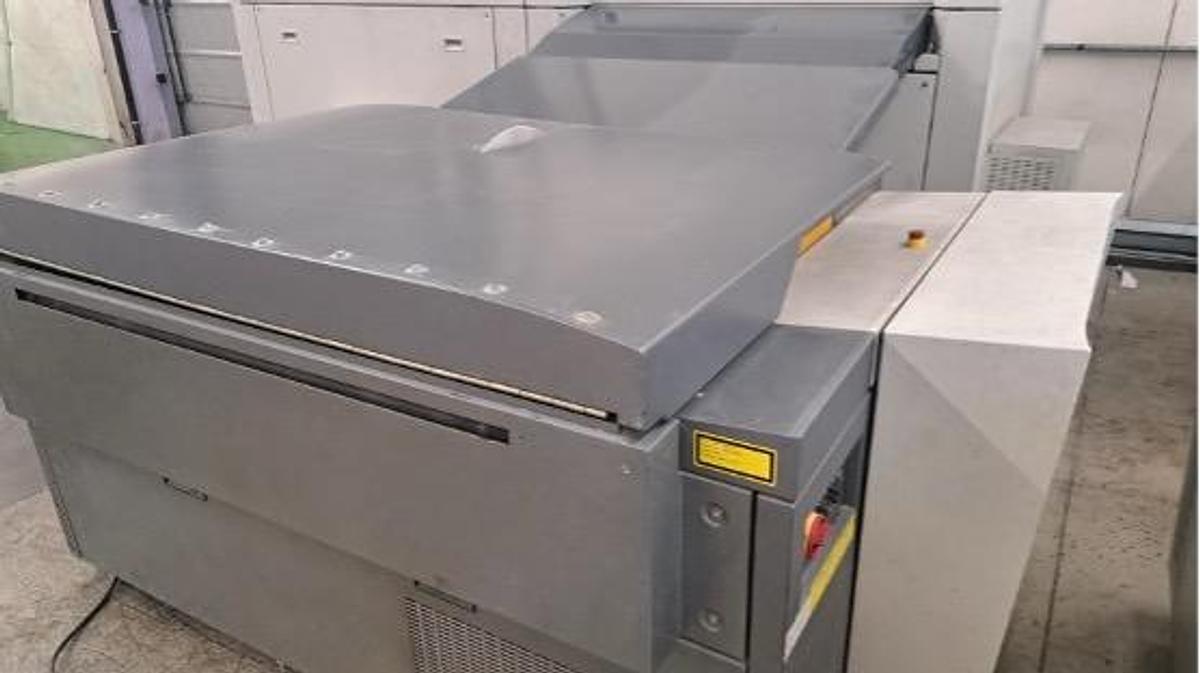

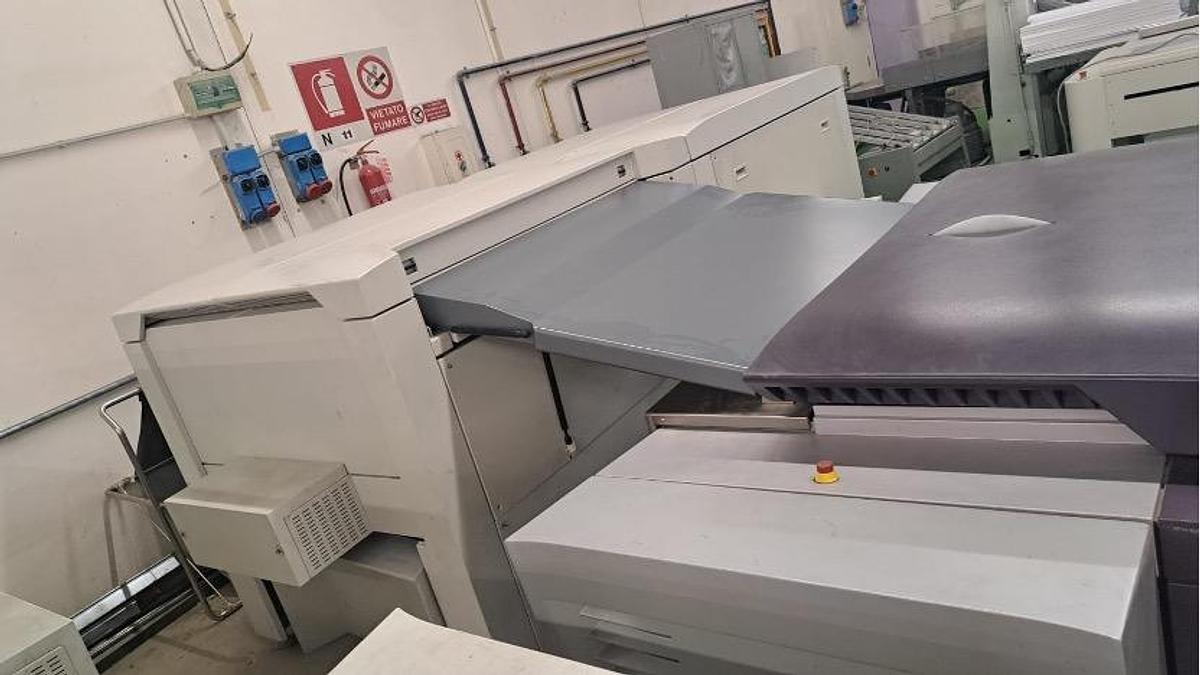

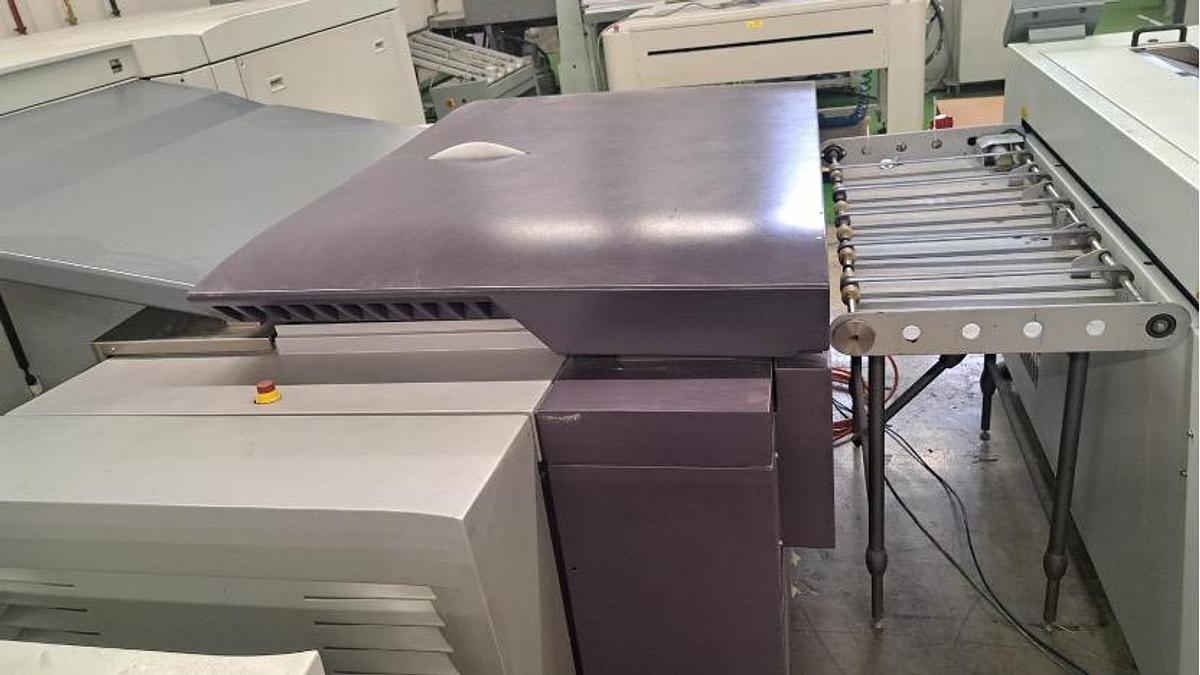

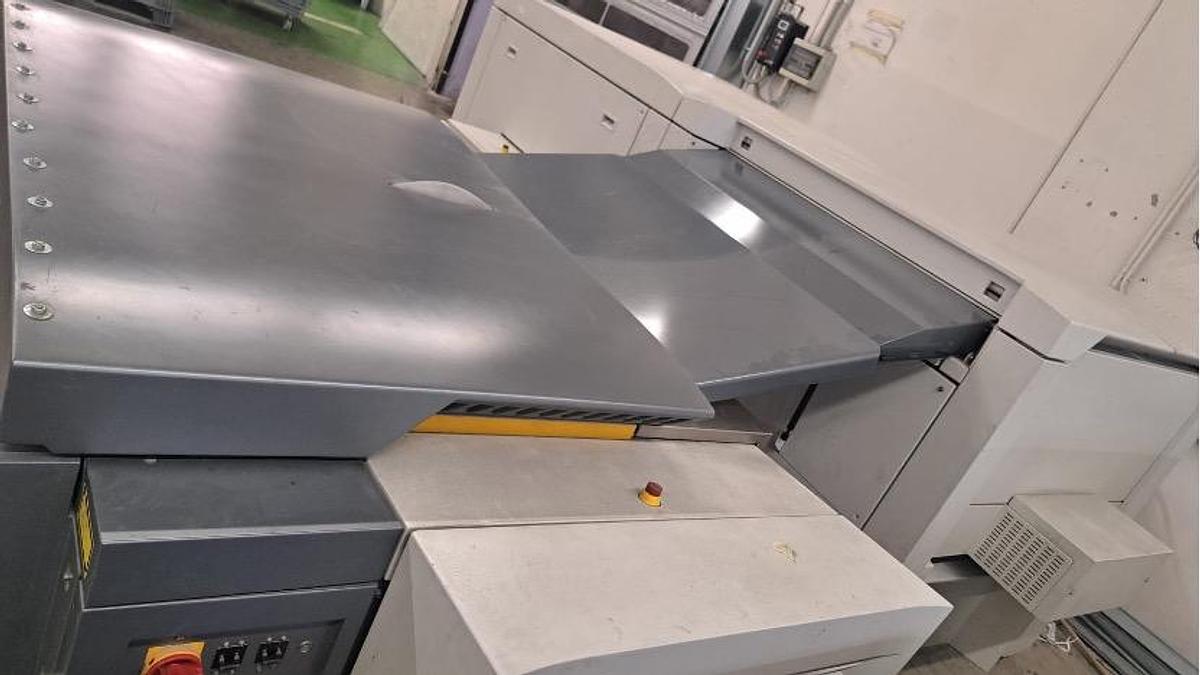

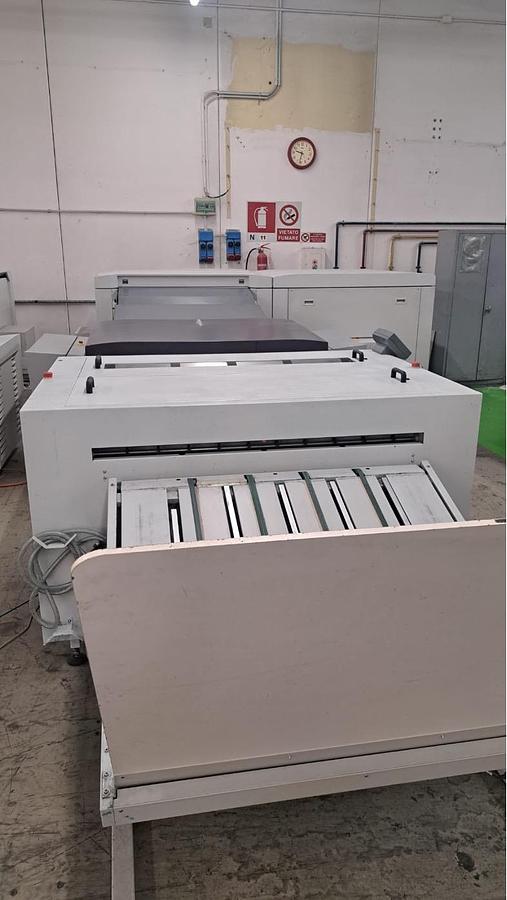

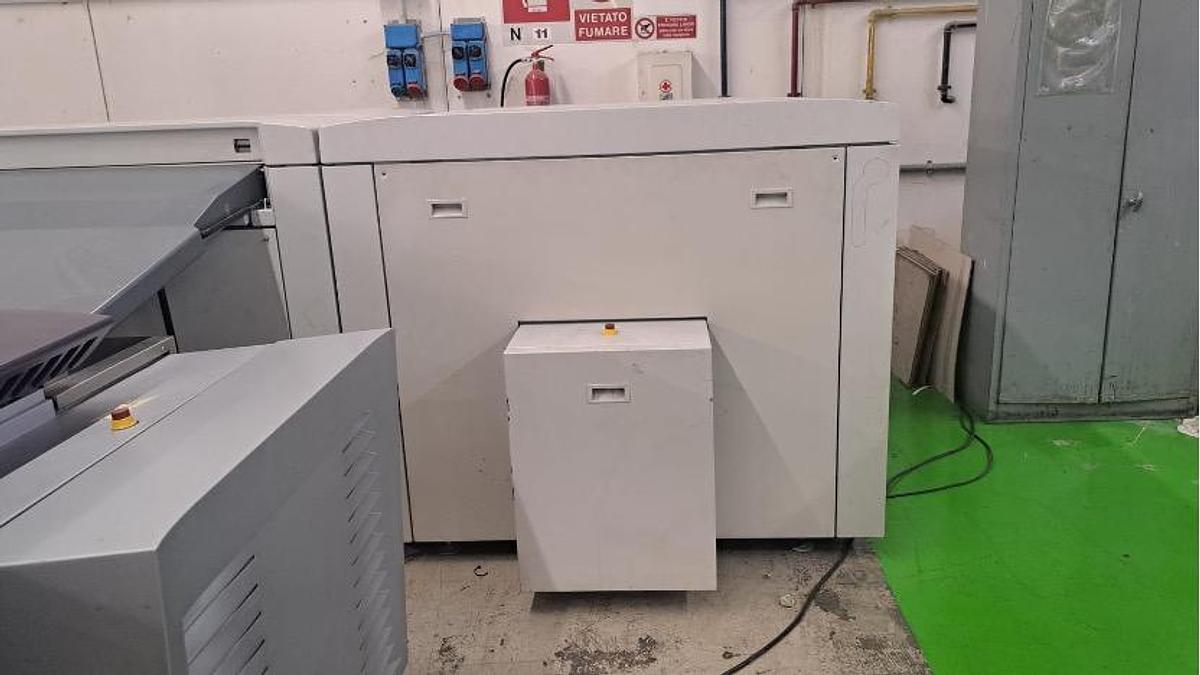

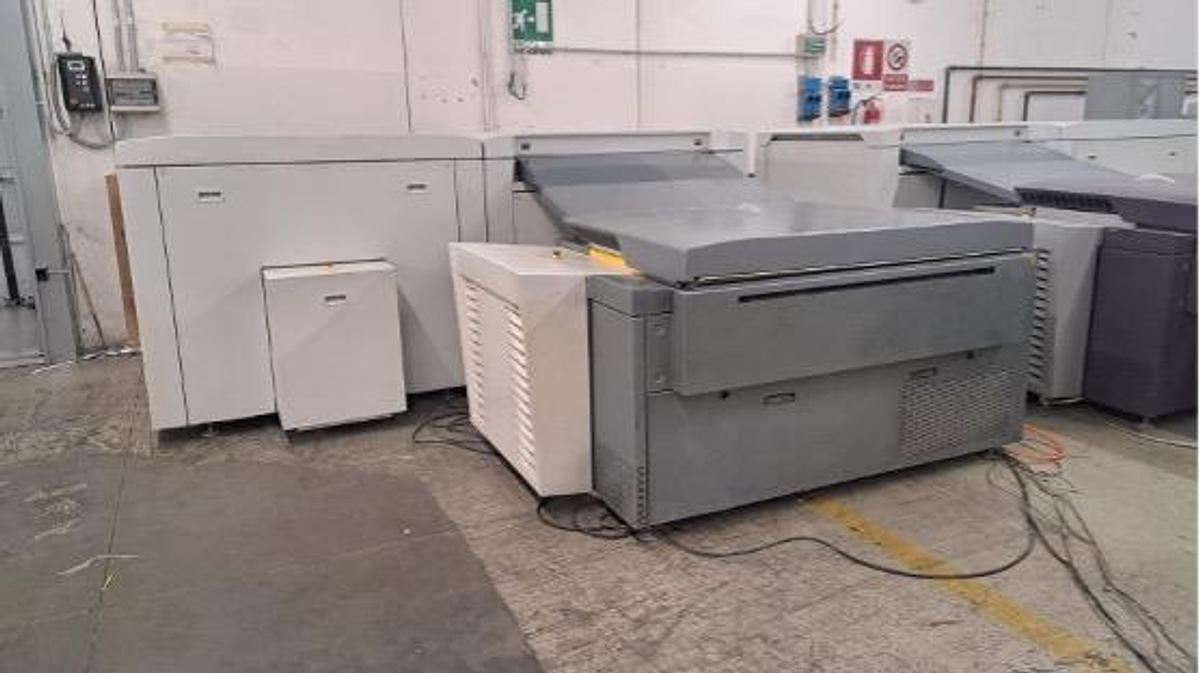

1.     KODAK MAGNUS Q 800 PLATESETTER

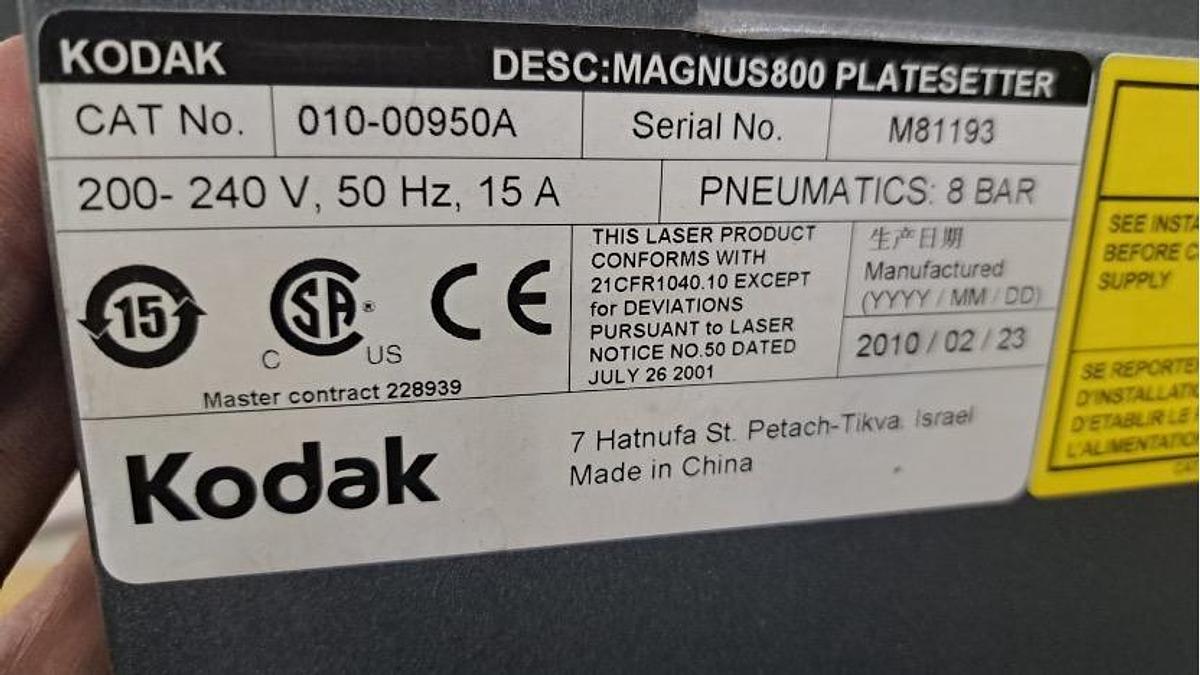

-Serial Number: M81193 (23/02/2010)

-Model: Kodak Magnus 800 (Quantum SquareSpot)

-Machine Configuration: MCU Autoloader with 4 cassettes and automatic paper removal

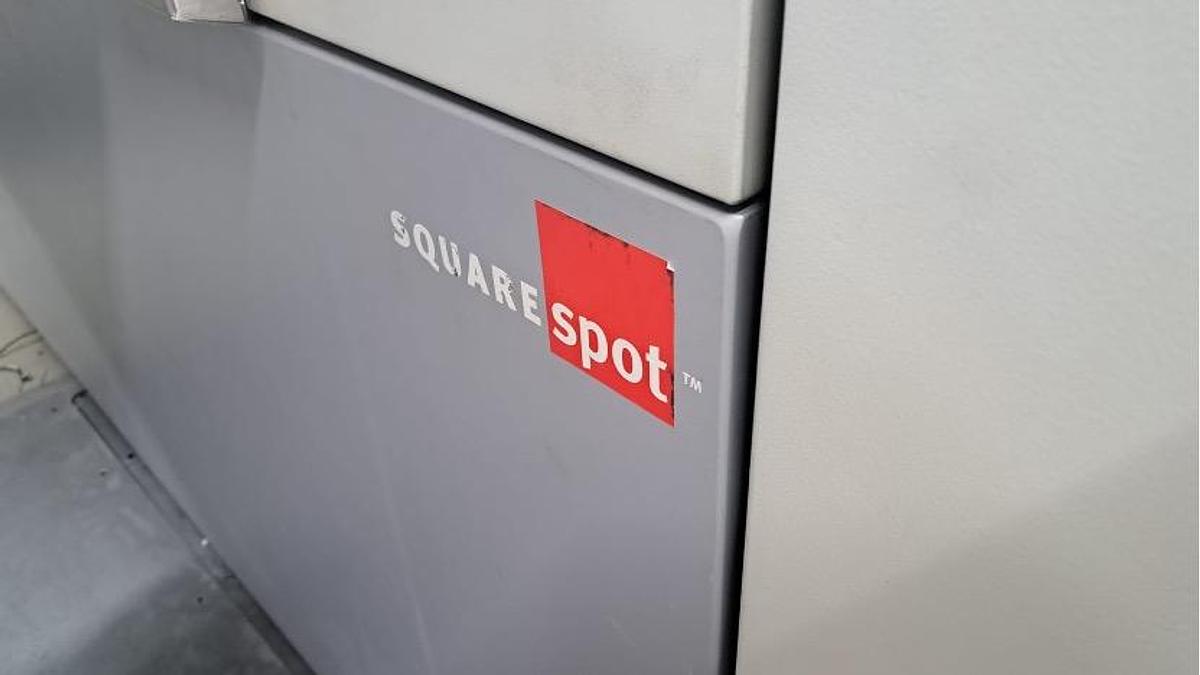

-Imaging Head: KODAK SquareSpot / Quantum THERMAL Imaging Head/ GMCE

-Laser head model TH2 installed in 2012

-Throughput (configured): ~45 plates/hour- X speed

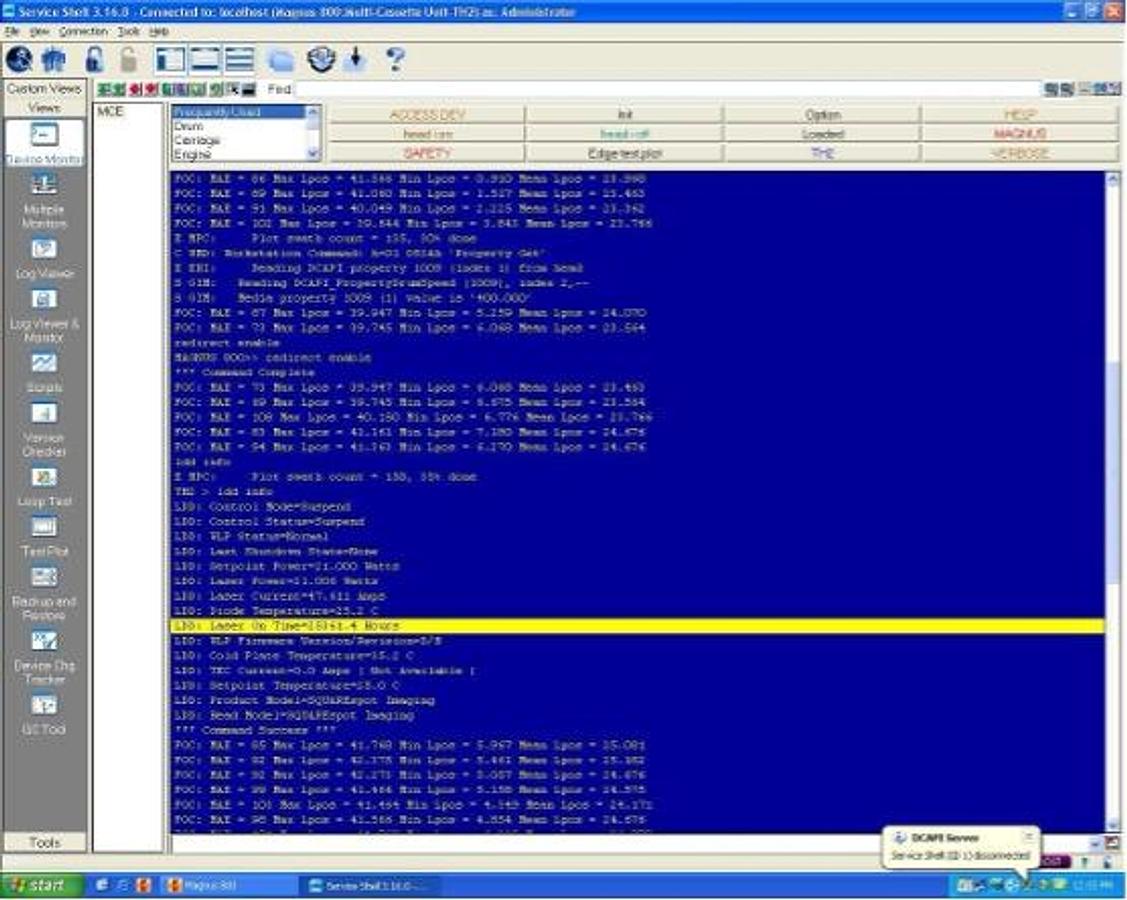

-In last Kodak service ( Nov. 2024 ) the head ran 25,361 hours; today, we're at approximately 27,172 hours. Screenshot attached.

-Plate Format: Support for B1 formats / minimum format 318 x 305 mm - maximum format 950 x 1163 mm

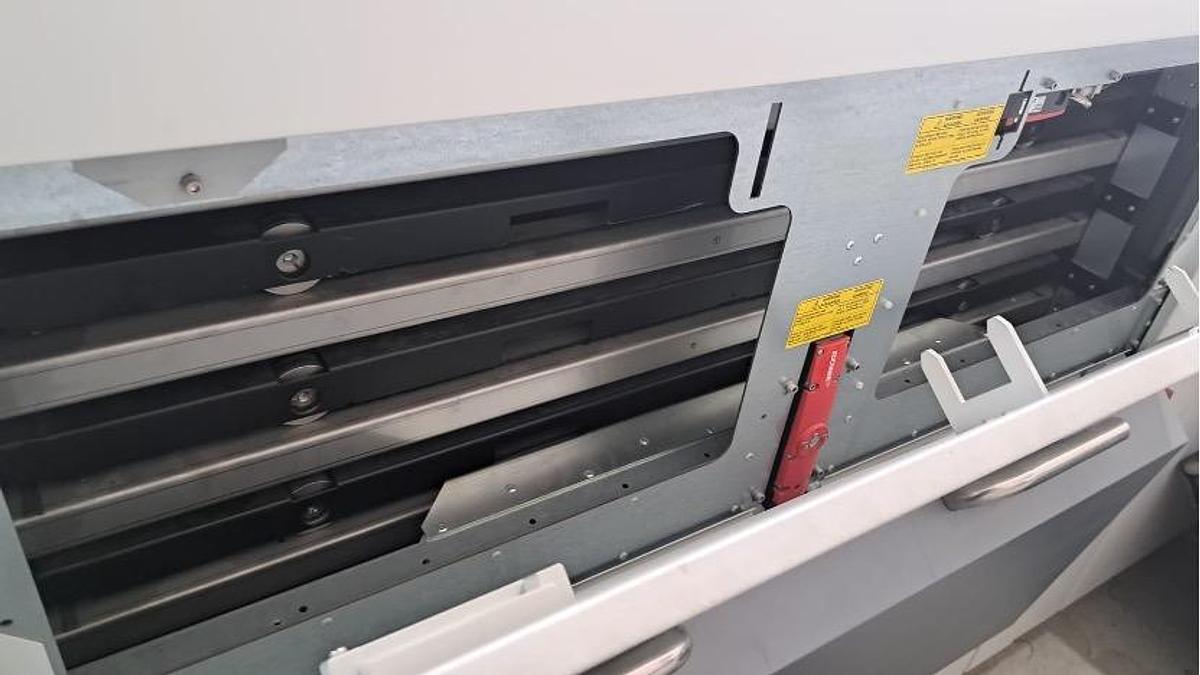

-Plate Handling / Automation: MCU Multi-cassette unit (autoloader) — 4 cassettes; reloading during use, automatic cassette selection per job. Typical cassette capacity: up to ~100–110 plates per cassette (variable by thickness).

-Resolution and screening: Supports common resolutions of 2400 dpi; compatible with Kodak advanced screening (e.g., Staccato).

-Integrated punch (optional): for Backer and Komori. Screenshot attached.

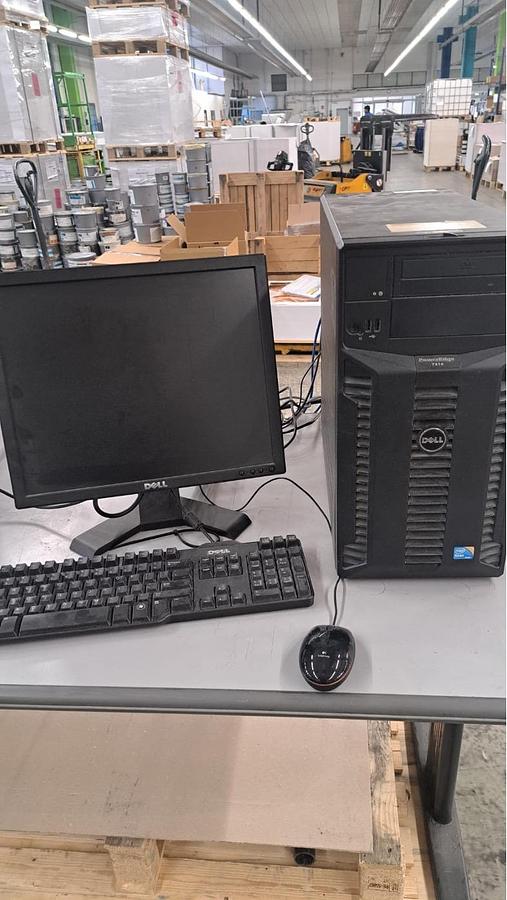

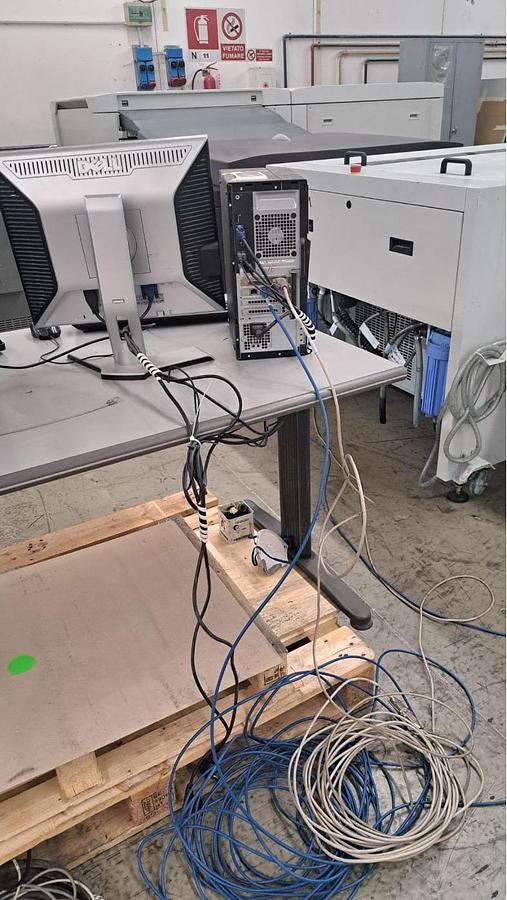

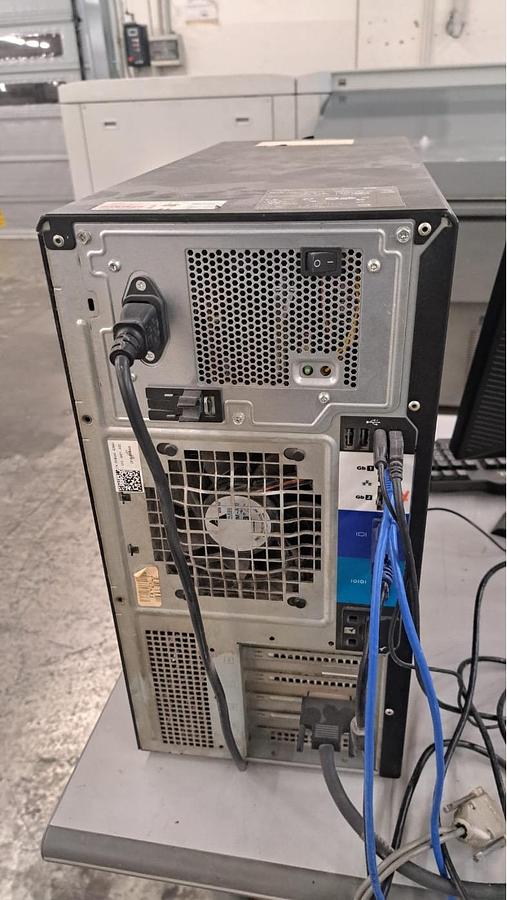

-Software/workflow integration: RIP Kodak Printconsole, Kodak Prinergy Workflow server,  computer and monitor included - receives 1-bit TIFFs from any device, even non-Kodak devices.

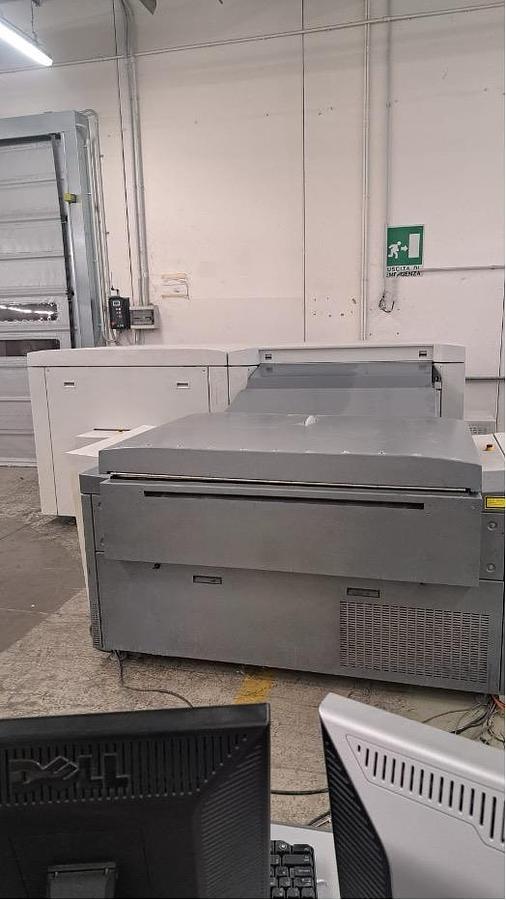

2.     KODAK MAGNUS Q 800 PLATESETTER

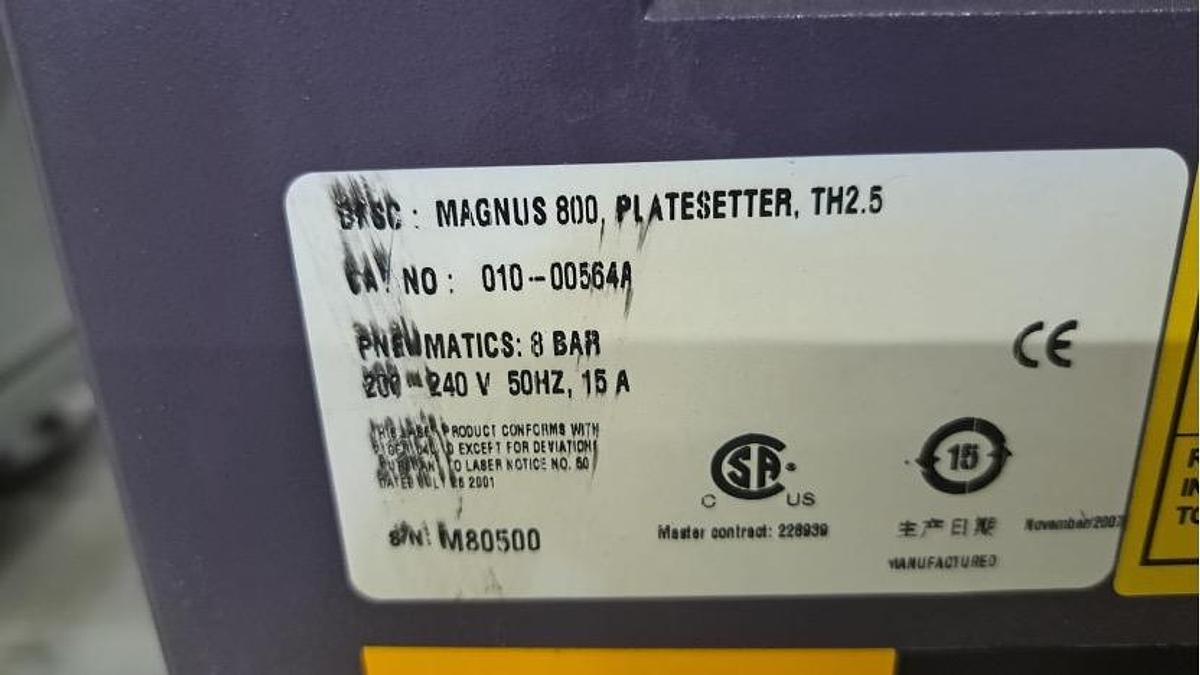

-Serial Number: M80500 (November 2007 -> TOTALLY refurbished by Kodak in 2015)

-Model: Kodak Magnus 800 (Quantum SquareSpot)

-Machine Configuration: MCU Autoloader with 5 trays and automatic paper removal

-Imaging Head: KODAK SquareSpot / Quantum THERMAL imaging head / GMCE

-Laser head model TH 2 installed in 2015

-Throughput (configured): ~45 plates/hour- X speed

-Plate Format: Supports B1 formats / minimum size 318 x 305 mm - maximum size 950 x 1163 mm

-Plate Handling / Automation: Multi-cassette unit (autoloader) — 5 cassettes; refillable during use, automatic cassette selection per job. Typical cassette capacity: up to ~100–110 plates per tray (variable by thickness).

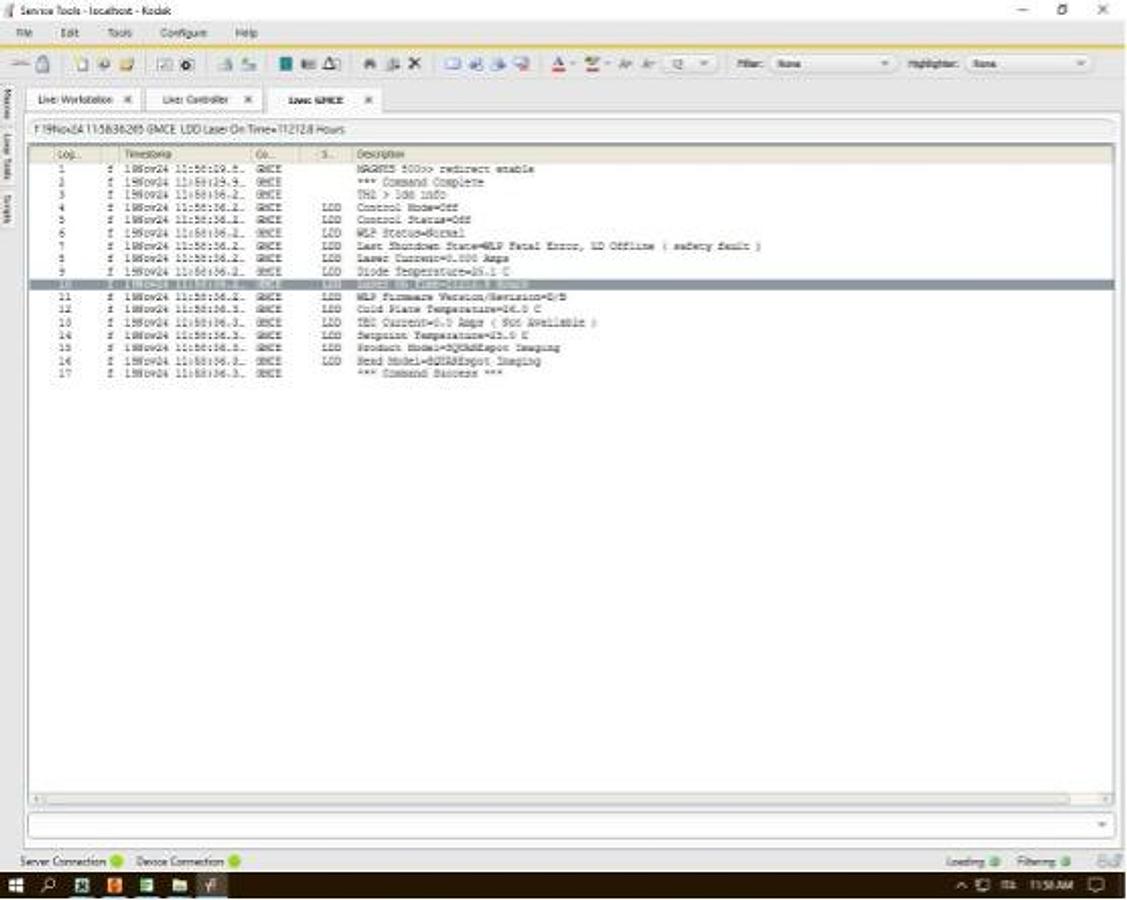

-In last Kodak service ( Nov. 2024 ) the head had run 11,212 hours; today, we're at approximately 12,613 hours. Attached a screenshot.

-Resolution and screening: Supports common resolutions of 2400 dpi; compatible with Kodak advanced screening (e.g., Staccato).

-Integrated punch (optional): for Backer and Komori. Screenshot attached.

-Software/workflow integration: RIP Kodak Printconsole, Kodak Prinergy Workflow server,  computer and monitors included- receives 1-bit TIFF from any device, even non-Kodak.



On line now with :

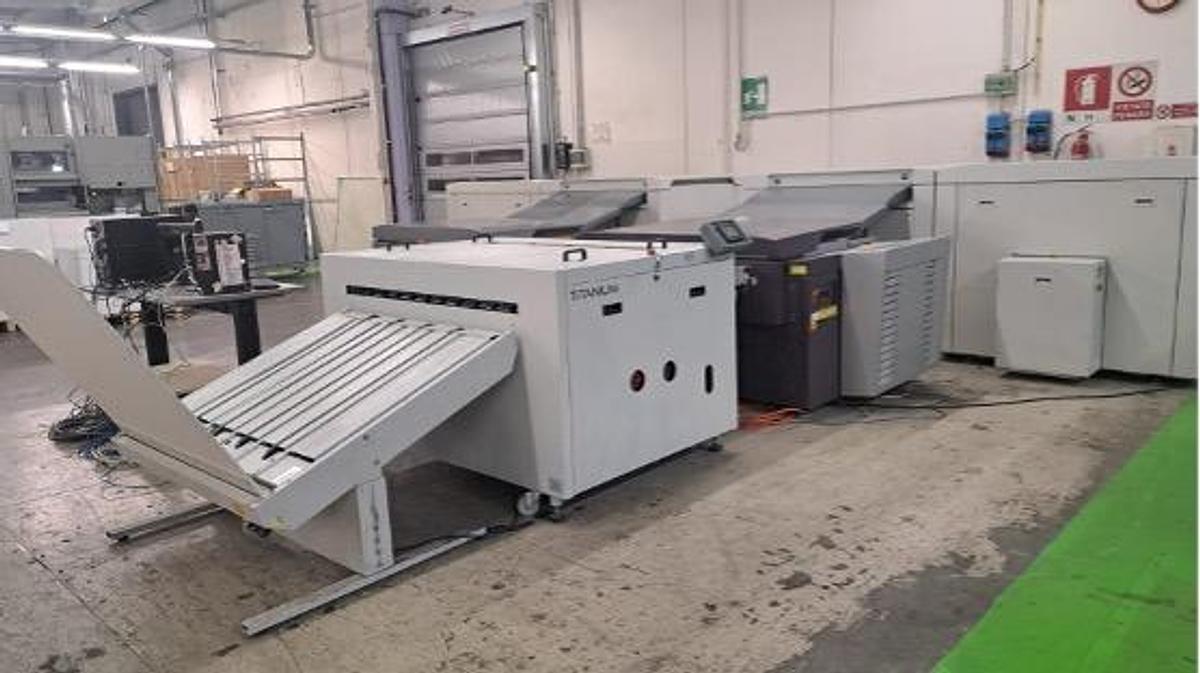

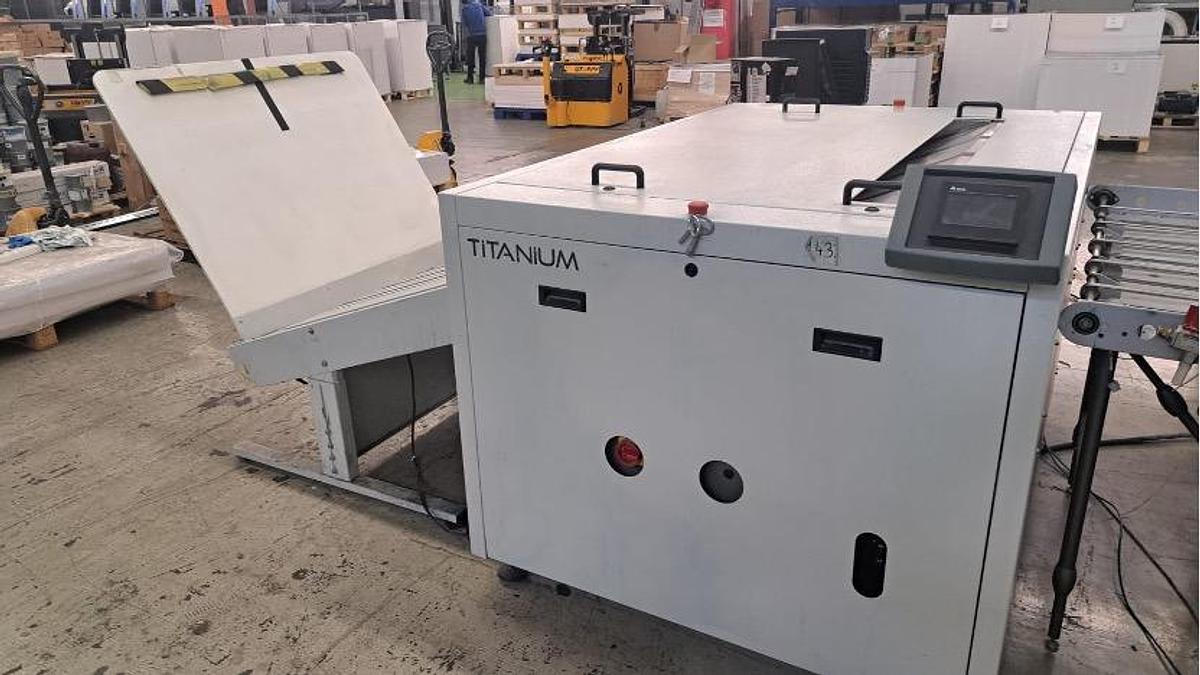

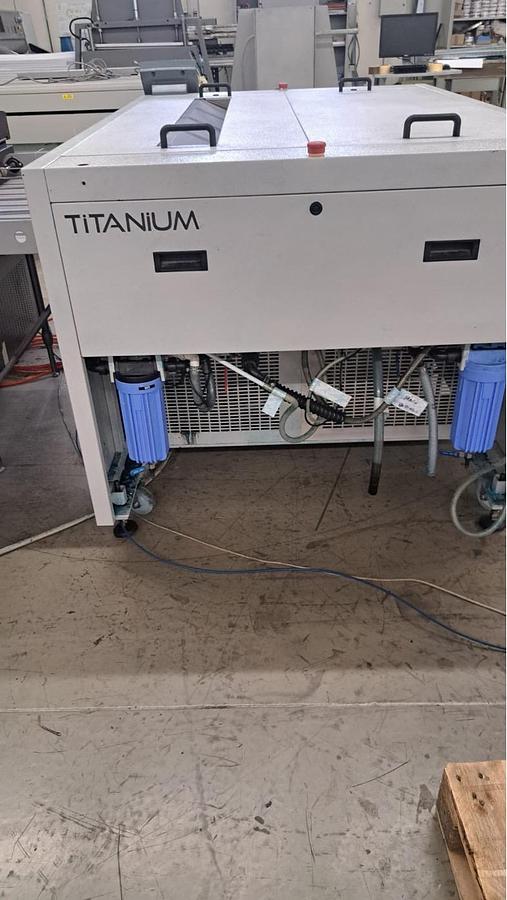

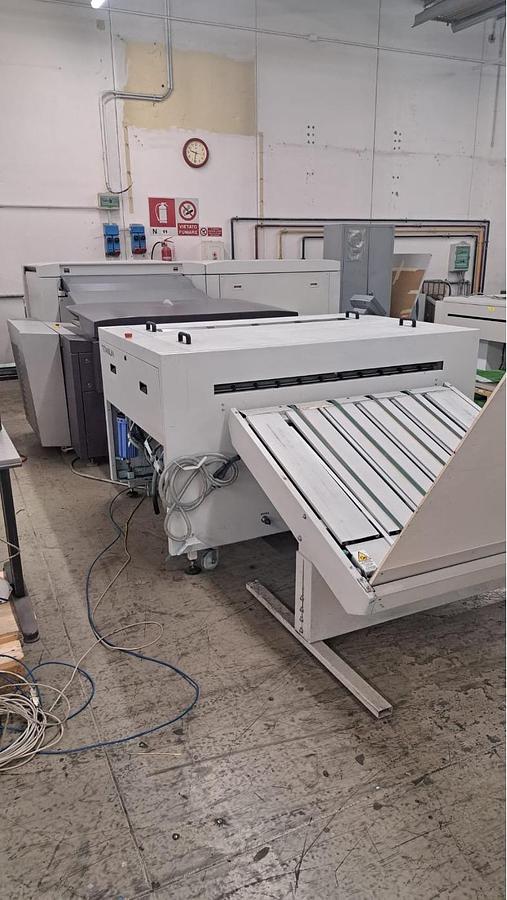

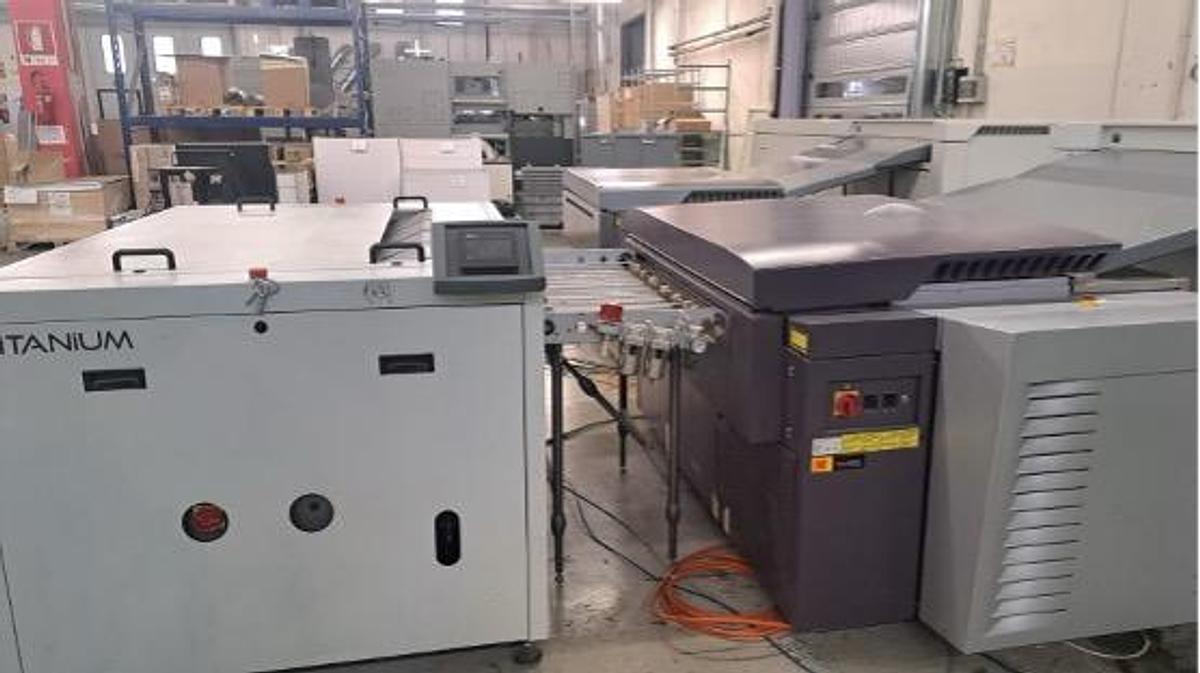

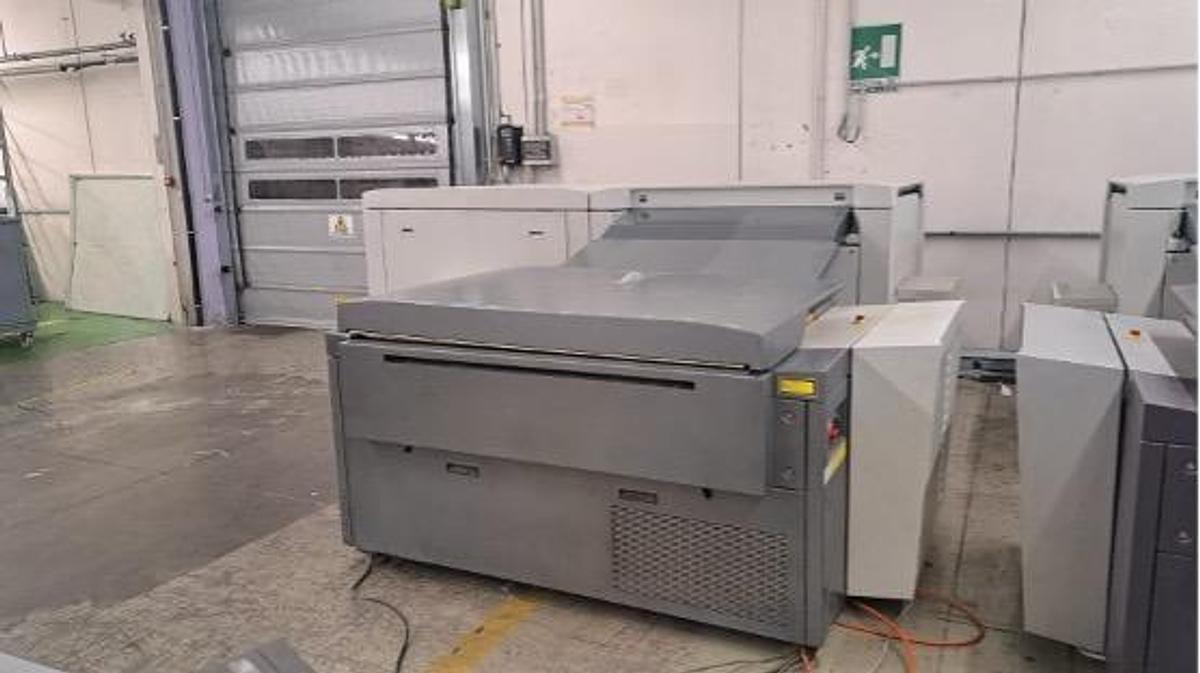

TITANIUM 125 PLATE PROCESSOR



-Processor for thermal or conventional offset/CTP plates.

-Can be configured as an "online" or "offline" system, with an interface for platesetters or input/output tables.

-PLC control with touch-screen panel, and access to tanks/maintenance via side panels and a removable top cover.

-Plate width: 240 to 1250 mm

-Minimum plate length: 325 mm

-Plate thickness: 0.20–0.40 mm

-Development speed: 50–240 cm/min

-Developer tank capacity: ~64 liters

-Accessories: 2 brushes in the developer tank

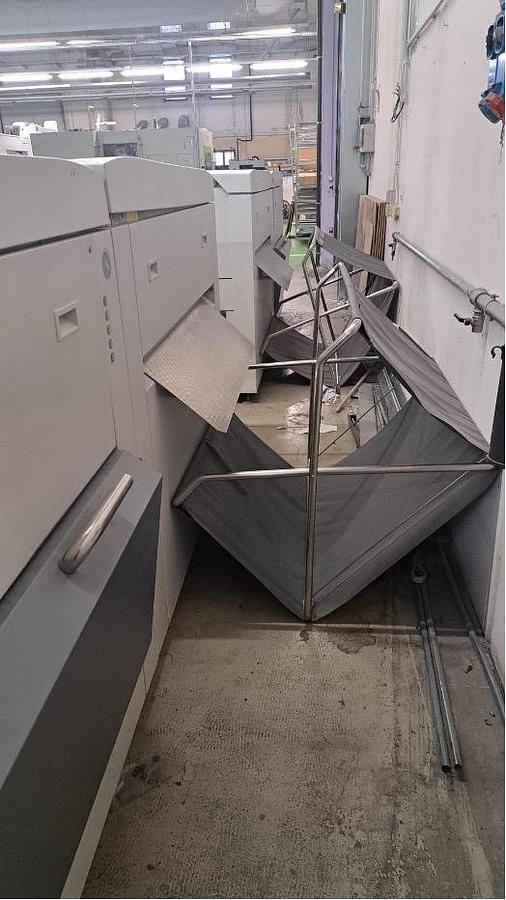

-Delivery Stacker



Incoterms : Loaded on a 40 feet container or on a truck。

Specifications

ManufacturerCTP Kodak Magnus 800 Quantum SquareSpot with MCU 2010 / CTP Kodak Magnus Platesetter 800 Quantum SquareSpot with MCU 2007-
Year2010
ConditionUsed
Stock Number3355
Serial NumberM81193 (23/02/2010)
Throughput (configured)~45 plates/hour- X speed
Plate width240 to 1250 mm
Minimum plate length325 mm
Plate thickness0.20–0.40 mm
Development speed50–240 cm/min
Developer tank capacity~64 liters
