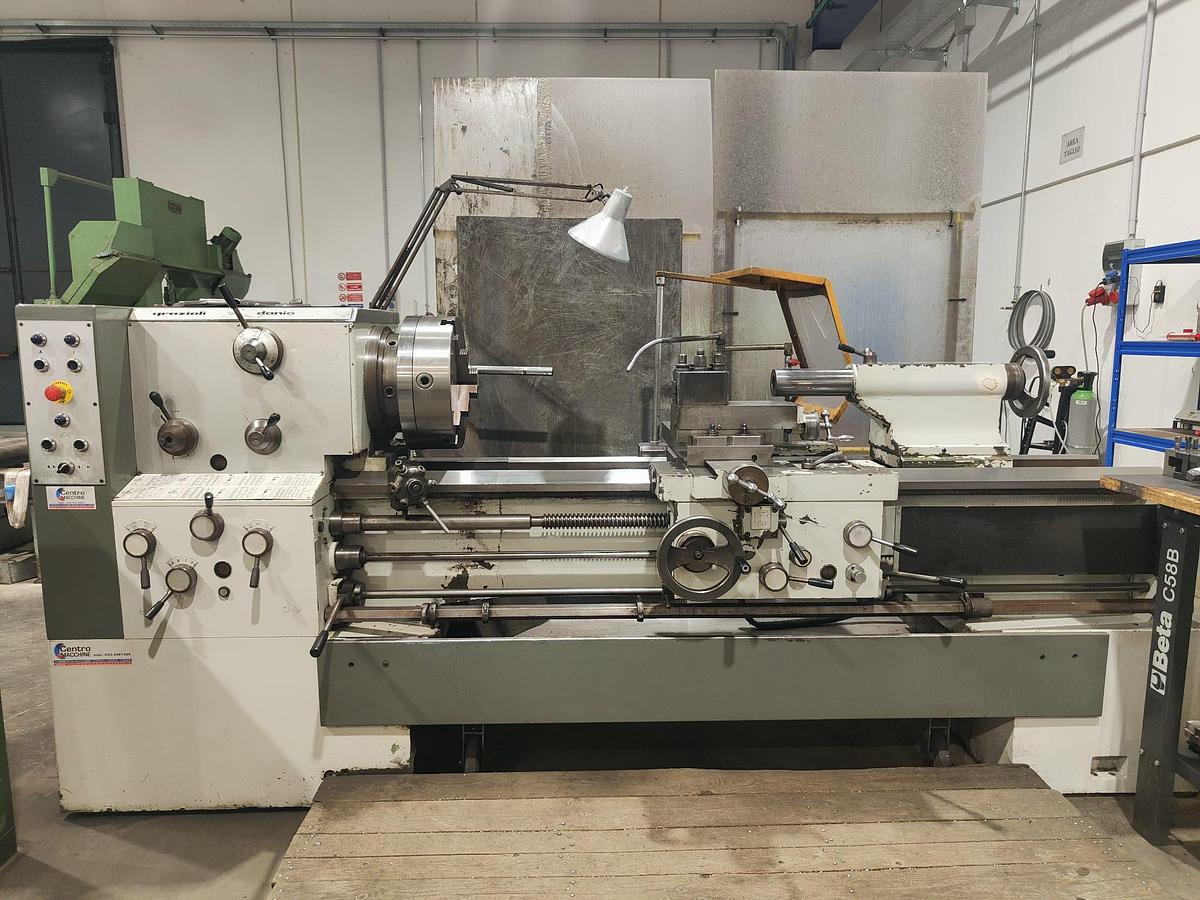

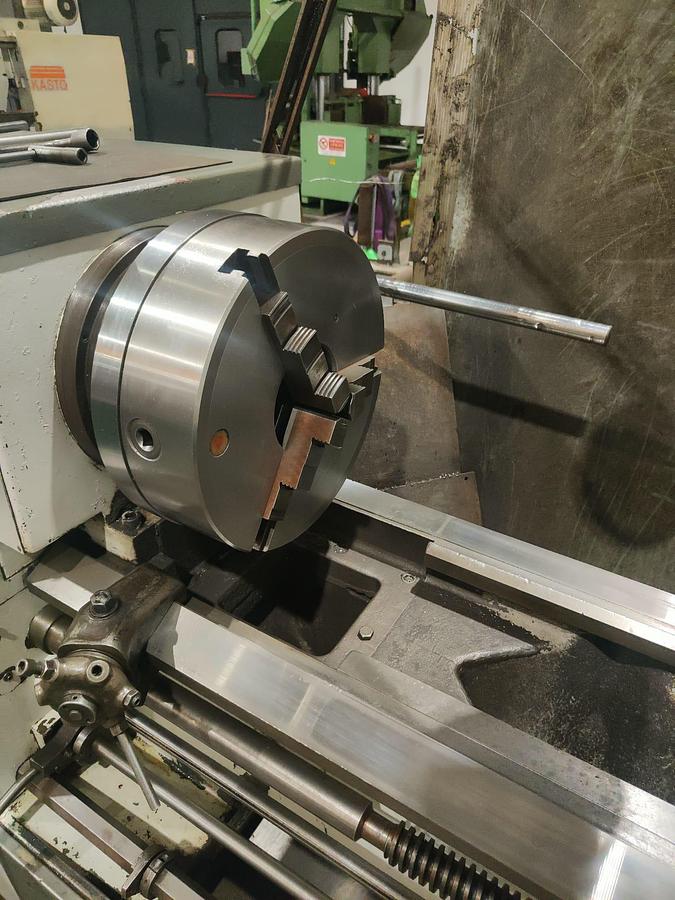

GRAZIOLI DANIA PARALLEL LATHE

USED MACHINE TOOL HEIGHT ON THE BENCH MM 260 DISTANCE BETWEEN TOOLS MM 1500 BENCH WIDTH MM 450 MAX TURNING DIAMETER ON THE BENCH MM 520 MAX TURNING DIAMETER ON THE CARRIAGE MM 320 MAX TURNING DIAMETER ON THE DIVIDENDS MM 180 SELF-CEIVING DIAMETER MM 400 WIDTH OF THE GROOVE MM 300 CLEARABLE WIDTH IN FRONT OF THE PLATFORM MM 185 MAX ALLOWABLE DIAMETER MM 750 MOTOR SPOOL NOSE CAM LOCK 11″ D 1 TOOL PORT MM 90 MOTOR SPOUT TAPER CONICITY 1/20 METRIC 100 DIAMETER OF THE BARREL MM 85 BARREL TRAVEL MM 280 BARREL CONE MORSE 5 TRAVEL SLIDING 270 SLIDING TRAVEL TOOLPOST MM 200 SPEED N 18 REVOLUTIONS 1′ LONGITUDINAL AND TRANSVERSE FEEDS N 72 TRANSVERSE FEEDS MM/REV 0.05/1.2 RANGE OF LONGITUDINAL FEEDS MM/REV 0.025/0.6 LEAD OF THE SPINDLE MM/GYR 12 METRIC THREADS MM/GYR from 0.5/56 WHITWORTH THREADS SPIRE FOR D from 56/1.2 MODULAR THREADS MOD. FOR D from 0.5/28 D.P. THREADS FOR D. FROM 112/1 TRIPLE-Phase ASYNCHRONOUS MOTOR FOR SPINDLE HP 15 SPECIAL EXECUTION HP 12.5 CENTRIFUGAL ELECTROPUMP HP 0.2 NET WEIGHT WITH STANDARD ACCESSORIES KG 3300 NON-BINDING DATA TO BE VERIFIED
