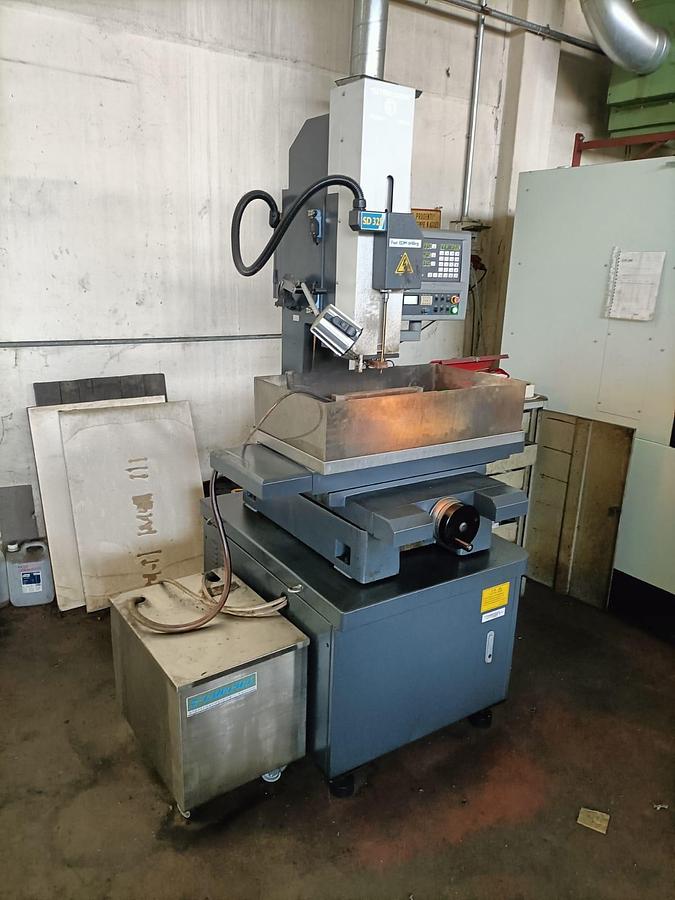

2017 EDM MICRODRILLING MACHINE mod.SD325
2017 EDM MICRODRILLING MACHINE mod.SD325
Contact us for price
Location:Bergamo, Italy
or
Call +39 0451 117 6498
Description
TOOLING FAILURE IN THE PAVIA AREA
X TRAVEL 350 mm
Y TRAVEL 250 mm
W TRAVEL 300 mm
Z TRAVEL 380 mm
MAXIMUM WORKPIECE WEIGHT 350 kg
Input power 3KVA
NON-BINDING DATA TO BE VERIFIED
Specifications

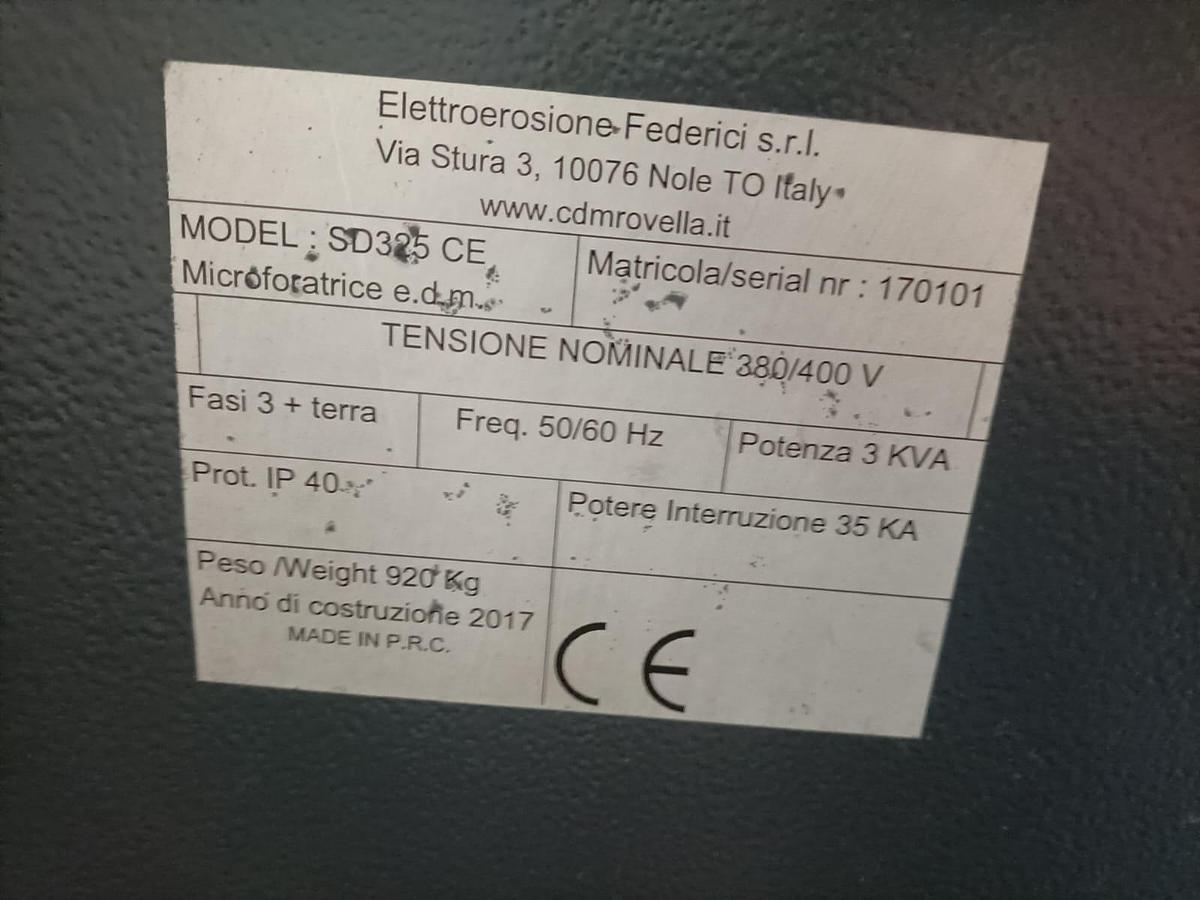

| Model | SD325 CE |
| Year | 2017 |
| Condition | Used |
| Serial Number | 170101 |
| Stock Number | MF256-PF |
| Working table | 550 X 360 mm |

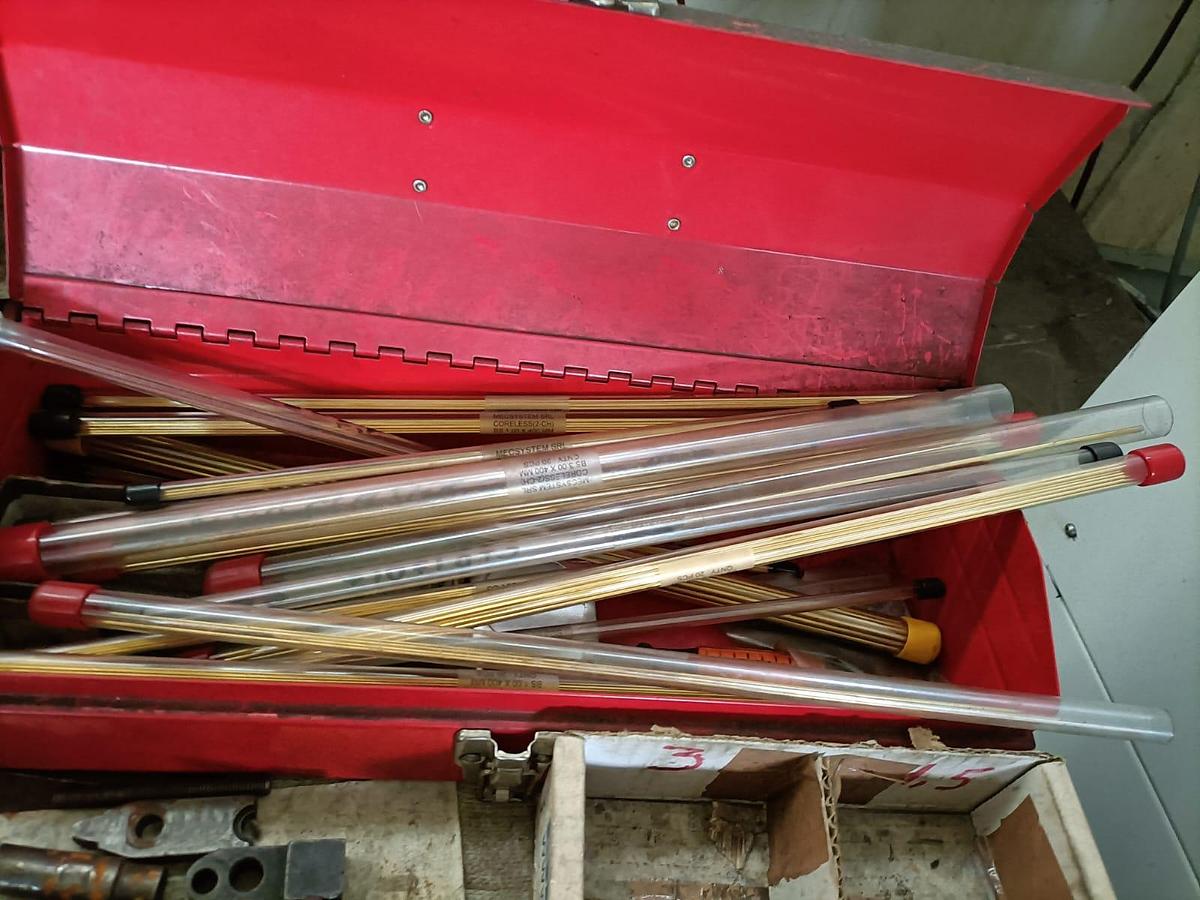

| Tube diameter 0.2 | 0.3-3 mm |
| Distance from the table to the bottom of the guide | 120 -370 |
| External dimensions | 1000x750x2000 mm |
| Weight | 920 KG |
