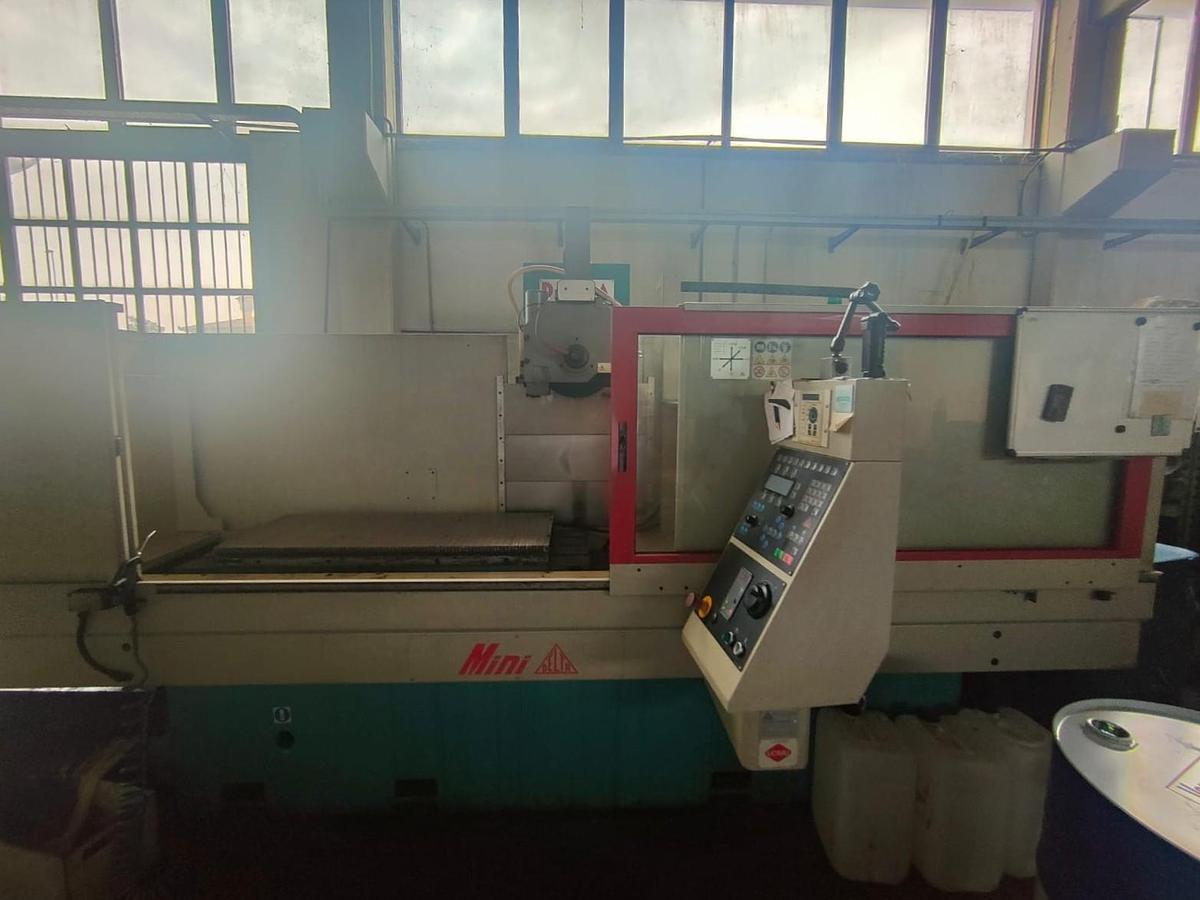

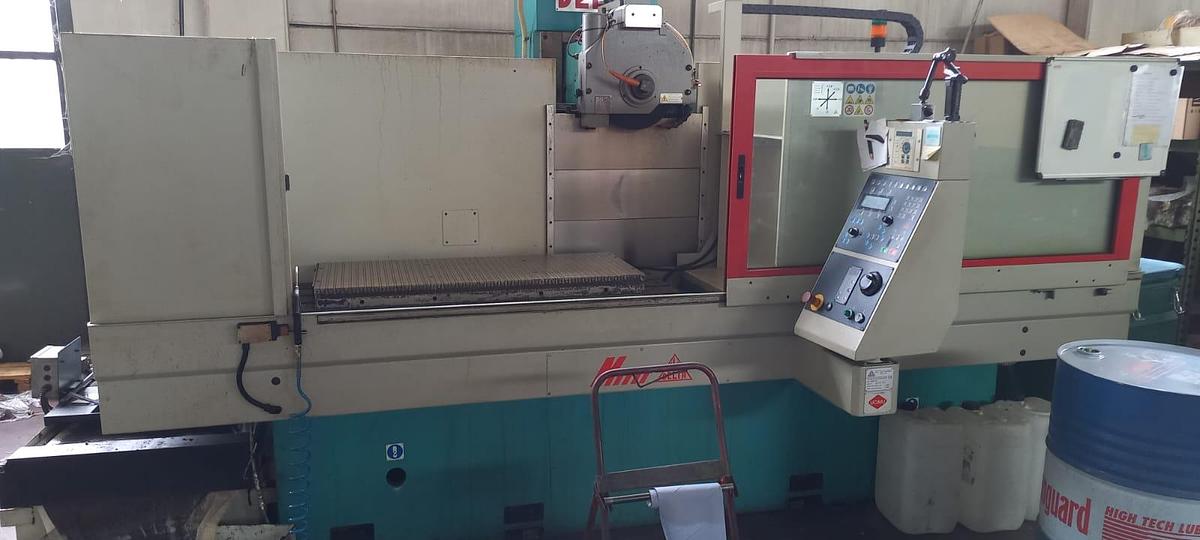

2007 DELTA TANGENTIAL GRINDING MACHINE mod. MINI 12
No longer available
2007 DELTA TANGENTIAL GRINDING MACHINE mod. MINI 12
Location:Bergamo, Italy
Description
Grinding surface: 1300 x 600 mm
Spindle-to-table distance: 800 mm
Spindle motor: Power 7.5 – 11 kW
NON-BINDING DATA TO BE VERIFIED
Specifications
| Year | 2007 |
| Condition | Used |

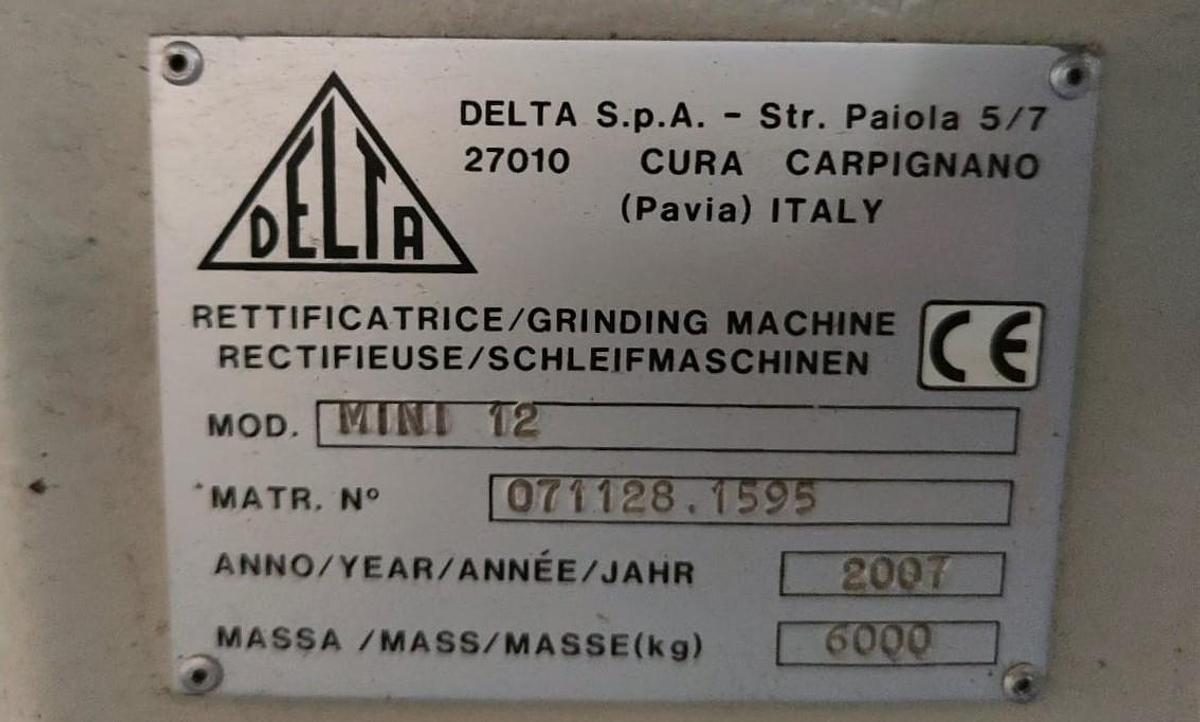

| Serial Number | 071128.1595 |
| Stock Number | RT246-PS |

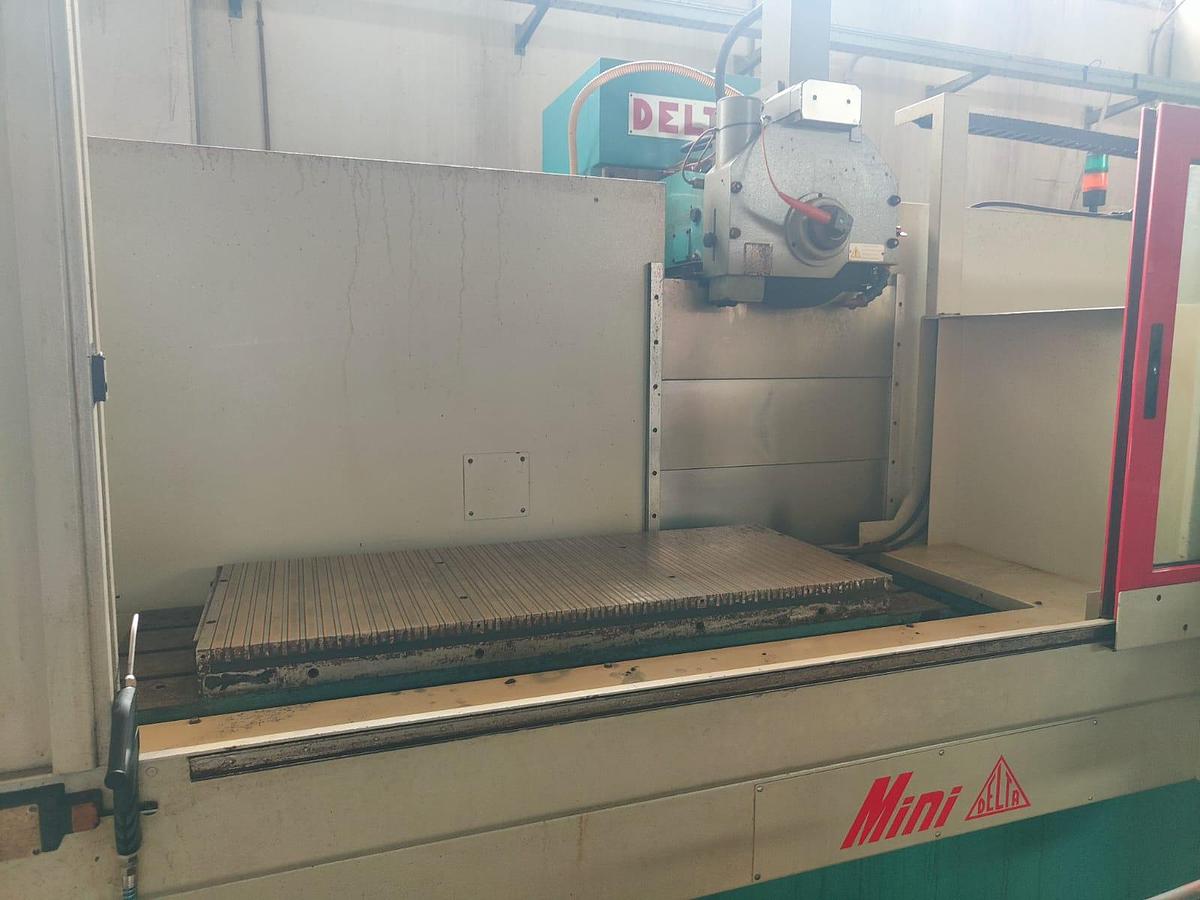

| Magnetic plane | 1200 x 500 mm |
| Permissible weight | 1200 Kg |
| Stroke x axis | 1300 mm |
| Travel axis y | 550 mm |
| Vertical increase | 0.001 mm |
| Grinding wheel | 400 x 50 x 127 mm |
