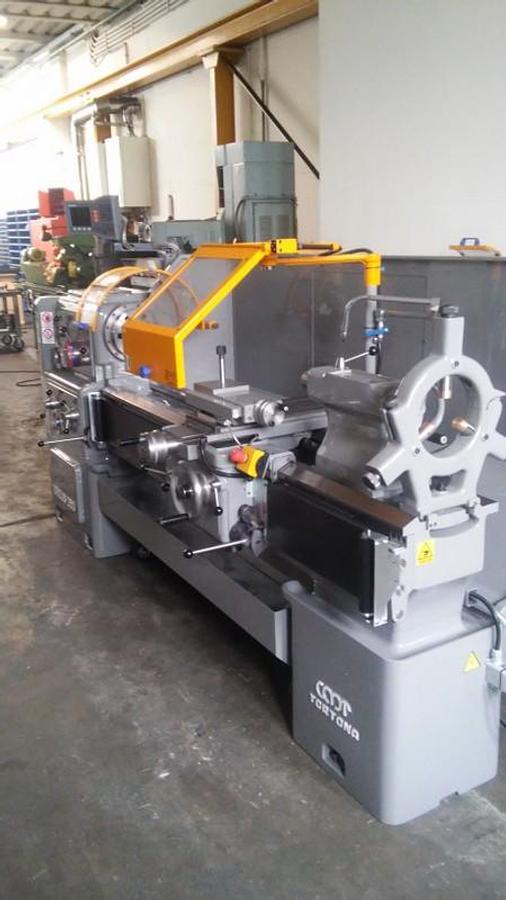

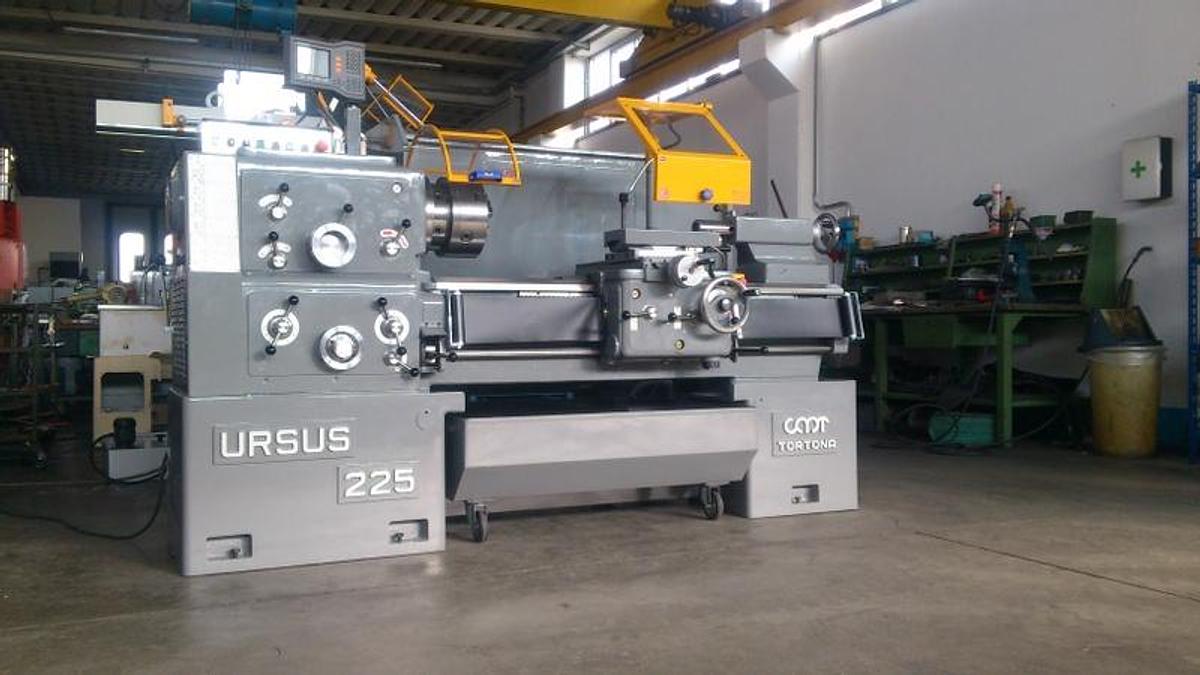

OVERHAULED CMT PARALLEL LATHES
OVERHAULED CMT PARALLEL LATHES
Contact us for price
Location:Bergamo, Italy
or
Call +39 02 9475 0001
Description
DATA NOT BINDING AND TO BE VERIFIED
Specifications
| Condition | Used |
| Stock Number | tp1905 |
| Cmt parallel lathes | REVIEWED WITH WARRANTY |
| Spike height on the bench | 250 MM |
| Distance between the tips | 1500 2000 3000 MM |
| Maximum turning diameter in the recess | 710 MM |
| Maximum diameter to turn on the bench | 505 MM |
| Maximum turning diameter on the carriage | 290 MM |
| Fixed bezel passage diam | 200 MM |
| Movable bezel passage diam | 130 MM |
| Bench width | 330 MM |
| Recess width | 250 MM |
| Recess width in front of platform | 160 MM |
| Max spindle diam | 139 MM |
| Spindle hole | 105 MM |
| Spindle taper reduction bushing | 5 |
| Tailstock morse taper | 5 |
| Spindle speed | 12 |
| Min and max spindle turns at 1? | FROM 23 TO 1000 |
| Working progress without gear changes | |
| Longitudinals | 0.06 TO 0.76 |
| Transversal | 0.03 TO 0.38 |
| Steps to useful threading without gear changes | |
| Metrics | 0.5 TO 7 |
| Modular | 0.25 TO 3.5 |
| Whitworth fil for 1" | 4 TO 56 |
| Diametral pitch | 8 TO 112 |
| Engine power | 7,5 HP |
