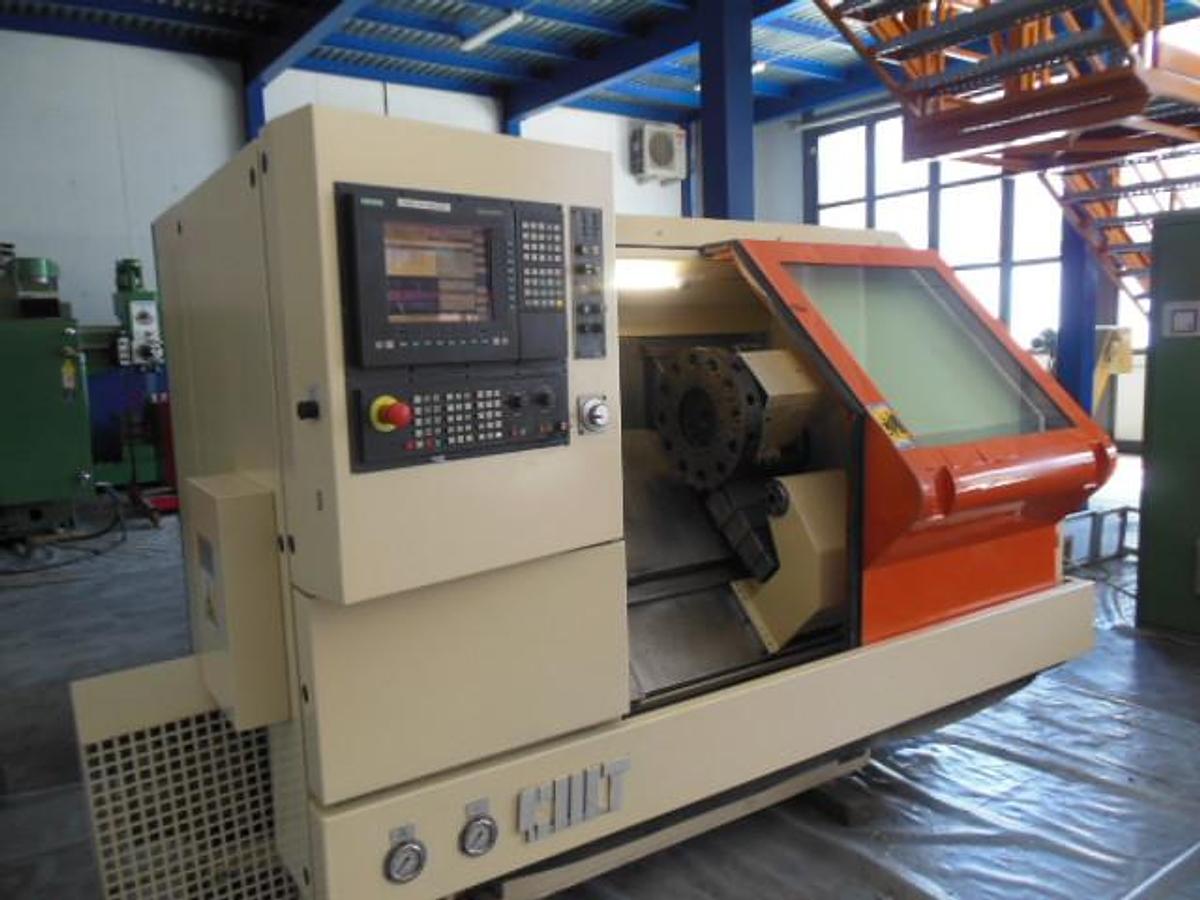

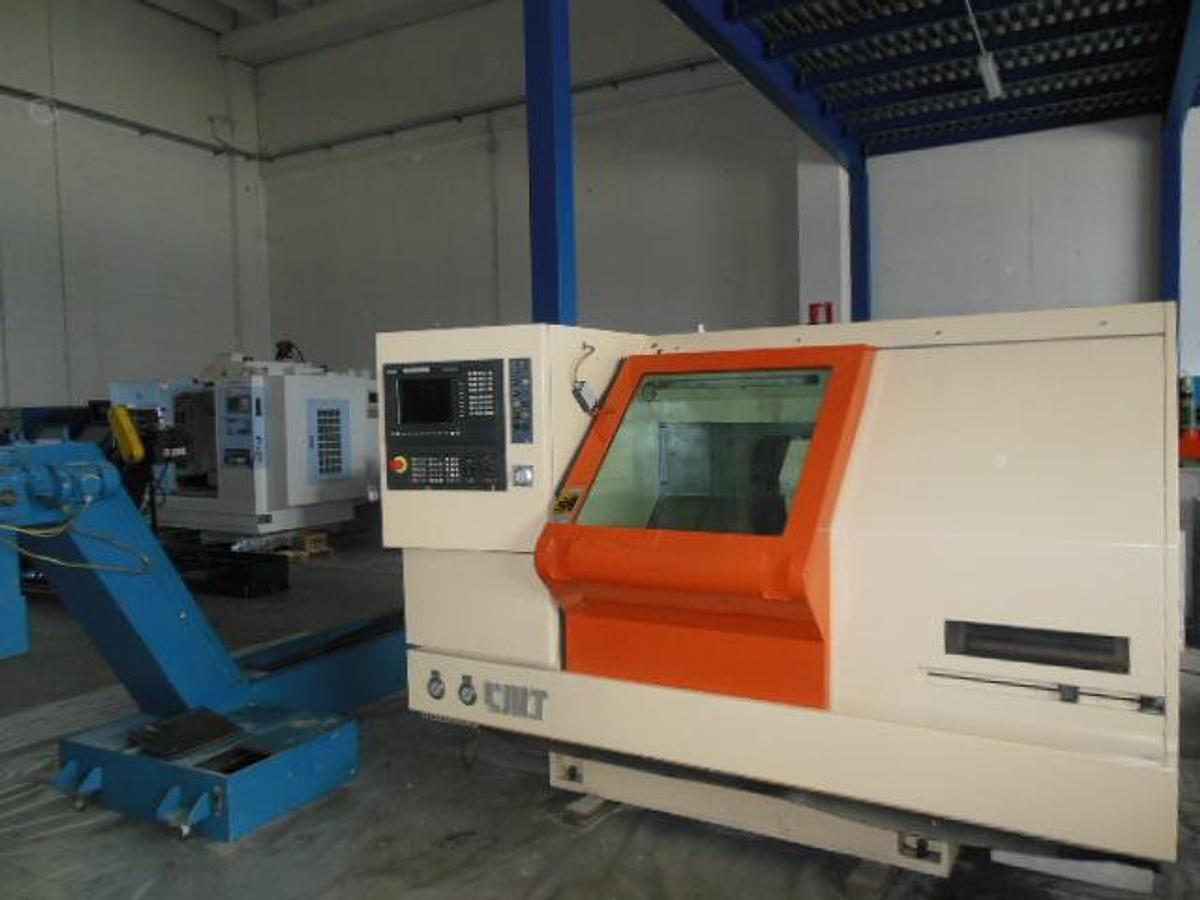

2001 CMT CNC lathe mod.TEMIS
2001 CMT CNC lathe mod.TEMIS
Contact us for price
Location:Bergamo, Italy
or
Call +39 0451 117 6498
Description
NONCOMMITTAL DATA AND TO BE VERIFIED
Specifications
| Year | 2001 |
| Condition | Used |

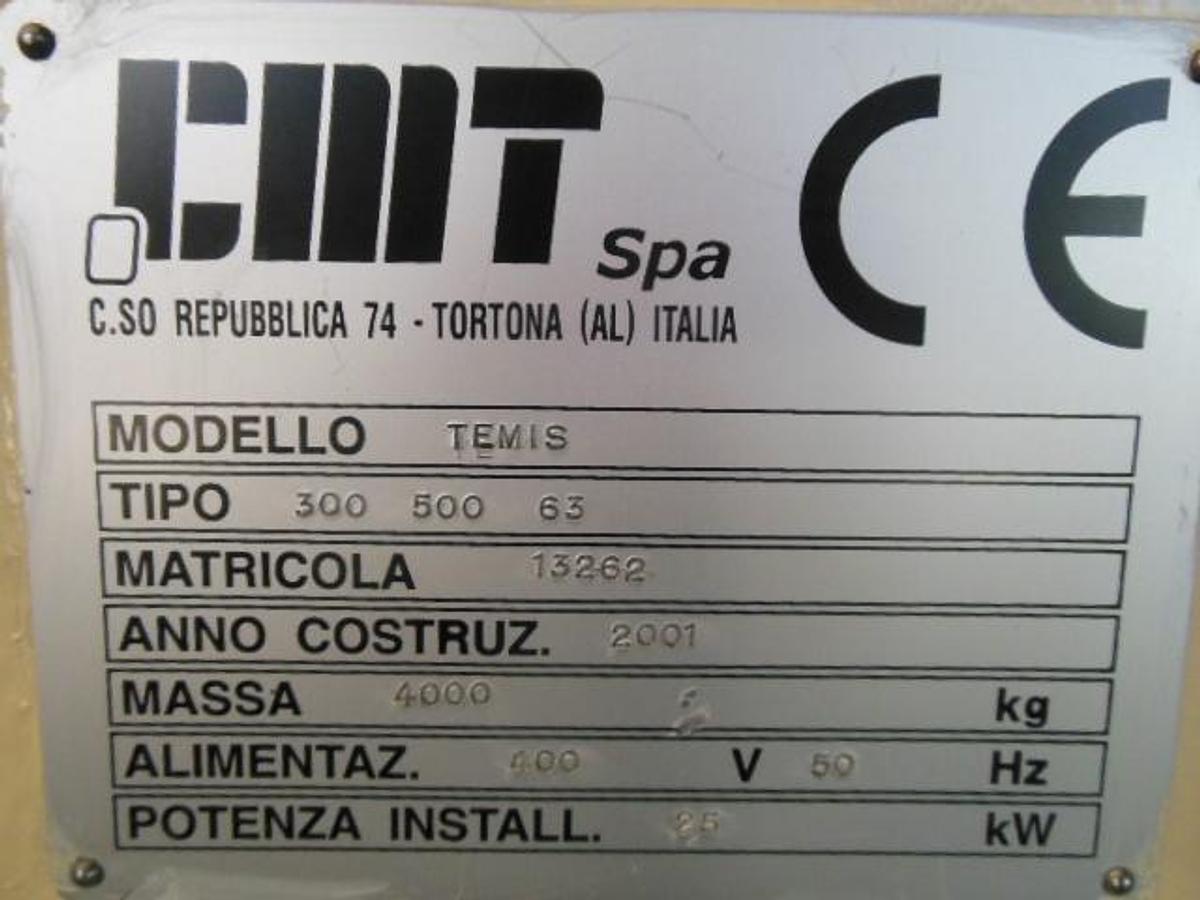

| Serial Number | 13262 |
| Stock Number | TC1929 |
| Cnc lathe | CMT TEMIS |

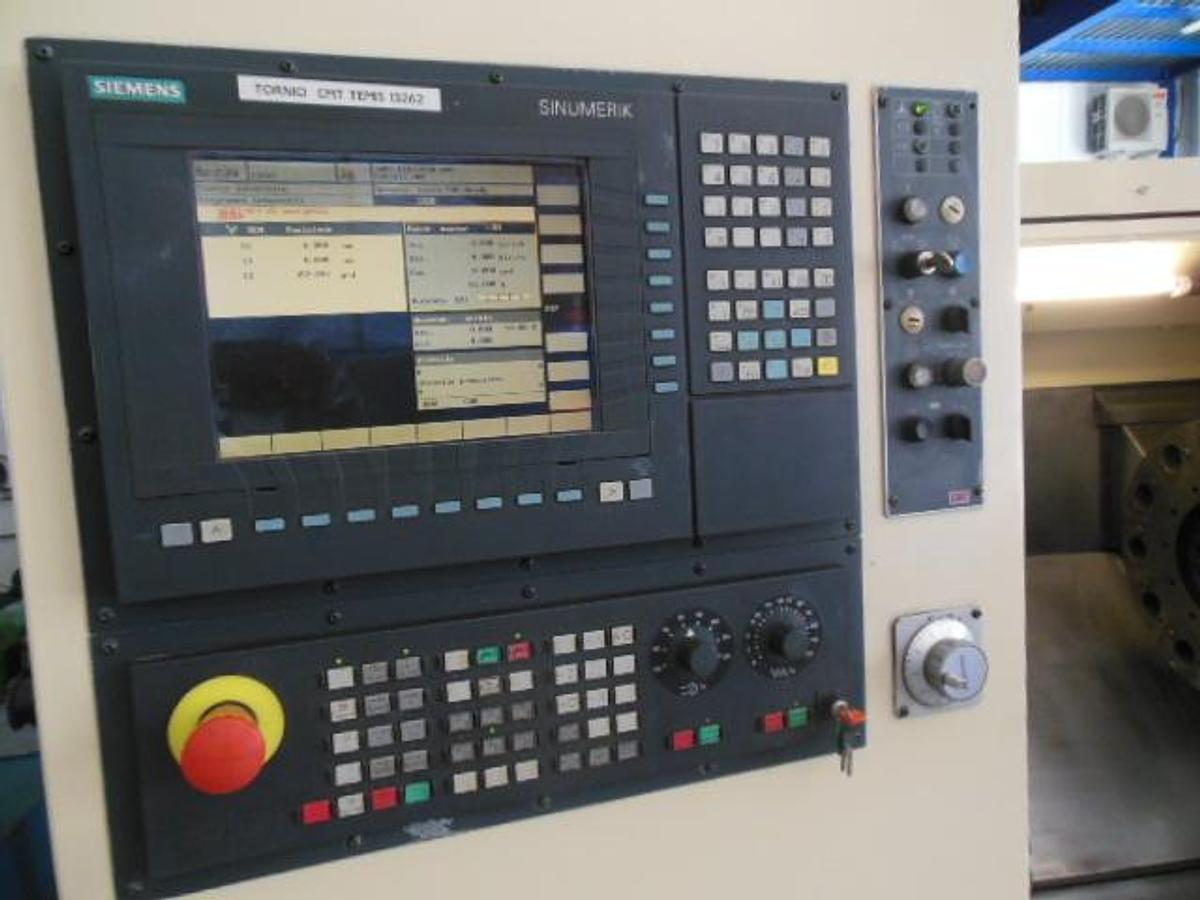

| Cnc | SIEMENS |
| Weight | 4000 KG |
| Distance between the tips | 500 MM |
| Diam allowed on the bench | 500 MM |
| Diam allowed on the bandwagon | 250 MM |
| Z-axis longitudinal travel | 500 MM |
| Controlled stroke transver x axis | 250 MM |
| Chuck nose | ISO A2-5" |
| Spindle hole | 63 MM |
| Standard spindle power | 11-14 KW |
| Max spindle speed | 5000-6000 RPM |
| Moving axes | RECIRCULATING SCREWS |
| Fast z-axis movement | 30 MM |
| X-axis rapid motion | 30 MM |
| Continuous push z | 700 |
| Continuous push x | 700 |
| Race against the head | 500 |
| Morse taper sleeve | 4 |
| Dimensions | 4250 x 1480 x 1830 mm |
