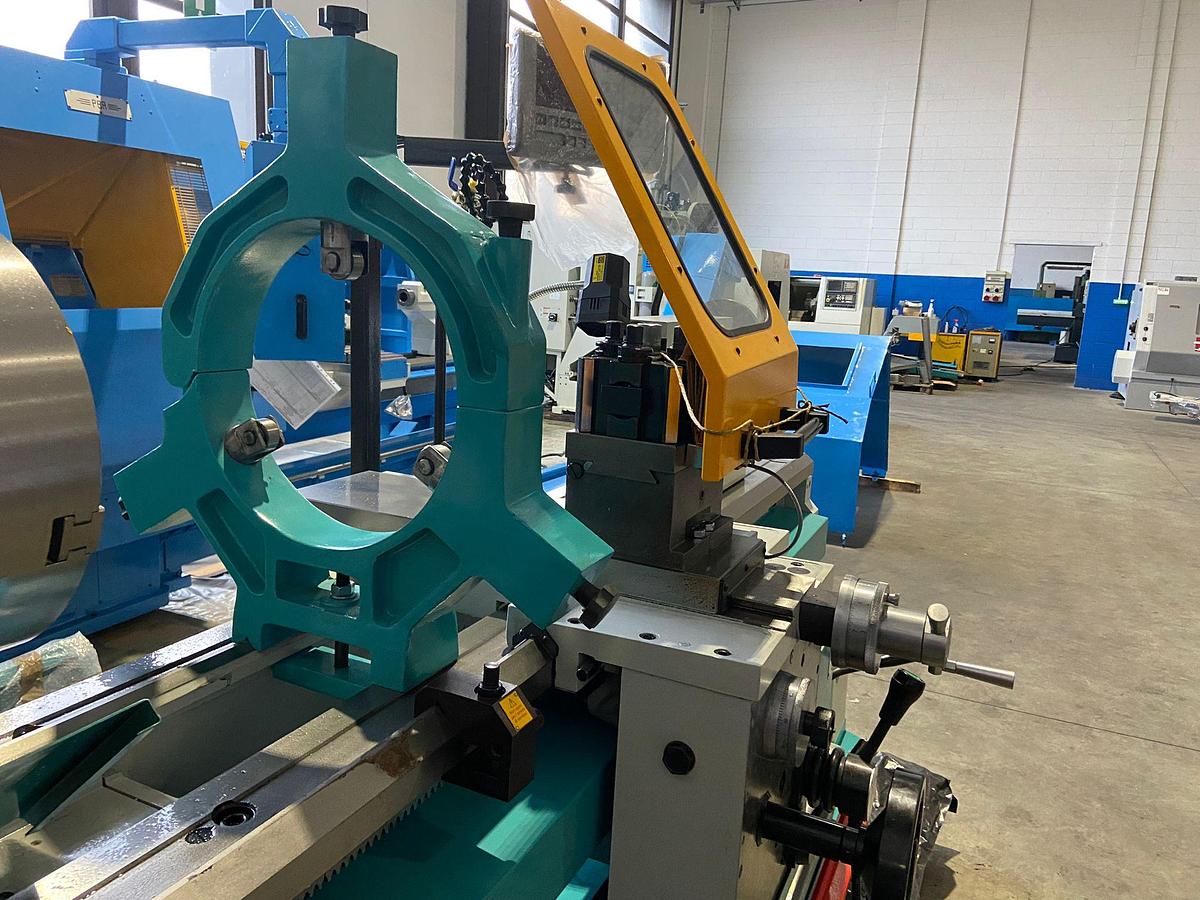

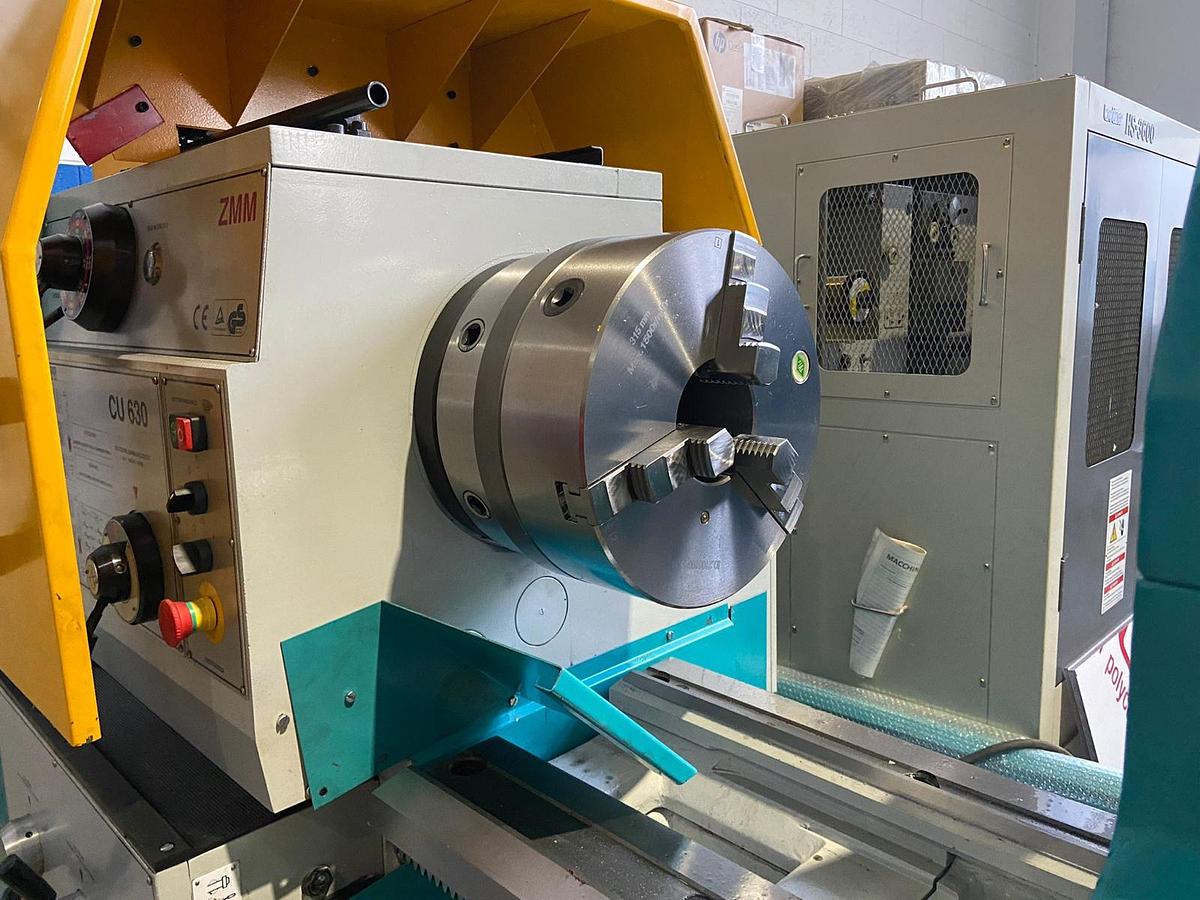

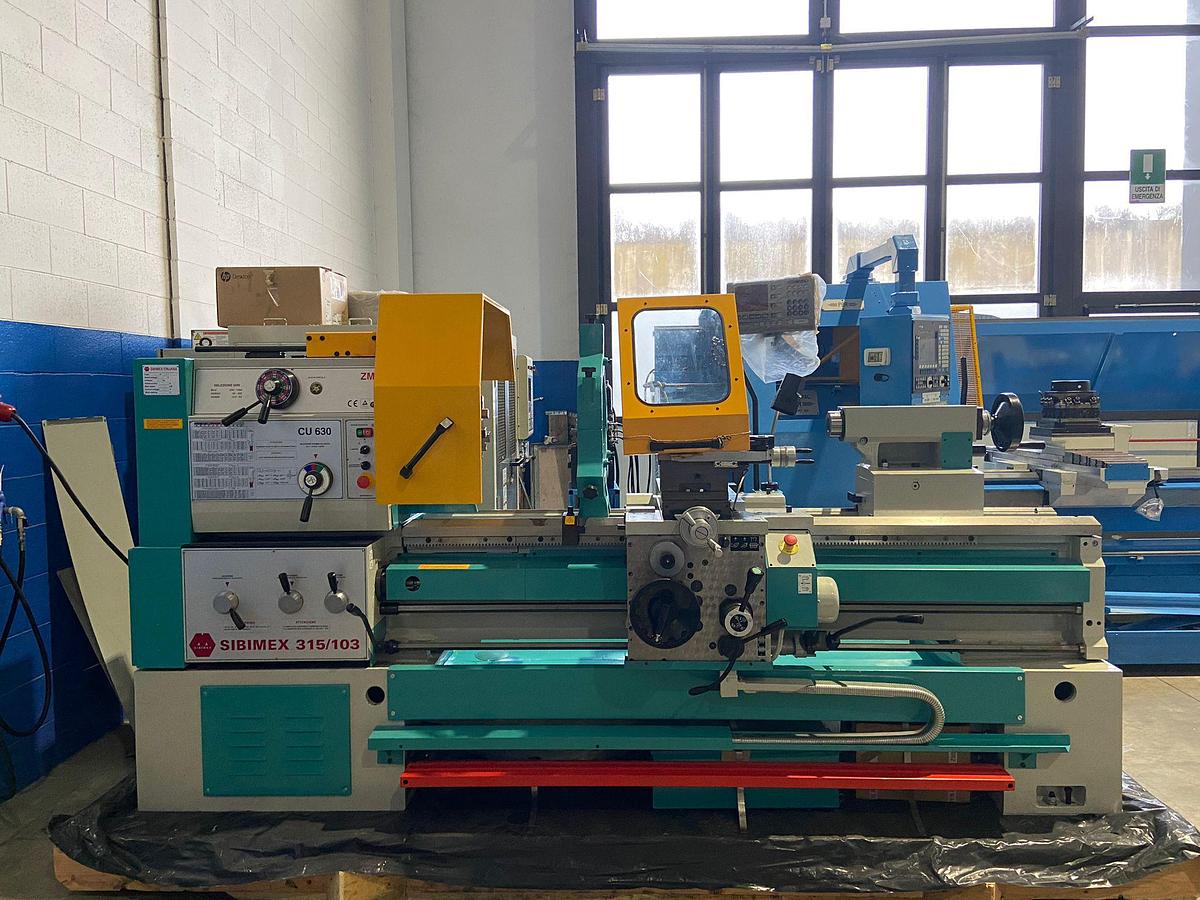

SIBIMEX PARALLEL LATHE MOD.CU630 315/103
No longer available
SIBIMEX PARALLEL LATHE MOD.CU630 315/103
Location:Bergamo, Italy
Description
vaulting on rails mm 630
vaulting on carriage mm 430
vaulting in recess mm 830
Distance between centers mm 1000 / 1500 / 2000 / 3000 / 4000 / 5000
Spindle attachment "CAM-LOCK" No. 11
Spindle speed range: rpm 12.5 - 1250
Number of feed rates 120
Longitudinal feed range: mm/rev 0.04 - 12
Transverse feed rate: mm/rev 0.02 - 6
noncommittal data to be verified
Specifications
| Condition | Used |
| Stock Number | tp1937 |
| Height tips | mm 315 |
| Spindle hole | mm 103 |
| Number of spindle speed | 21 |
| Main engine power | kW 11 |
| Rapid longitudinal travel speed | mm/min 3800 |
| Rapid transverse travel speed | mm/min 1900 |
| Quill diameter | 90 mm |
| Quill stroke | 230 mm |
| Quill cone | Morse 5 |
| Length at dbc 2000 mm | mm 3600 |
| Width | 1250 mm |
| Height | mm 1400 |
| Weight at dbc 2000 mm | kg 3310 |
