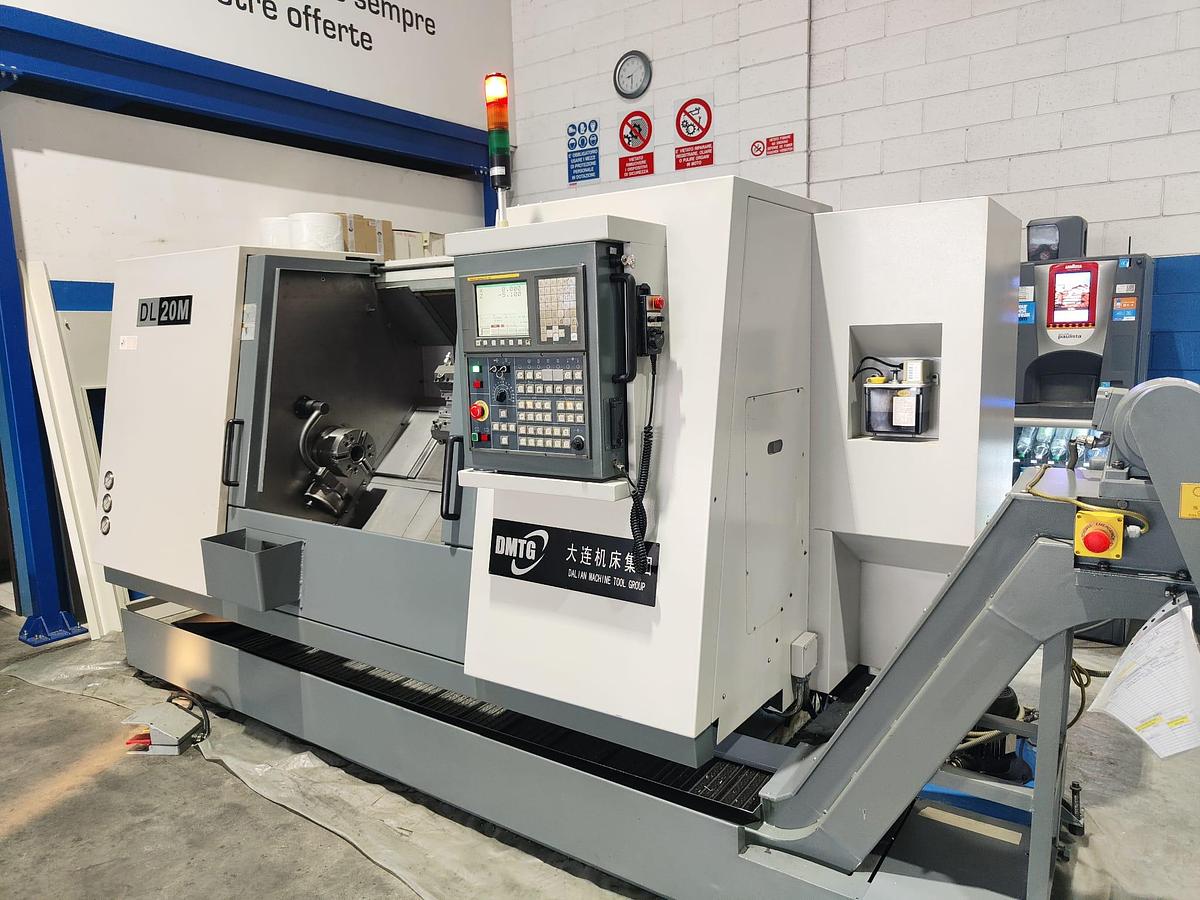

2008 DMTG lathe mod. DL20 DP 1000
No longer available
2008 DMTG lathe mod. DL20 DP 1000
Location:Bergamo, Italy
Description

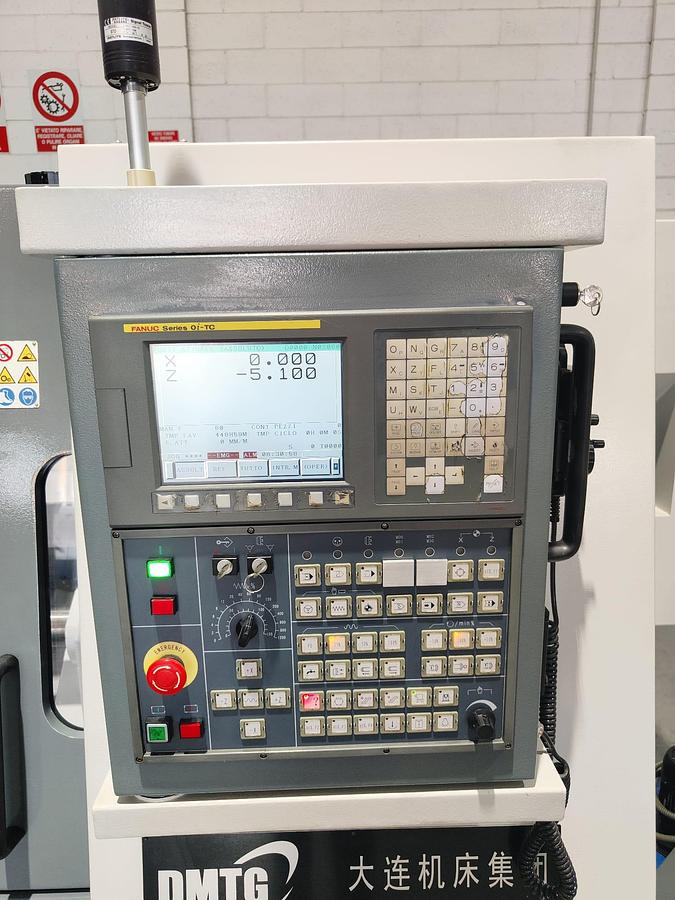

CNC Fanuc Oi-TC
Tailstock: sleeve travel: MT 5
Non-committal data to be verified
Specifications
| Year | 2008 |
| Condition | Used |
| Serial Number | G0101 |
| Stock Number | tc2275 |
| Diameter admitted on the bench | 440 mm |
| Turning length | 1000 mm |
| Turnable diameter (shafts) | 260 mm |
| Turnable diameter (flanges) | 400 mm |
| Type of carriage guides | Linear |
| Spindle nose | ASA 6 |
| Spindle speed | 45/4500 rpm |
| Spindle motor power (s6) | 11(15) |
| Spindle bore diameter | 76 mm |
| Maximum bar passage diameter | 65 mm |
| Stroke x axis | 265 mm |
| Travel axis z | 1060 mm |
| X-axis rapid speed | 24 m / min |
| Rapid speed axis z | 24 m / min |

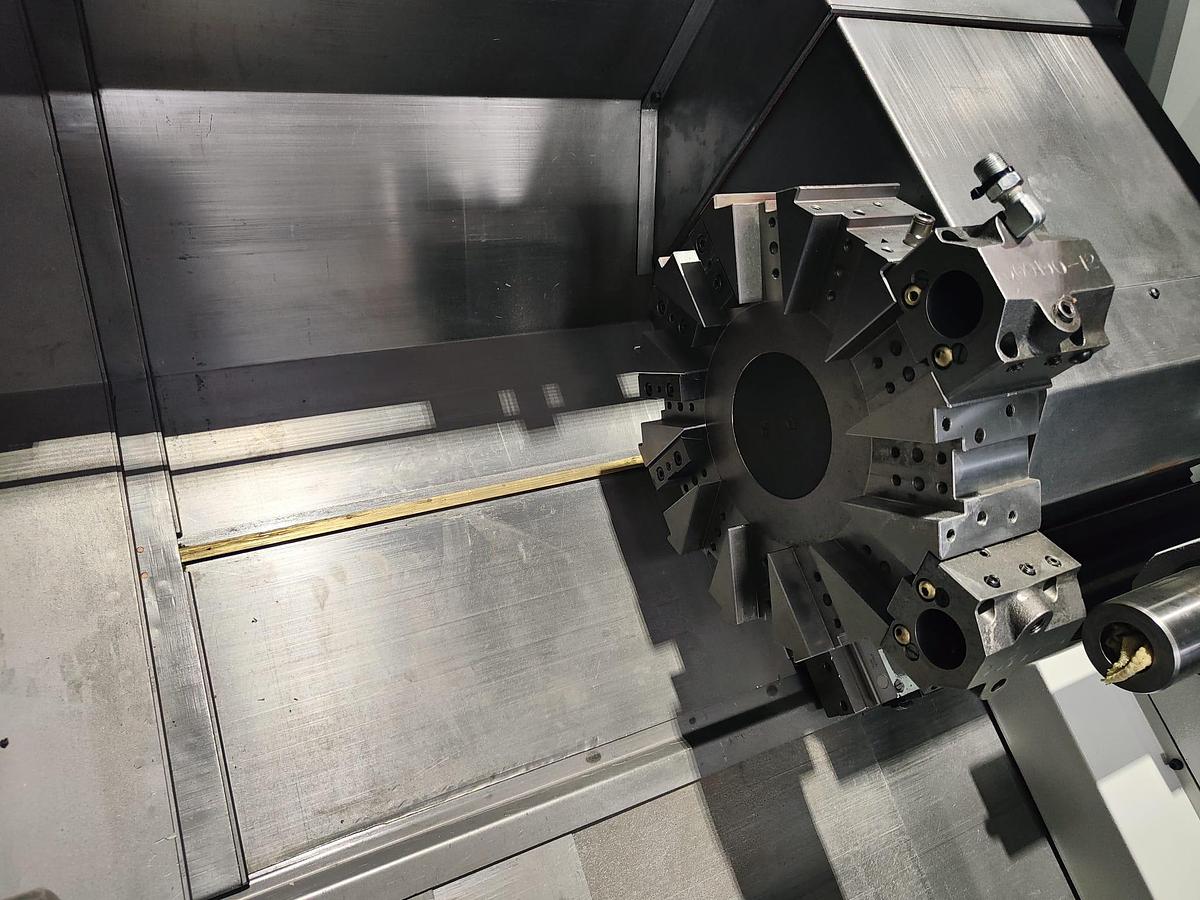

| Turret | 12 positions |
| Tools section | 25×25 |
| Tailstock | sleeve diameter 85 mm |
| Machine dimensions | L x W x H 2800-3500x1800x1880 mm |
| Net weight | 4000 -5500 kg |
