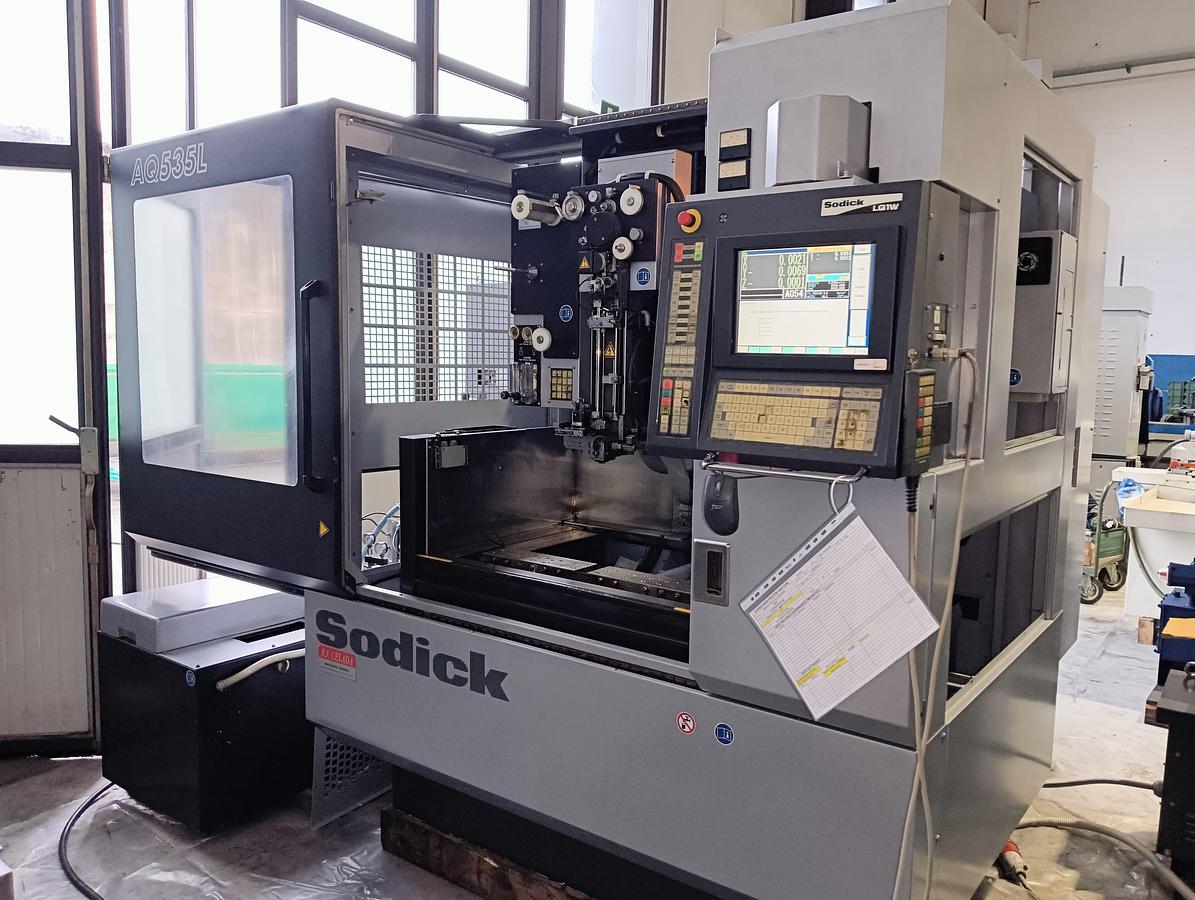

2004 SODICK WIRED ELECTROEROSION mod.AQ535L
2004 SODICK WIRED ELECTROEROSION mod.AQ535L
Contact us for price
Location:Bergamo, Italy
or
Call +39 0451 117 6498
Description

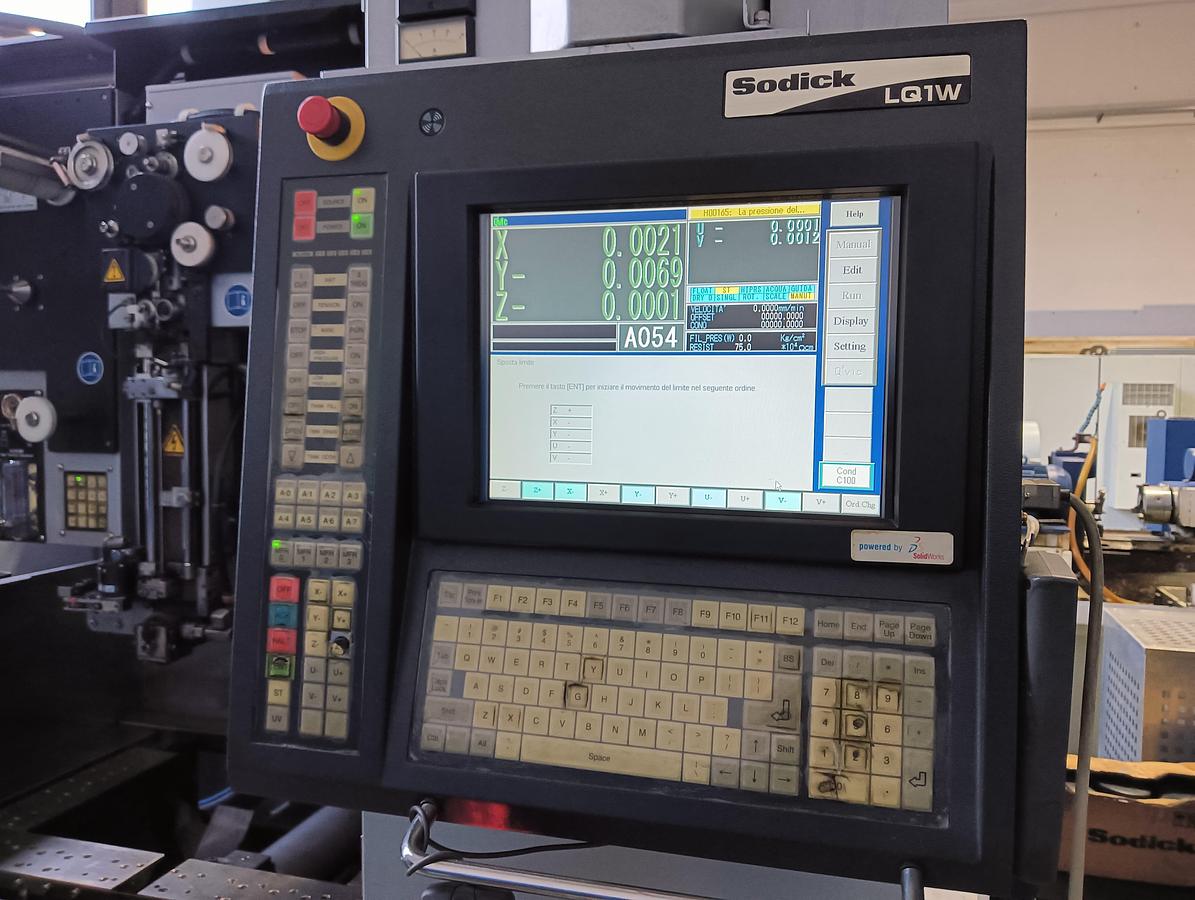

CNC SODICK LQ1W
TRAVELS:
X and Y axes 550 x 350 mm
Z axes 300 mm
U and V axes 80 x 80 mm
Floor to table surface distance: 1005 mm
Wire tension: 300 g 2300 g
Wire diameter: 0.15 0.3 mm

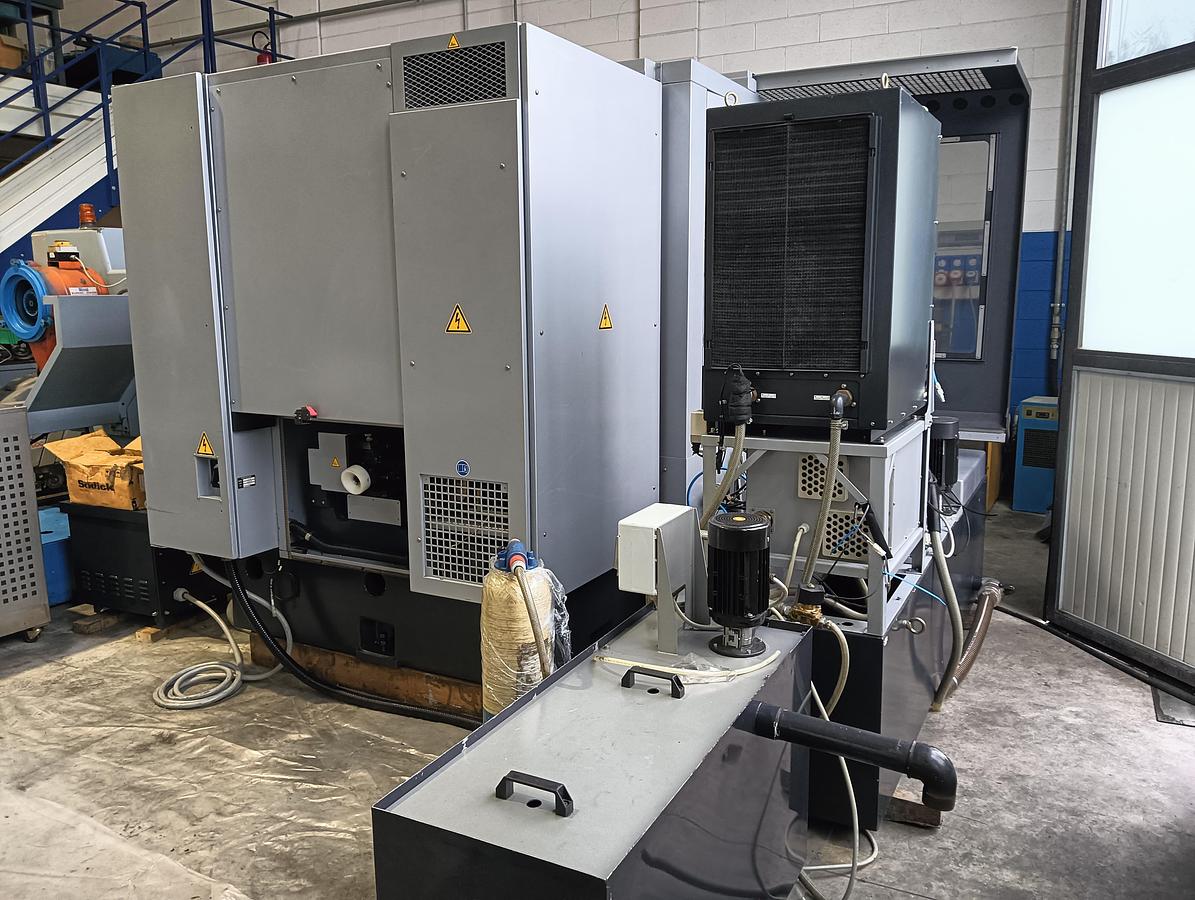

DIELECTRIC TANK:
External dimensions 1750 x 2175 x 2260 mm
Weight (empty) 300 kg
Capacity 800 liters
Deionizer 10 liters
NON-BINDING DATA TO BE VERIFIED
Specifications
| Year | 2004 |
| Condition | Used |

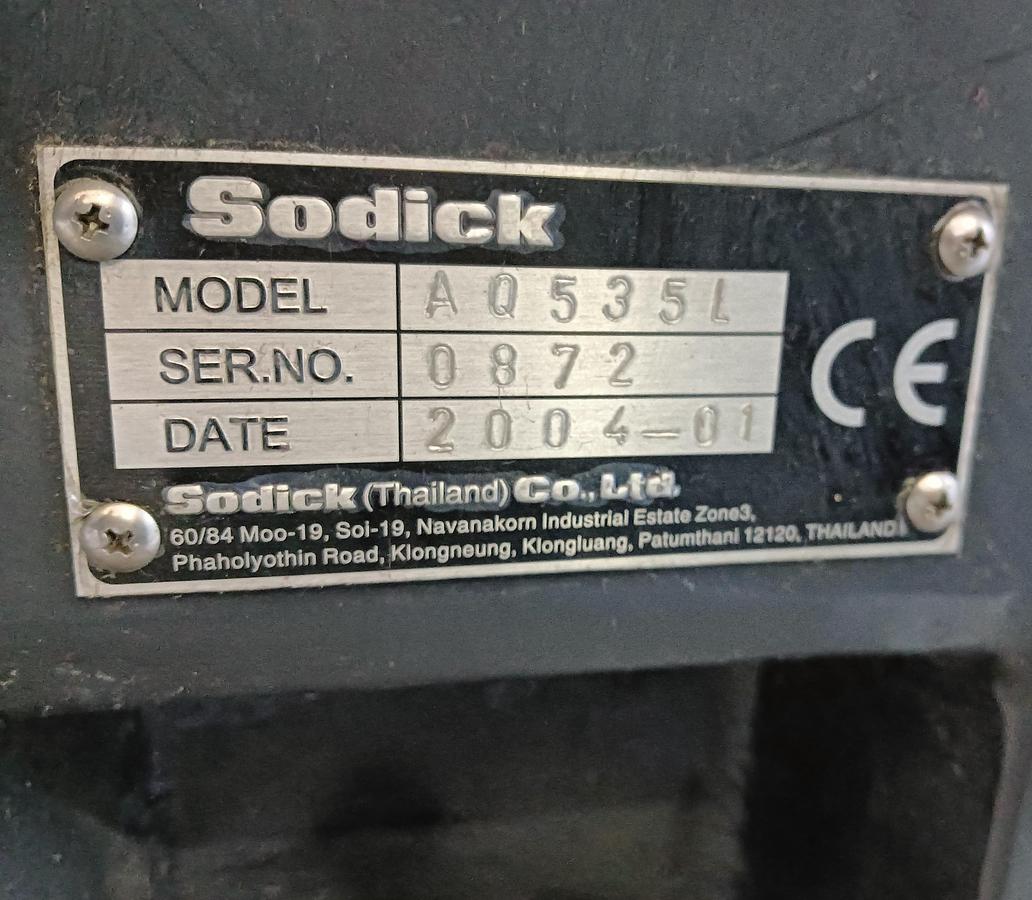

| Serial Number | T-0872 |
| Stock Number | EF63-PS |
| Table | 790 x 500 mm |
| Maximum height of the piece | 290 mm x 270 mm immersion |
| Maximum piece weight | 800Kg x 680Kg immersion |
| Cone angle | 20�� / 80 mm |
| Wire feed speed | 250 mm/sec |
| Wire coil volume (max) | 6 Kg |
| Filtration system | 2 replaceable paper filters |
| Total machine dimensions | 2250 x 2200 x 2040 mm |
| Machine weight | 4000 Kg |
