2023 SIBIMEX PARALLEL LATHE mod.CU 630×4000

No longer available

2023 SIBIMEX PARALLEL LATHE mod.CU 630×4000

Location:Bergamo, Italy

Description

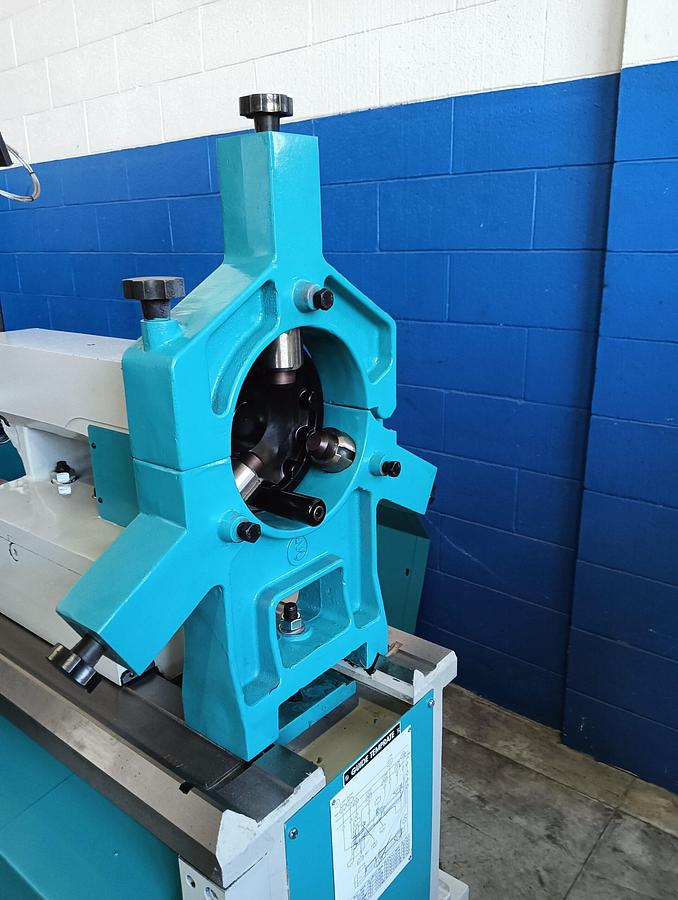

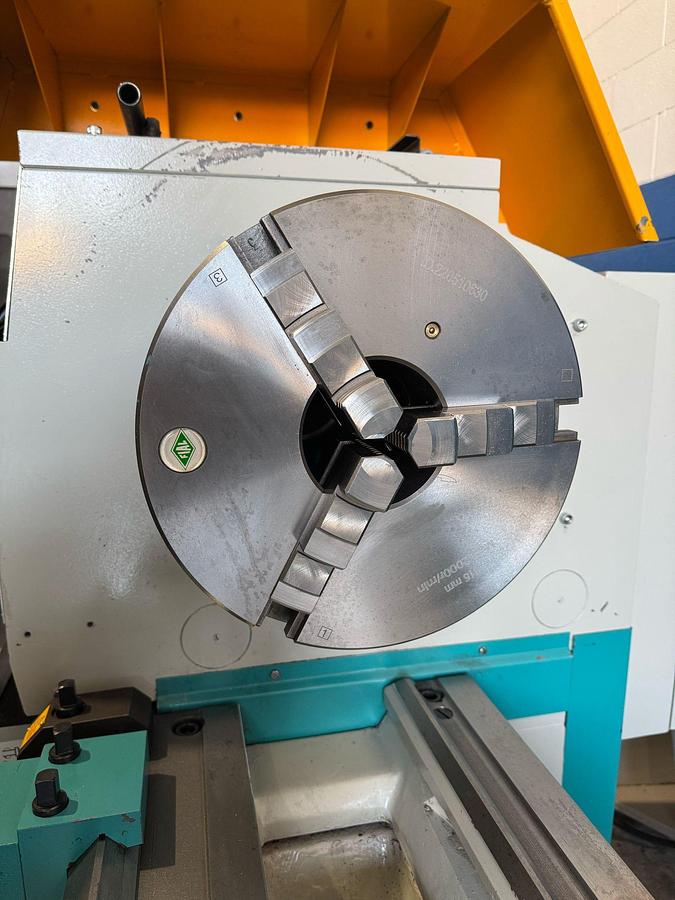

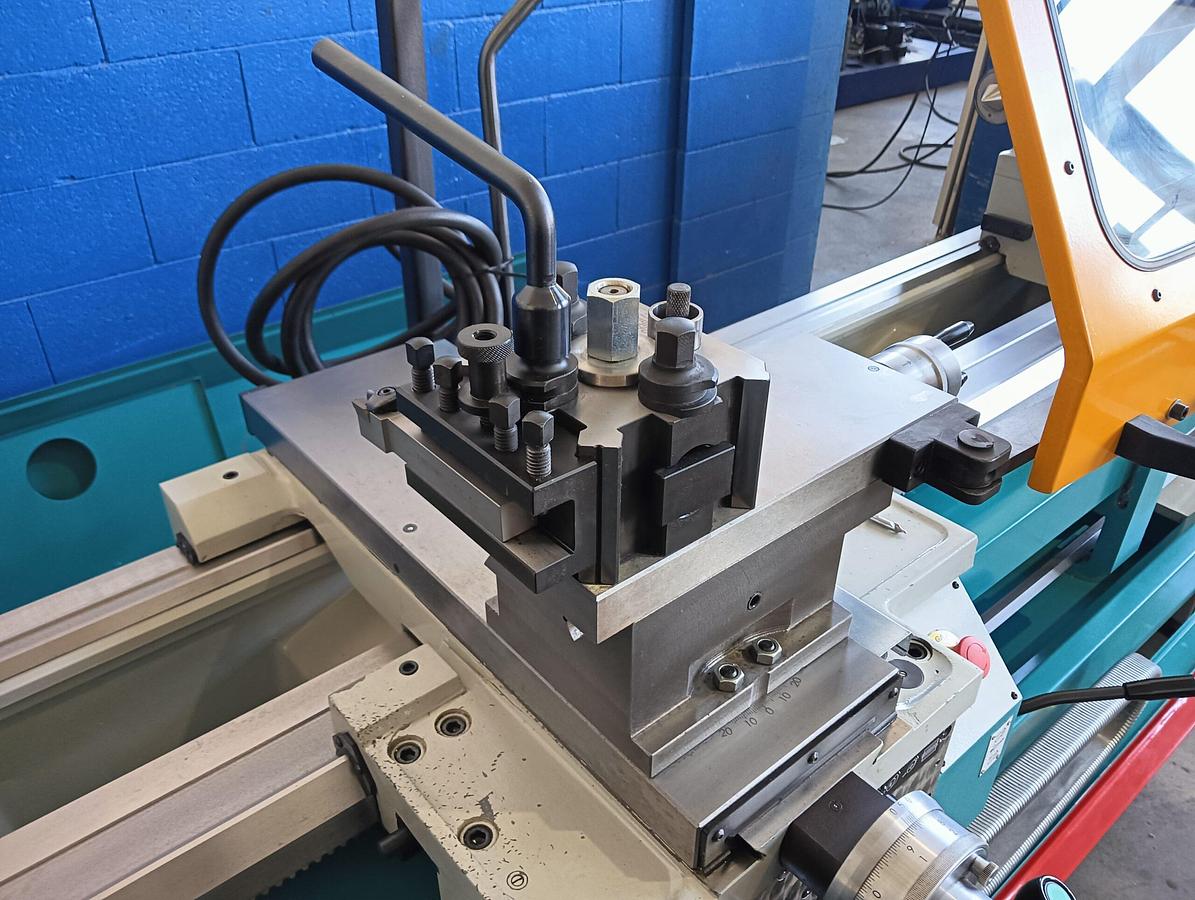

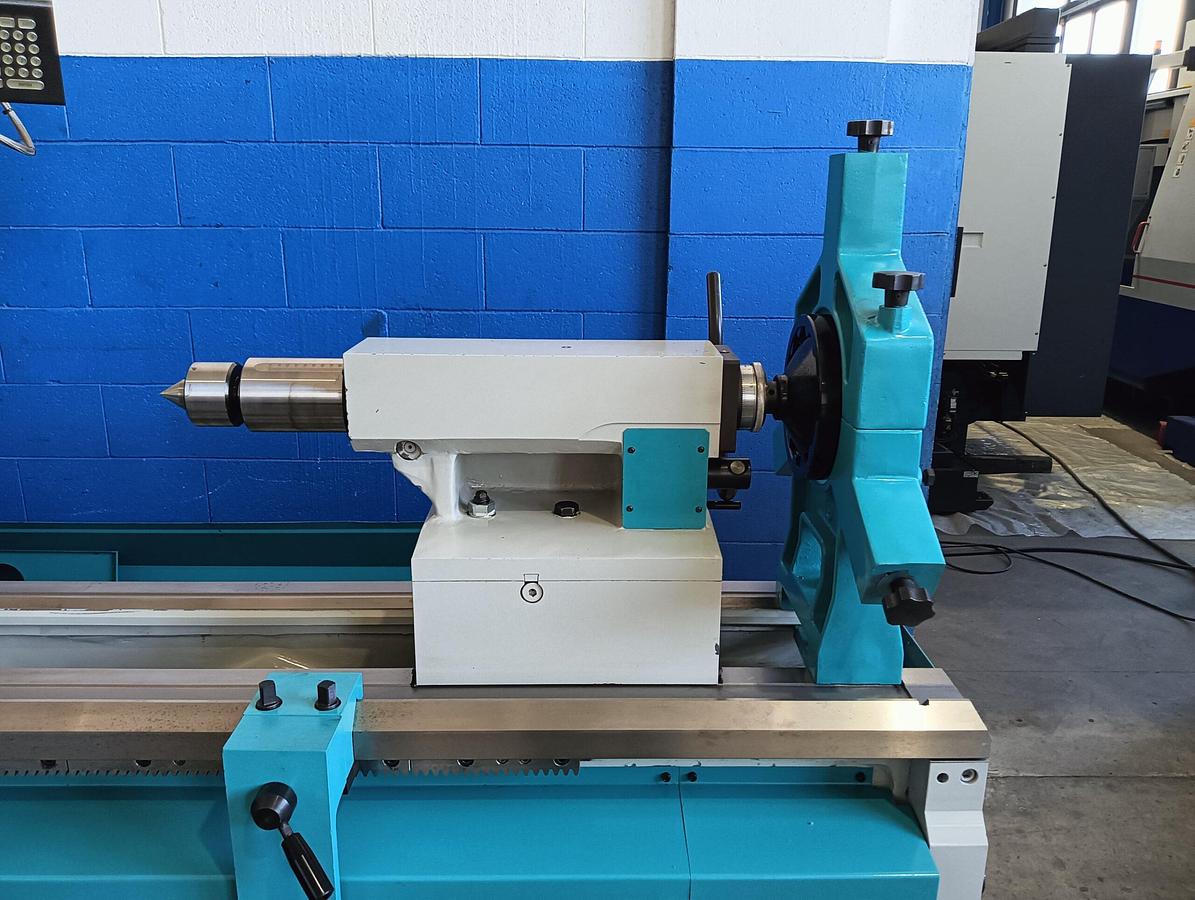

CAM-LOCK 11 spindle taper Tailstock Quick-change tool turret with 5 tool holders Self-centering spindle NONCOMMITTAL DATA TO BE VERIFIED
Show All

Specifications

Year2023
ConditionUsed
Serial Number45575
Stock NumberTP172-PS
Height tips on the bench315mm
Distance to tips4000 mm
Ø max to turn on the bench630mm
Ø max to turn on the recess830mm
Ø max to turn on the carriage430
Width of the bench400mm
Ø spindle hole103 mm
Tip coneCM5
Speed12-1250 rpm.
X-axis rapid stroke3800 RPM
Rapid travel y-axis1900 RPM
Cross travel315mm
Upper trolley stroke130mm
Dinghy diameter90mm
Race dinghy230mm
Cone morse dinghy5CM
Dimensions3600x1250x1400 mm
Weight3310 Kg
Fixed bezel15-200 mm

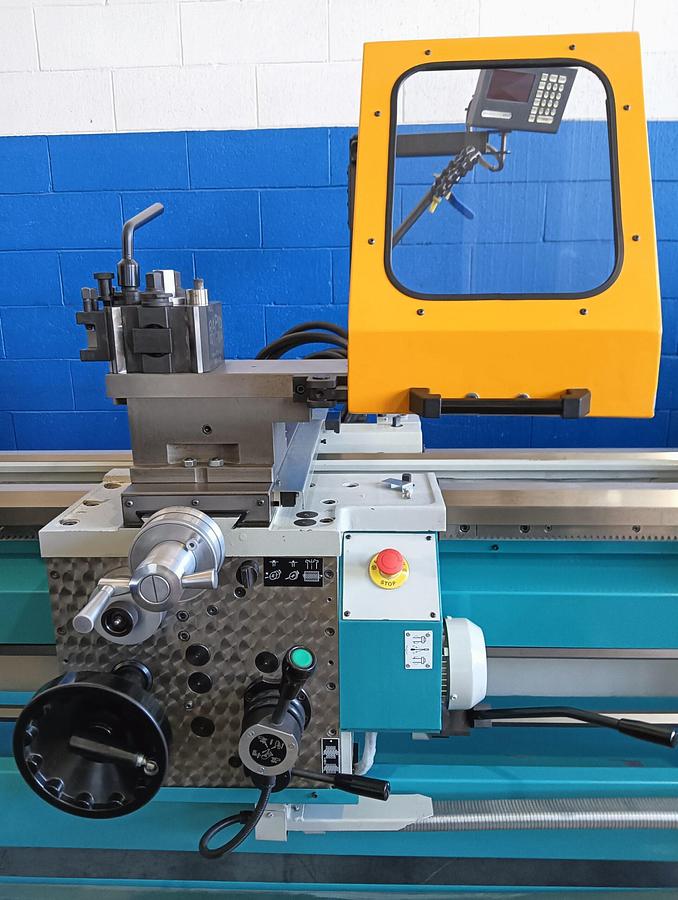

Dimension viewer for 2 axesE-130
