2002 CHEVALIER MOD.FCL-2480 SELF-APPOINTING MACHINE

2002 CHEVALIER MOD.FCL-2480 SELF-APPOINTING MACHINE

Contact us for price

Location:Bergamo, Italy

or
Call +39 0451 117 6498

Description

Strokes: Z axis 2000 mm X axis 310 mm Power 15 kW Diameter 75 mm stroke 150 mm NONCOMMITTAL DATA TO BE VERIFIED
Show All

Specifications

Year2002
ConditionUsed
Serial NumberX4882002
Stock NumberTA185-PS
Rotation diameter on the bench610 mm
Turning diameter546 mm
Distance to tips2000 mm
Passage barØ 106 mm
SpindleASA 8
Speed 401800 rpm

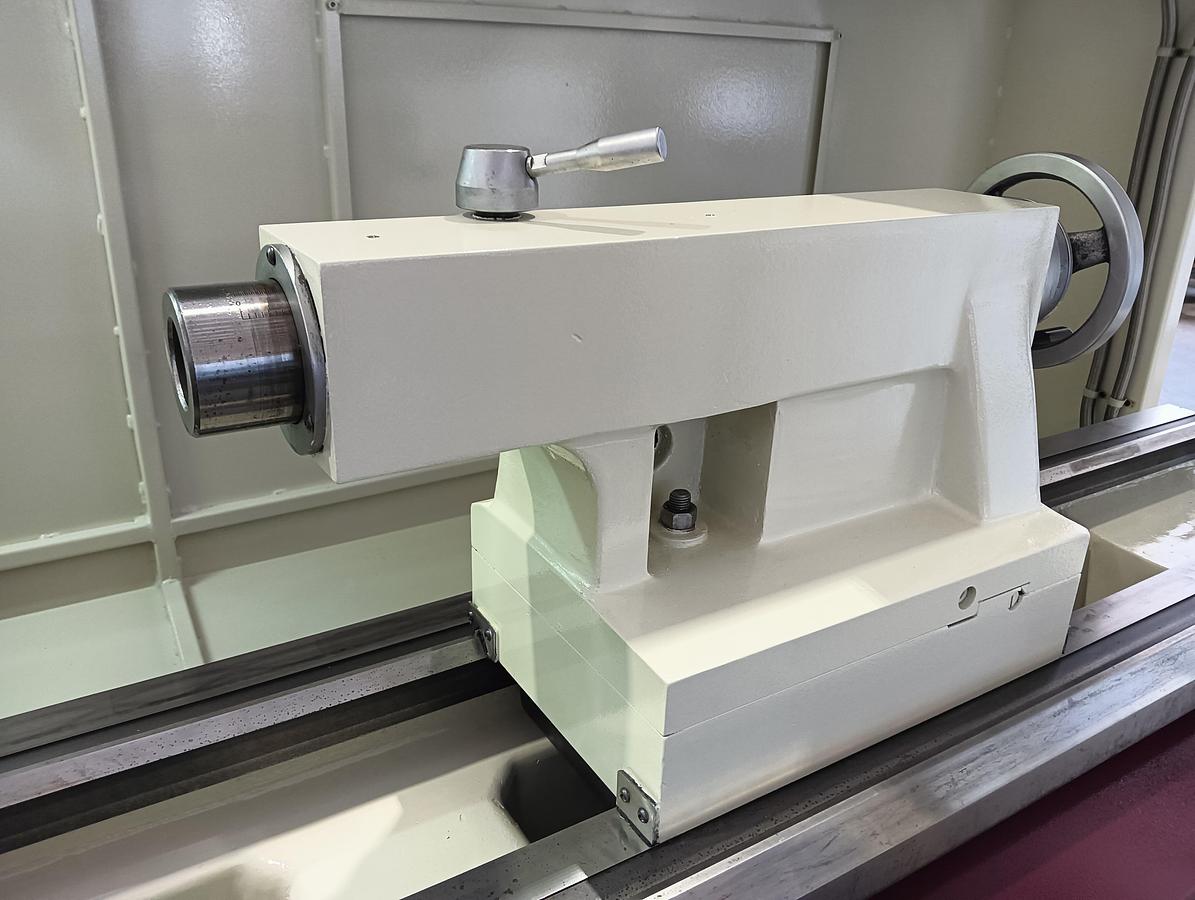

TailstockMT 5
Encumbrances4500 x 1620 x 1950 mm
Weight4540 Kg
