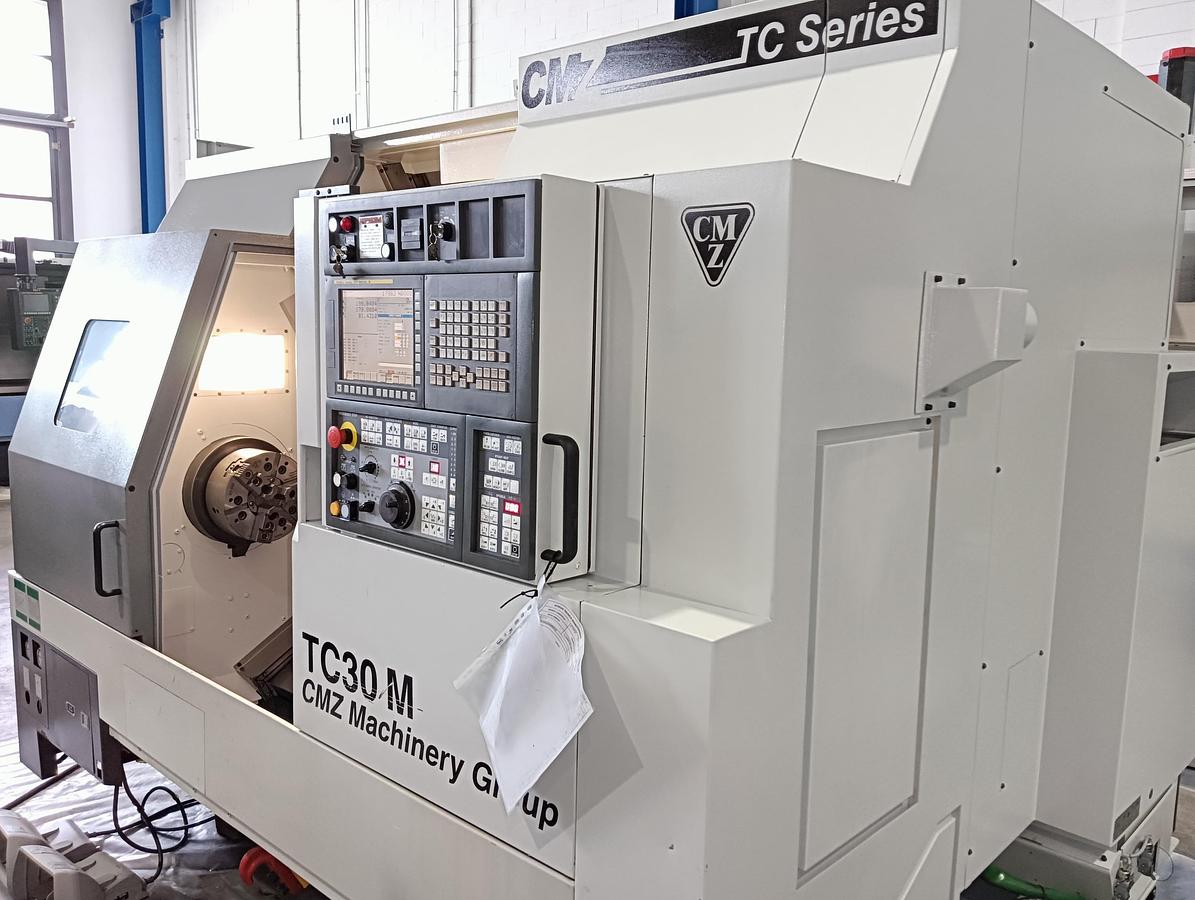

2015 CMZ lathe mod. TC30 M
No longer available
2015 CMZ lathe mod. TC30 M
Location:Bergamo, Italy
Description

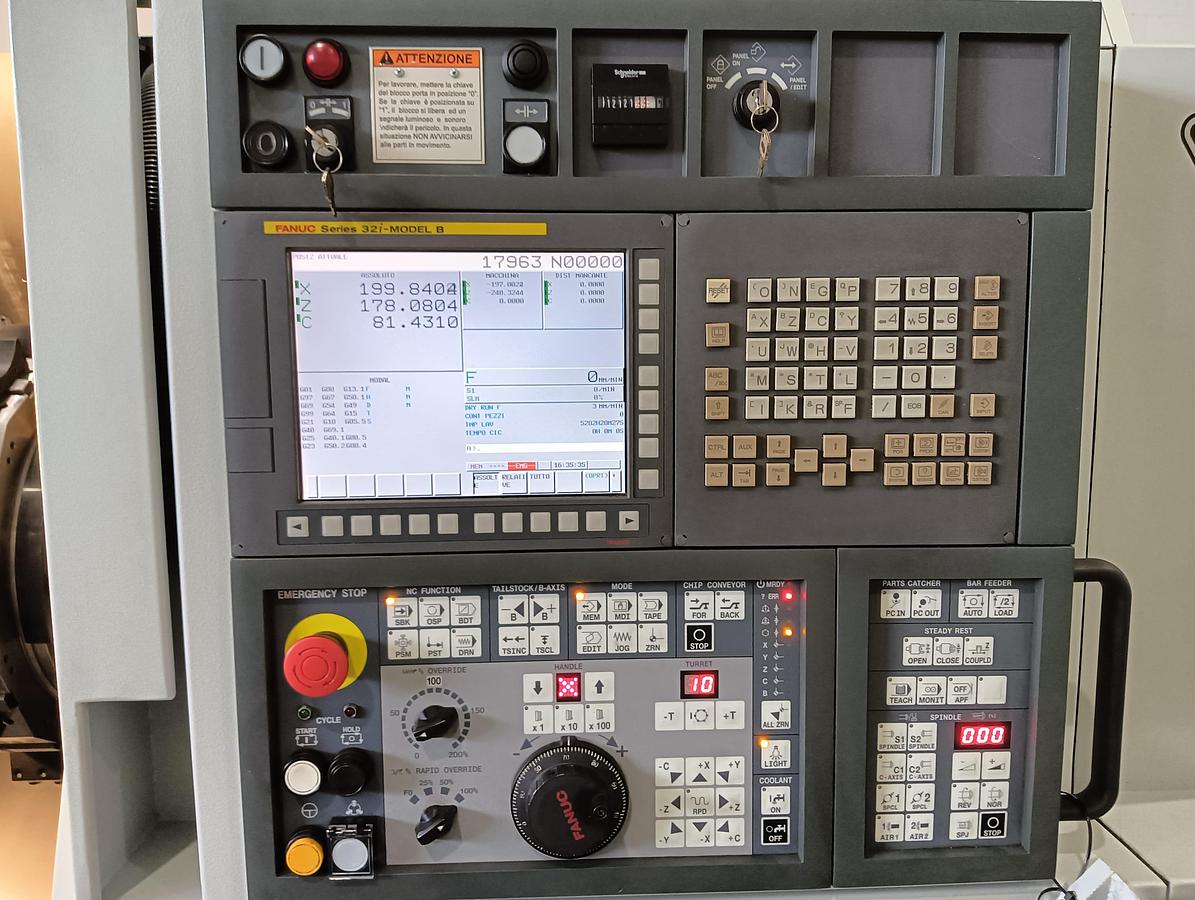

FANUC CNC

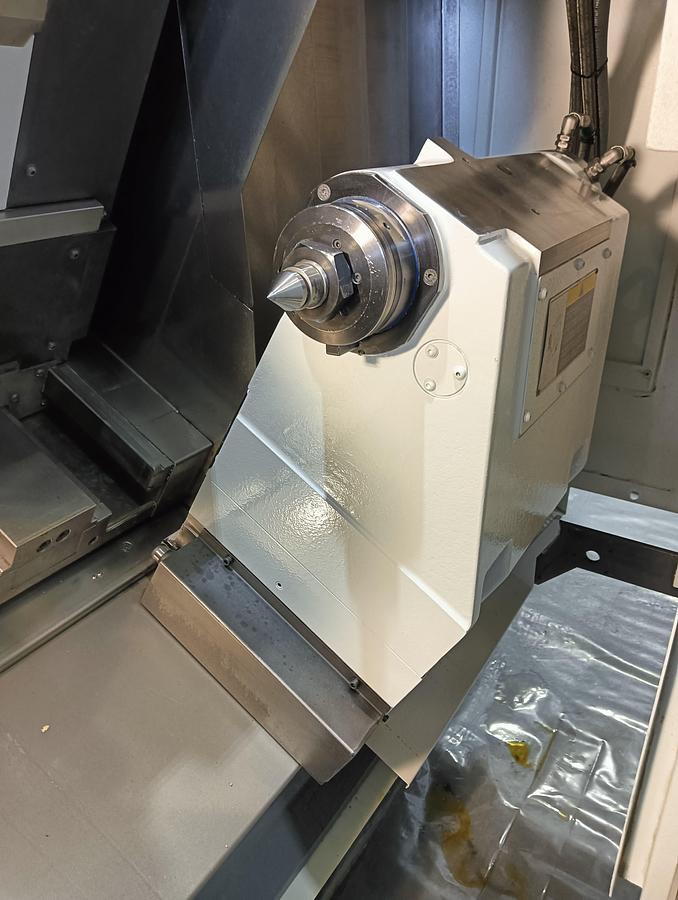

TAILSTOCK CM5
STROKE 800 mm
QUILLING Ø 90 mm, STROKE 120 mm
CHIP CONVEYOR
THIS DATA IS NON-BINDING, TO BE VERIFIED
Specifications
| Year | 2015 |
| Condition | Used |

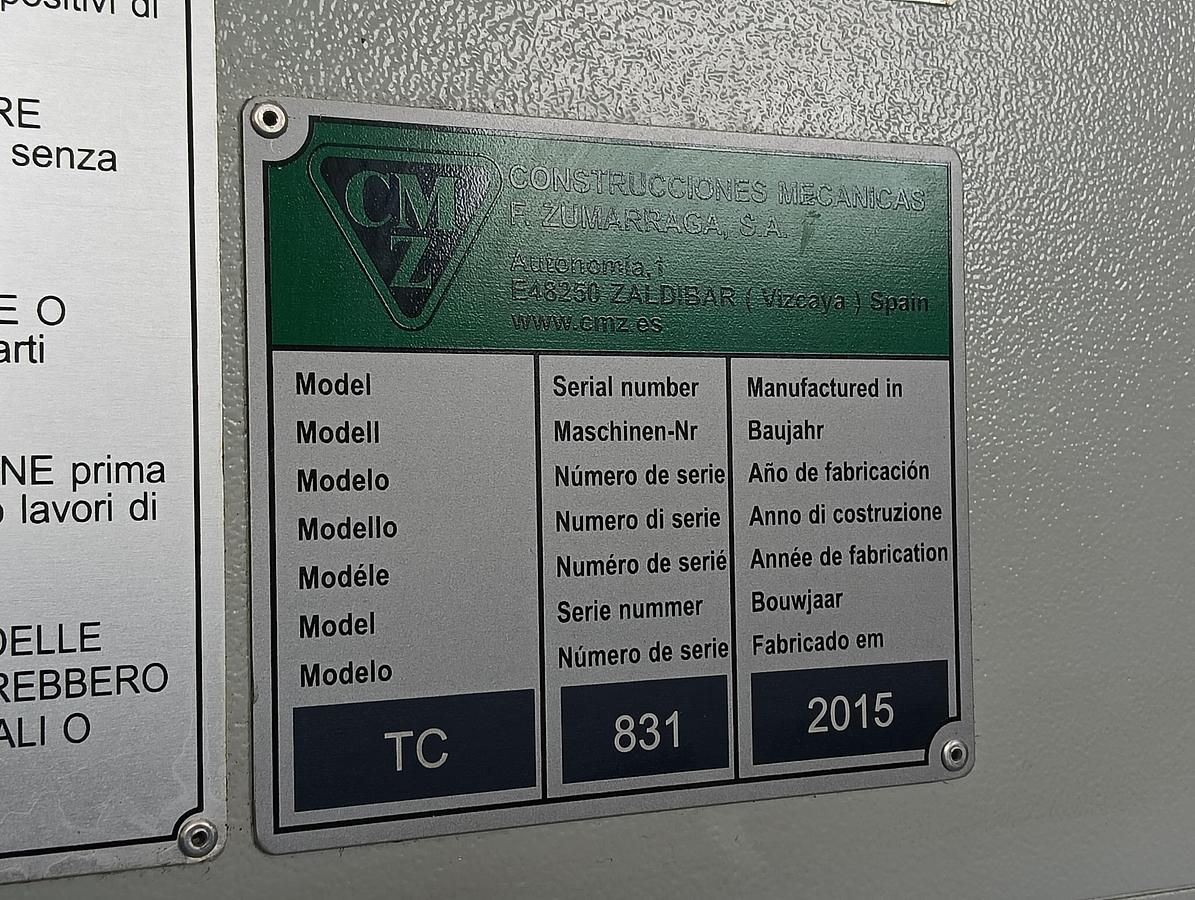

| Serial Number | 831 |
| Stock Number | TC203-PS |

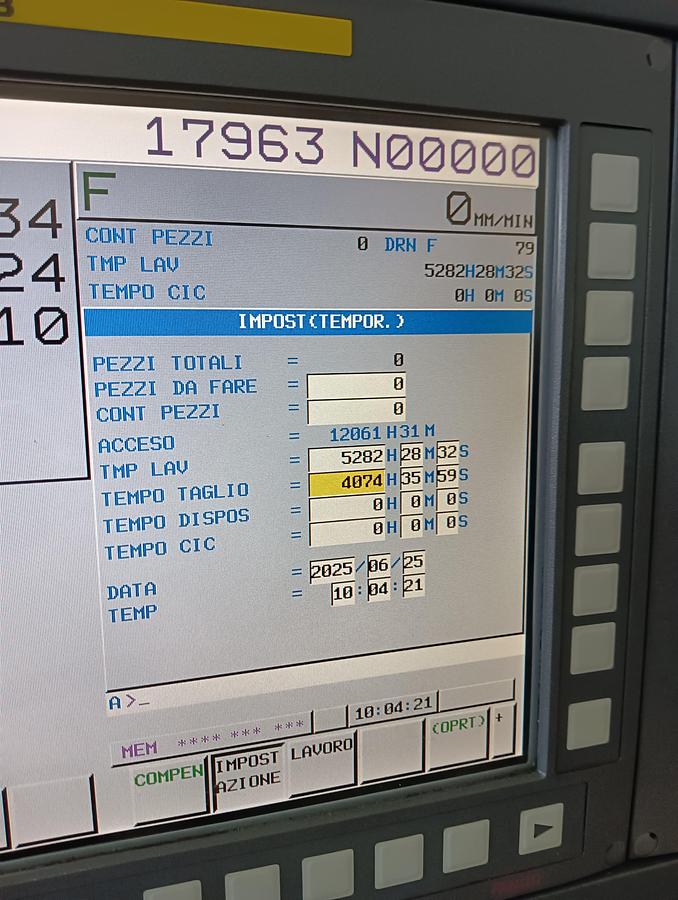

| Working hours | 4000 |
| Ø maximum turnable | 550 mm |
| Distance to tips | 874 mm |
| Useful bar passage | 77 mm |
| X axis cross travel | 315 mm |
| Longitudinal travel z axis | 800 mm |
| Rapid advances x | 30 (m/min) |
| Rapid feeds z | 30 (m/min) |
| Spindle | ASA 8 |

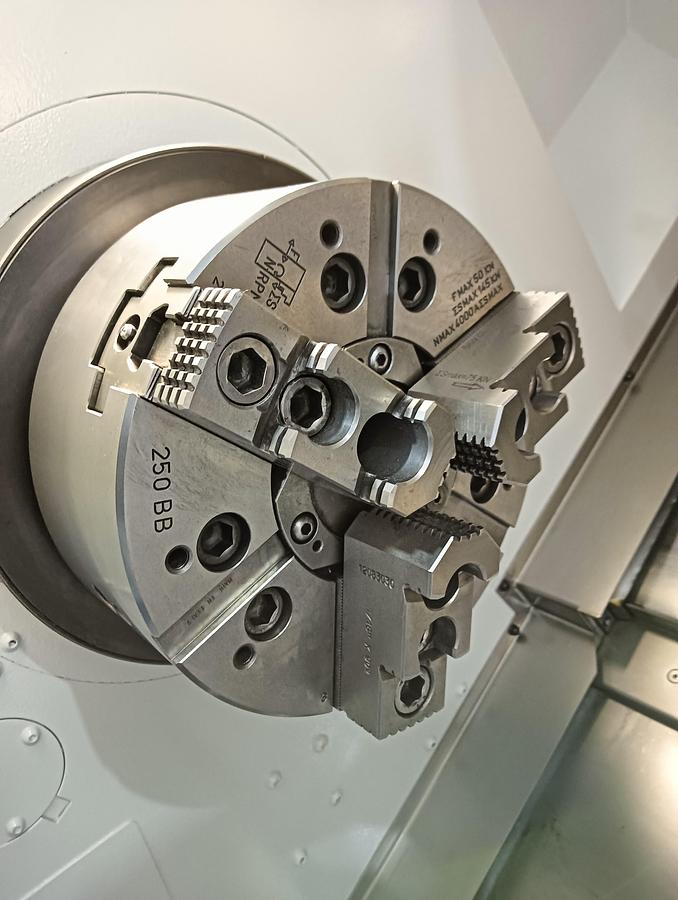

| Ø self-centering | 250 mm |
| Maximum rotation speed | 3500 rpm |
| Spindle power | 42/27 kW |

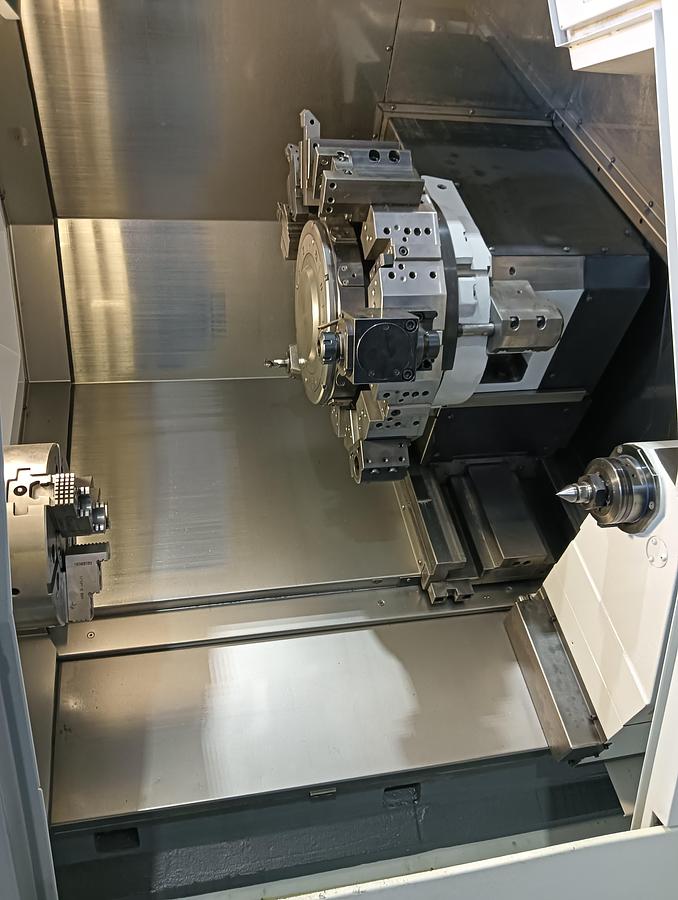

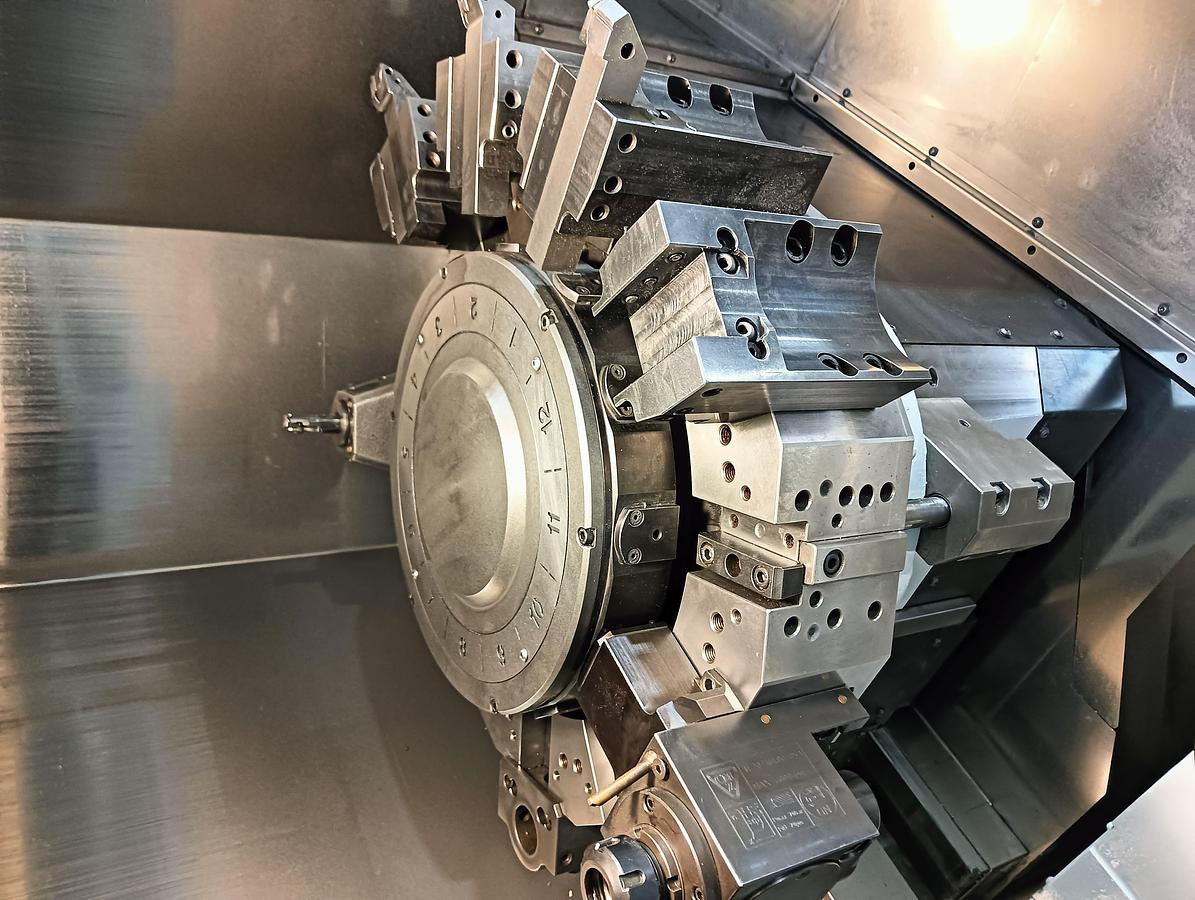

| Turret | NO.12 MOTORIZED TOOL STATIONS |
| Tool section | 25 x 25 (50) |
| Rotation speed | 4000 |
| Power | 16 kW |
