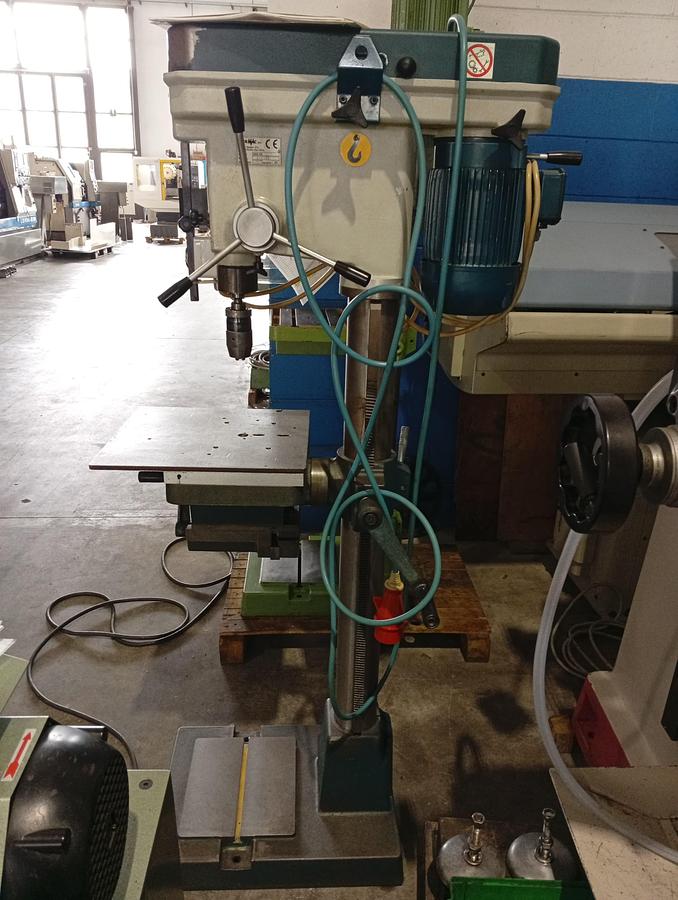

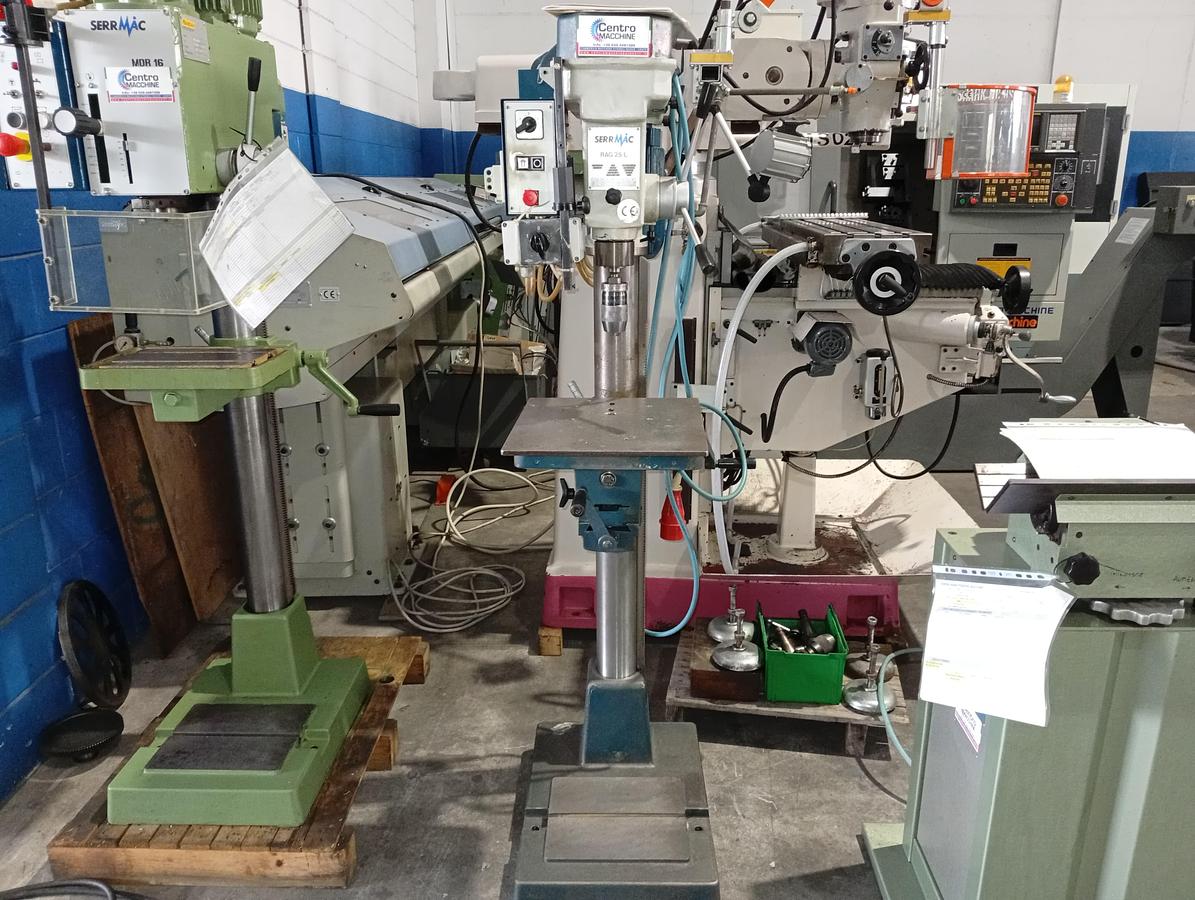

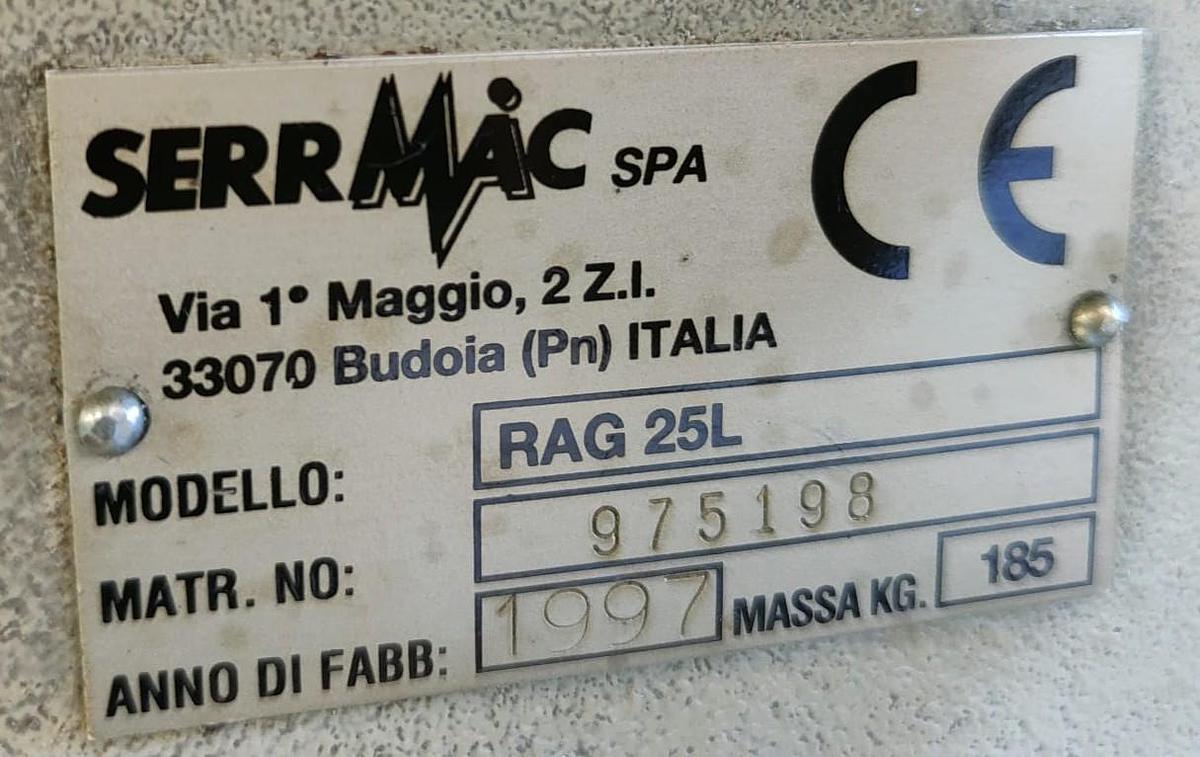

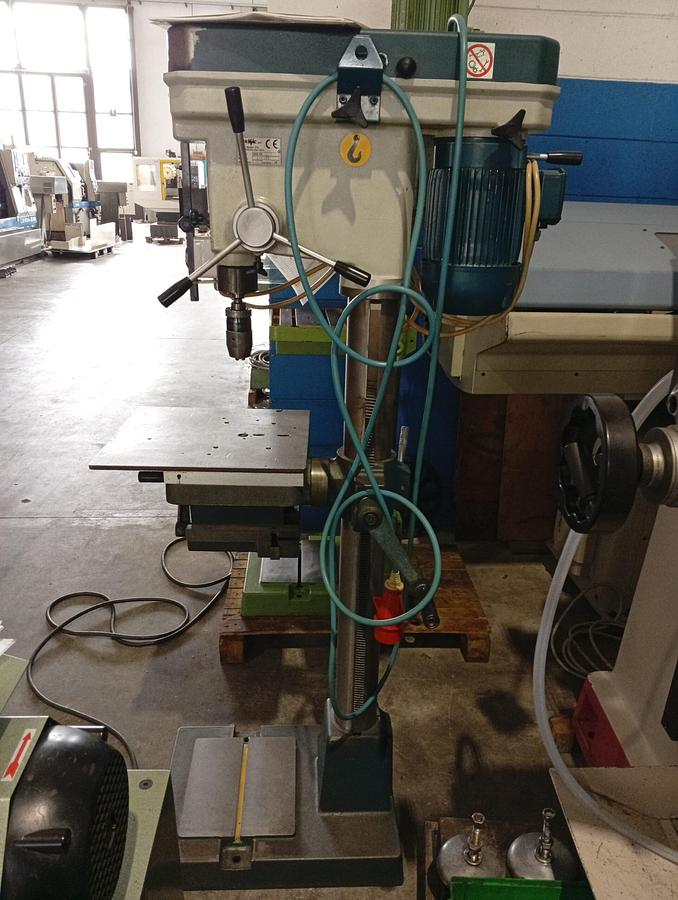

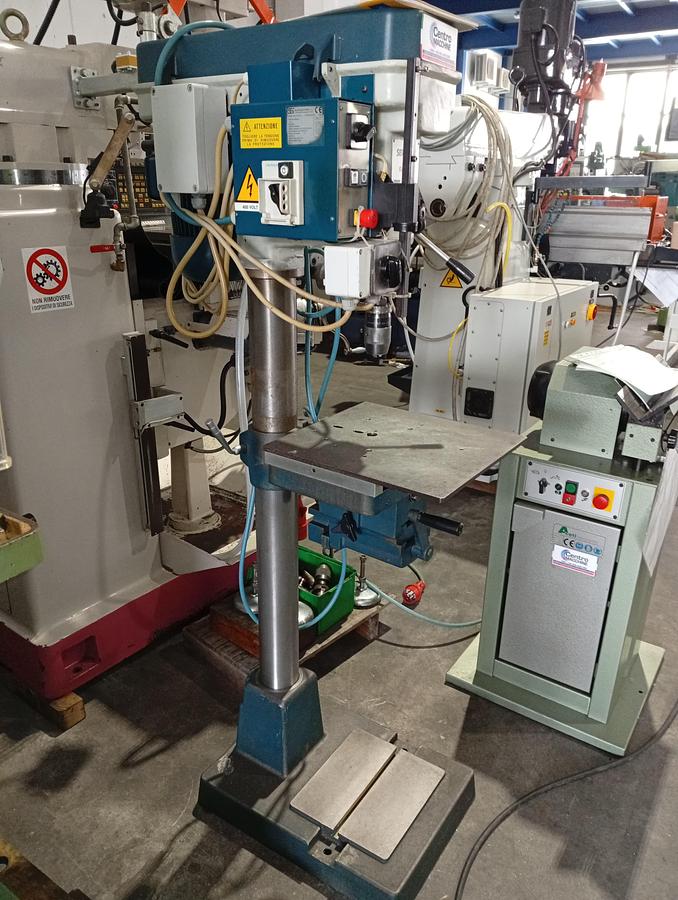

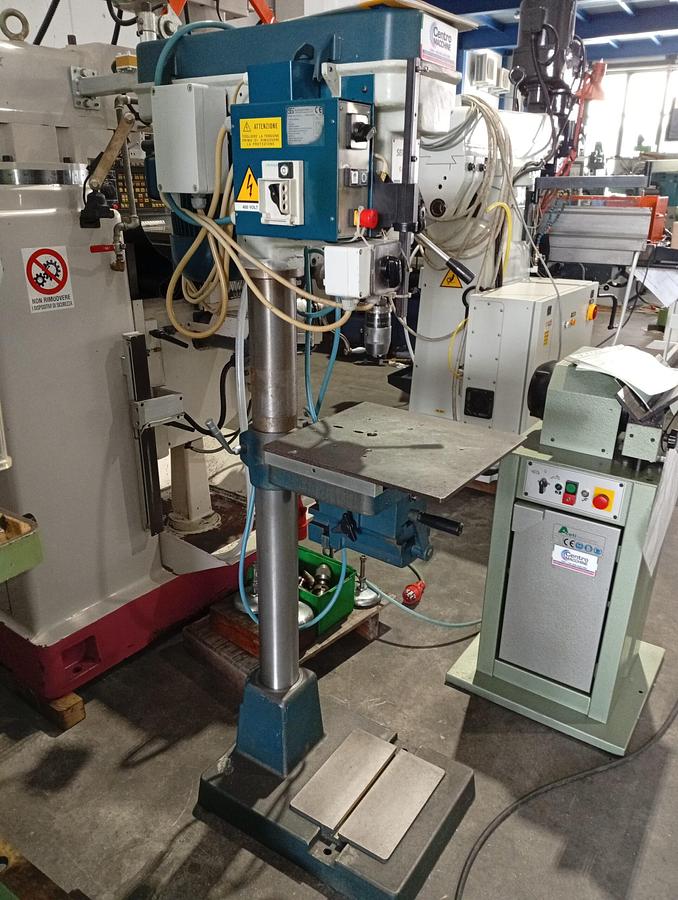

1997 SERRMAC DRILL mod. RAG 25L

DISTANCES - DIMENSIONS - WEIGHT Column - Spindle Center 203 mm Work Table - Spindle Nose Min-Max 142-845 mm Max Height 1700 mm Max Width 535 mm Max Depth 850 mm Weight 185 kg Weight with packaging 215 kg Noise Emission (1-2 Speed Motor) 71 dB Noise Emission (Single-Phase Motor) 69 dB WORKING CAPACITY Max Drilling in HR Steel = 60 × 28 mm Max Drilling in HR Cast Iron = 60 × 30 mm Tapping in HR Steel = 60 × 20 mm Tapping in HR Cast Iron = 60 × 22 mm Spindle Taper 3 cm Spindle Stroke 100 mm MOTOR POWER SPINDLE Motor power, single speed: 0.74 kW Spindle speed, min-max: 255-2380 rpm Motor power, double speed: 0.6/0.8 kW Spindle speed, min-max: 127-2380 rpm Single-phase motor power // Spindle speed, min-max: 100-2180 rpm WORKTABLE DATA Table (Pg-Tm): Working surface: 350-250 mm Number of T-slots: 2 T-slot width: 12 mm T-slot center distance: 100 mm Vice: Jaw width: 120 mm Jaw height: 50 mm Working stroke: 90 mm NON-BINDING DATA TO BE VERIFIED
