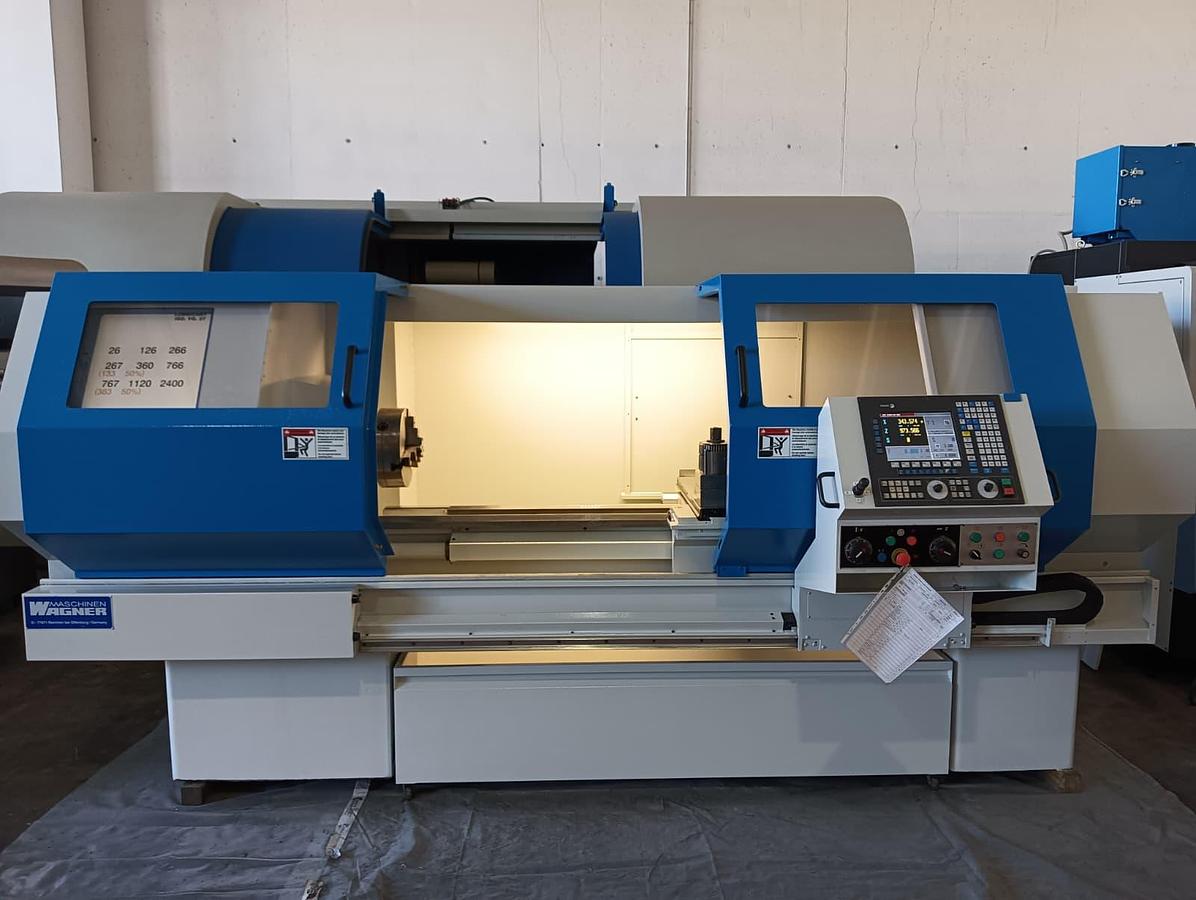

2011 WAGNER TORNIO mod. WDC 510

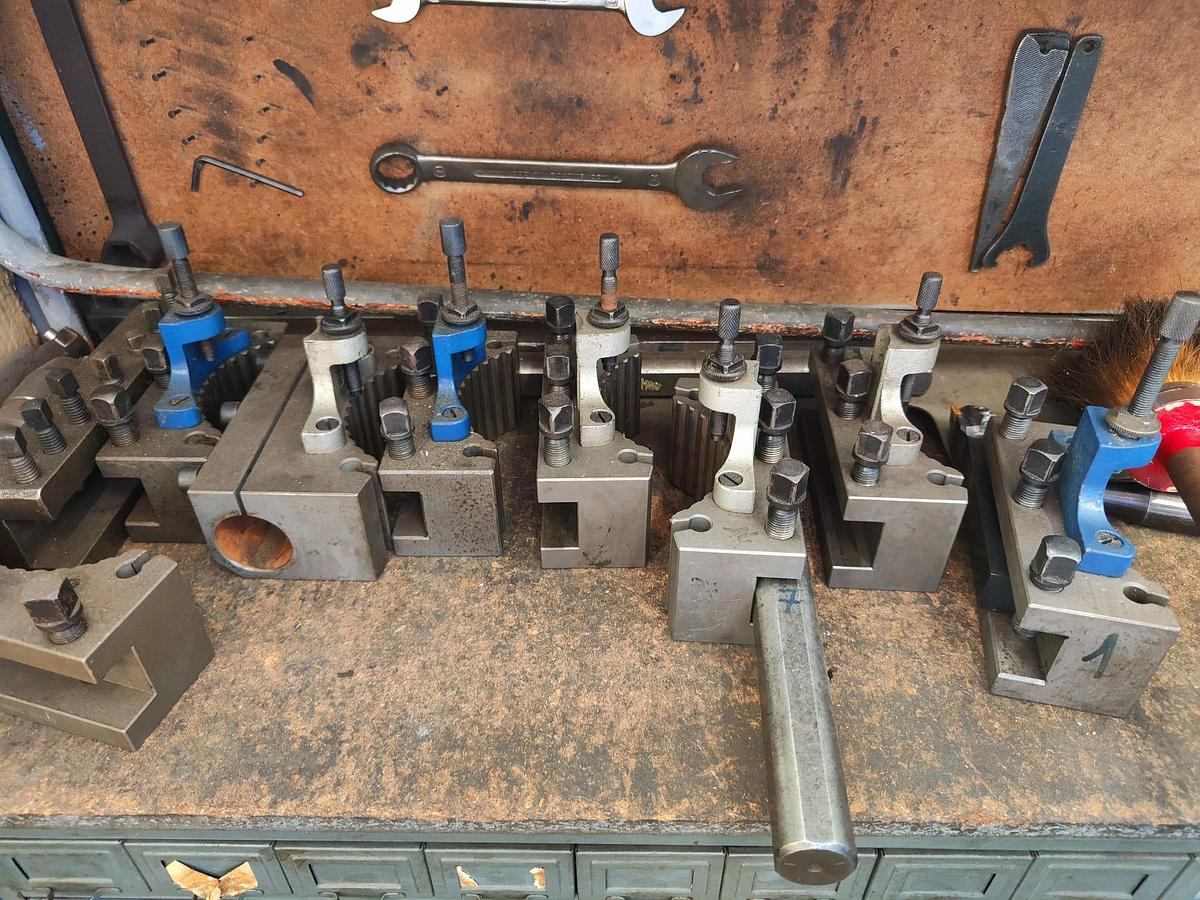

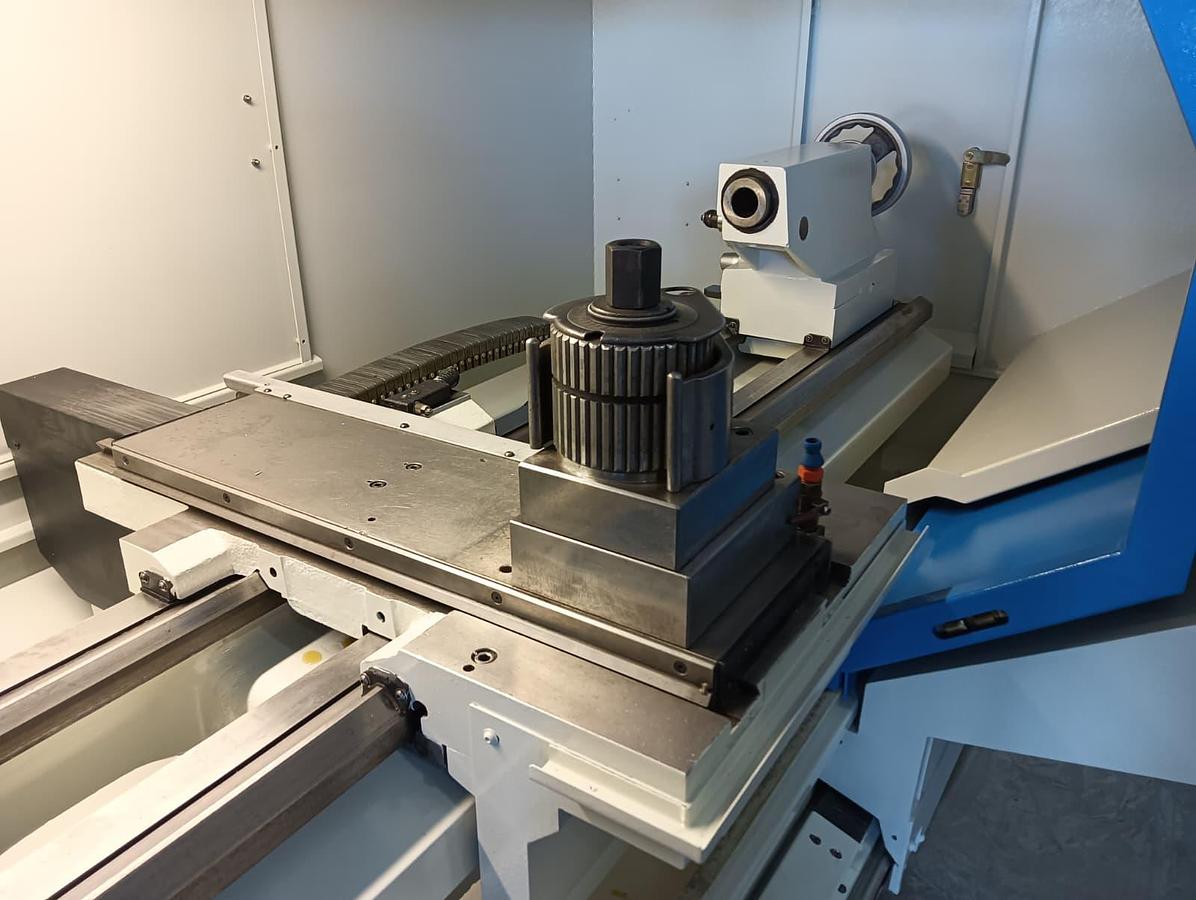

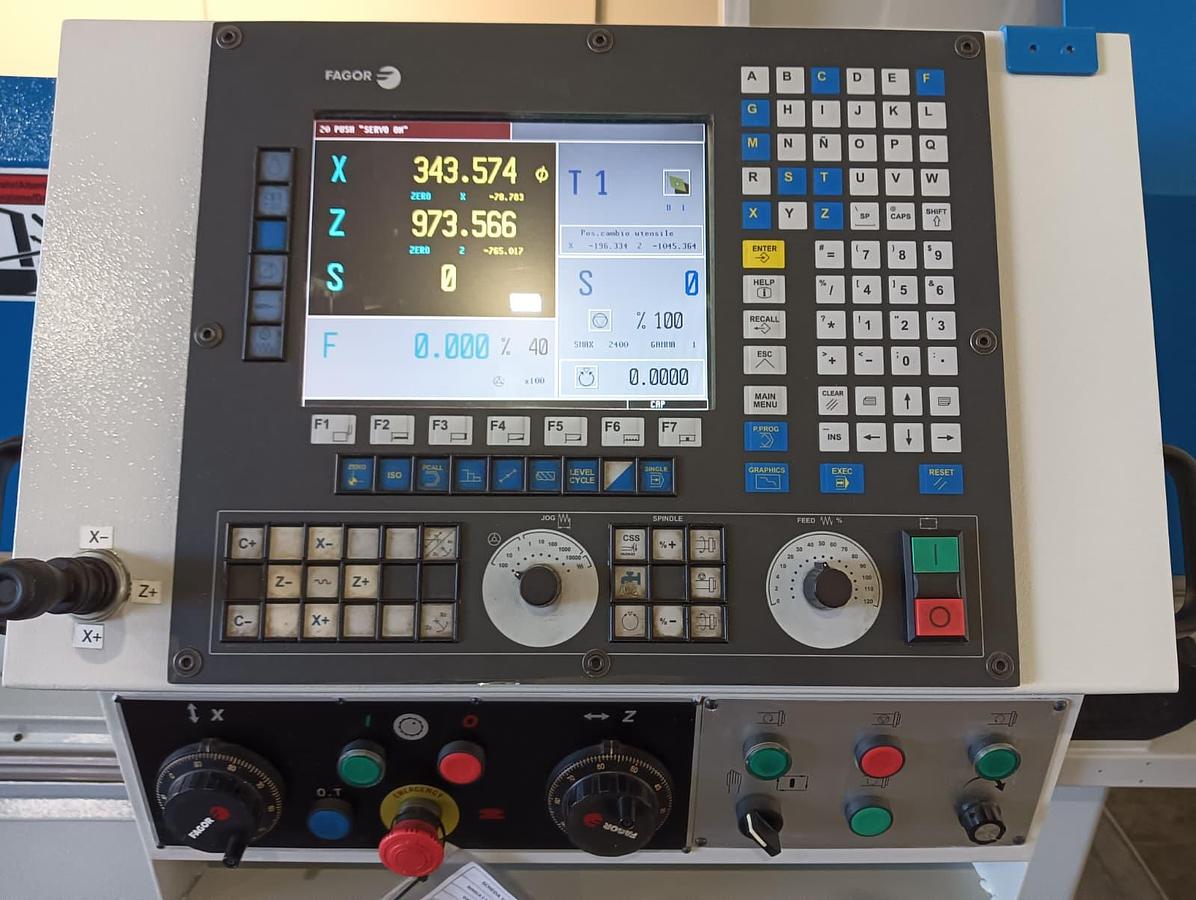

YEAR 2011 SERIAL NUMBER 0714 FAGOR 8055 TC CONTROL MANUAL MULTIFIX TURRET CAPACITY: Max. workpiece diameter on bed: 510 mm Max. turning diameter on cross slide 340 mm Turning diameter in the pocket 760 mm Distance between centers 2000 mm SPINDLE HEAD: Spindle nose D1-8 Spindle bore 80 mm Low spindle speed rpm 26-266 High spindle speed 267-766 Medium spindle speed 767-2400 Spindle nose clamping MT7xMT5 TAILSTOCK: Quill travel 200 mm Quill diameter 75 mm Quill taper MT5 BED: Width 345 mm Max. longitudinal travel 1700 mm Max. length Rotation 1650 mm GENERAL: Length 4710 mm Width 2100 mm Height 2230 mm Gross weight 3000 kg Net weight 3600 kg NON-BINDING DATA TO BE VERIFIED
