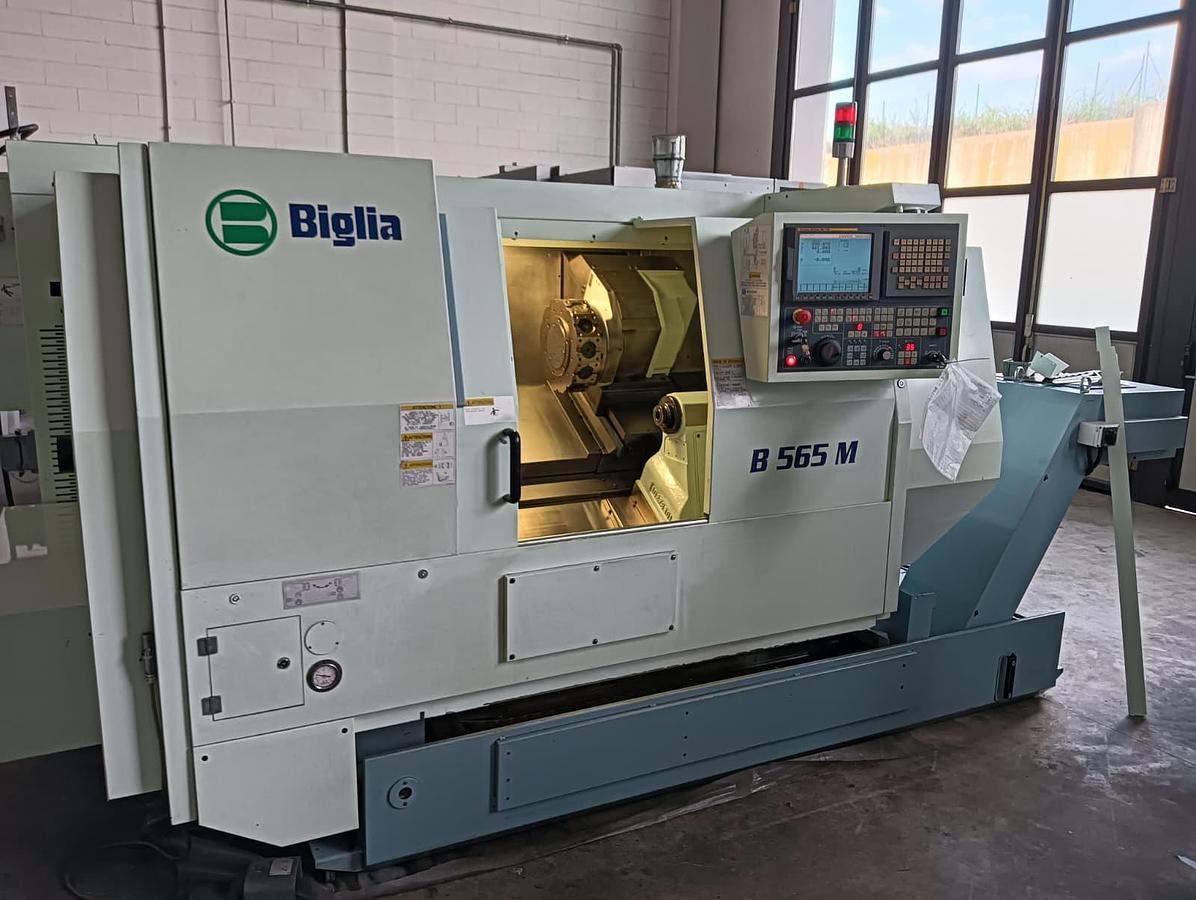

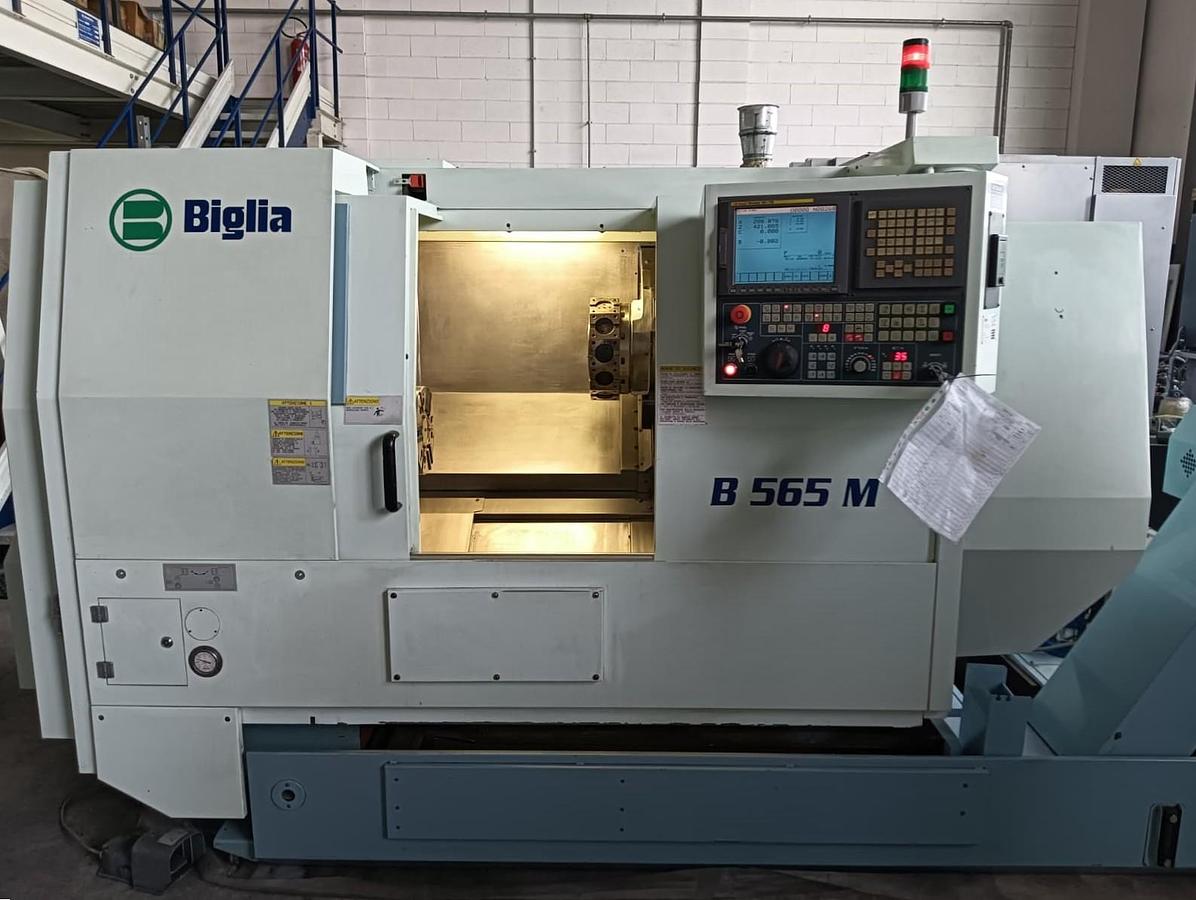

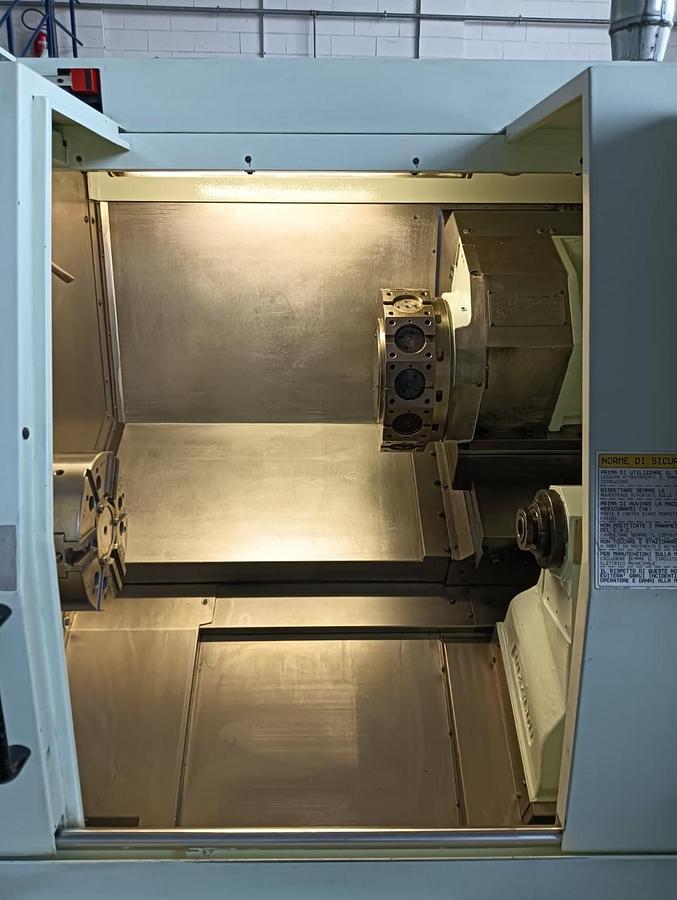

2008 BIGLIA lathe mod. B565/M
2008 BIGLIA lathe mod. B565/M
Contact us for price
Location:Bergamo, Italy
or
Call +39 0451 117 6498
Description
YEAR 2008

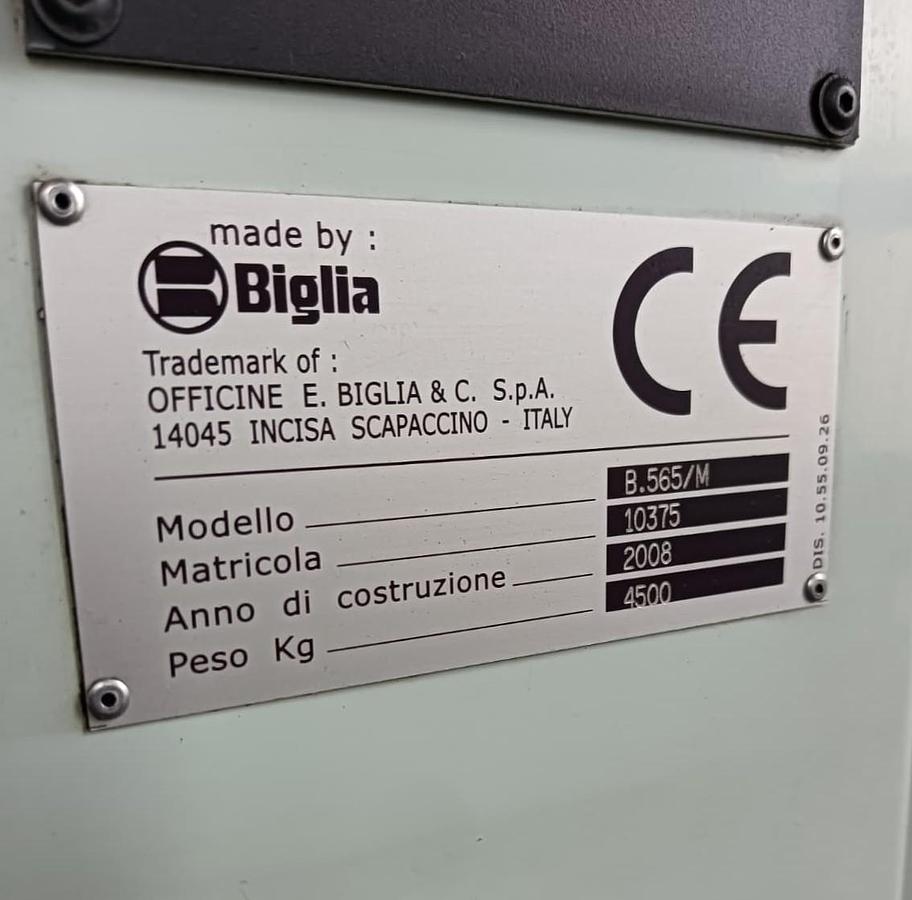

SERIAL NUMBER 10375

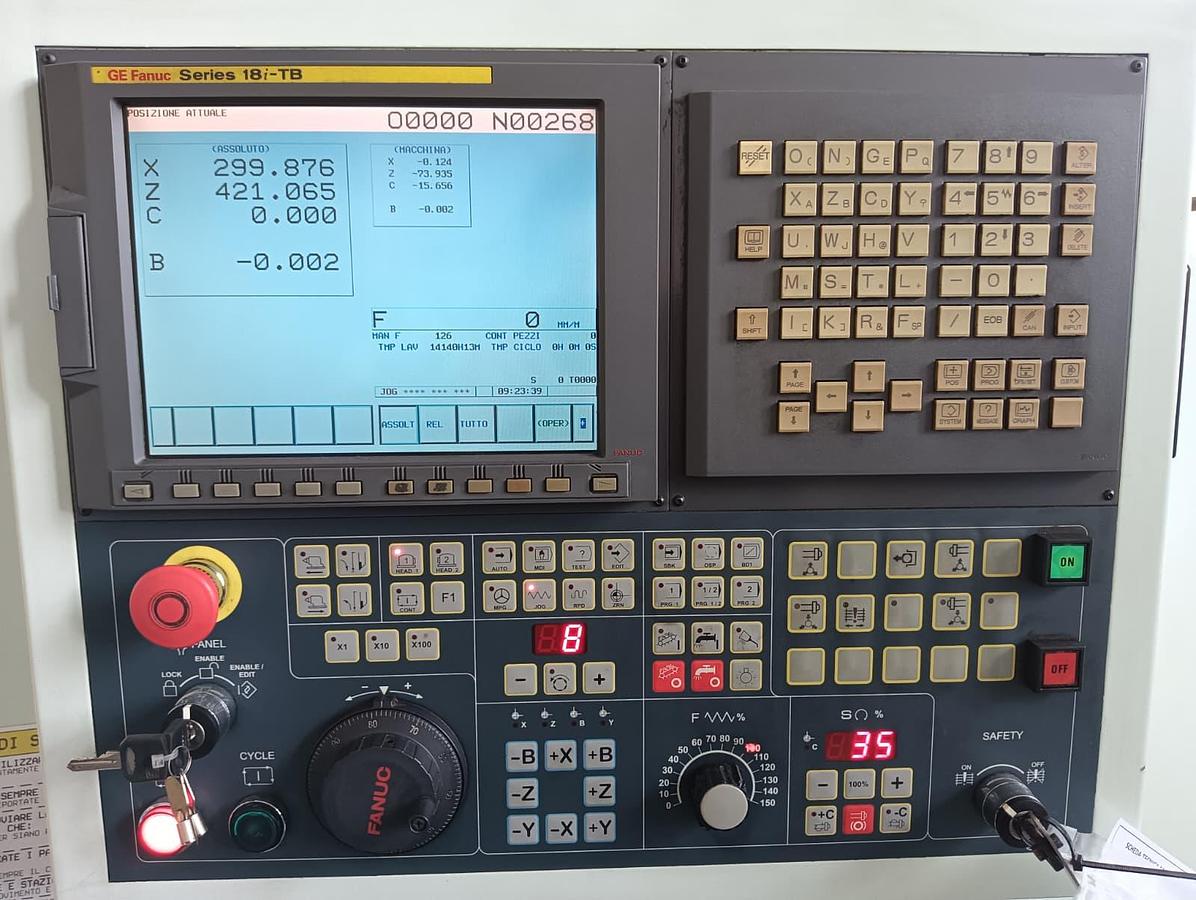

Numerical Control (CNC):
Fanuc 18i-TB

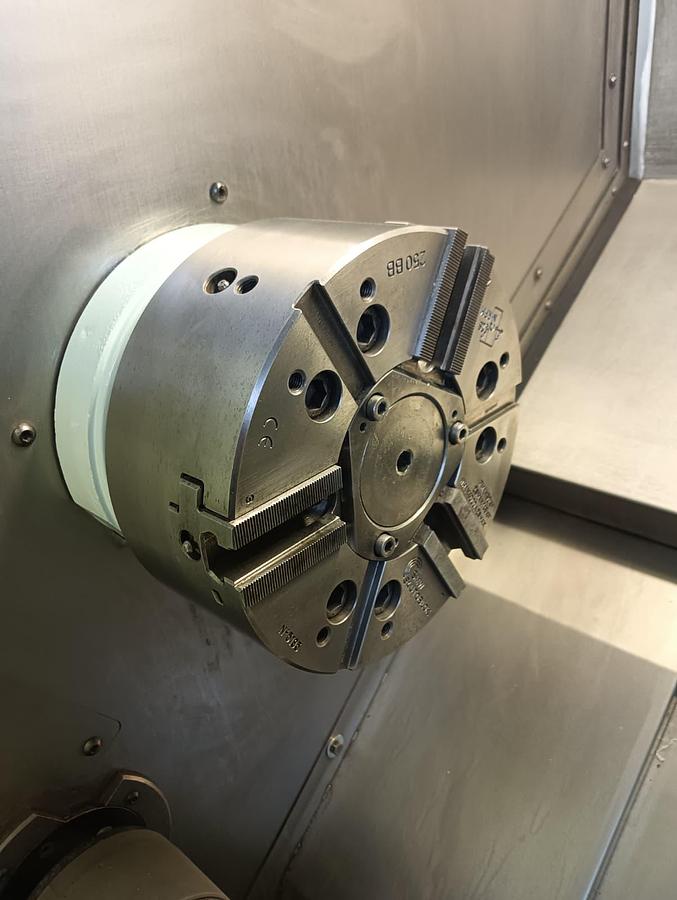

Main Spindle:
Bar Passage 65 mm

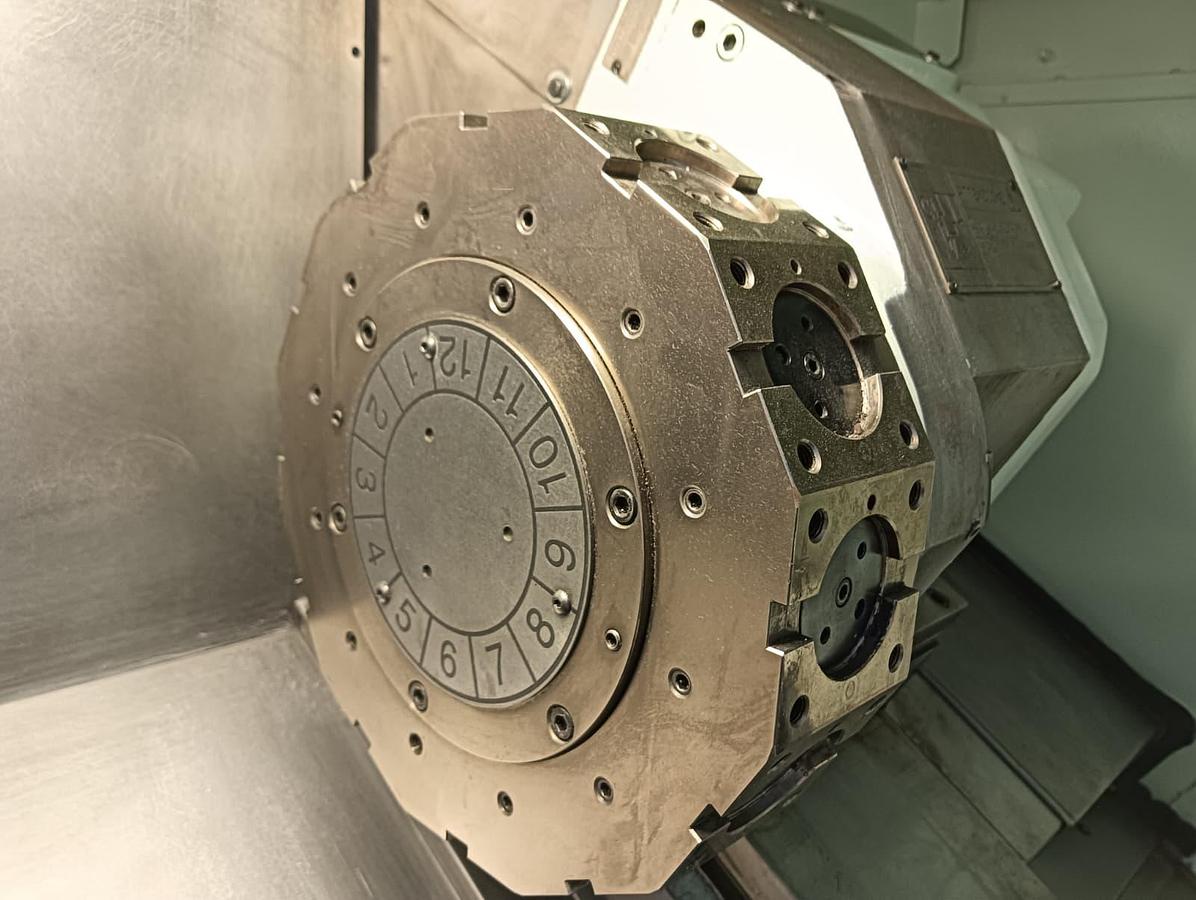

Turret:
Live Tools:
Axes:

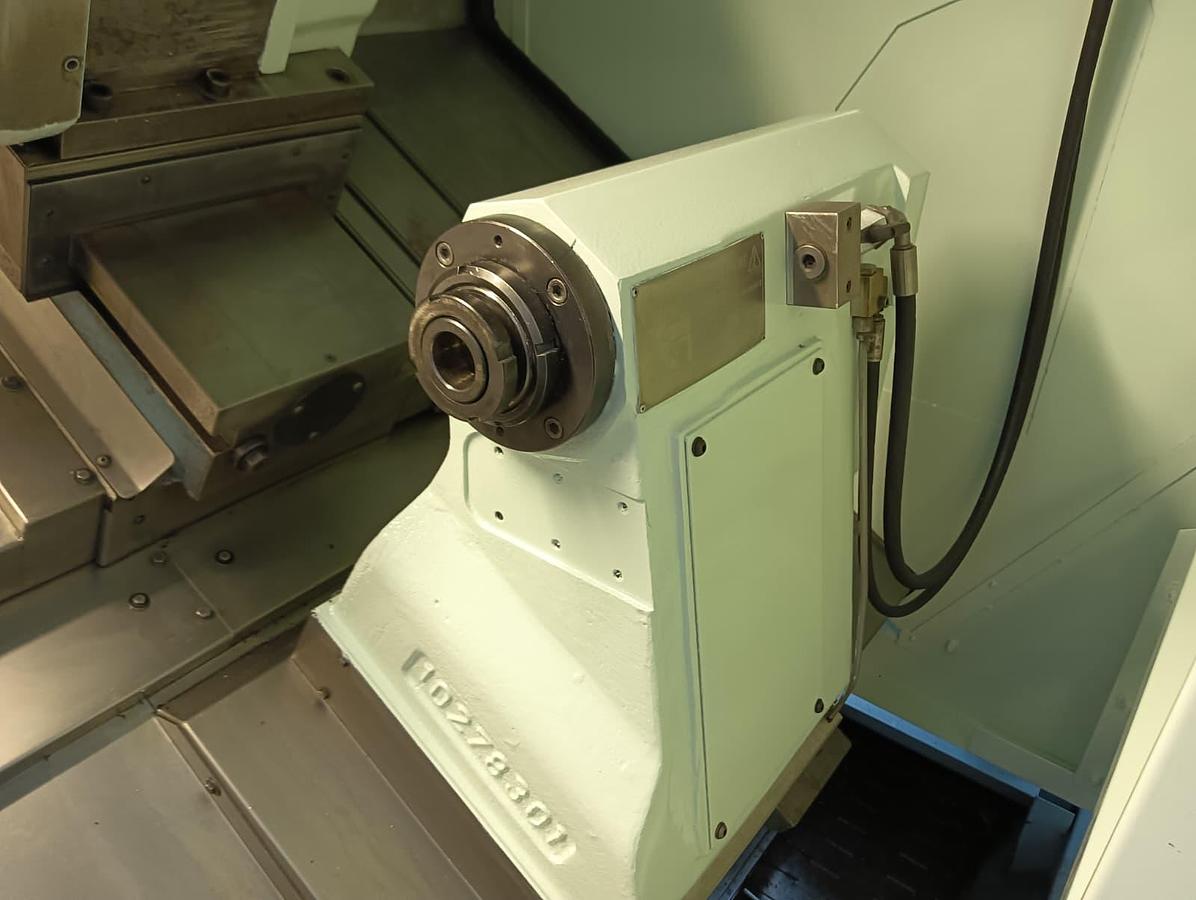

Tailstock:
Cooling System:
Dimensions and Weight:
COMPLETE WITH:

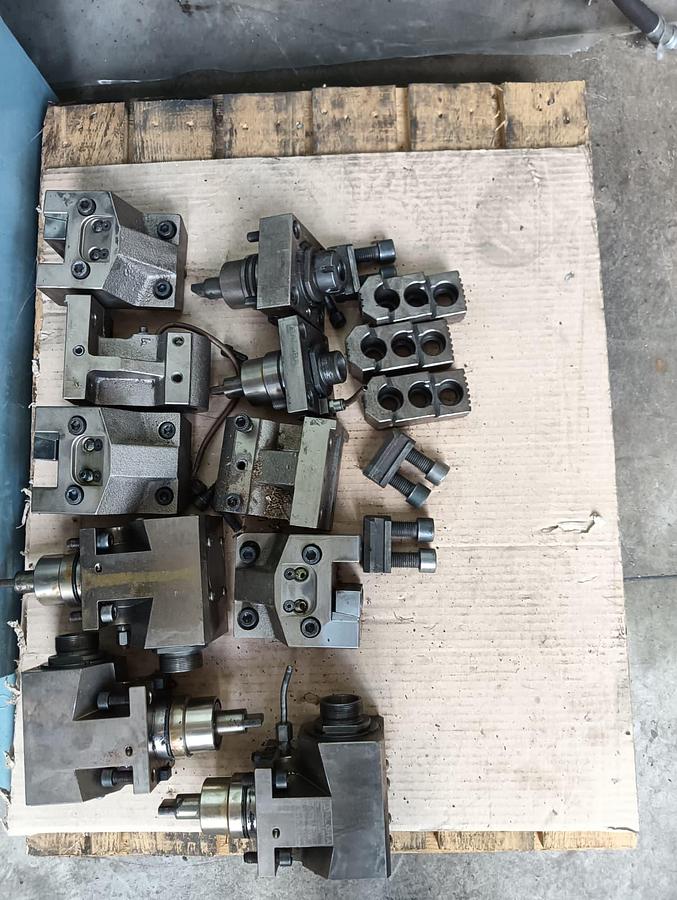

3+2 FIXED AND LIVE TOOL HOLDERS
CHICKENING DRILL
MANUAL AND CE
THESE DATA ARE NOT BINDING. PLEASE VERIFY
Specifications
| Year | 2008 |
| Condition | Used |
| Stock Number | TC0016 |
| Maximum speed | 3,000 rpm |
| Spindle nose | ASA 6��� |
| Spindle hole | 76 mm |
| Engine power | 3,7 kW |
| Maximum torque | 189���223 Nm |
| Number of positions | 12 |
| Guy | bidirectional |
| Stem size | 20��20mm, 25��25mm, ��32mm |
| Turnover time | 0.15 s per position |
| Stroke x axis | 170 mm |
| Travel axis z | 560 mm |
| Travel axis y | +55 / -50 mm |
| Travel axis b | 490 mm |
| Fast speed | 15 m/min |
| Morse cone | 5 / 4 |
| Thrust force | 1.400 daN |
| Tank capacity | 250 l |
| Pump flow rate | 230 l/min |
| Pump motor power | 1,5 kW |
| Machine footprint with chip conveyor | 4,240 �� 2,000 �� 1,900 mm |
| Machine weight with chip conveyor | 4500 kg |
