2017 HAAS LATHE mod.ST25Y

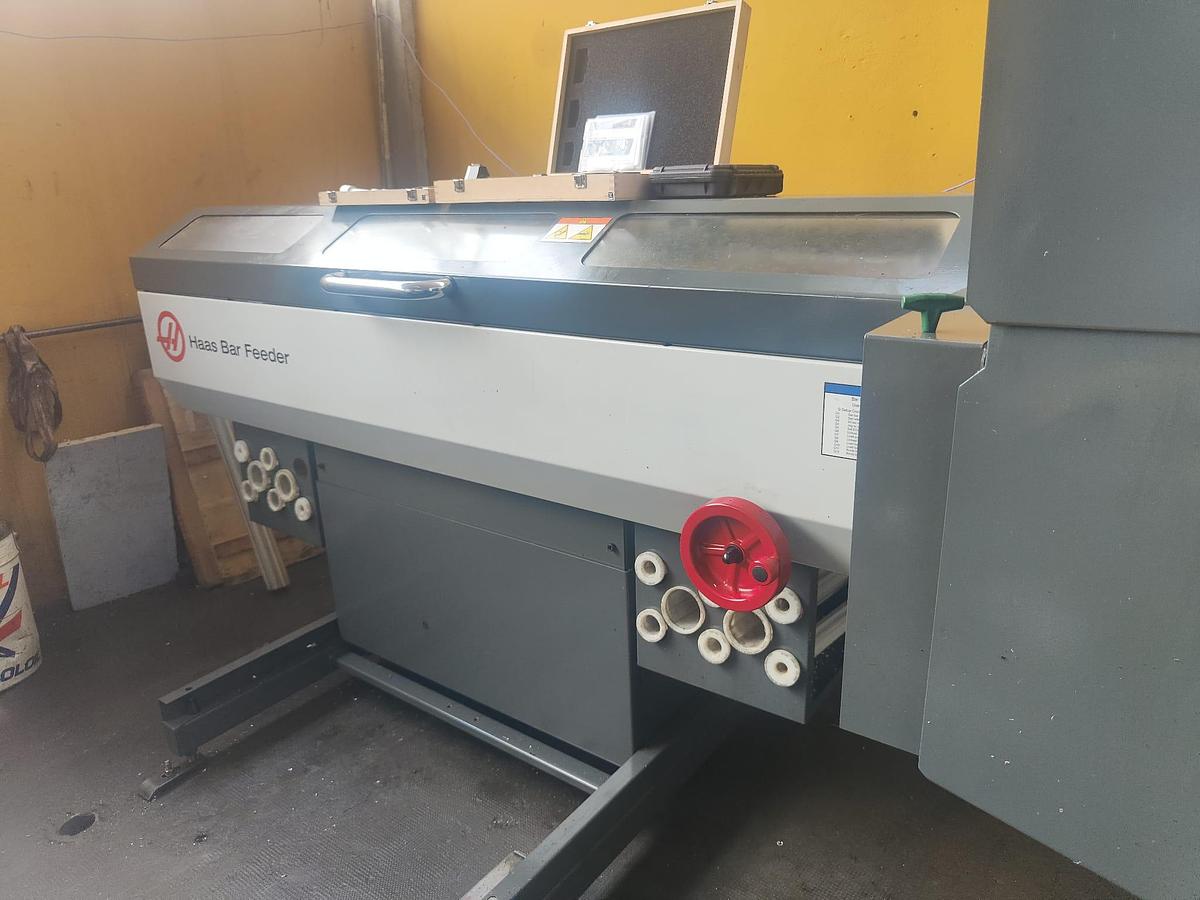

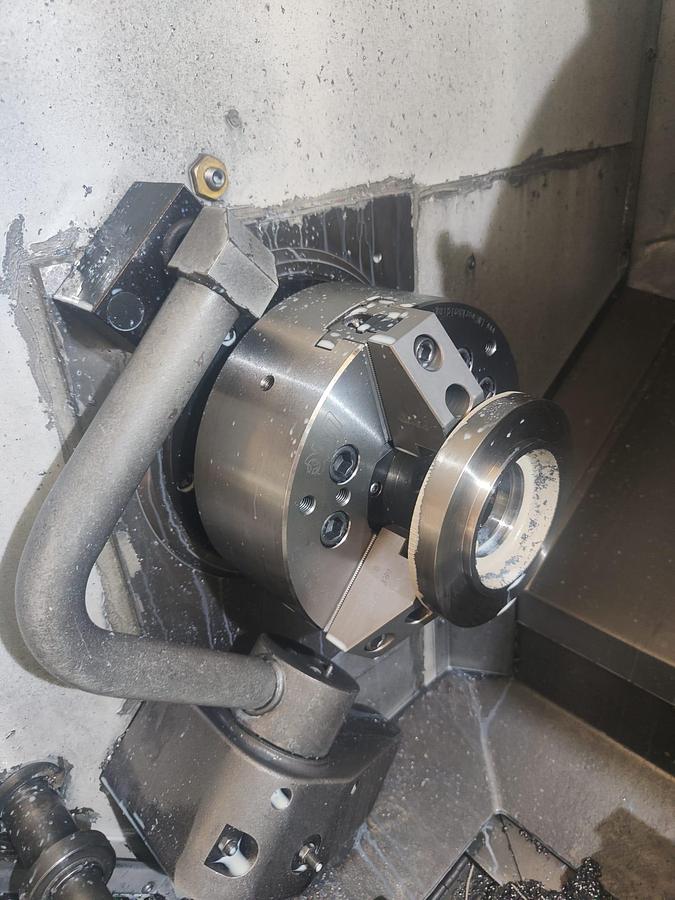

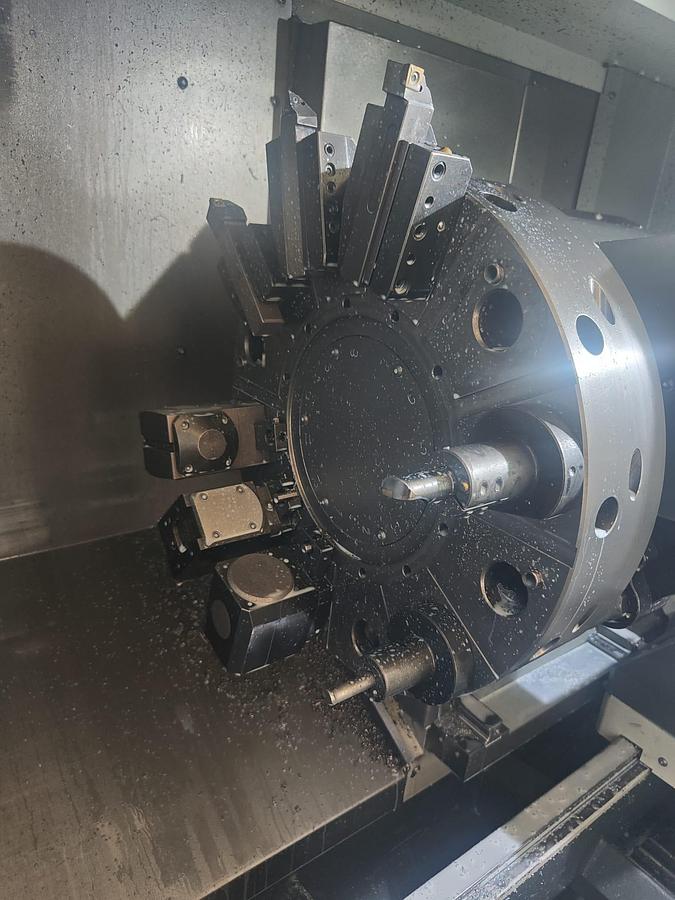

Maximum workpiece rotation: 533 mm Maximum workpiece diameter: 298 mm Maximum cutting length: 572 mm Bar capacity: 76 mm Travels: X-axis: 213 mm Y-axis: 51 mm Z-axis: 572 mm Rapid feed rate on X: 12.0 m/min Rapid feed rate on Y: 12.0 m/min Rapid feed rate on Z: 24.0 m/min Spindle: Chuck dimensions: 254 mm Spindle nose: A2-6 Maximum rated power: 22.4 kW Maximum speed: 3400 rpm Turret: Number of driven tools: 12 Maximum speed: 3400 rpm 4000 rpm COMPLETE WITH HAAS BAR FEEDER NON-BINDING DATA TO BE VERIFIED
