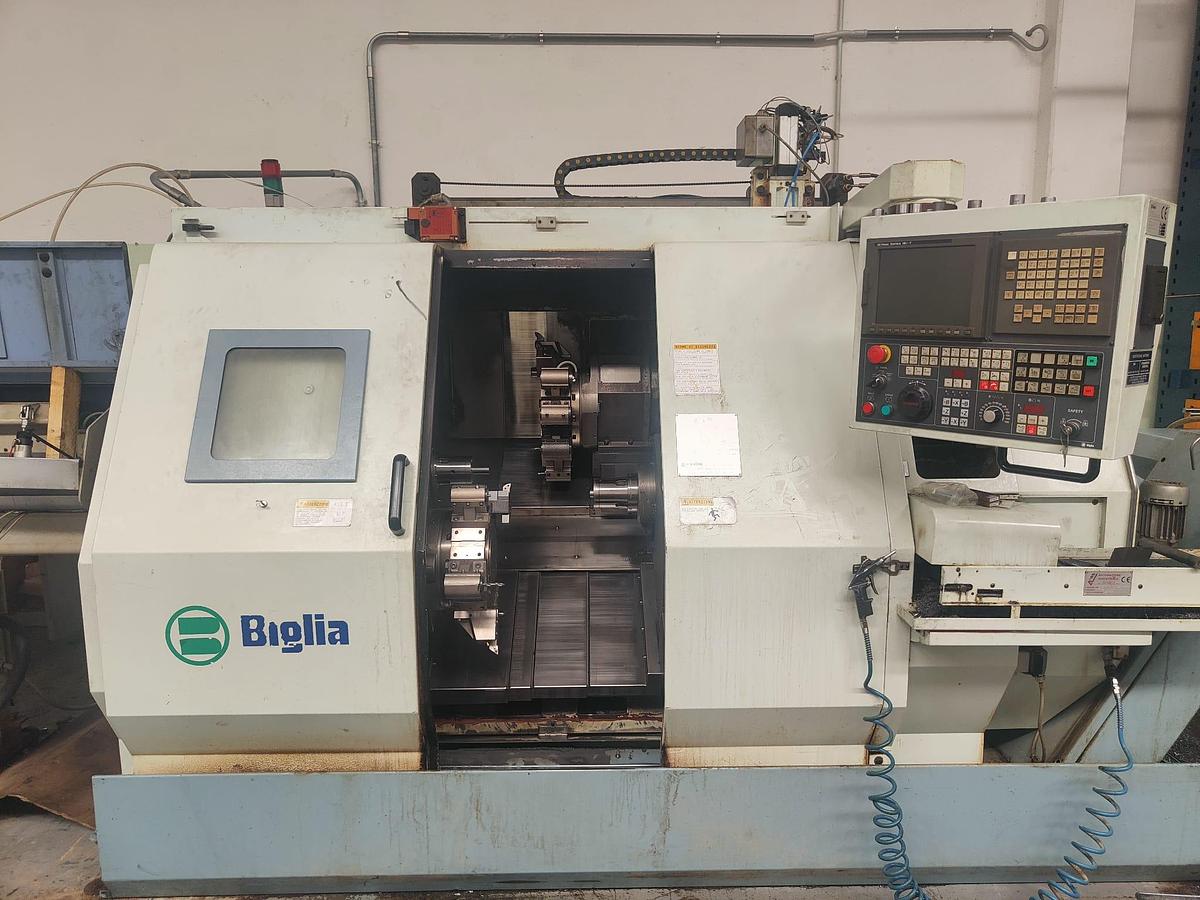

2002 BIGLIA B445S LATHE WITH LOADER
2002 BIGLIA B445S LATHE WITH LOADER
Contact us for price
Location:Bergamo, Italy
or
Call +39 0451 117 6498
Description
FANUC CNC
Speed 5000 rpm
Power 11-15 kW
B-axis travel 420 mm, rapid traverse 24 m/min
Speed 5000 rpm
Power 5.7-7.5 kW
Z-axis travel 390 mm, rapid traverse 20 m/min
X-axis travel 160 mm, rapid traverse 12 m/min
Z2-axis travel 240 mm, rapid traverse 20 m/min
X2-axis travel 158 mm, rapid traverse 12 m/min

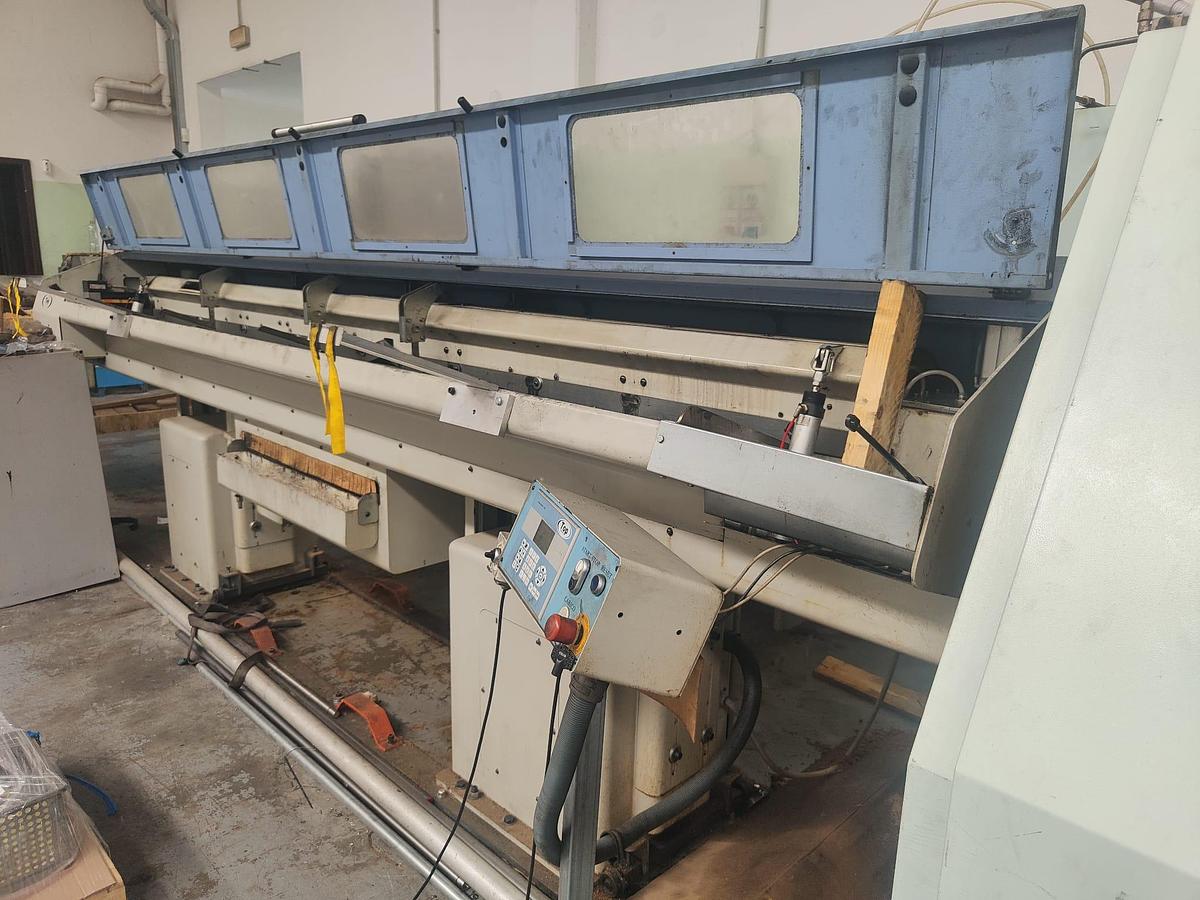

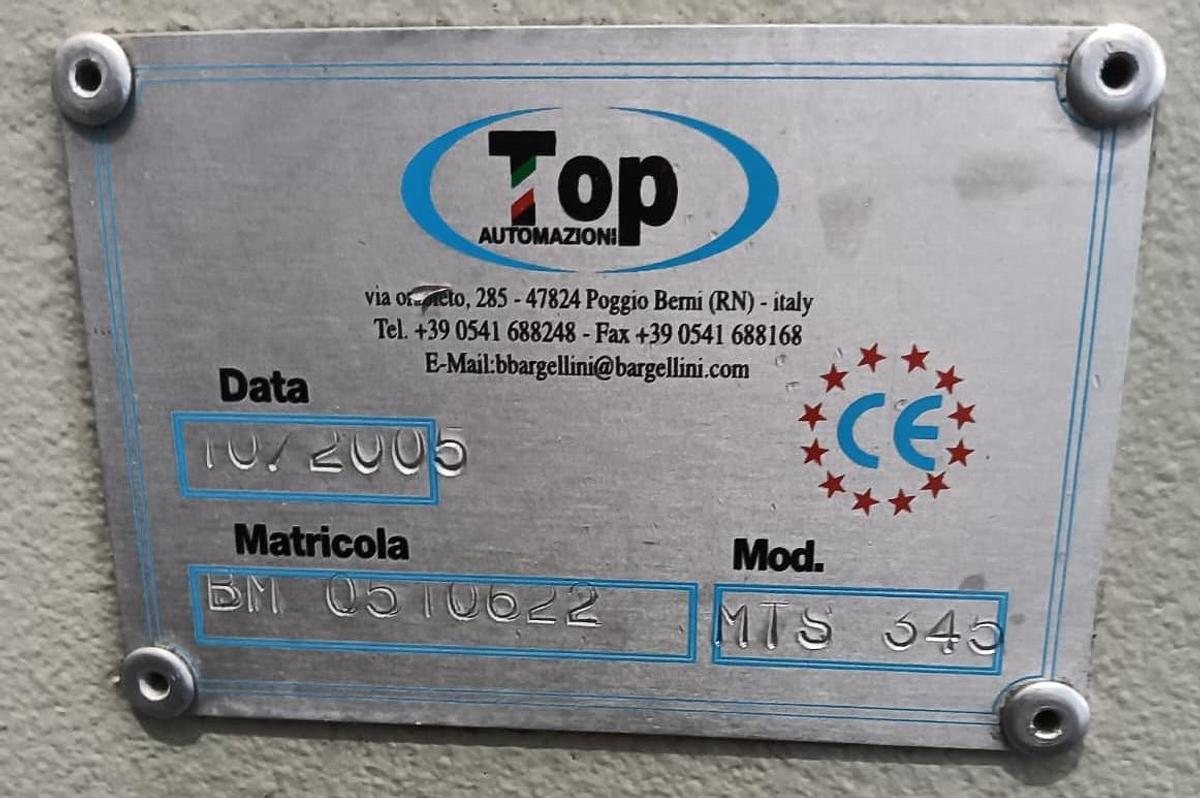

COMPLETE WITH TOP MTS 345 BAR LOADER:
YEAR 2005
S/N BM0510622
NON-BINDING DATA, VERIFY
Specifications
| Year | 2002 |
| Condition | Used |
| Serial Number | 7078 |
| Stock Number | TC0036 |
| Rotation diameter | 300 mm |
| Turning diameter | 160 mm |
| Turning length | 300 mm |
| Distance to tips | 678 mm |
| Passage bar | 45 mm |
| Spindle | ASA 5 |
| Counter | ASA 5 |

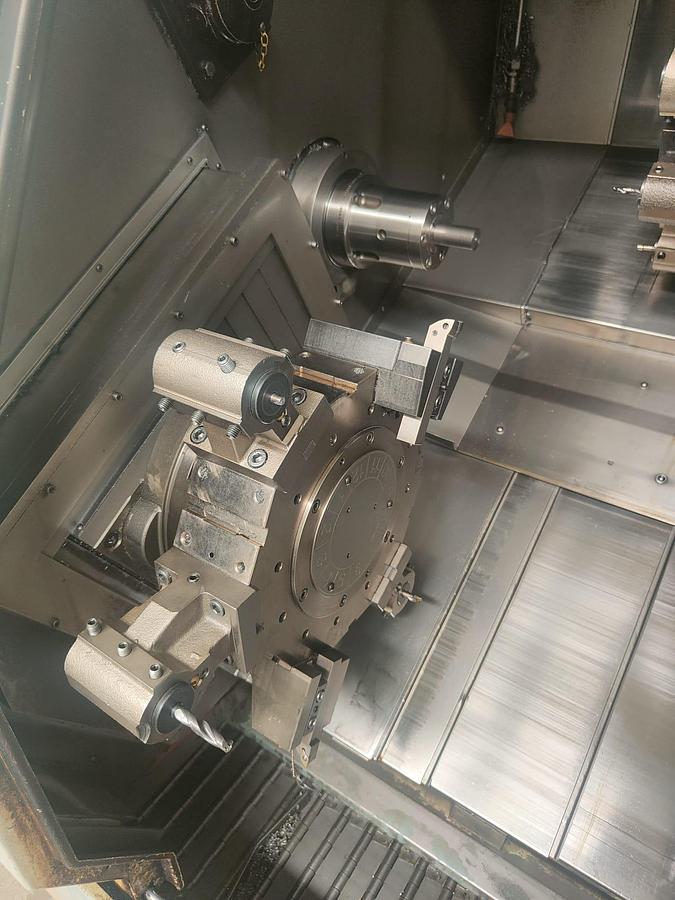

| Turret | No.12 tool stations |

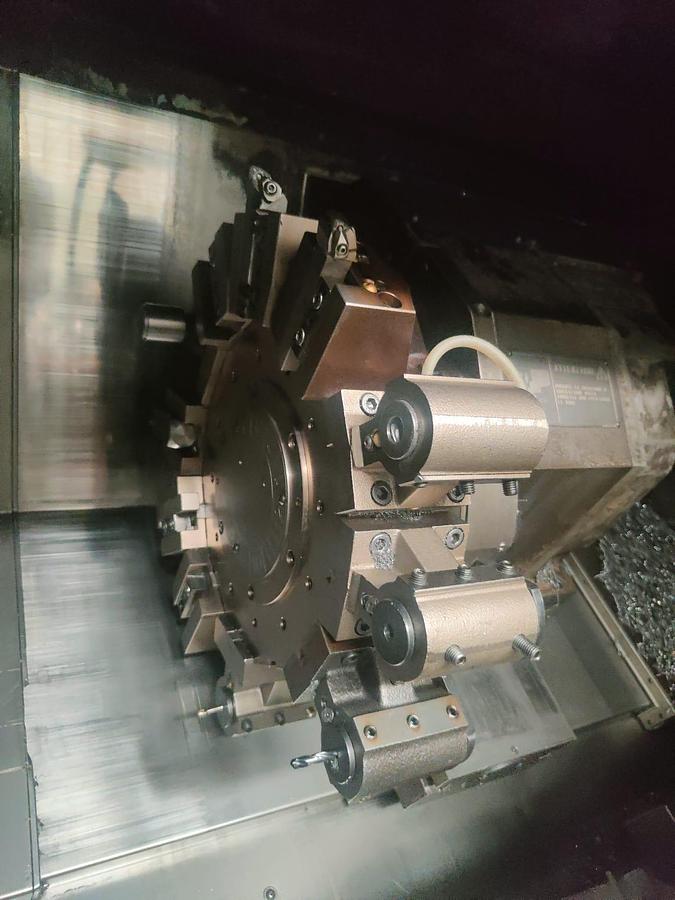

| Turret 2 | No.12 tool stations |
| Overall dimensions with evacuator | 4107 x 2128 x 2204 mm |
| Weight with evacuator | 6500 Kg |
