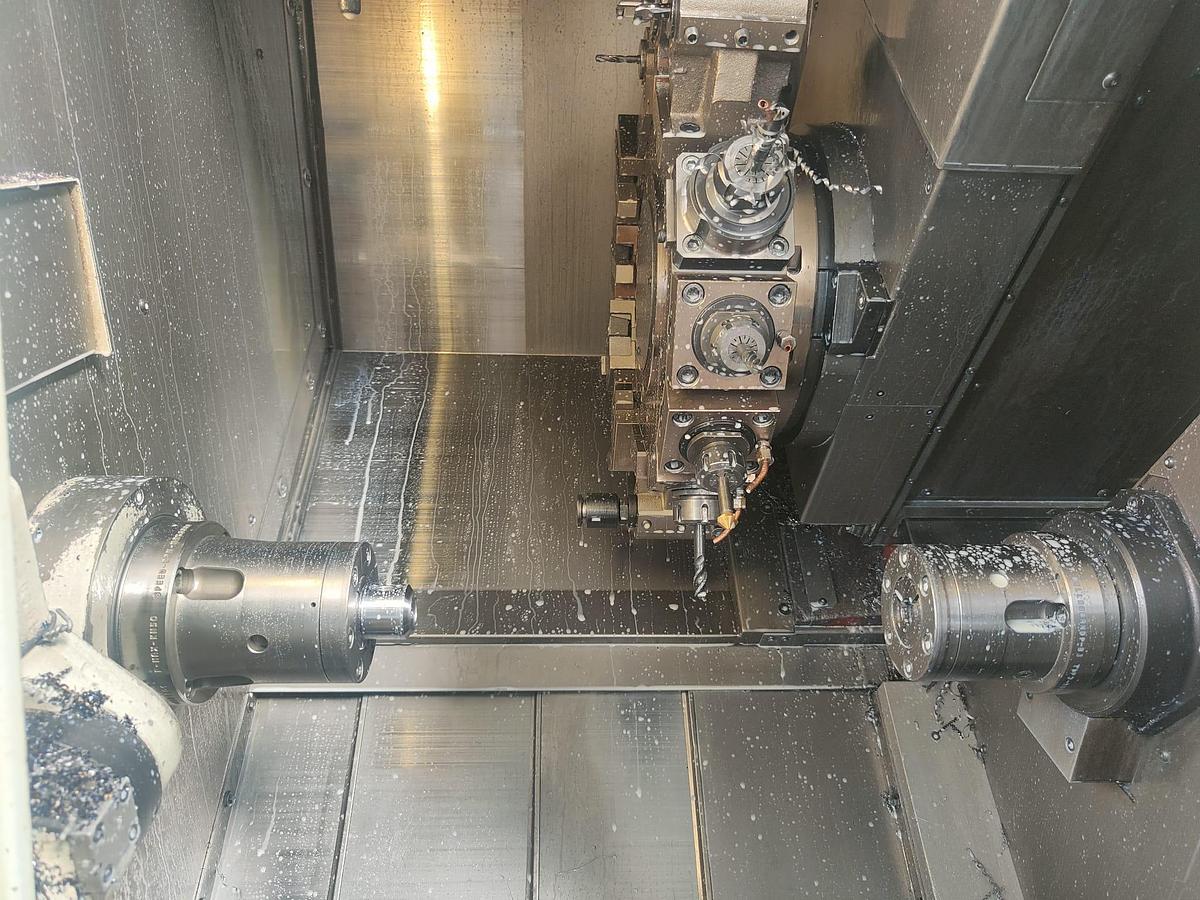

2006 BIGLIA B301YS LATHE WITH LOADER
No longer available
2006 BIGLIA B301YS LATHE WITH LOADER
Location:Bergamo, Italy
Description

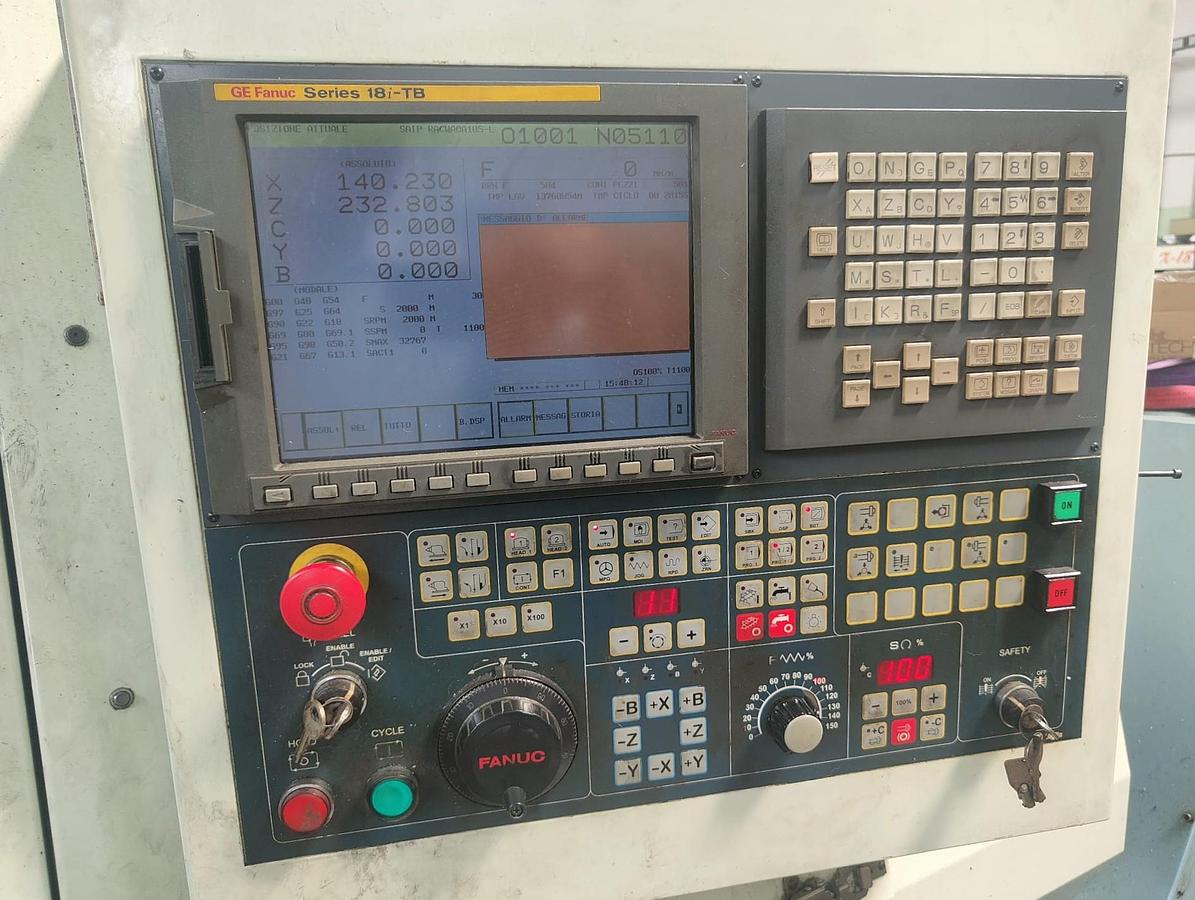

Fanuc CNC
Travel:
X-axis 160 mm rapid traverse 12 m/min
Z-axis 380 mm rapid traverse 24 m/min
Y-axis 100 mm (+60/-40) rapid traverse 6 m/min
Speed 5000 rpm
Power 15 kW
Speed 5000 rpm
Power 7.5 kW
Speed 3000 rpm

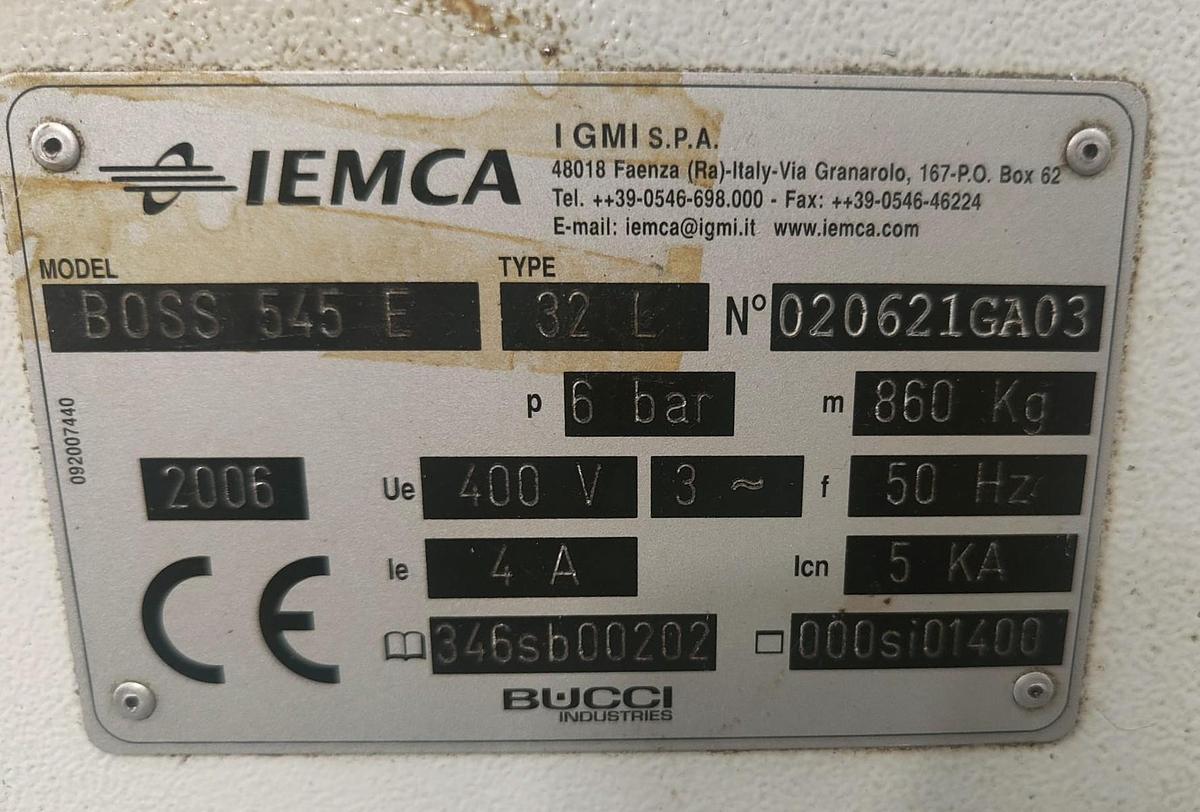

COMPLETE WITH IEMCA BAR FEEDER, YEAR 2006
THIS DATA IS NON-BINDING, TO BE VERIFIED
Specifications
| Year | 2006 |
| Condition | Used |

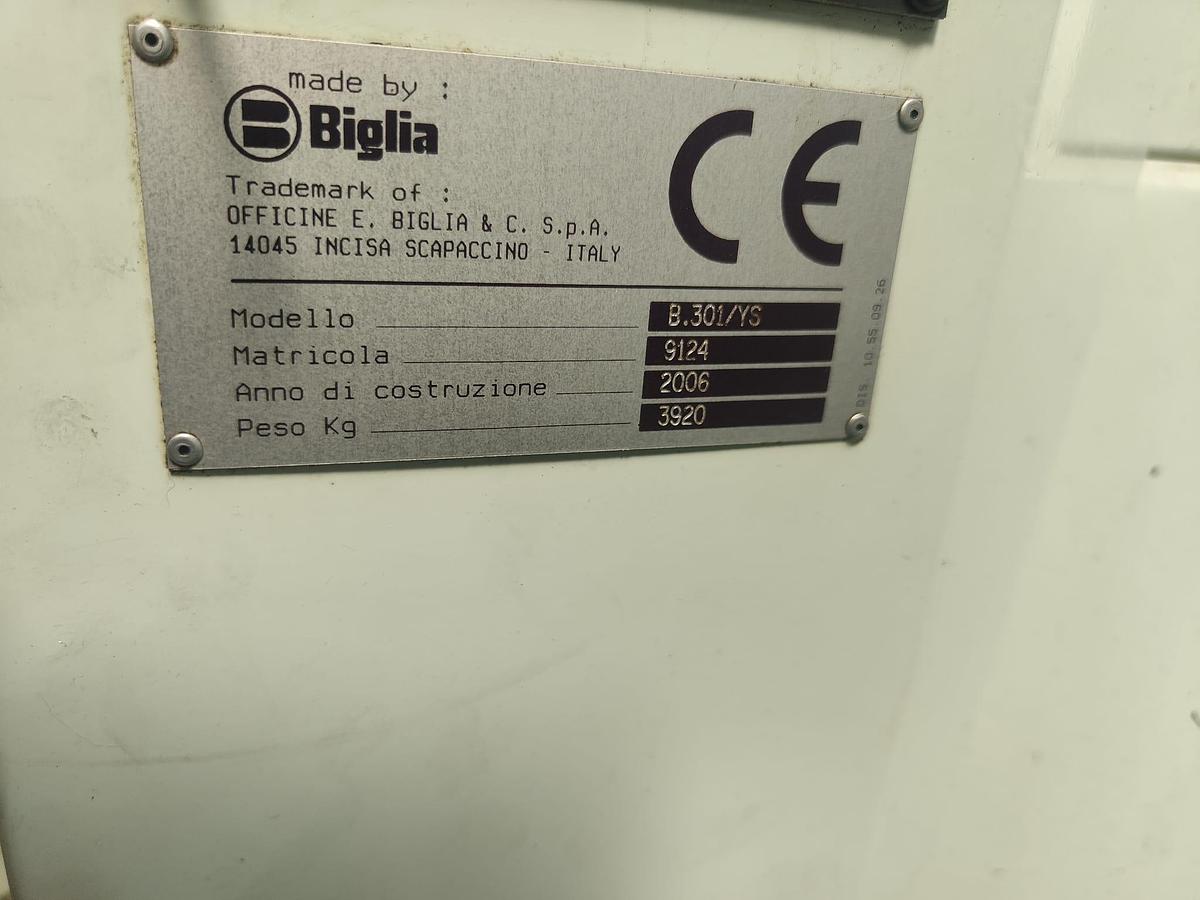

| Serial Number | 9124 |
| Stock Number | TC0040 |
| Rotation diameter | 400 mm |
| Turning diameter | 320 mm |
| Turning length | 380 mm |
| Passage bar | 45 mm |
| Spindle | ASA 5 |
| Counter | ASA 4 |

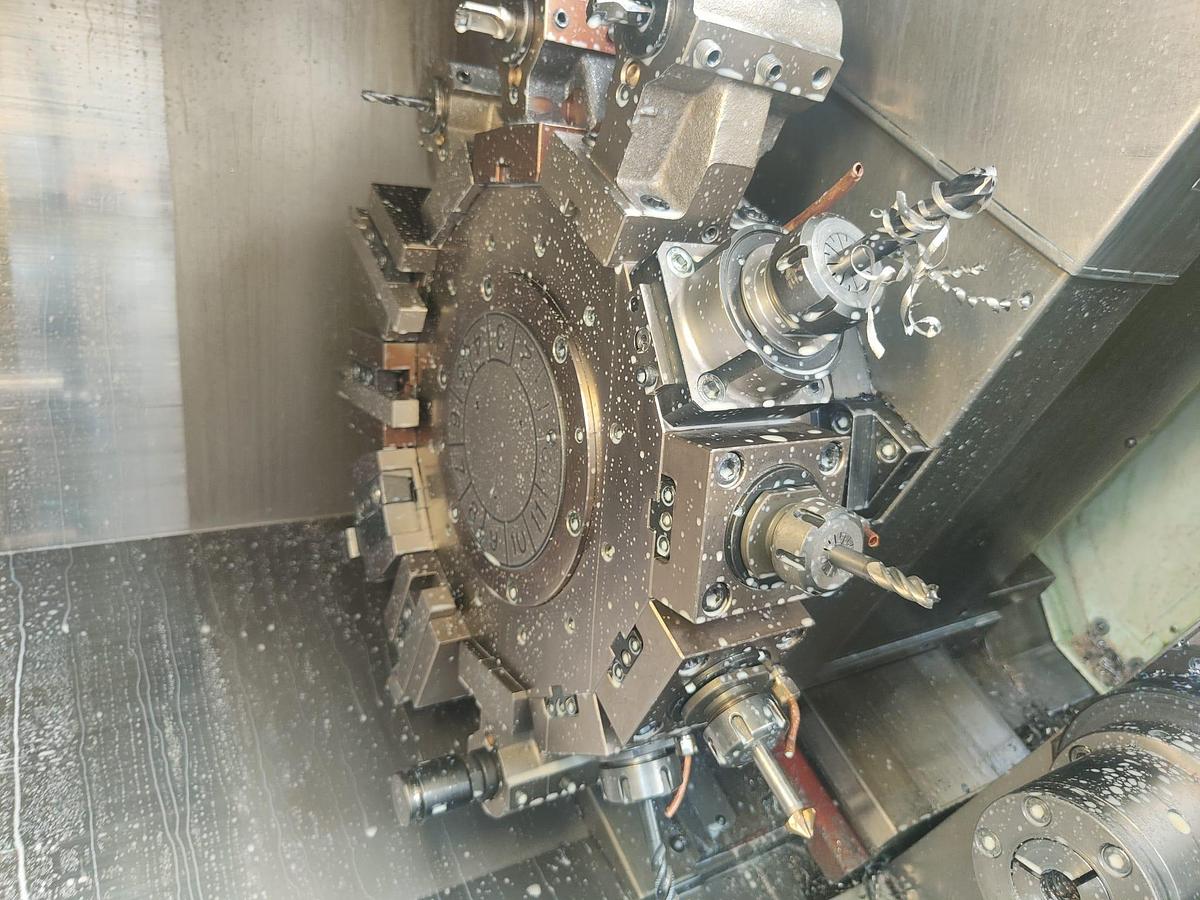

| Turret | No.12 motorized tool stations |
| Encumbrances | 3500 x 1754 x 1935 mm |
| Weight | 3300 Kg |
