2005 BIGLIA B550Y LATHE
2005 BIGLIA B550Y LATHE
Contact us for price
Location:Bergamo, Italy
or
Call +39 0451 117 6498
Description
Strokes:
Z axis 550 mm rapid 24 m/min
X axis 175 mm rapid 20 m/min
Y axis 105 mm (+55/-50) rapid 6 m/min
Speed 4000 rpm
Power 26 kW
Speed 3000 rpm
Power 3.7 kW
500 mm stroke
Sleeve Ø 85 mm stroke 100 mm
NONCOMMITTAL DATA TO BE VERIFIED
Specifications
| Year | 2005 |
| Condition | Used |

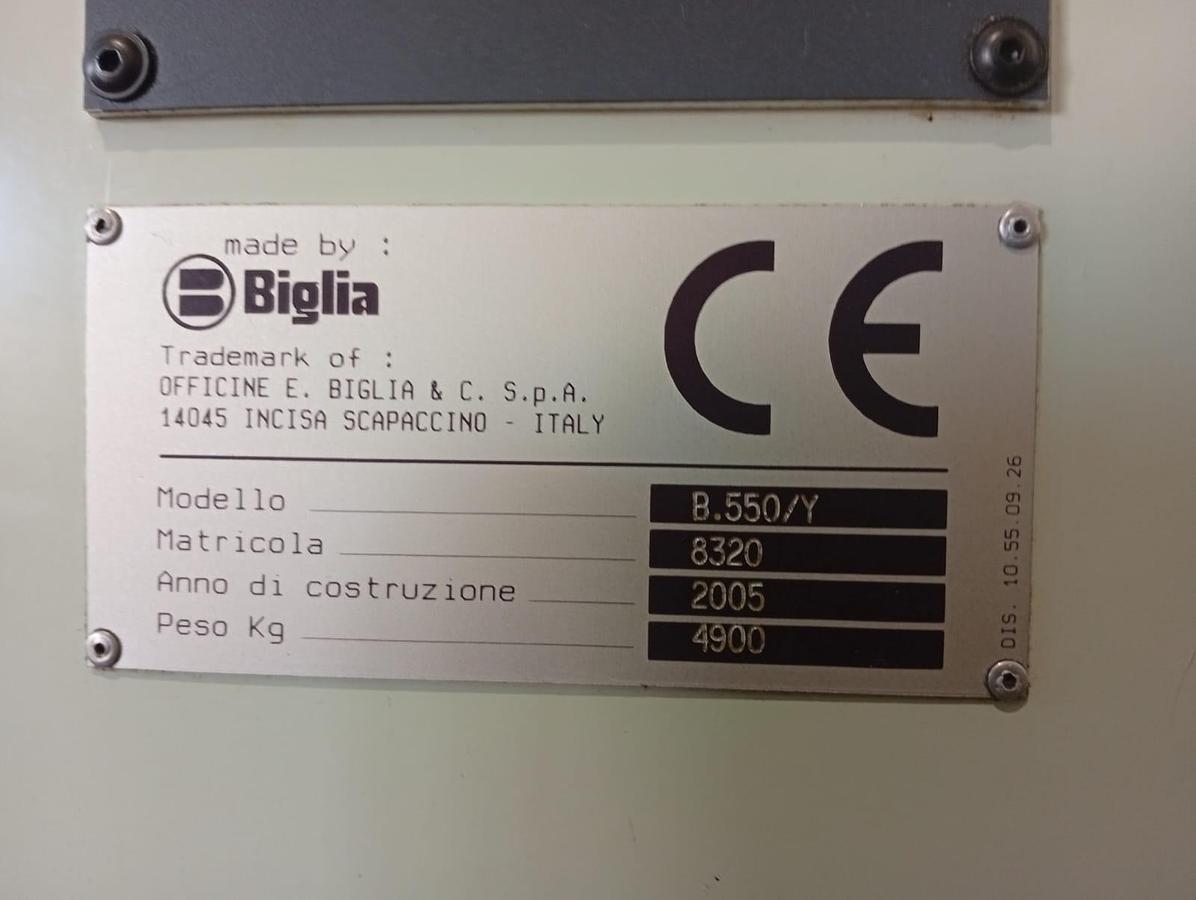

| Serial Number | 8320 |
| Stock Number | TC0039 |
| Rotation diameter | 520 mm |
| Turning diameter | 320 mm |
| Turning length | 550 mm |
| Passage bar | 65 mm |

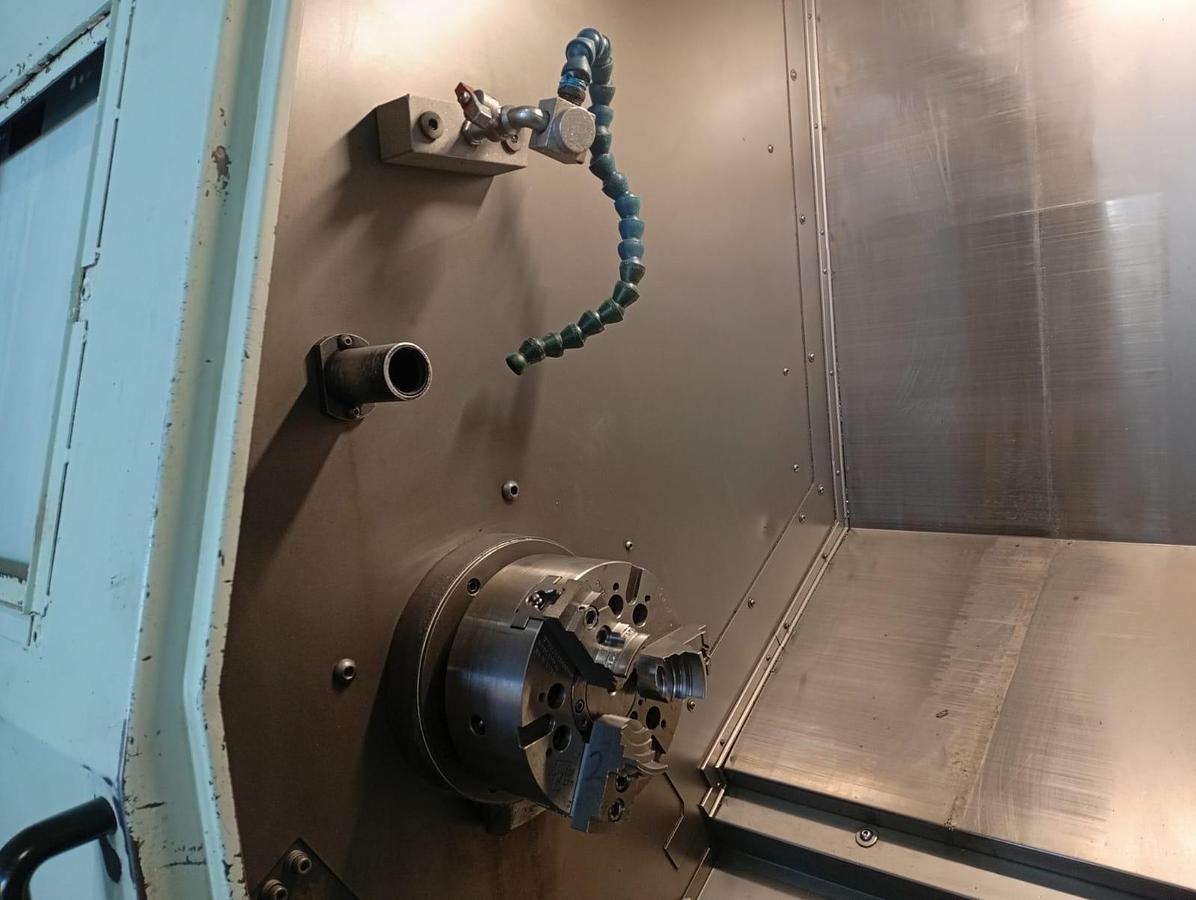

| Spindle | ASA 6 |

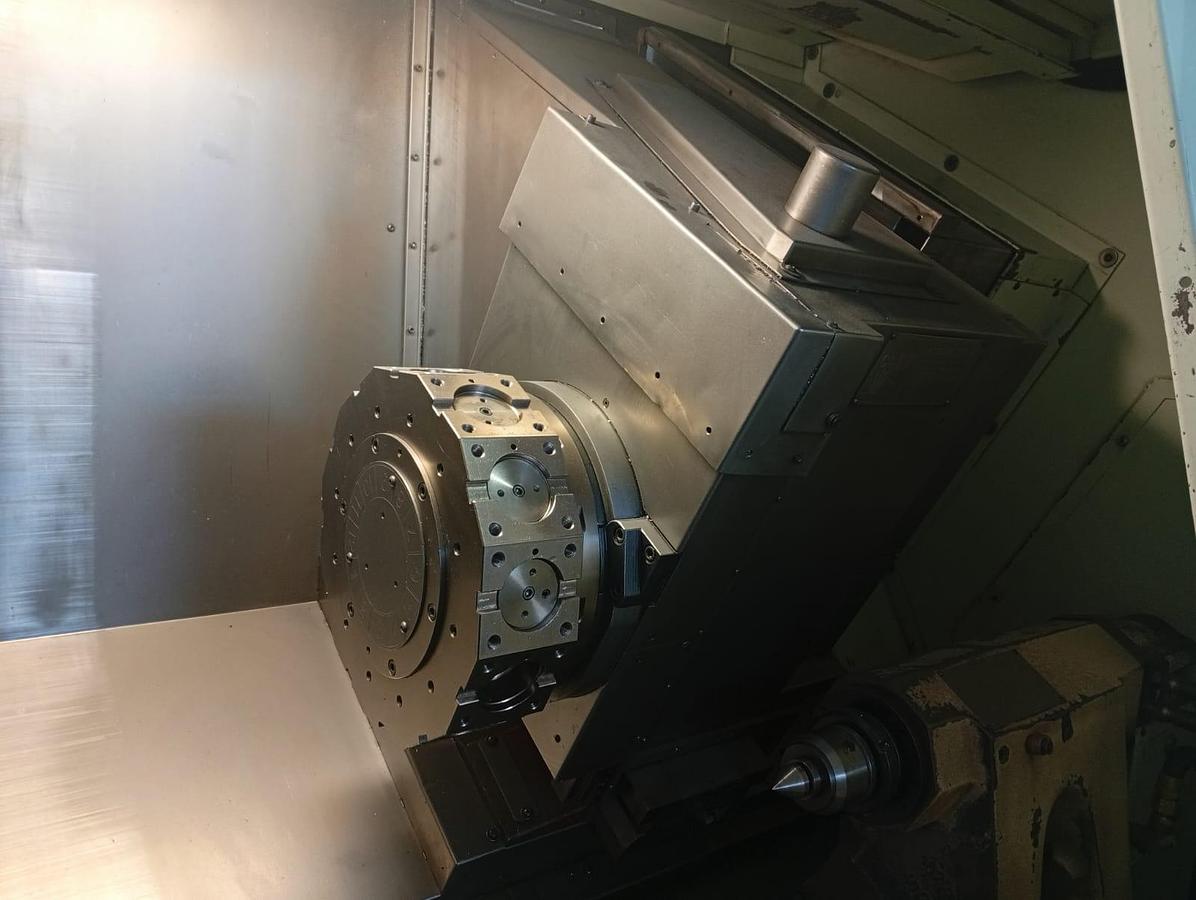

| Turret | No.12 motorized tool stations |
| Tailstock | CM4 |
| Overall dimensions with evacuator | 4100 x 1950 x 2000 mm |
| Weight | 4500 Kg |
