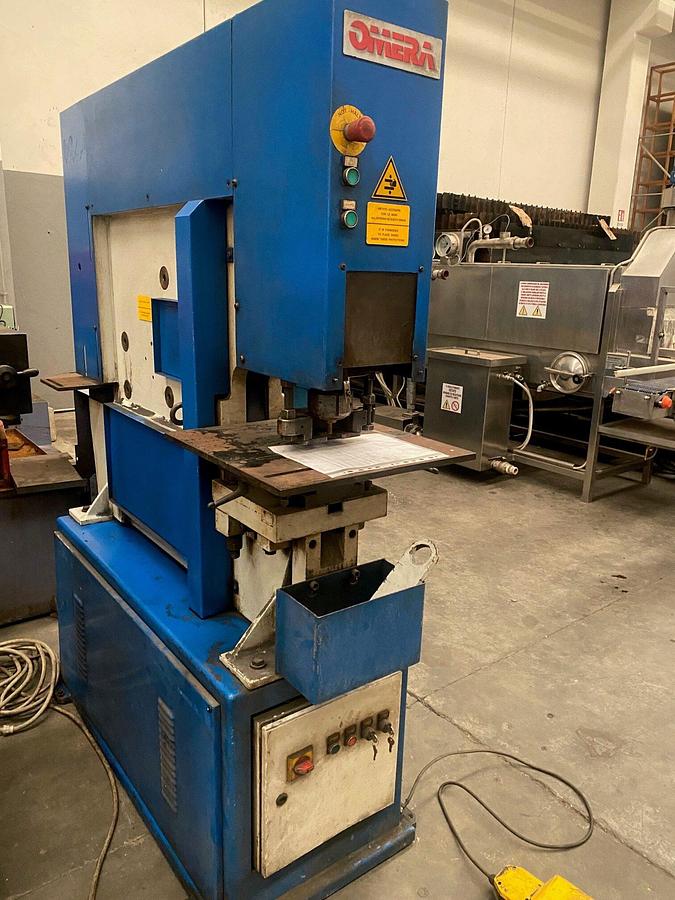

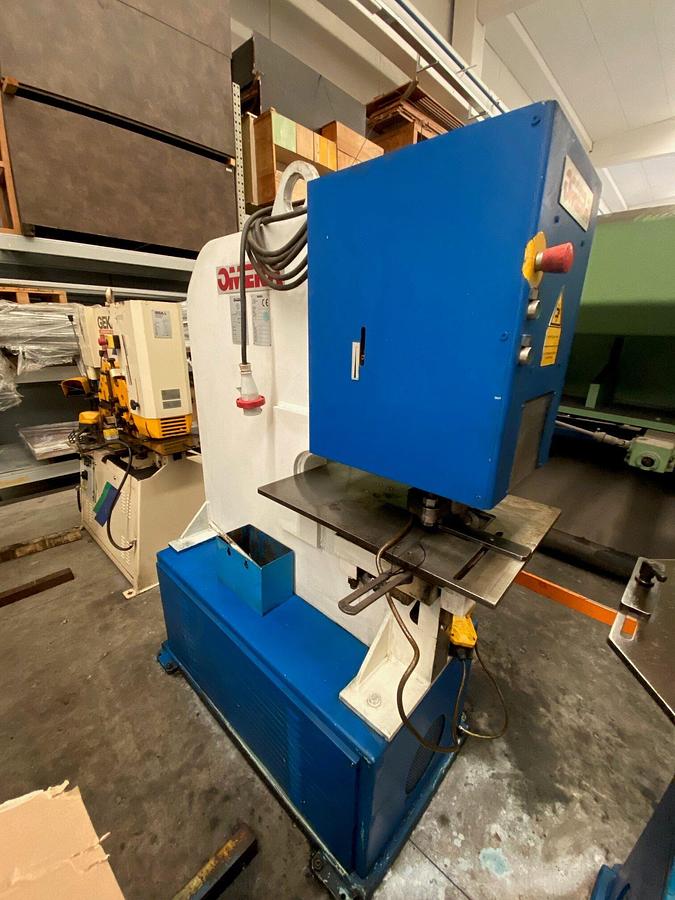

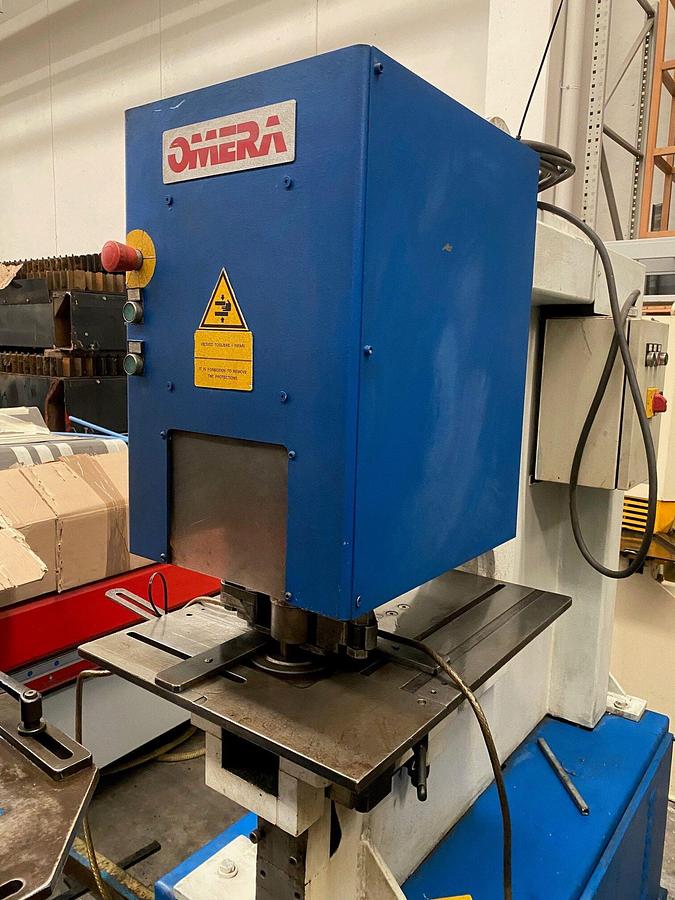

HYDRAULIC PUNCHING MACHINE BRAND OMERA MOD. OP 90 HY

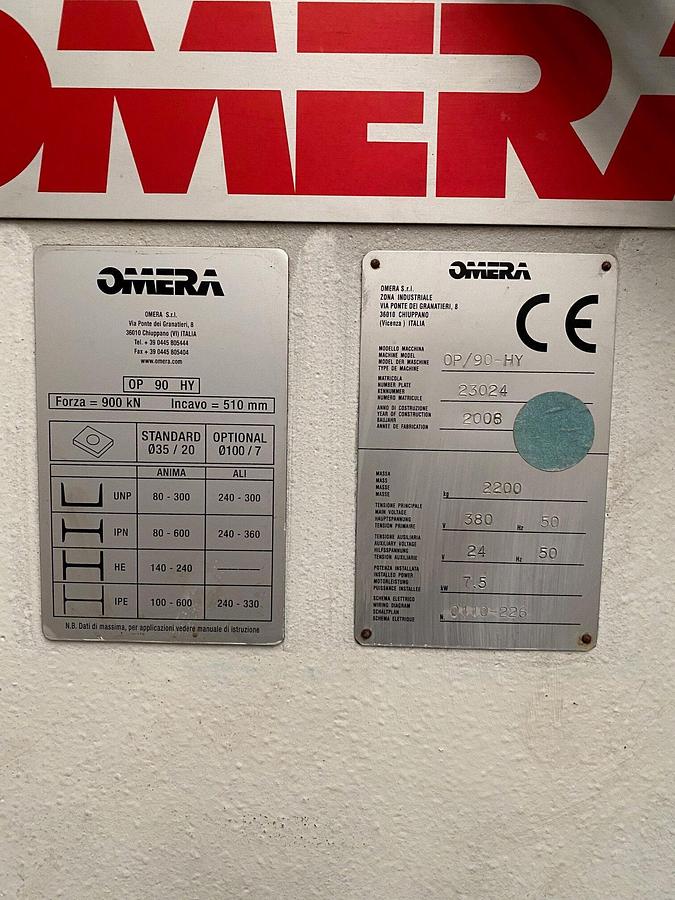

MANUFACTURER OMERA MOD. OP 90 HY TECHNICAL FEATURES: punching force 900 KN Max punching section 2200 mm2 Recess depth 510 mm Punch stroke 0-35 mm Strokes 25 1\mm Motor power 7.5 Kw Gross weight 2150 KG Overall dimensions 1700x1530x700 mm Max hole on thickness 35x20mm (2200mm2) Hole on thickness max 30×24mm Holes on wings UPN 240-300mm Holes on wings IPN 80-600 mm Year 2008 Excellent Condition State Visible in Function
