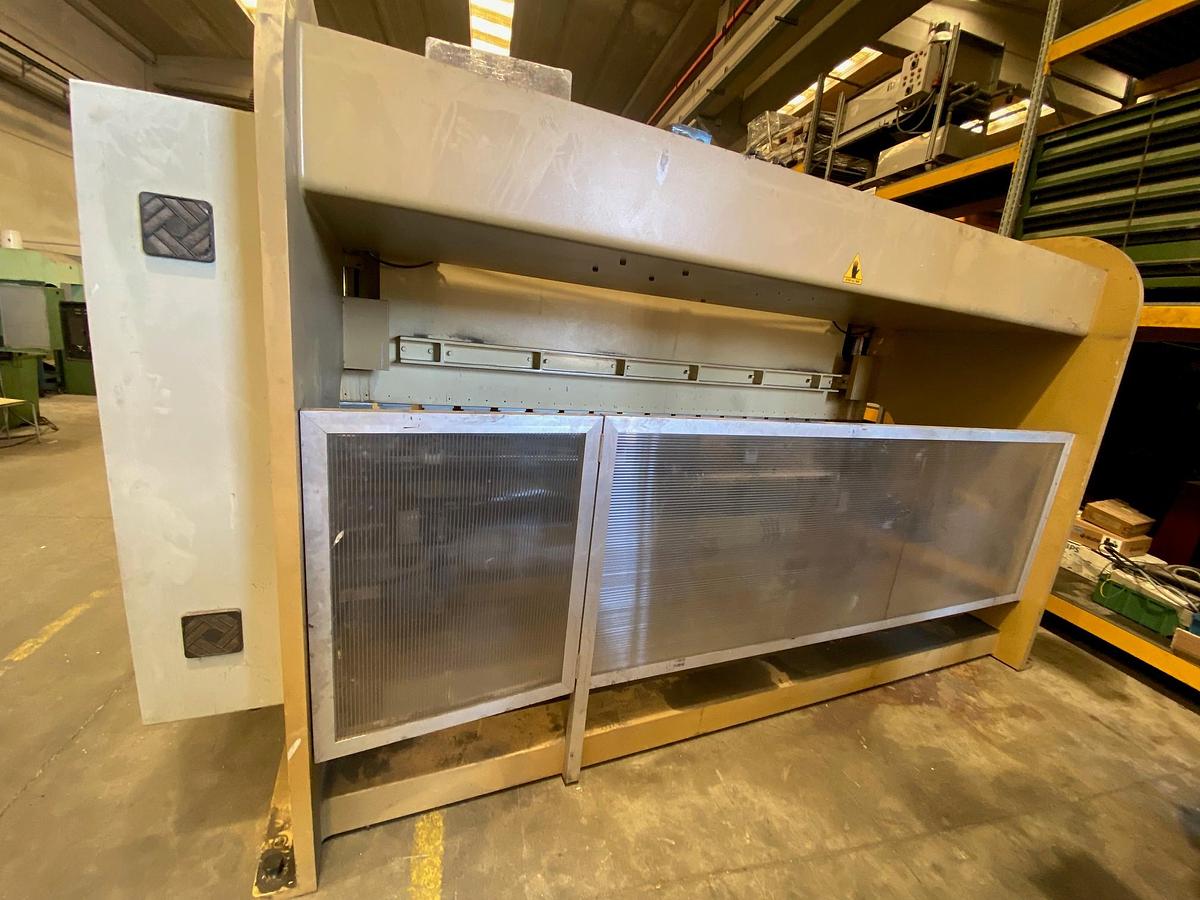

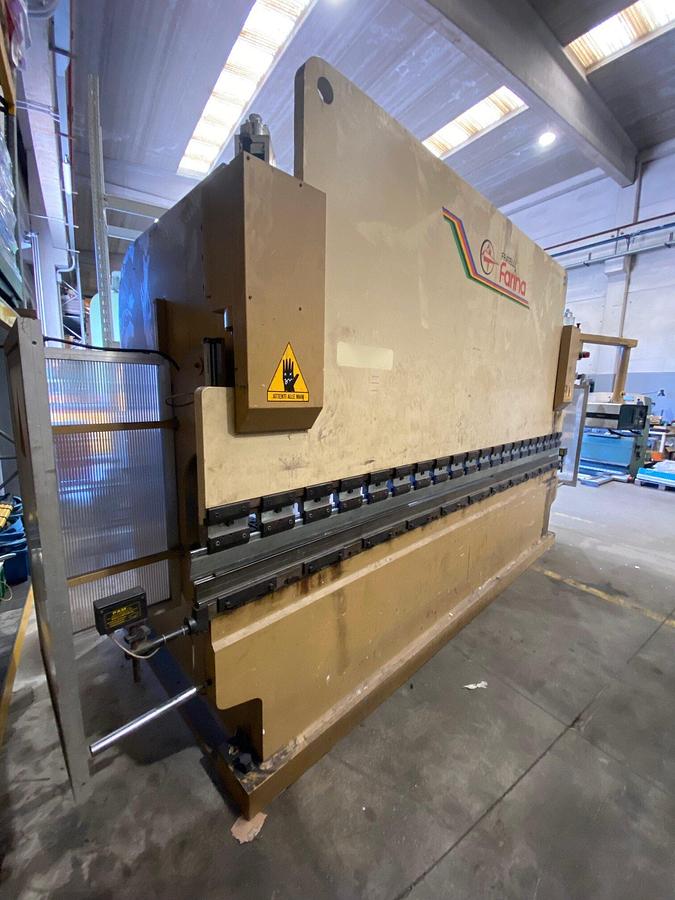

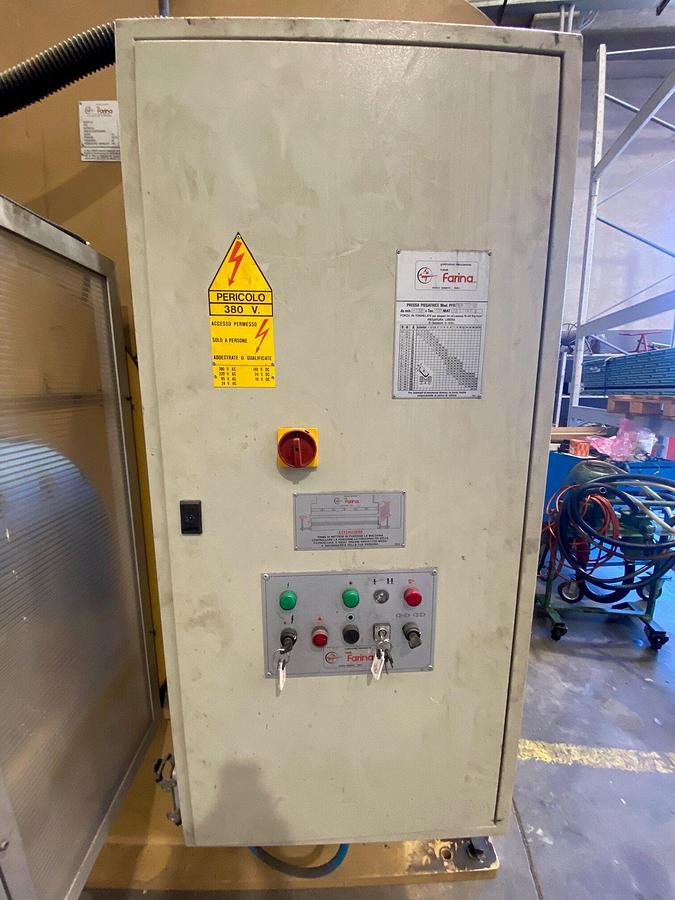

HYDRAULIC PRESS BRAKE BRAND FARINA MOD.PFO-PS-N 110-40

FLOUR MANUFACTURER MOD. PS-N 110-40 TECHNICAL FEATURES: Controlled axes Y1 - Y2 - X - R Total Power KW 11 Pressure 1100 kN Working length 4175 mm Light between the uprights 3650 mm Recess 500 mm Max distance between table and ram 425 mm Adjustable stroke 230 mm Table width 60 mm Approach speed 95 mm-s Working speed 0-10 mm-s Return speed 100 mm/sec. Register stroke 500 mm Machine absorption max. 21 A Approximate Weight 10700Kg Hydraulic oil quantity 180 L Overall dimensions 4175X1715X3006 h mm Year of construction 1999
