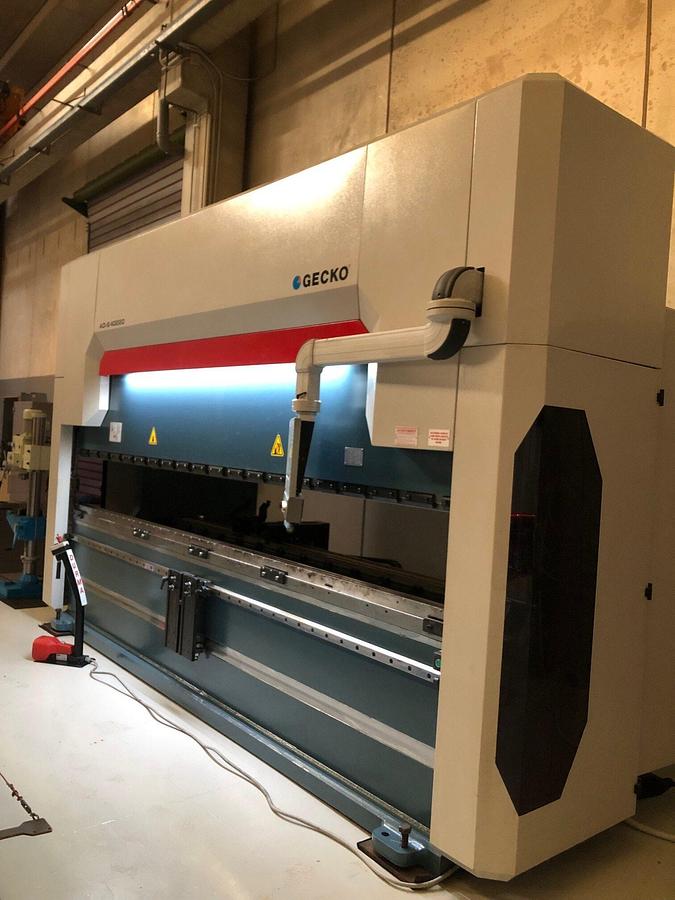

HYDRAULIC PRESS BRAKE BRAND GECKO MOD AD S 40220

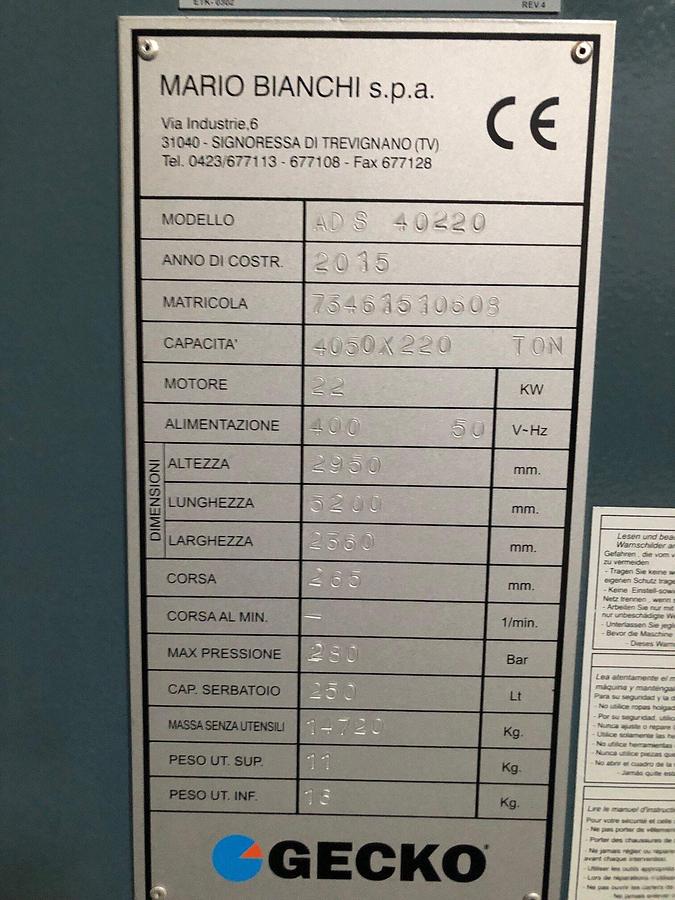

BUILDER GECKO MOD. AD S 40220 TECHNICAL FEATURES: Nominal force 220 Ton Table length 4050 mm Stroke 265 mm Max. table clearance 530 mm Lower table height 900 mm Bottom table width 104 mm Recess depth 410 mm Clearance between shoulders 3600 mm CNC Cybelec SA Controlled axes Y1-Y2-X1- R- Z1- Z2- x1 on the head WILA centering table Overall length 1770 mm Overall height 2900 mm Overall depth 5220 mm Oil tank 250 Lt Max pressure 280 Bar Engine power 22Kw Weight 15,000 Kg Y-axis approach speed 160 mm Y-axis working speed 10 mm Ascent speed 140 mm\s Year 2015 Visible Condition Excellent condition
