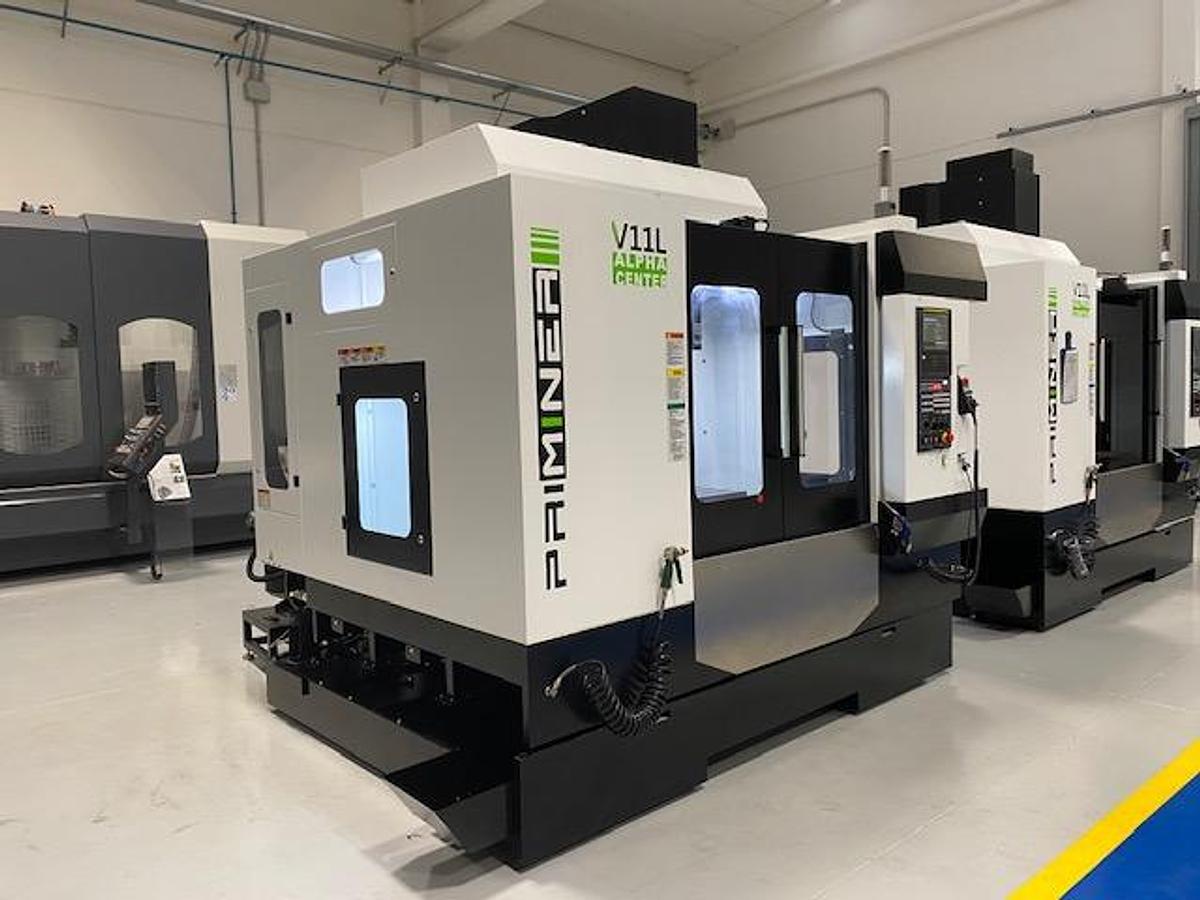

VERTICAL MACHINING CENTER BRAND PRIMINER CNC FANUC MOD. V11 L - 10 K (NEW)

Specifications: Capacity Strokes (X/Y/Z) mm 1100/600/600 Distance between table surface and calibrated spindle table mm 150 - 750 Distance between table center and column mm 652 Table working surface mm 1200 x 600 Table load capacity kg 800 Table surface configuration mm 18 x 5 x 100 Spindle Maximum spindle speed rpm 10.000 Spindle motor kw 15/11 Rapids speed (X/Y/Z) m/min 36/36/36 Rapids (X/Y/Z) mm/min 16.000 ATC Tool attachment type BT 40 Shank type MAS P40T-1 Tool magazine capacity 24 Maximum tool diameter mm 78 (125) Maximum tool length mm 300 Maximum tool weight kg 8 Tool change time (tool/tool) sec. 1.6 Accuracy VDI 3441 (Full stroke) Positioning accuracy mm 0.010 Position repeatability mm 0.006

Motor Feed motor (X/Y/Z)kw 2.2/2.2/3.3 Coolant motor (spindle/chips) kw 0,4 Spindle coolant kw 0,18 Power requirement Electric power kva 30
