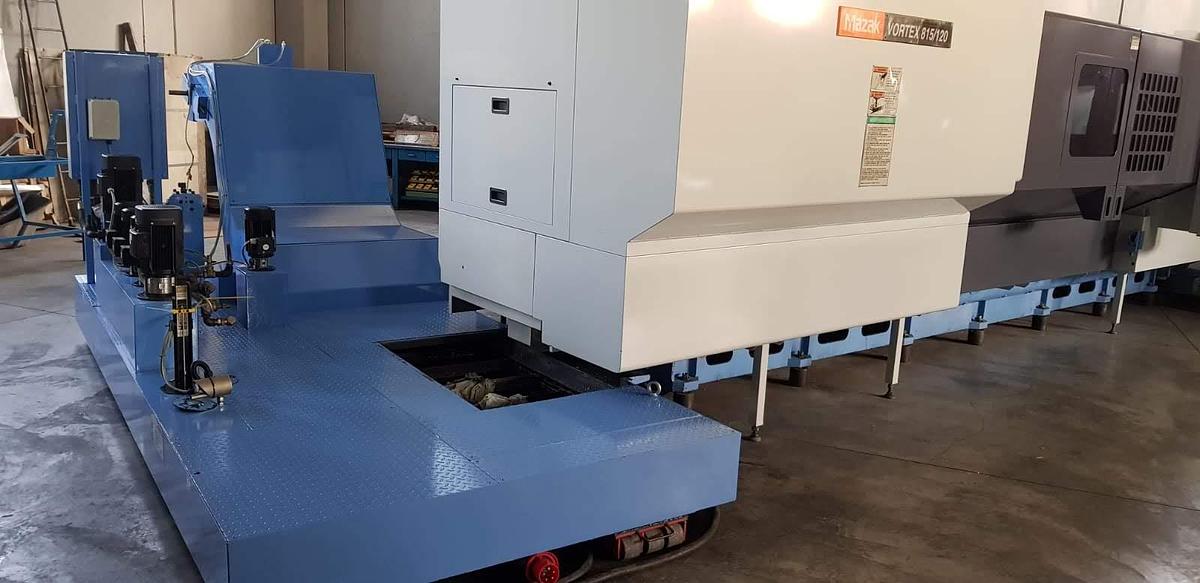

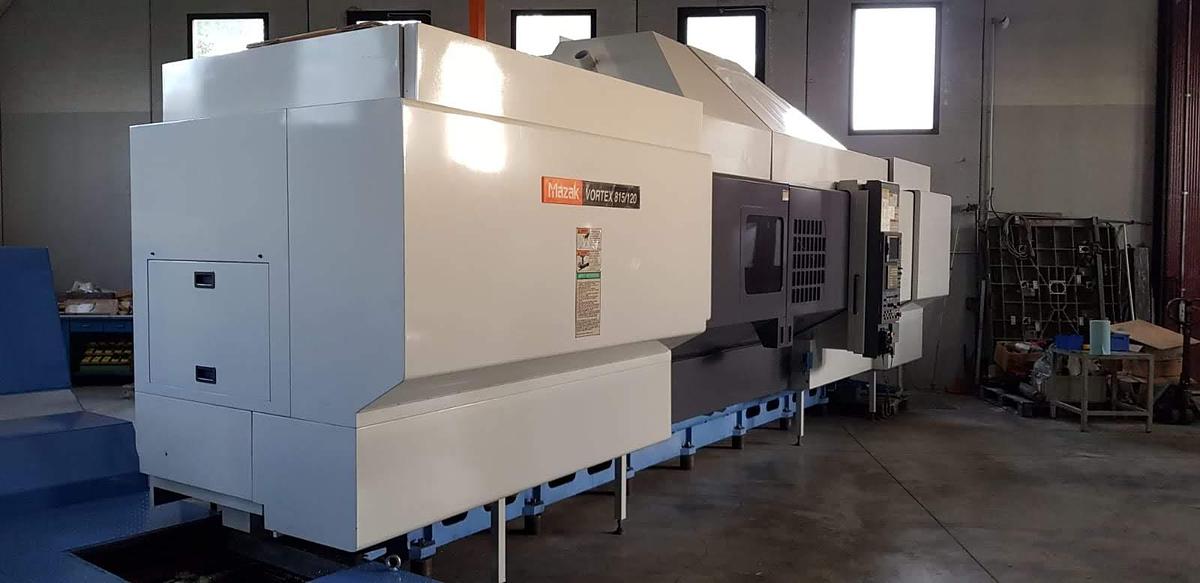

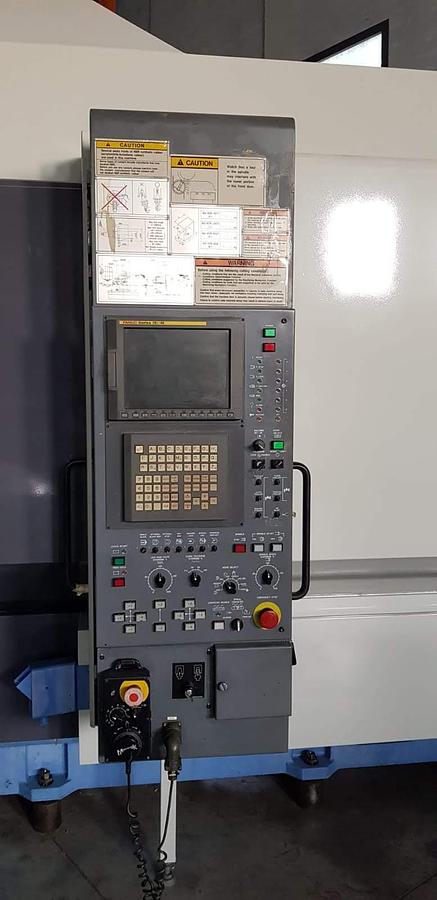

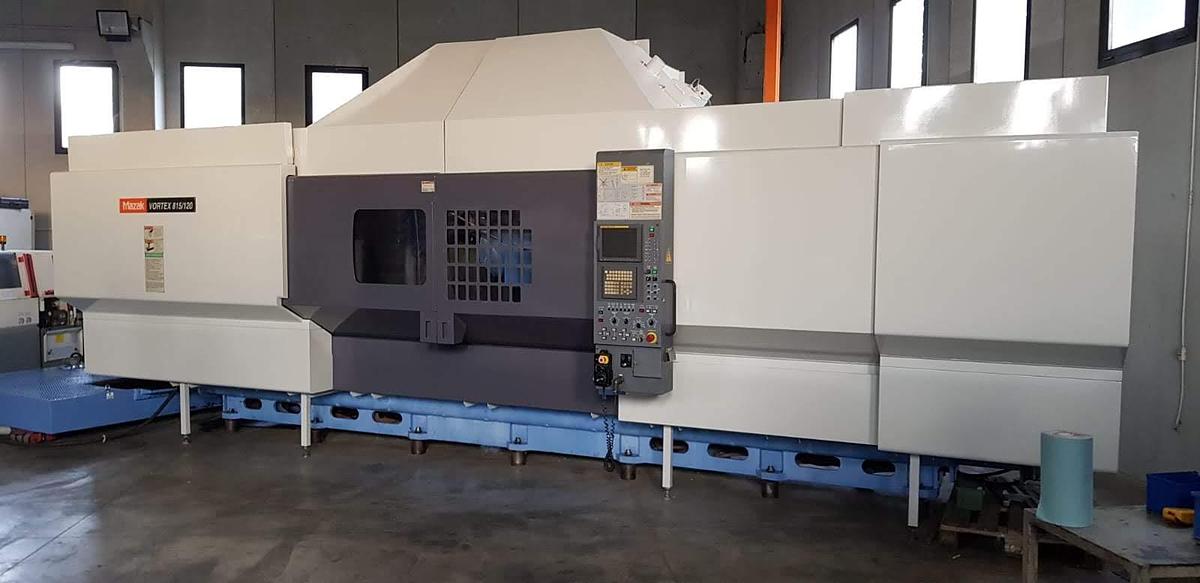

MAZAK 5 AXIS CNC FANUC 15 I-M MOD VORTEX 815\120 MACHINING CENTER

BUILDER MAZAK MOD. VORTEX 815\120 TECHNICAL FEATURES: Table size 3150X810 mm X-Y-Z axis travel 3048x810x610 mm Spindle nose/table distance 127-737 mm Maximum permissible load 3000 kg Spindle head A axis 30° B axis 30° Spindle turns 50-10,000 rpm Spindle taper BT 50 XYZ rapid feeds 32-32-20 Mt\min Tool magazine N.30 Motor Power 37Kw - 50 Hp Overall dimensions 8500x4500x3000 mm Weight approx. 18,000 kg Complete with: - Electronic handwheel - Refrigeration through the spindle - Chip conveyor - RENISHAW touch probe provision.
