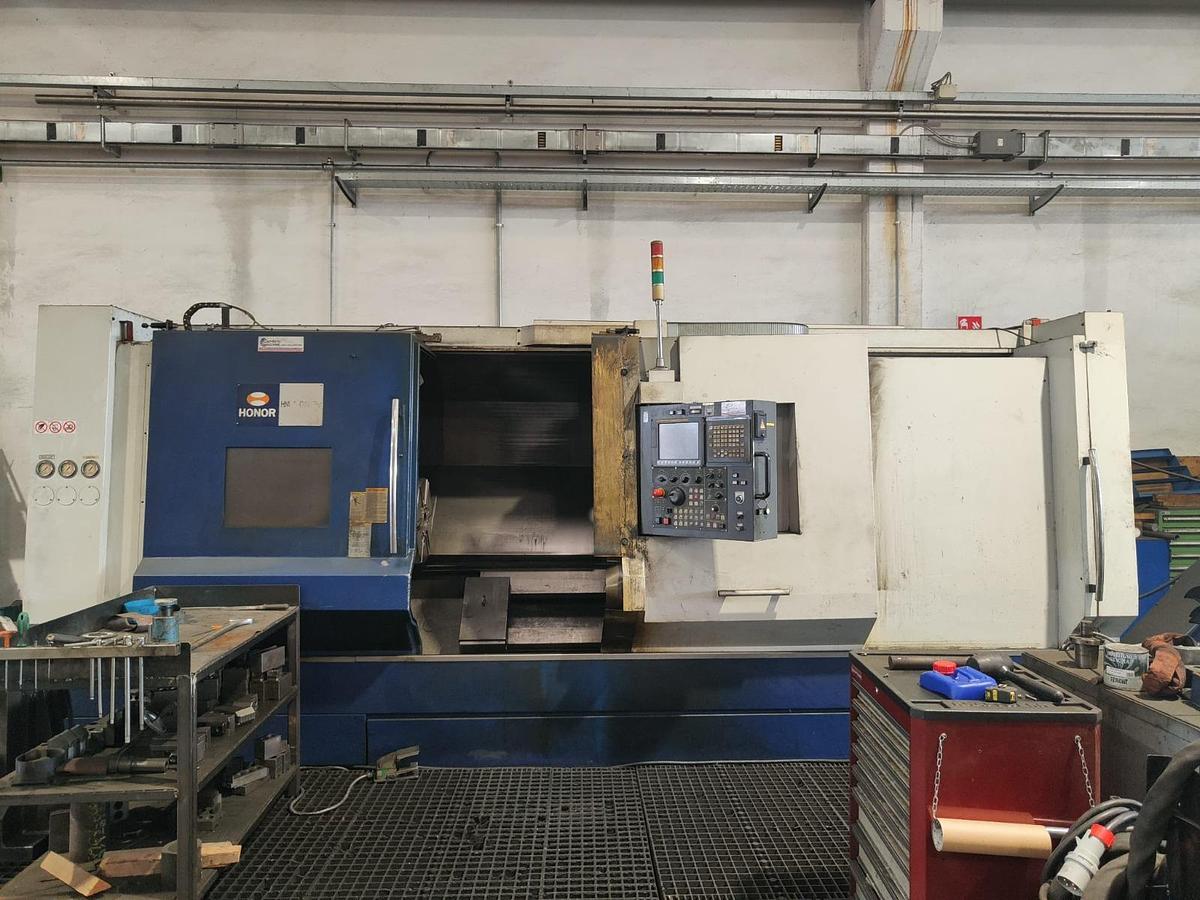

2009 HONOR LATHE model HNL-160 AL SM

YEAR 2009 SERIAL NUMBER 78379 CNC FANUC Ø MAX ROTATION 780 MM Ø MAX TURNING DIAMETER 620 MM MAX TURNING LENGTH 1900 MM Ø MAX BAR TURNING 90 MM X AXIS TRAVEL 365 MM Z AXIS TRAVEL 2000 MM X AXIS RAPIDS 20 M/MIN Z AXIS RAPIDS 20 M/MIN SPINDLE SPEED 2500 RPM SPINDLE NOSE ASSEMBLY ASA 11 Ø SPINDLE HOLE 105 MM Ø INNER BEARINGS 160 MM SPINDLE MOTOR POWER (CONT/30 MIN) 37 KW TOOLING IN TURRET 12 MAX TOOL DIAMETER 32×32 MM COUNTER-COUNTERFEIT TRAVEL 1790 + 150 MM COUNTER-TAPER TYPE MT 5 3-JAW CHUCK CENTRIFLOAT Ø 450 MM ELECTRICAL SUPPLY VCA 400 3F+PE 50 Hz INSTALLED POWER 50 KW CAPACITY OF CENTRAL OIL HYDRAULIC TANK 40 LT CAPACITY OF CENTRAL LUBRICATION TANK 2.5 LT CAPACITY OF CENTRAL COOLANT TANK 300 LT AUTOBLOCK GATE SLU B-51-25 CAPACITY 90-350 MACHINE DIMENSIONS 5530 X 2100 X 2280 MM MACHINE WEIGHT 16000 KG NON-OBLIGATORY DATA TO BE VERIFIED
