2019 Forvet Combiflex Multifunctional CNC Glass Processing Robotic Work Cell with Forbot 3050 Glass Transport and Sorting System

Multifunctional CNC machine and robotic work cell for the industrial processing of flat glass, combining many operations in one compact unit. It runs fully automatically through loading, edge grinding with cup wheels, polishing, drilling, countersinking, milling of notches and cutouts, waterjet cutting, washing, drying, and unloading. The 16 drilling spindles, split into two groups of 8, drill holes in a wide range of glass sizes and thicknesses, and an optional setup extends edge grinding to small formats. The Siemens-based numerical control detects the size and thickness of each incoming glass sheet on its own, which removes setup time and manual intervention between different jobs. A glass transport and sorting system is included, so the cell can be linked to the rest of the line. The machine is in like-new condition. Used in glass processing plants and glass fabricators for high-volume production of shower doors, furniture glass, mirrors, kitchen backsplashes, partition walls, and structural architectural glazing.

Suitable for

CNC glass processing center, robotic glass work cell, flat glass processing, glass edge grinding, glass polishing, glass drilling, glass milling, waterjet glass cutting, glass washing and drying, glass automation, shower door production, furniture glass, mirror production, kitchen backsplash glass, partition wall glass, architectural glazing, glass sorting system

Technical Specifications

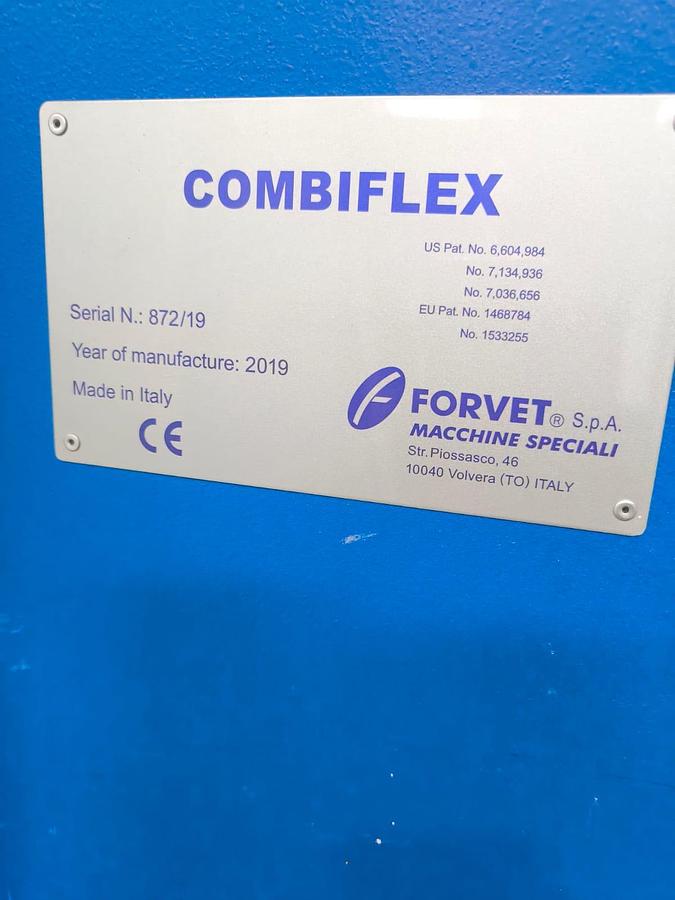

• Manufacturer: Forvet S.p.A.
• Model: Combiflex
• Machine type: Multifunctional CNC machine and robotic work cell for flat glass
• Year: 2019
• Condition: Like new
• Country of manufacture: Italy
• Footprint: Approx. 32 to 33 m²
• Control: Integrated numerical control, developed with Siemens Automation
• Automation: Automatic detection of glass size and thickness, no manual setup
• Operations: Loading, edge grinding with cup wheels, polishing, drilling, countersinking, milling, waterjet cutting, washing, drying, unloading
• Maximum glass size for edge grinding: 1,600 x 3,050 mm
• Minimum glass size for edge grinding: 450 x 500 mm (optional 200 x 900 mm)
• Glass thickness: 3 to 25 mm
• Maximum drilling range, Y-axis: 1,500 mm
• Maximum drilling range, X-axis: 3,500 mm
• Number of drilling spindles: 16 (8+8)
• Maximum drilling diameter: 70 mm
• Axis feed rate, X/Y: 0 to 30 m/min
• Milling feed rate: 3 to 35 mm/s
• Included equipment: Forbot 3050 glass transport and sorting system
• Products: Shower doors, furniture glass, mirrors, kitchen backsplashes, partition walls, structural architectural glazing

Contact for price and viewing.

Disclaimer

The above description is provided for informational purposes only. Specifications are based on available information. Buyer is responsible for independent verification prior to purchase.
