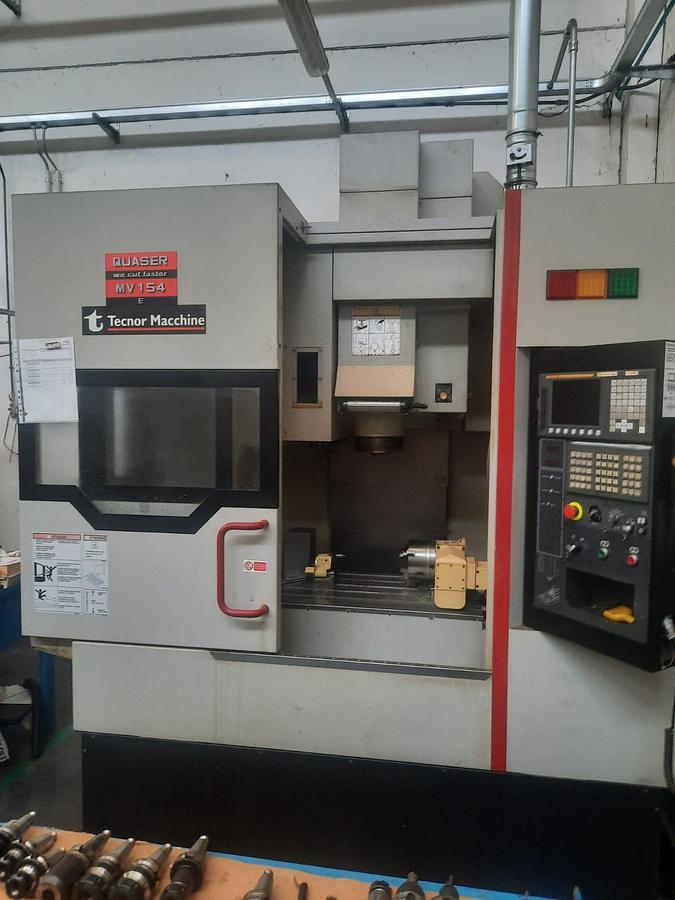

2016 QUASER VERTICAL CENTER mv154E/12B model
2016 QUASER VERTICAL CENTER mv154E/12B model
Contact us for price
Location:Bergamo, Italy
or
Call +39 02 9475 0001
Description
N/S 126N161421
CNC QUASER

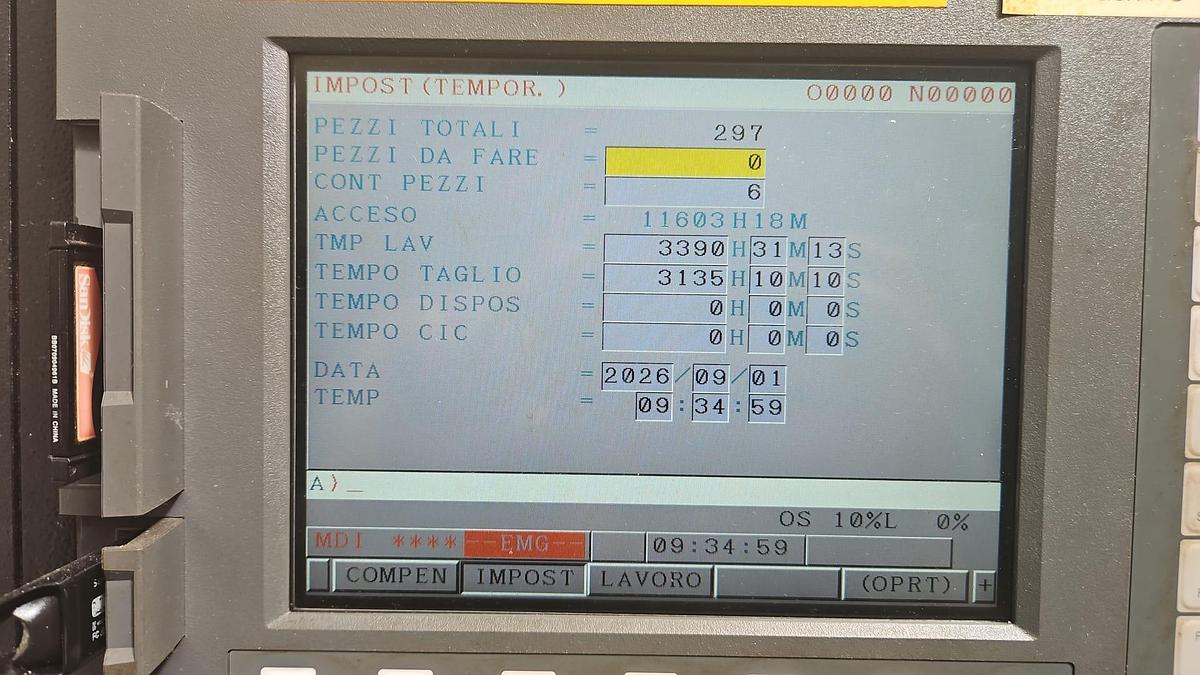

Work piece 3135

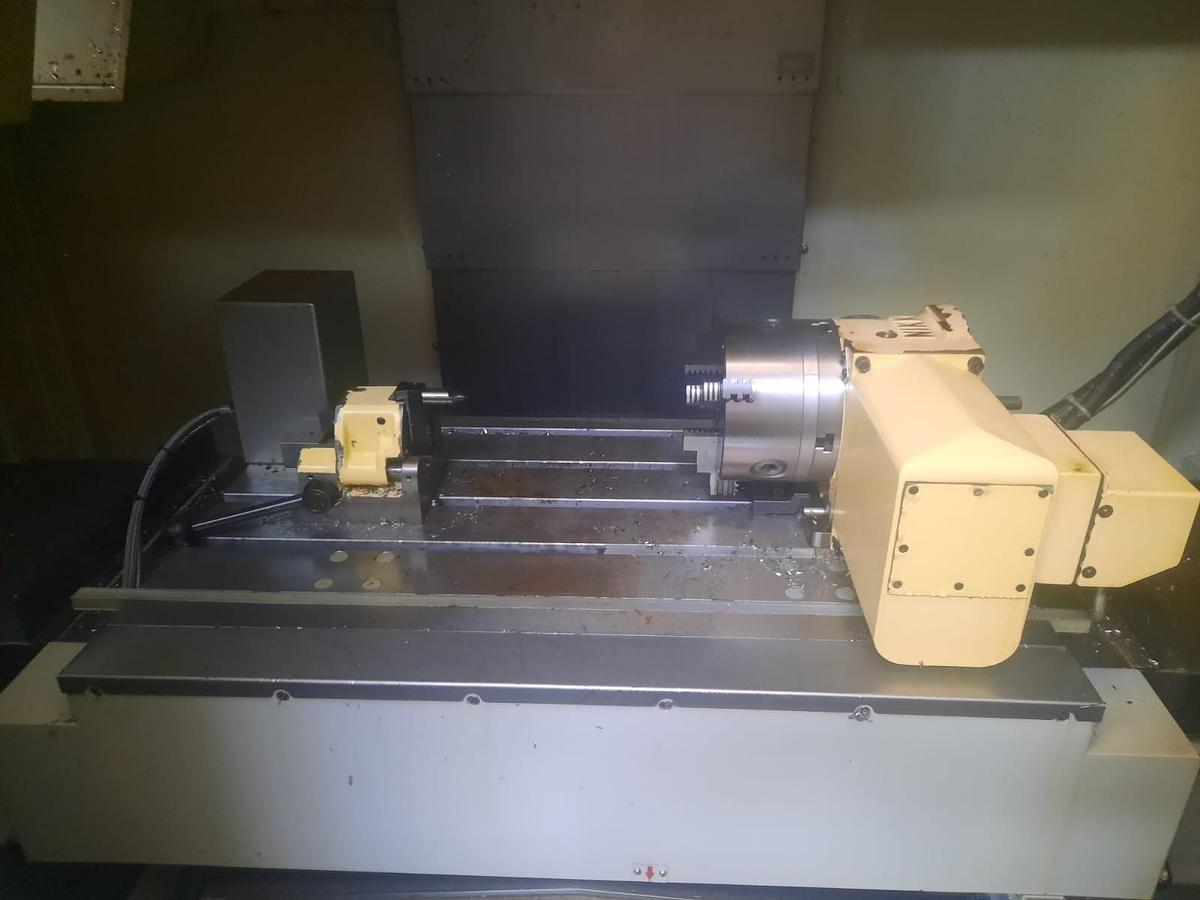

TABLE
WORKING CAPACITY
Nose of spindle to table surface distance: 150 mm / 710 mm
Spindle axis to column surface distance: 550 mm

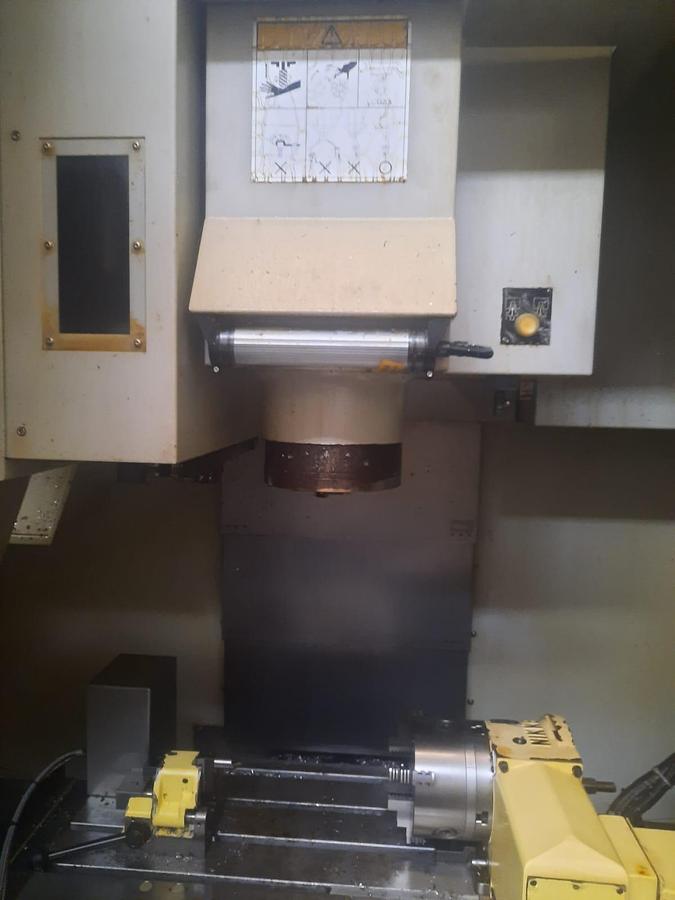

SPINDLE
FEED RATES
TOOL MAGAZINE
MACHINE DIMENSIONS 260 X 254 X 300 mm
NON-IMPACTFUL DATA TO BE VERIFIED
Specifications
| Year | 2016 |
| Condition | Used |
| Stock Number | CV0657 |
| Table size | 900 x 500 mm |
| Five slots | 18H 8 |
| Maximum weight allowed on the table | 500 kg |
| X axis | 700 mm |
| Y axis | mm 530 |
| Z axis | mm 560 |
| Spindle diameter | mm 70 |
| Big plus spindle taper | ISO 40 DIN 69871 |
| Spindle revolutions | rpm 50/12,000 |
| Spindle motor | kW 15/11 |
| Maximum torque | Nm 115 |
| X/y/z rapid axes | m/min 32 |
| Advances in work | m/min 20 |
| Number of tools | 30 |
| Tool cone | ISO 40 |
| Maximum tool diameter (excluding adjacent tools) | 76 / 125 mm |
| Maximum tool weight | kg 7 |
| Weight | 6,400 kg |
