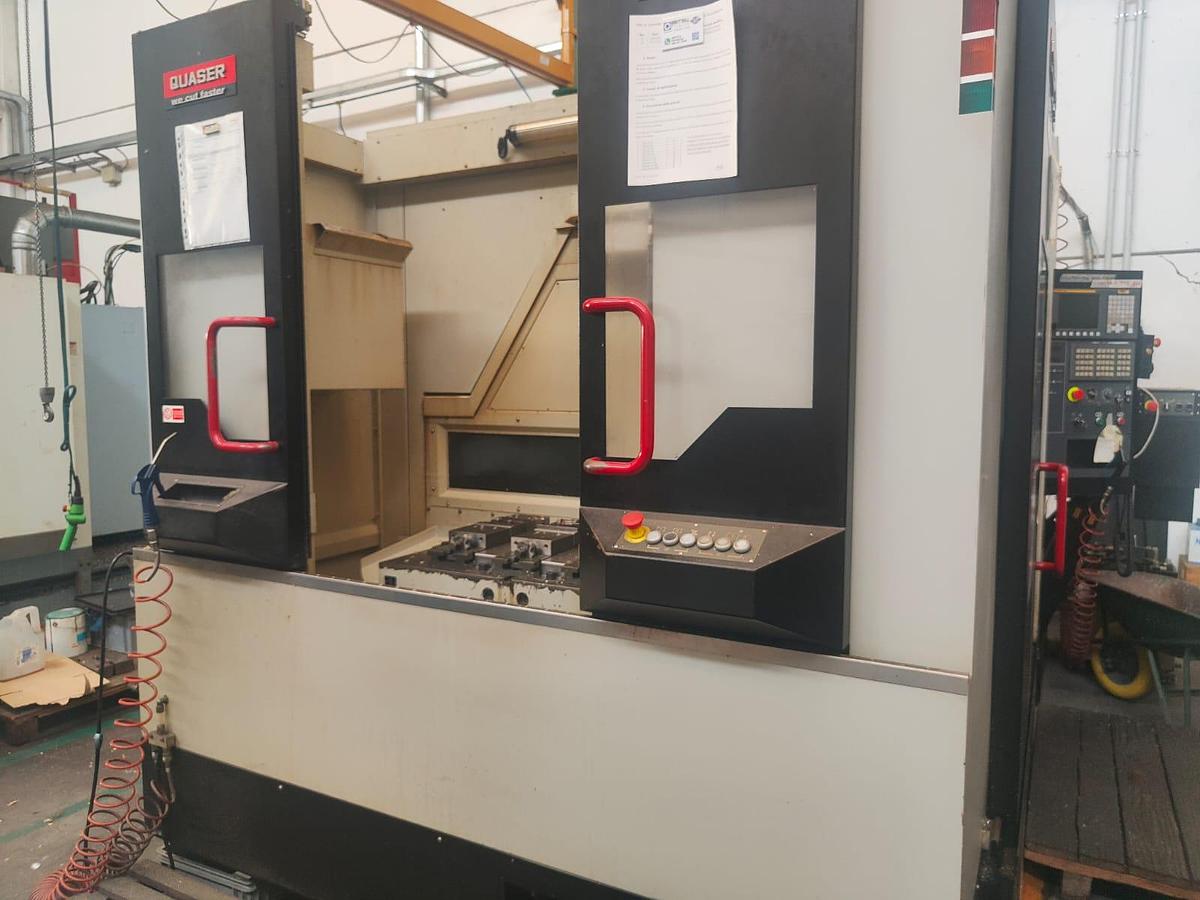

2015 VERTICAL CENTER QUASER model MV154 APC/E/12B
2015 VERTICAL CENTER QUASER model MV154 APC/E/12B
Contact us for price
Location:Bergamo, Italy
or
Call +39 02 9475 0001
Description
YEAR 2015

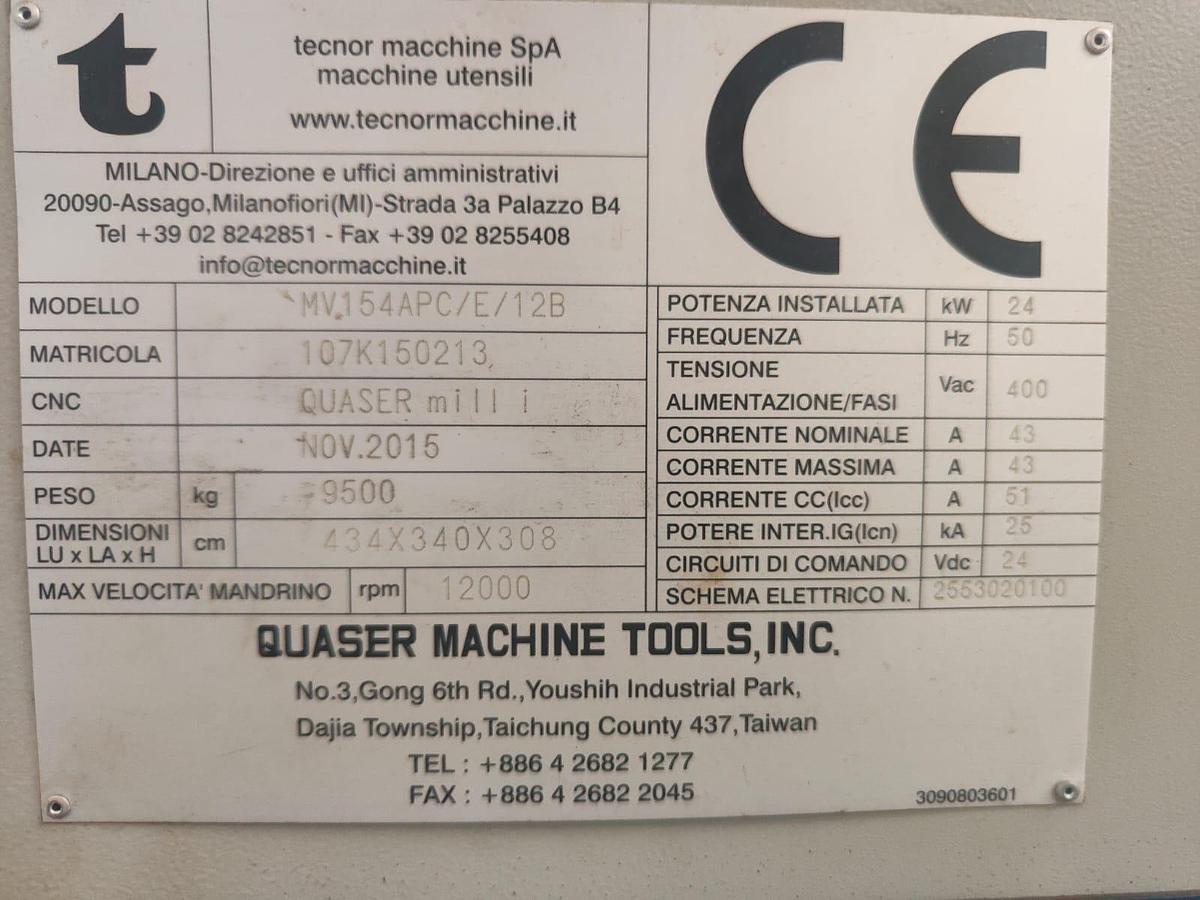

N/S 107K150213
Pallet changer
Main spindle
Tool changer
Weight 9500 Kg
NON-INVOLVING DATA TO BE VERIFIED
Specifications
| Year | 2015 |
| Condition | Used |
| Stock Number | CV0658 |
| Pallet dimensions | 800 × 500 mm (31,5″ × 19,7″) |
| Maximum workpiece dimensions x / y / z | 800 × 500 × 370 mm (31,5″ × 19,7″ × 14,6″) |
| Stroke x axis | 700 mm |
| Travel axis y | 500 mm |
| Travel axis z | 560 mm |
| Table load capacity | 250 kg |
| Number of pallets | 2 |
| Pallet changer type | Rotational |
| Spindle cone | ISO 40 |
| Maximum spindle speed | 9,000–20,000 rpm |
| Number of positions in the magazine | 48 (standard) |
| Maximum tool diameter | 76,2 mm |
| Maximum tool diameter with adjacent empty seats | 125 mm |
| Maximum tool length | 280 mm |
