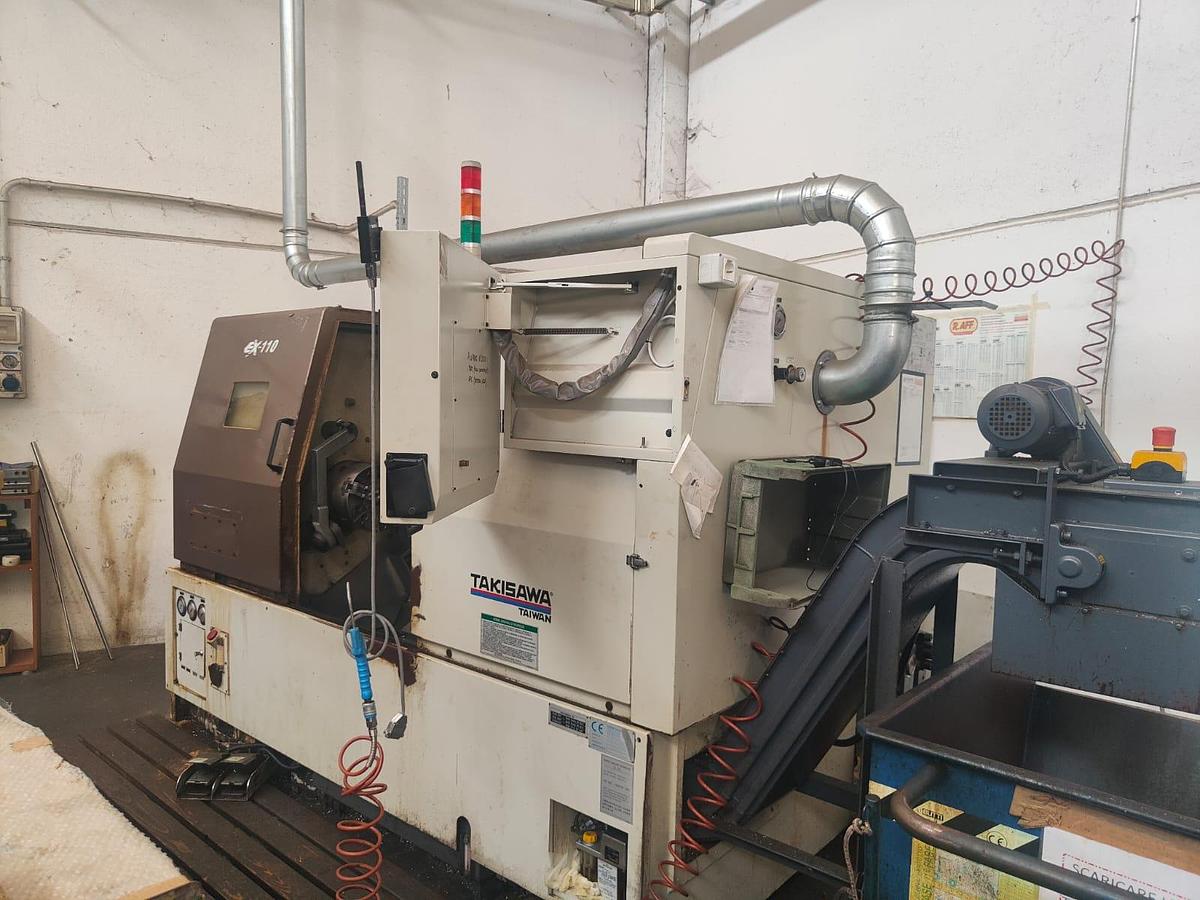

2006 TAKISAWA LATHE mod.EX 110

YEAR 2006 N/S CG11E10993 FANUC Series 21i-TB CNC CONTROL Maximum rotating diameter Ø 495 mm Maximum turning diameter Ø 400 mm Maximum turning length 700 mm Bar passage diameter Ø 76 mm Travel X Axis 220 mm Z Axis 710 mm Chuck Self-centering diameter Ø 254 mm Chuck speed 35-3,500 rpm Chuck nose ASA A2-8 Chuck motor power (cont./30 min) 15/18.5 kW Turret Turret stations 10 stations Machine tool insert size Ø 50 mm Feeds Rapid traverse X/Z axes 16,000/20,000 mm/min Tailstock Bar sleeve diameter Ø 110 mm Bar sleeve Morse taper 5 Bar sleeve stroke 150 mm MACHINE WEIGHT 5,000 Kg MACHINE INSTALLATION PROTECTION OBLIGATORY DATA TO BE VERIFIED
