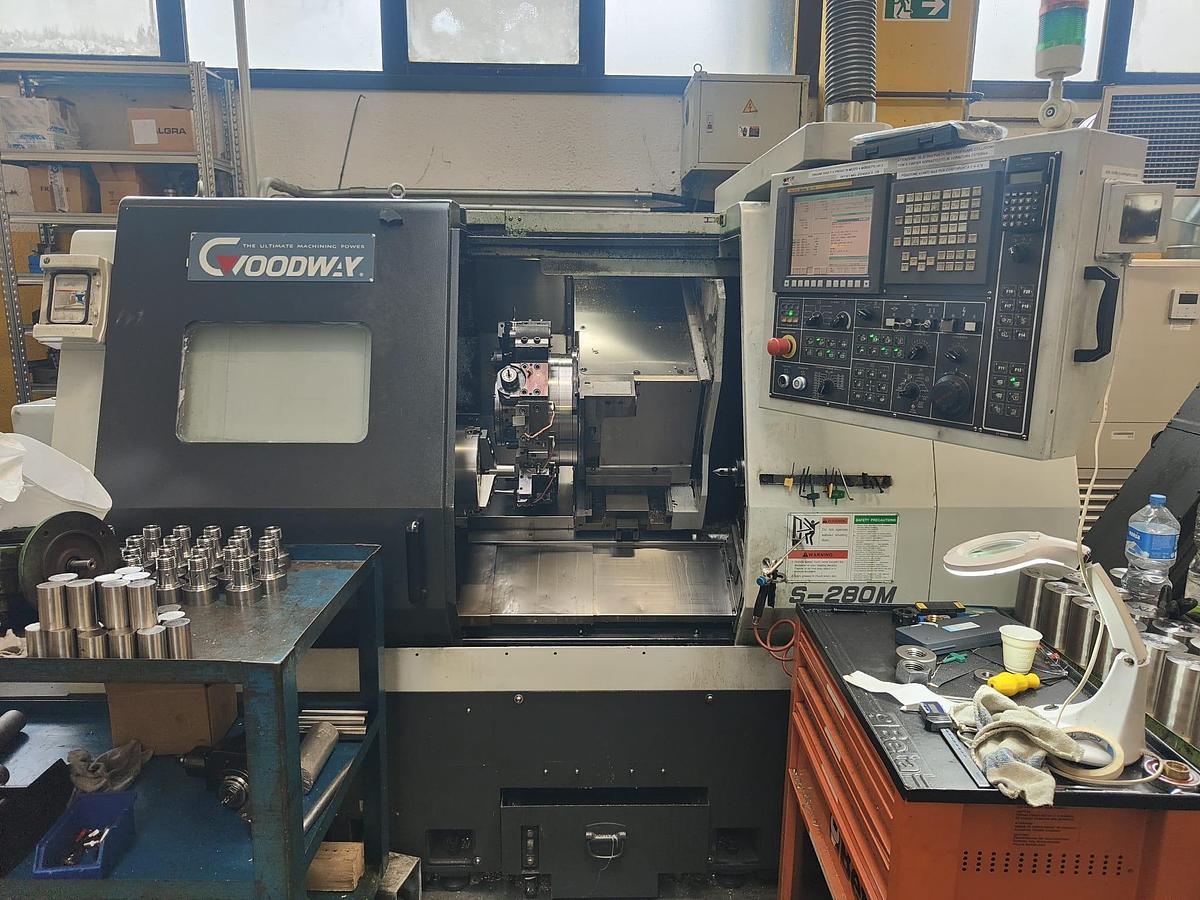

GOODWAY LATHE model GS280-M

AVAILABLE FROM July 2026 GS-280M FEATURES Allowed rotation diameter mm 470 Maximum turning diameter mm 420 Maximum turning length mm 595 Workable bar diameter mm 75 TRAVEL X axis mm +10, -200, -30 Z axis mm +30, -570 SPINDLE Rotation speed g/min 35-3,500 nose of attachment Asa2-8″ Hole diameter mm 90 Front bearing diameter mm 130 Minimum C-axis indexing angle 0.001° TURRET Tool positions n 12 Motorized tool positions n 12 Tool block section mm 25 Tool shank diameter mm 40 Adjacent/180° tool indexing time sec 0.2/0.5 FEED RATES Rapid X axis mm/min 20,000 Rapid Z axis mm/min 24,000 C axis g/min 33 COUNTER-TUNING Bed travel mm 470 Headstock mandrel diameter mm 85 Headstock connection CM 3 Headstock travel mm 120 MOTOR POWER Spindle kW 11/15 X / Z / C axes KW 1.6 / 3.0 / 0.75 Motorized tools KW 3.0 MISC Installed power KVA 26 Coolant tank capacity L 200 Machine height mm 1,890 Installation area mm 2,670 x 1,955 Machine weight Kg 5,600 Tool presetting not functioning to be repaired NON-BINDING DATA TO BE VERIFIED
