2014 MAN E2842 E312 Natural Gas Generator Set – CHP Unit Marelli Generators MJB 250LB4 B – 125 kVA

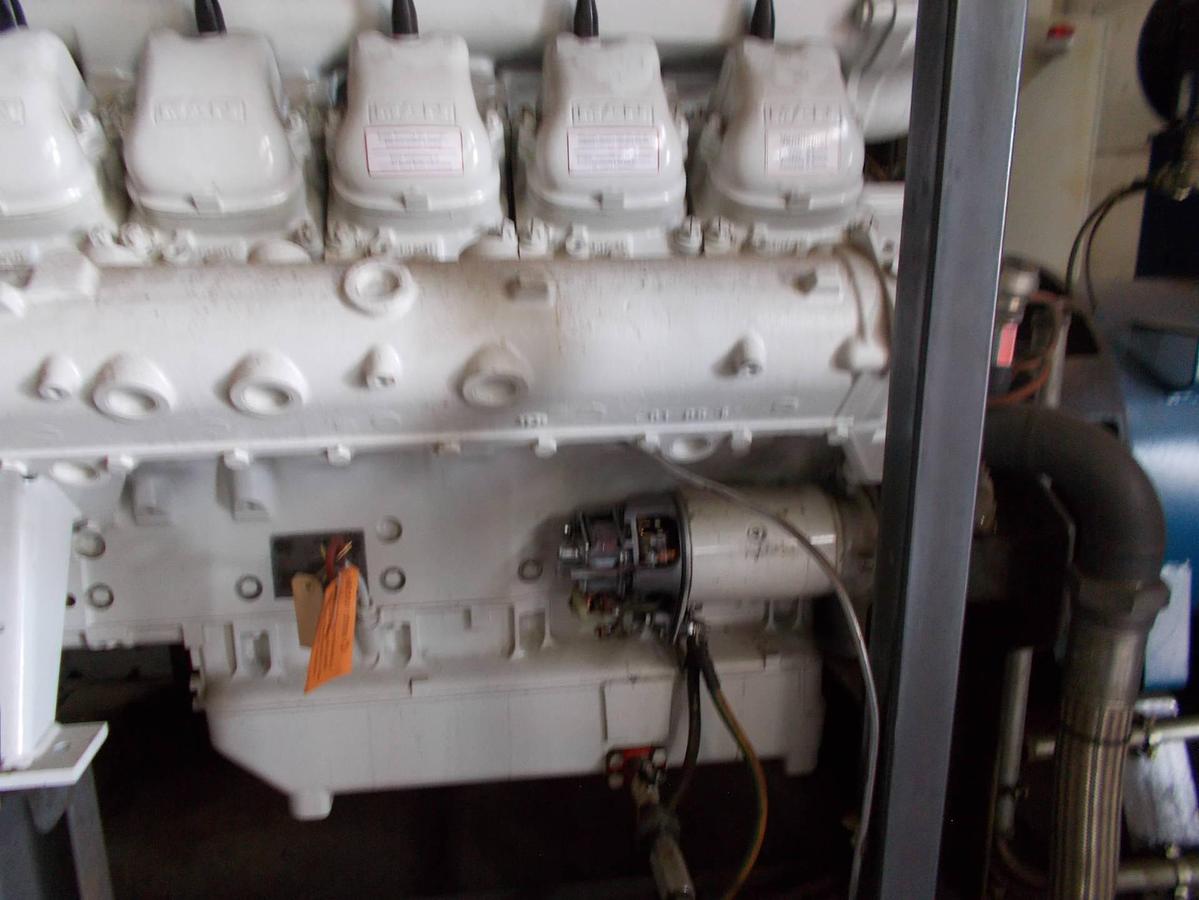

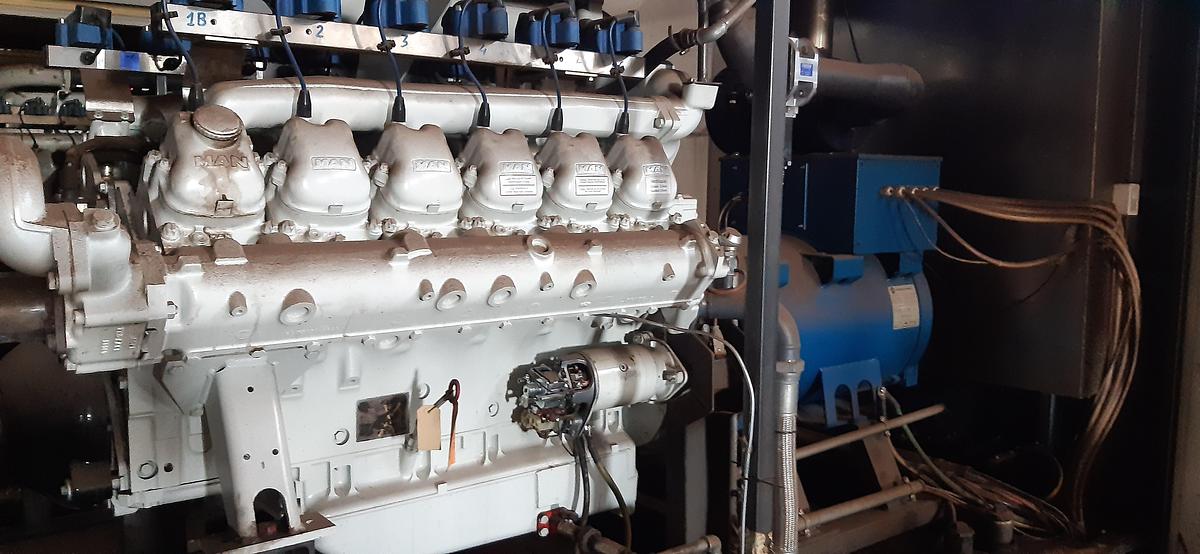

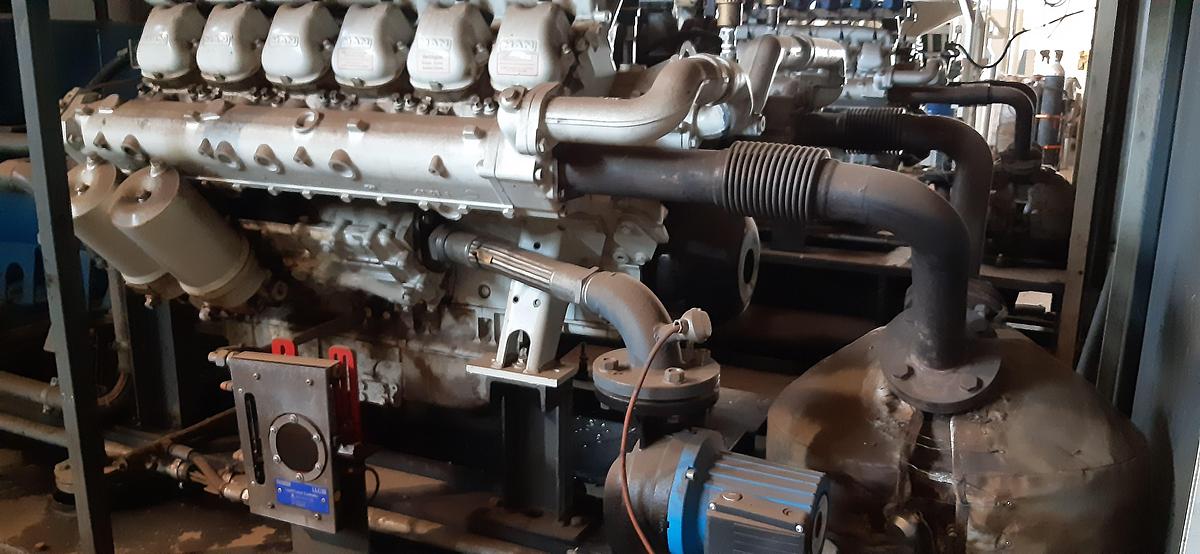

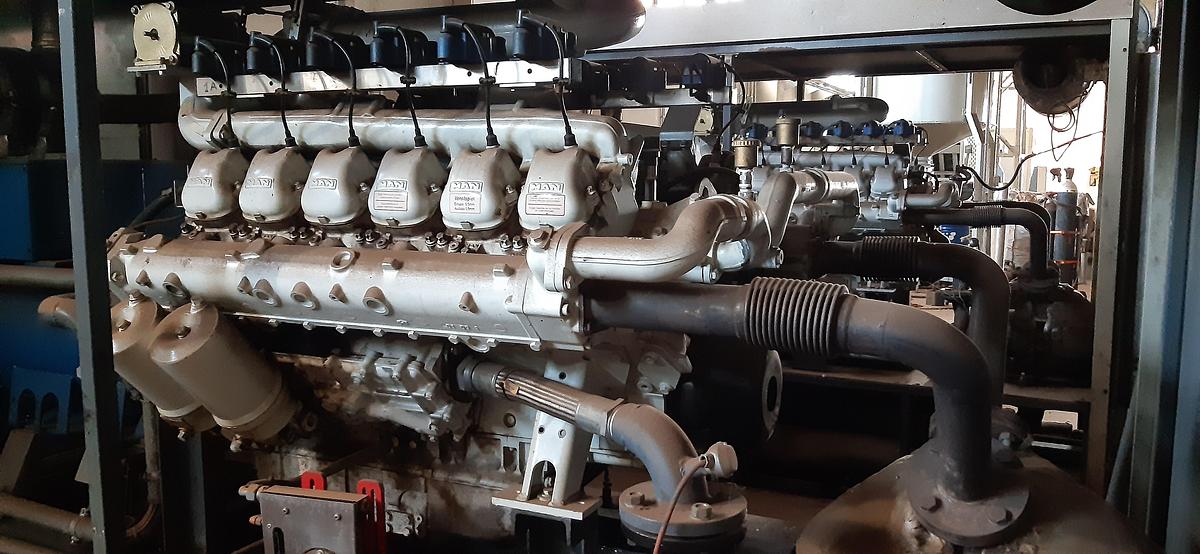

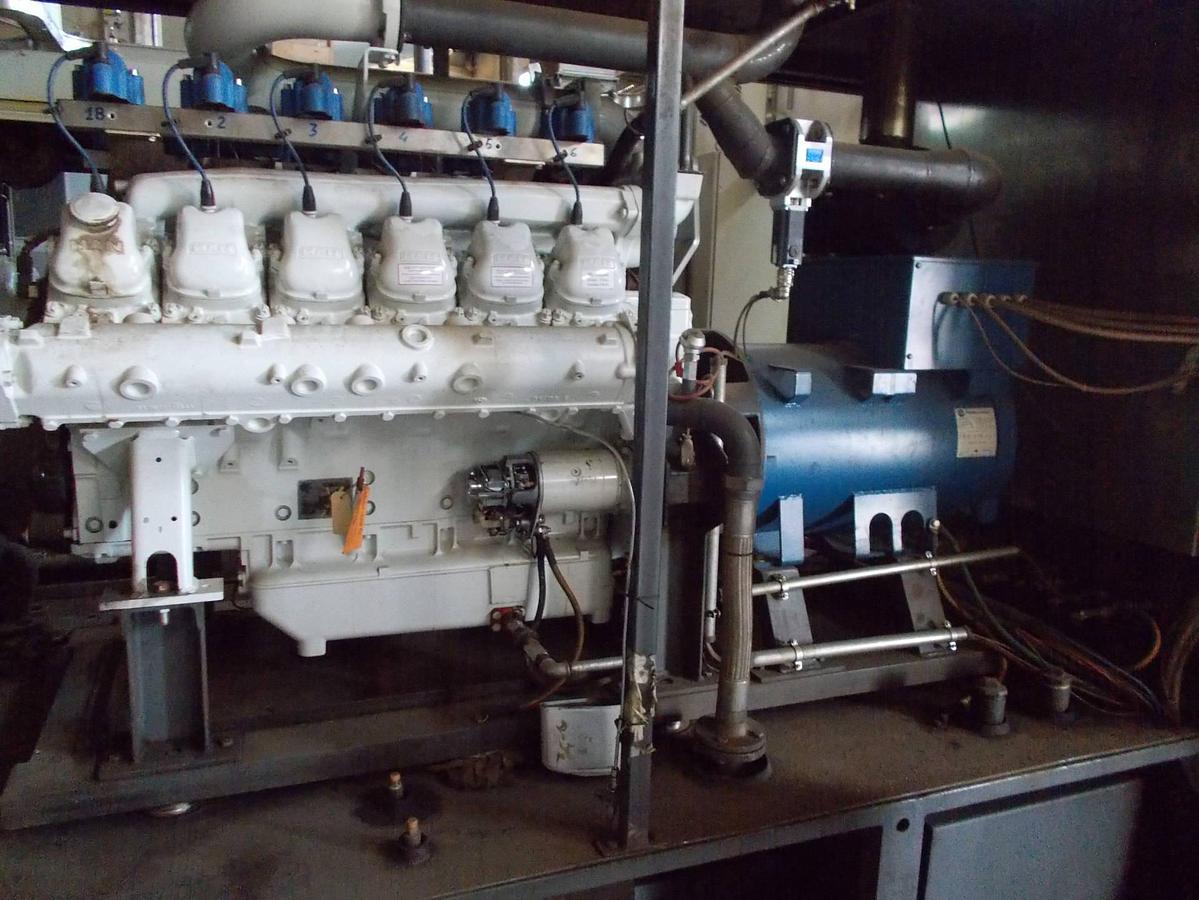

MAN E2842 E312 natural gas engine coupled with a Marelli Generators alternator, configured as a combined heat and power (CHP) gen-set unit. The set was installed in an enclosed skid frame as part of a cogeneration system, with associated pipework and ancillaries visible in the installation photos.

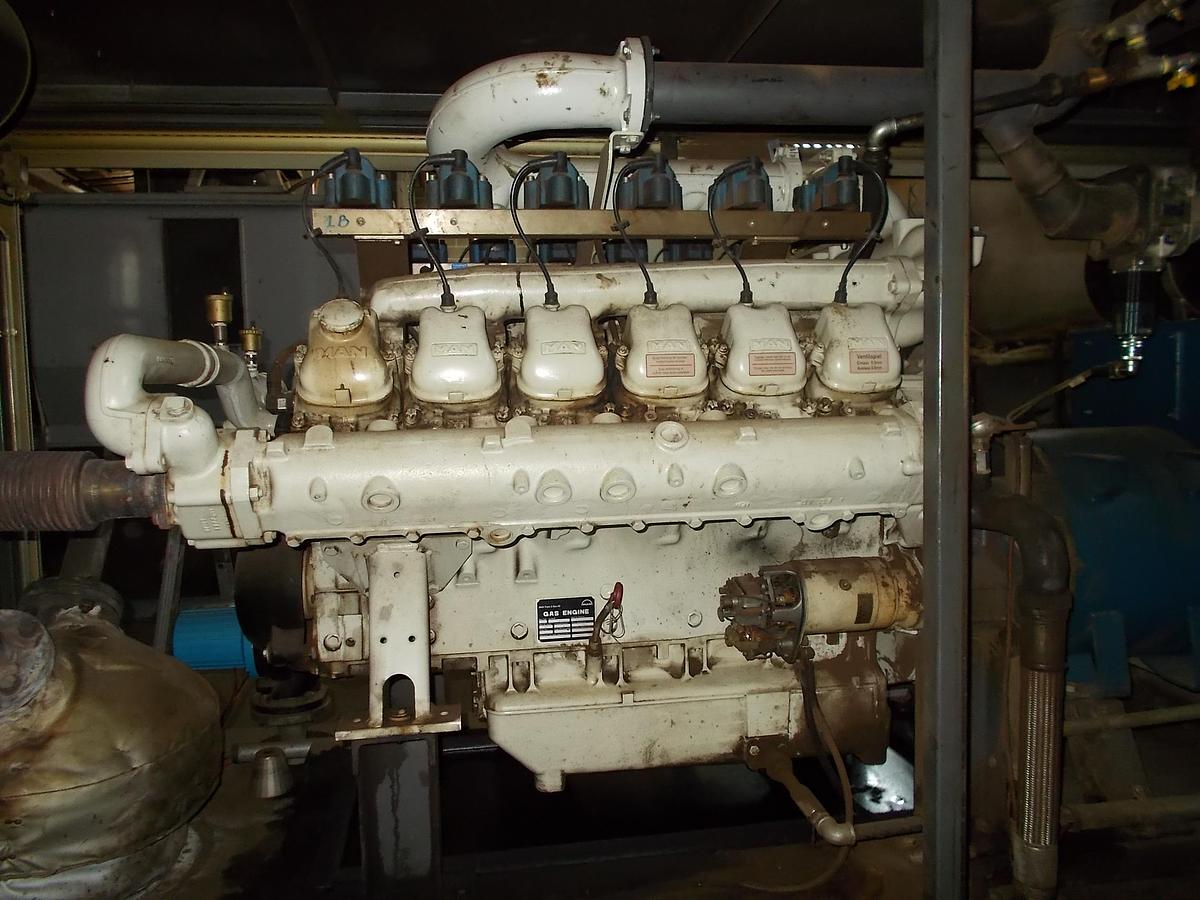

Engine – MAN E2842 E312

• Type: In-line 6-cylinder natural gas engine (spark ignition)
• Application: Stationary power generation / CHP

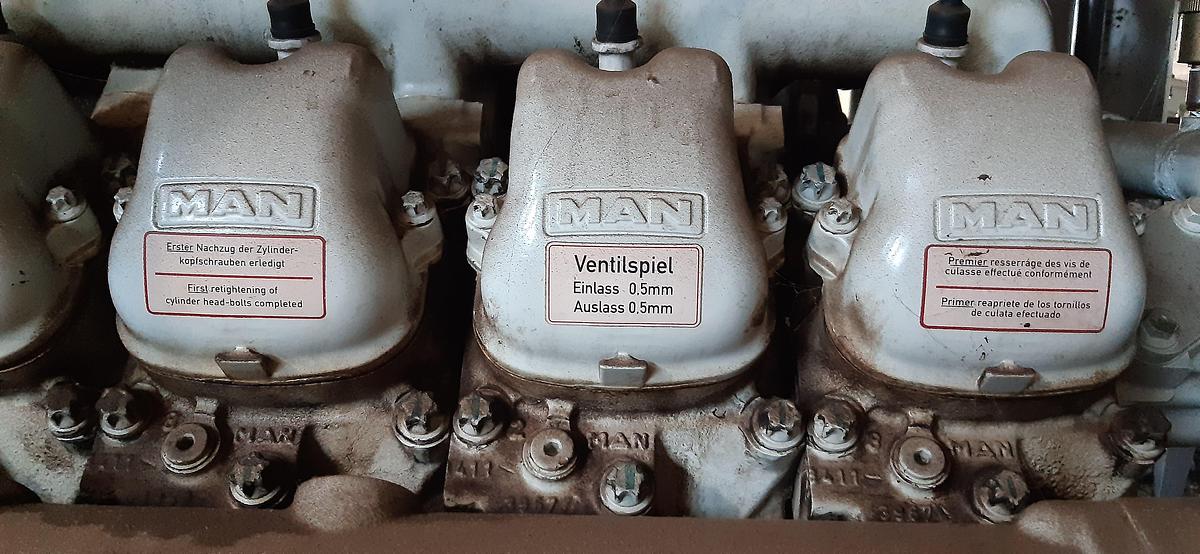

• Individual cylinder head covers with valve clearance specifications: Inlet 0.5 mm / Exhaust 0.5 mm

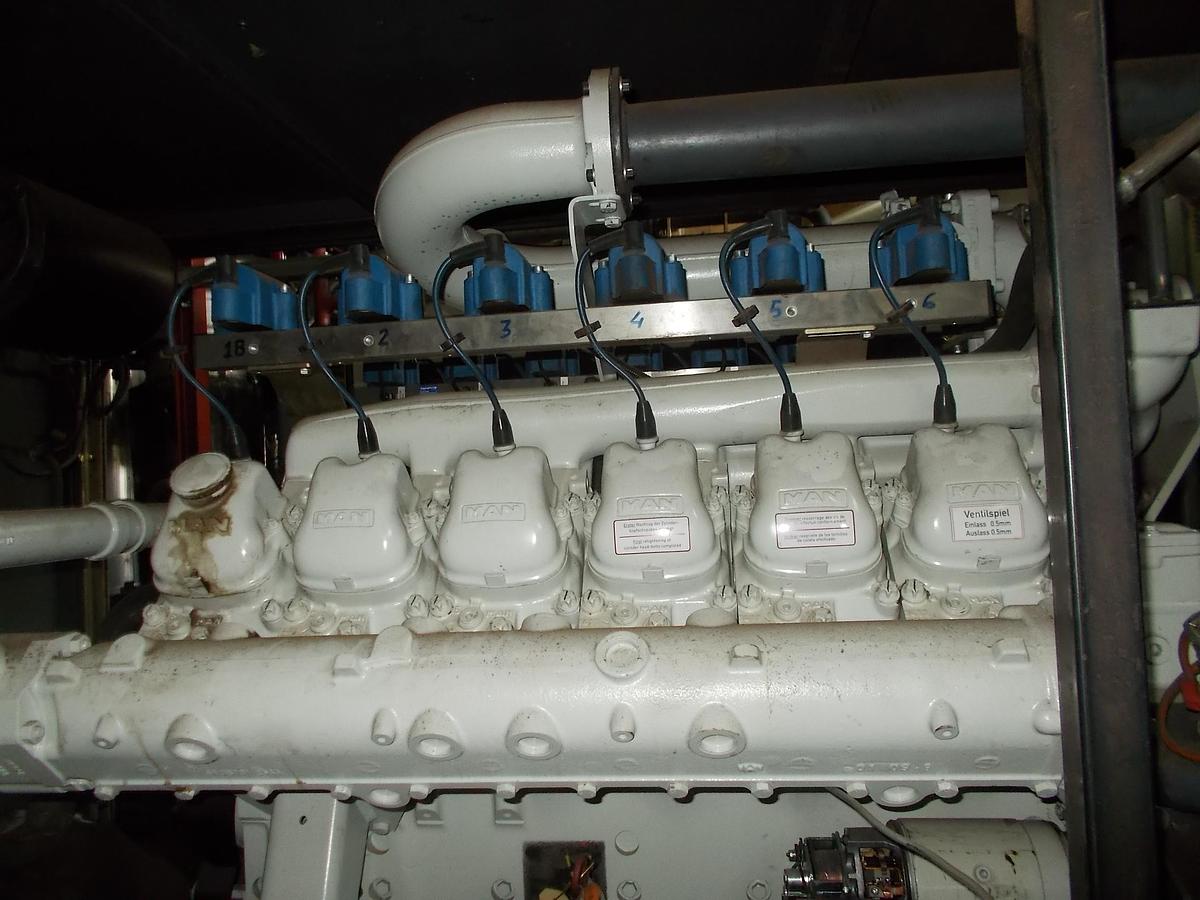

• Spark plug ignition system with numbered coil-on-plug configuration (cylinders 1B through 6)

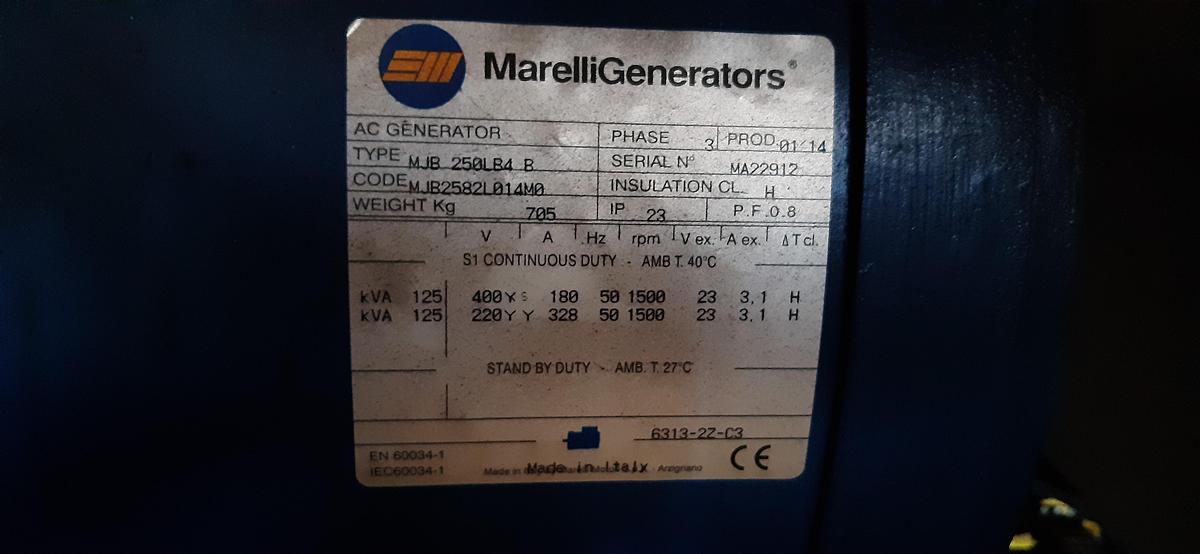

Alternator – Marelli Generators MJB 250LB4 B

• Type: AC Generator, 3-phase
• Rated output: 125 kVA
• Voltage configurations: 400V (Δ) / 220V (YY)
• Frequency: 50 Hz | Speed: 1,500 rpm
• Power factor: 0.8
• Insulation class: H | Protection: IP 23
• Weight: 705 kg
• Serial No.: MA22912 | Production: 01/2014
• Manufactured in Italy (Arignano)
• Compliant with EN/IEC 60034-1 | CE marked

Condition The unit has seen very limited operational use and presents in good overall condition. However, given that the equipment is over 10 years old, a full mechanical revision is recommended prior to recommissioning. Sold as-is.

Non-binding information to be verified at purchase.
