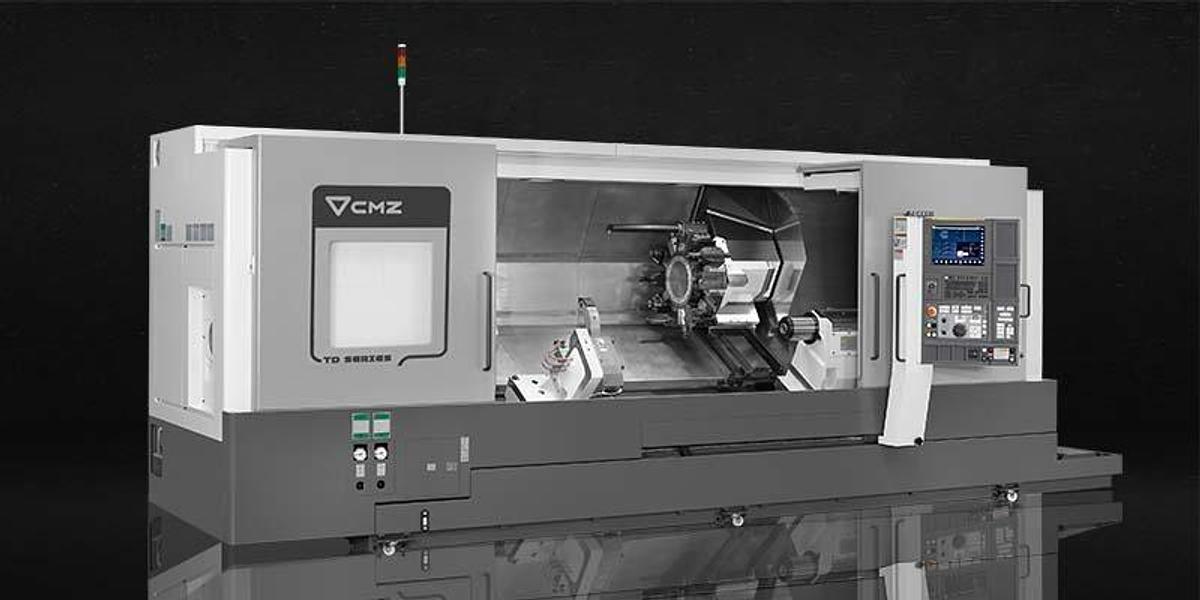

2019 CMZ CNC LATHE mod.TD45Y

YEAR 2019 Model TD45Y-Z2200 Maximum swinging diameter on the table 950 mm Maximum swinging diameter on the carriage 715 mm Maximum turning diameter 550 mm Distance between Z face 2200 2250 mm X-axis travel 380 mm Z-axis travel 2200 mm Y-axis travel +80/-60 mm X-axis rapid traverse 30 m/min Z-axis rapid traverse 30 m/min Y-axis rapid traverse 15 m/min Maximum spindle speed 2200 rpm Outer diameter of front bearings 310 mm Inner diameter of front bearings 200 mm spindle nose ASA 11″A2 Machine spindle bore diameter 136 mm Bar passage 127 mm Spindle diameter 315/400 mm Spindle power 51(S3 25%)/39 (S1) kW Maximum torque 3600 (Max), 3000 (S3 25%), 2000 (S1) Number of positions 12 (16) Tool sectional area 25×25 (diam.50) Maximum spindle speed 12000 rpm Power KW (max/S1) 13.7/11 COMPLETE WITH TOOLING COUNTERWEIGHT, Y-AXIS AND MOTORIZED NON-BINDING DATA TO BE VERIFIED
