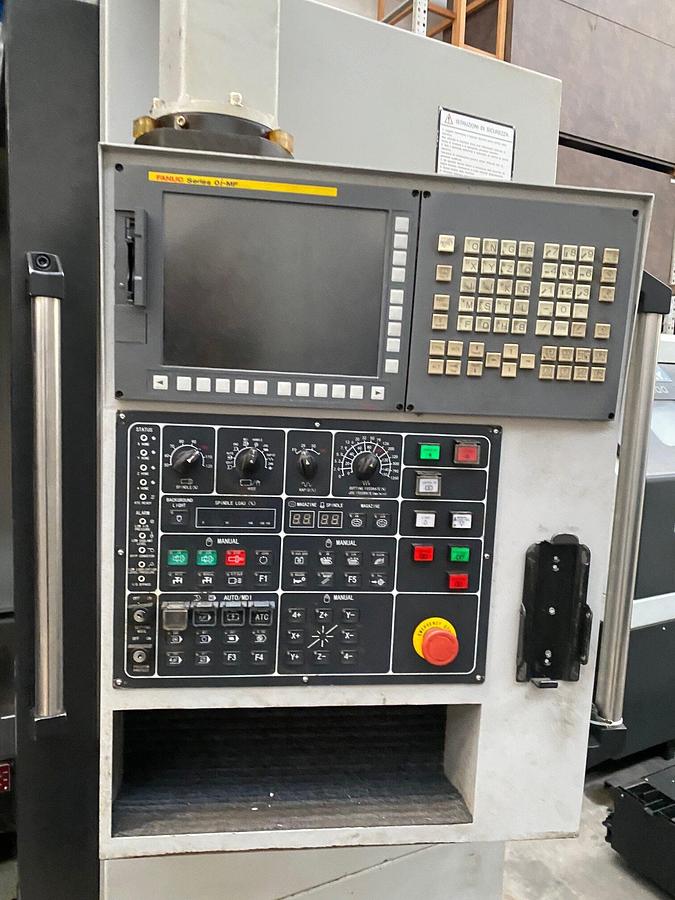

VERTICAL MACHINING CENTER WELE MOD CV 1060

MANUFACTURER WELE MOD. CV 1060 TECHNICAL FEATURES: WORKING RANGE - AXES LINEASE X-Y-Z axis 1020X600X600 mm CNC Fanuc Oi-MF TABLE Dimensions 1150x600xmm Table spindle distance min- max 105-705 mm Slot width 18 mm Slot center distance 125 mm Max table capacity 700 kg MANDRIN Spindle motor Spindle speed 7.5 - 11 Kw 10000 rpm Spindle cone BT 40 POWER SUPPLY X,Y axis rapid feed 36000 mm/min Z-axis rapid feed 30000 mm/min Cutting feed 1-10000 mm\min Axial pitch of ball screw 12-12-10 mm TOOL WAREHOUSE Tool magazine capacity 24 Pcs Max tool diameter 78/150 mm Max tool length 300 mm Max tool weight 7 Kg Total machine weight 5500 Kg Overall dimensions 3550X2400X2800 h mm Total installed power 30 Kw Compressed air pressure 6 Bar State Visible in operation Excellent condition
