2017 HAAS CNC lathe mod.ST 35 Y
2017 HAAS CNC lathe mod.ST 35 Y
Contact us for price
Location:Bergamo, Italy
or
Call +39 0451 117 6498
Description

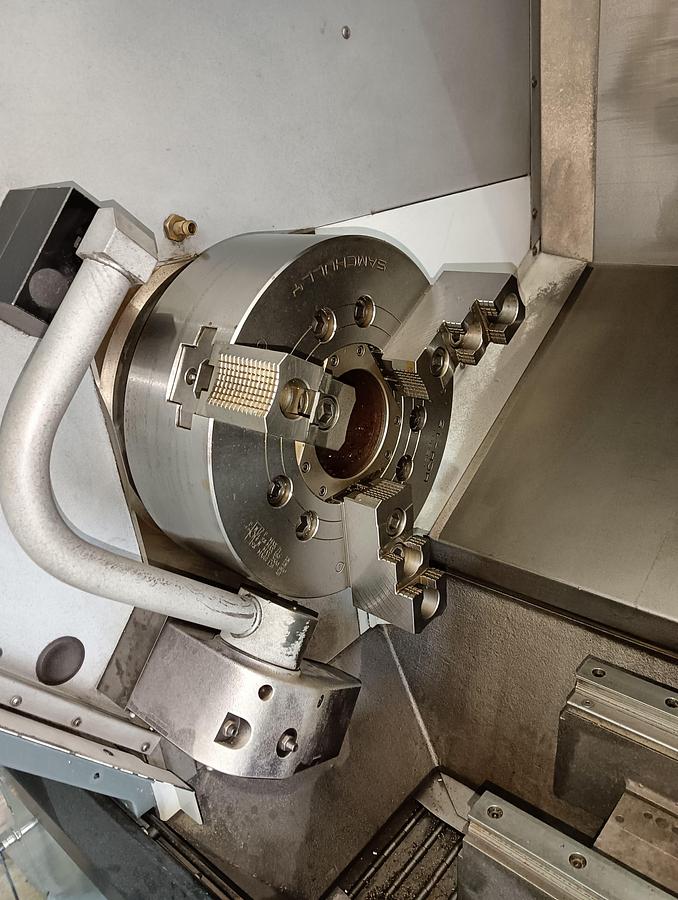

Hydraulic self-centering diameter 380 mm
Speed 3200 rpm
Power 29.8 kW

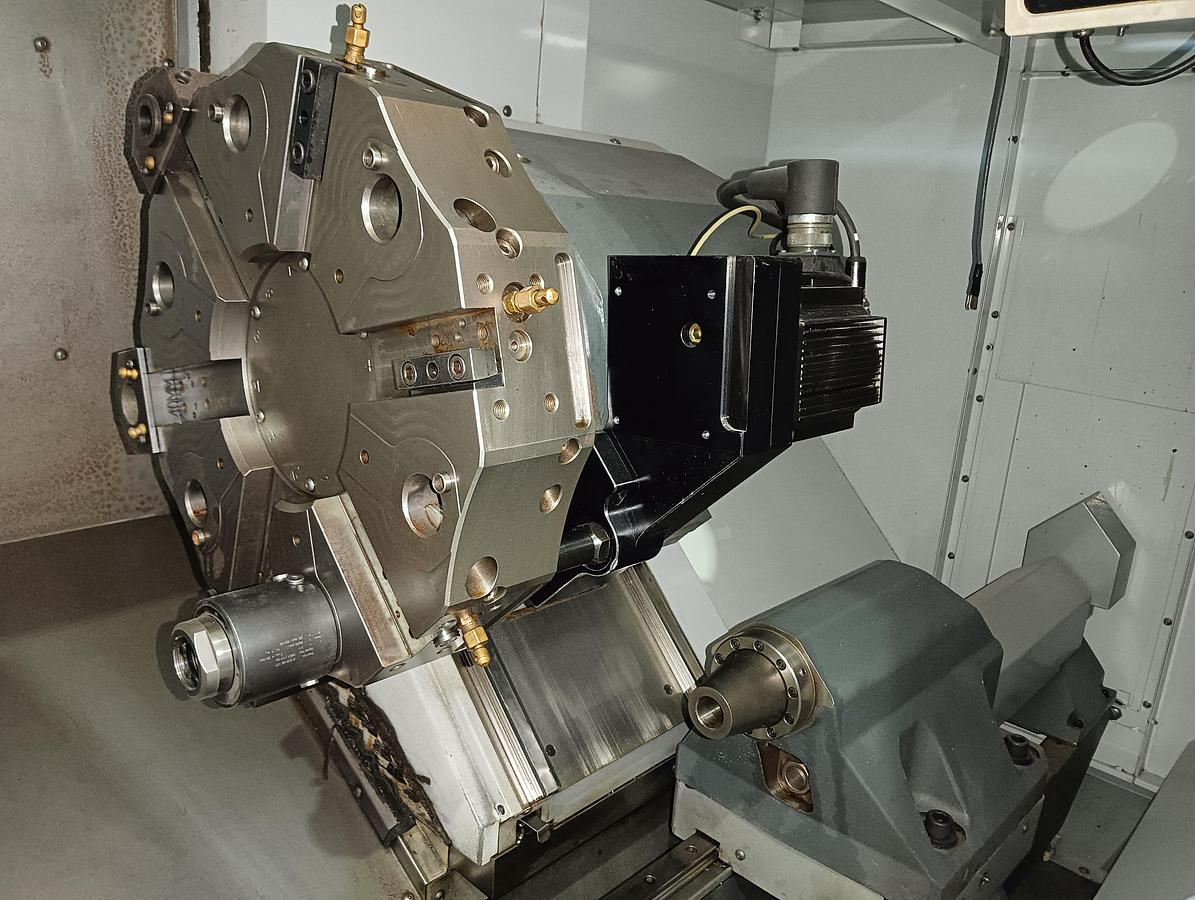

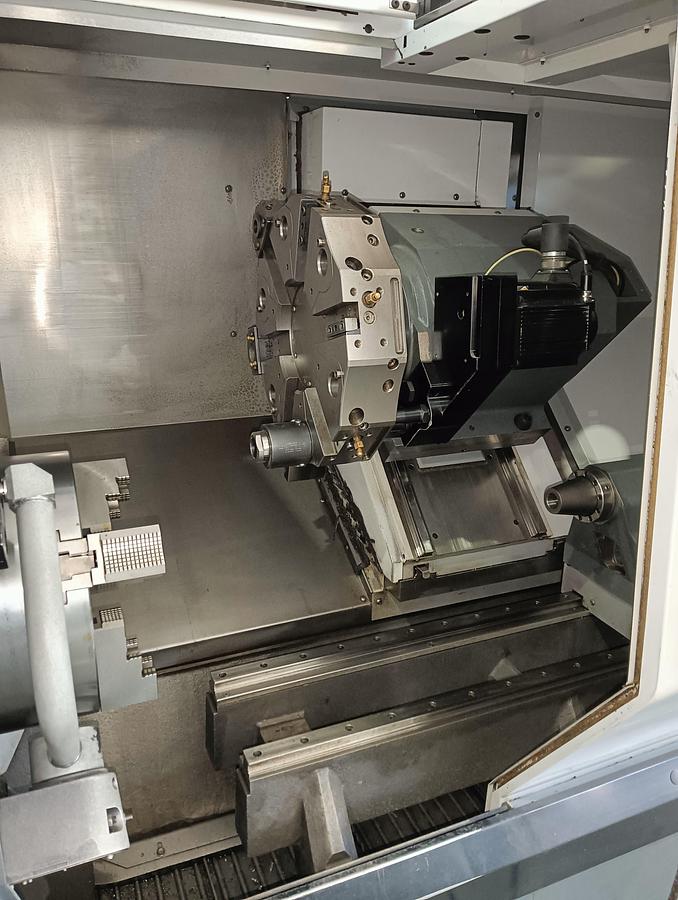

Turret:
No.12 tool stations
Motorized tools
NONCOMMITTAL DATA TO BE VERIFIED
Specifications
| Year | 2017 |
| Condition | Used |
| Serial Number | 3107413 |
| Stock Number | TC2316 |
| Rotation diameter | 533 mm |
| Turning diameter | 381 mm |
| Turning length | 826 mm |
| Passage bar | 102 mm |
| Running x | 239 mm rapid 24,000 mm/min |
| Race z | 826 mm rapid 24,000 mm/min |
| Race y | 101 mm |
| Spindle | A2-8 |
| Encumbrances | 4725 x 2642 x 2057 mm |
| Weight | 6.487 kg |
