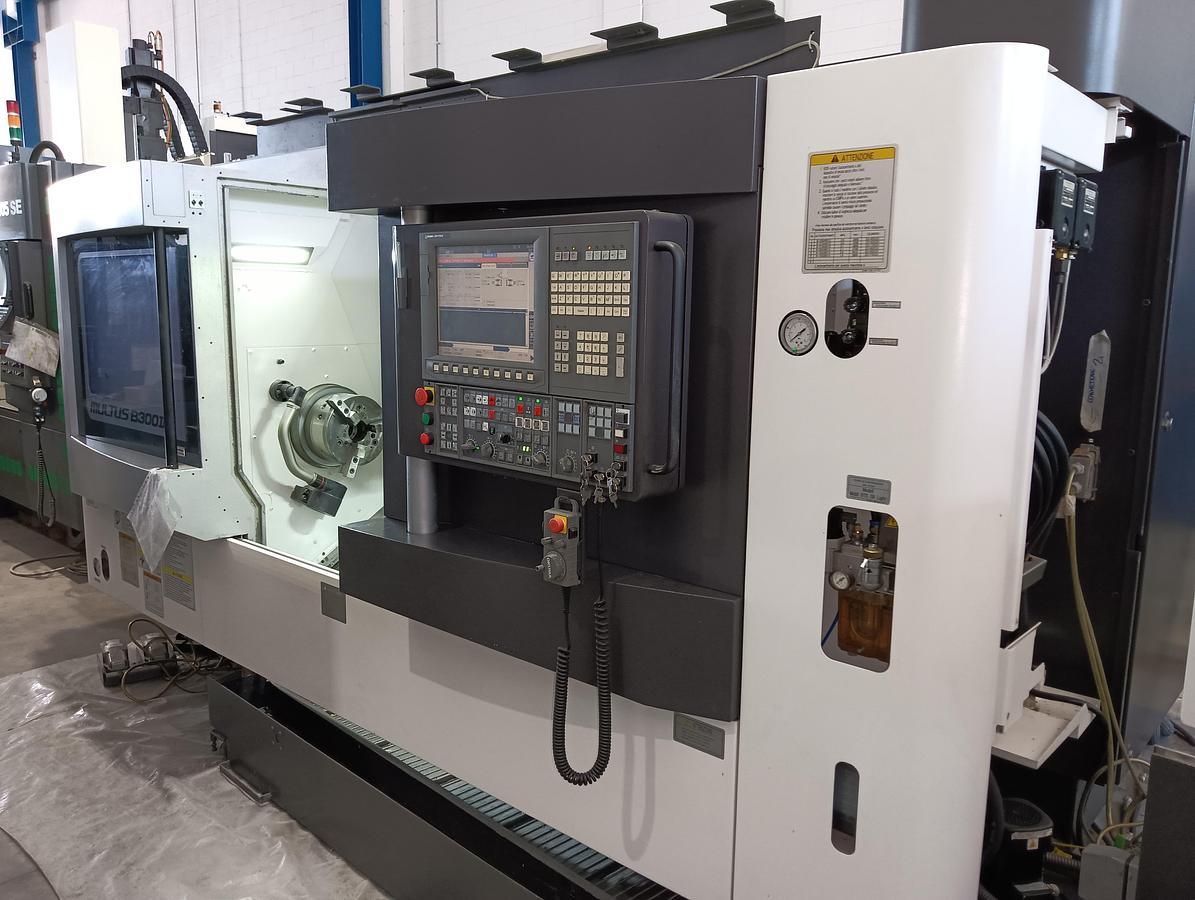

2013 OKUMA MULTUS lathe mod. B 300 II
2013 OKUMA MULTUS lathe mod. B 300 II
Contact us for price
Location:Bergamo, Italy
or
Call +39 0451 117 6498
Description
RUNS
:

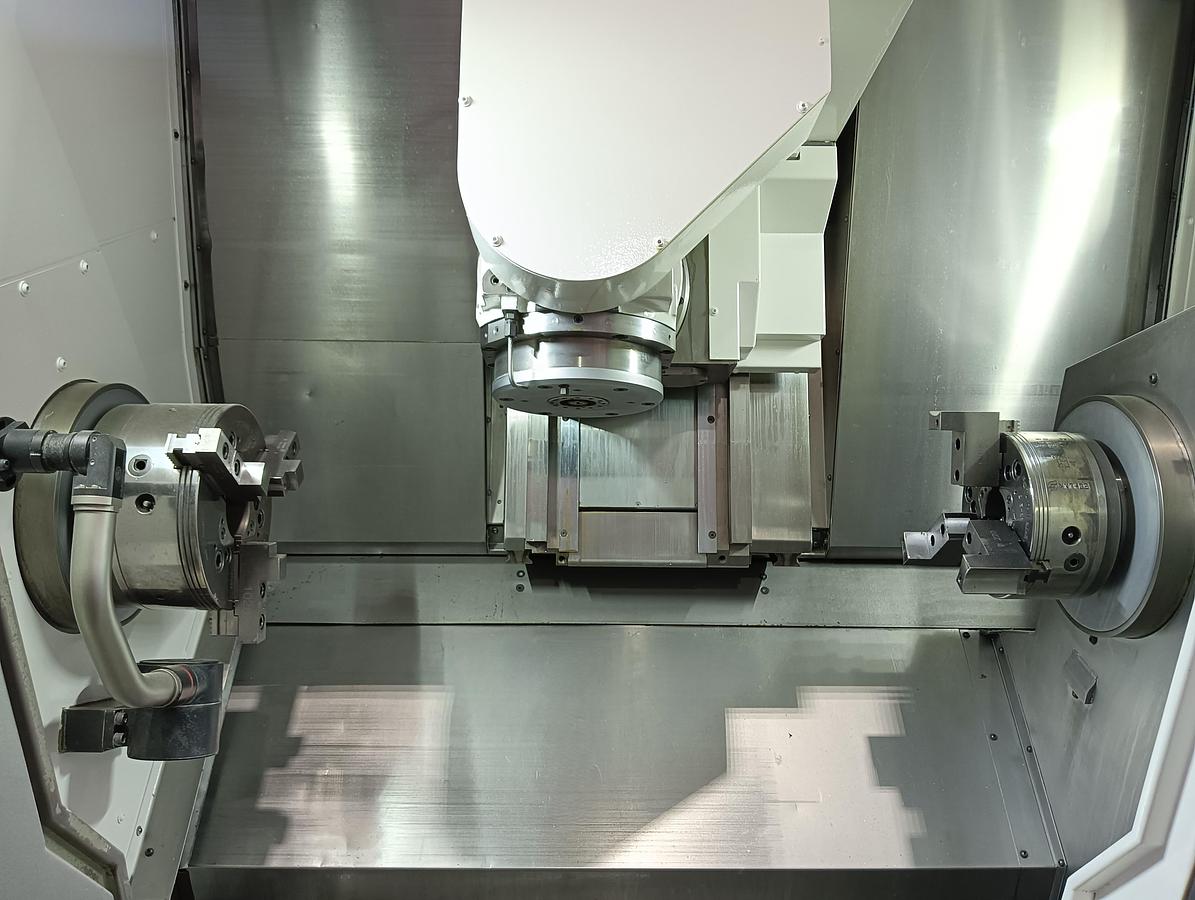

MAIN SPINDLE:
ASA 8"
SUPPLEMENT FOR BIG BORE CHUCK ASA 8″
COUNTER SPINDLE
:
ASA 6"

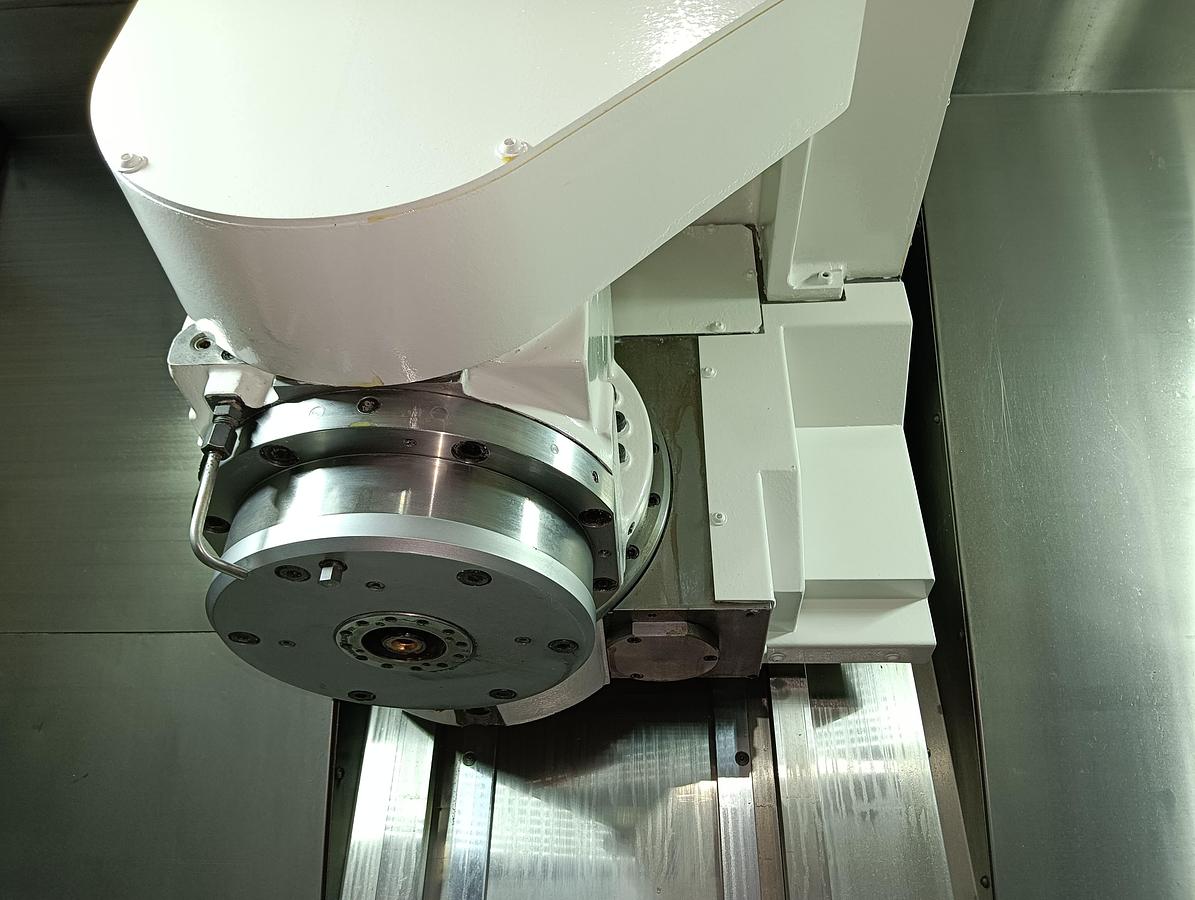

MILLING SPINDLE:
HSK 63

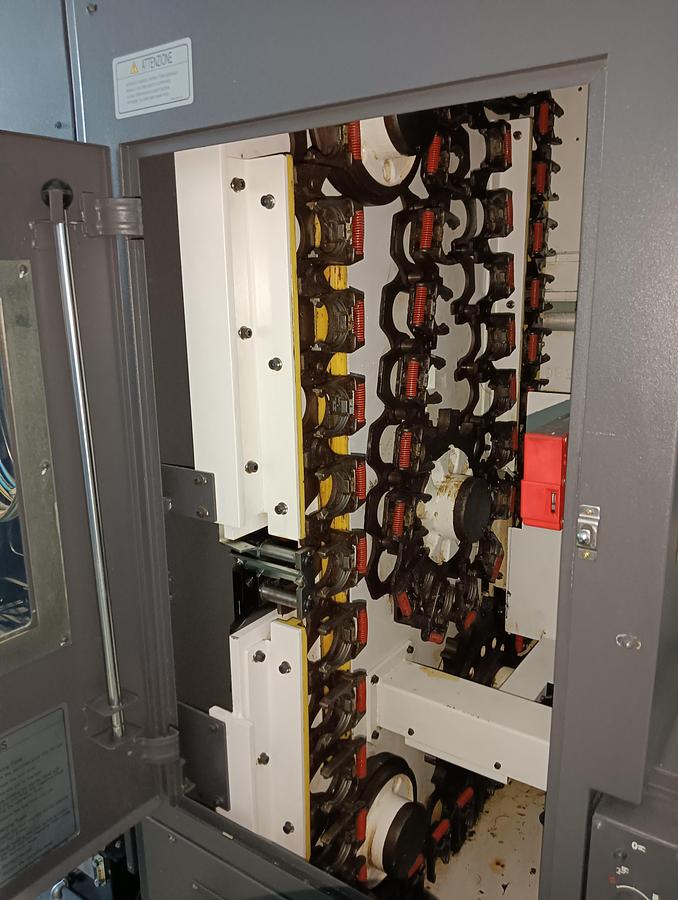

TOOL STORE:
60 LOCATIONS
ACCESSORIES:
DOUBLE PRESSURE SELF CENTERING BY CODES
MILLING HEAD HSK A63 16/11 KW

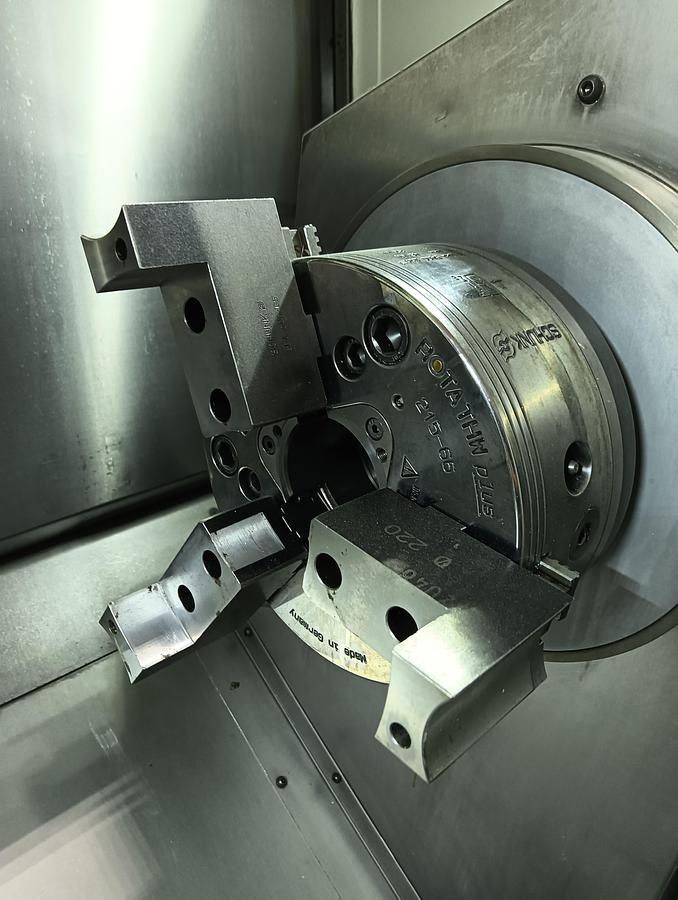

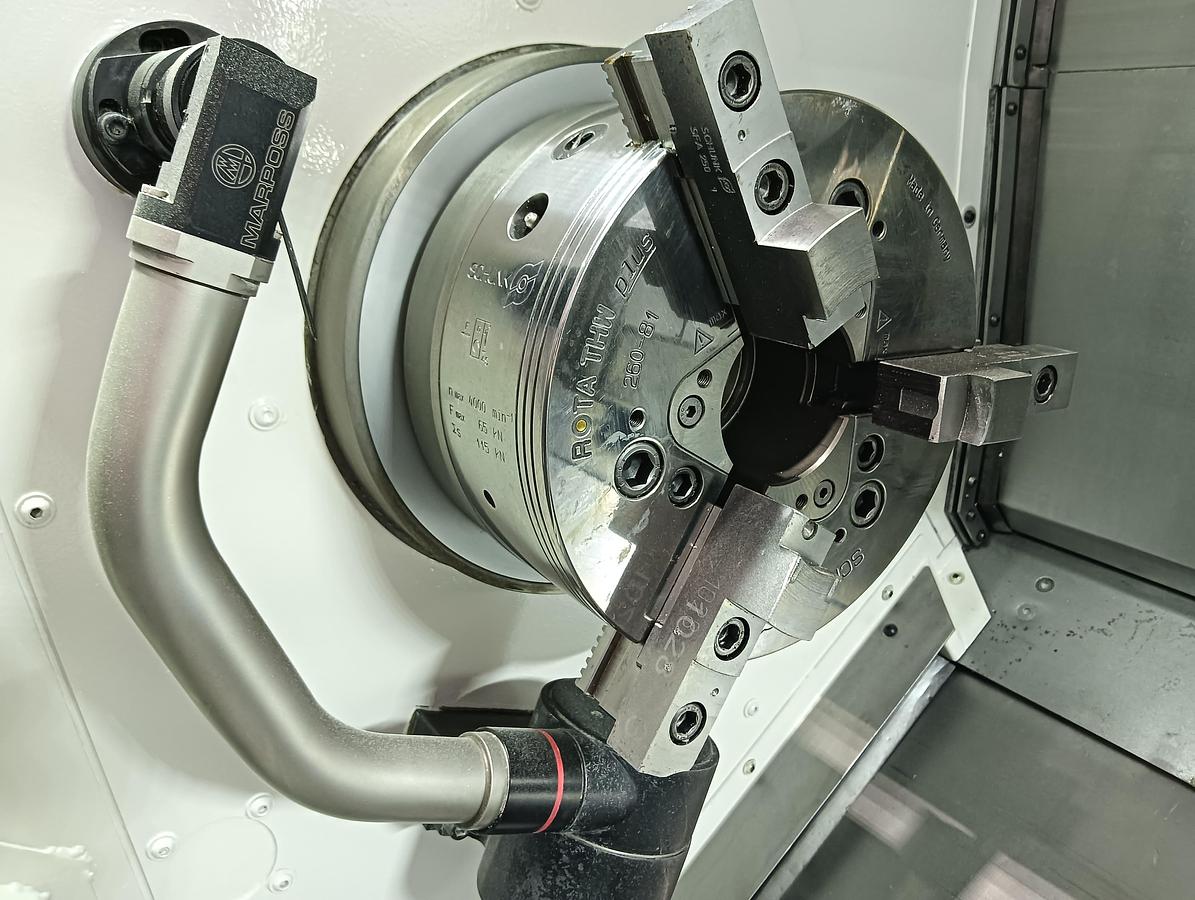

SELF CENTERING QUICK CHANGE JAW CHUCK MODEL SCHUNK THW 260-81
SELF-CENTERING QUICK-CHANGE JAW CHUCK MODEL SCHUNK THW 215-66
MANUAL PRESETTING
HELICAL INTERPOLATION INCLUDING PROFILE MANAGEMENT SOFTWARE ON INCLINED PLANES
25 BAR REFRIGERATION PUMP
CHIP EVACUATOR
COMPLETE WITH ACCESSORIES INCLUDED
INSTRUCTION MANUALS
CE DECLARATION
ENCLOSURES:
4035 x 2257 x 2587 mm
WEIGHT:
10300 kg
NONCOMMITTAL DATA TO BE VERIFIED
Specifications
| Year | 2013 |
| Condition | Used |

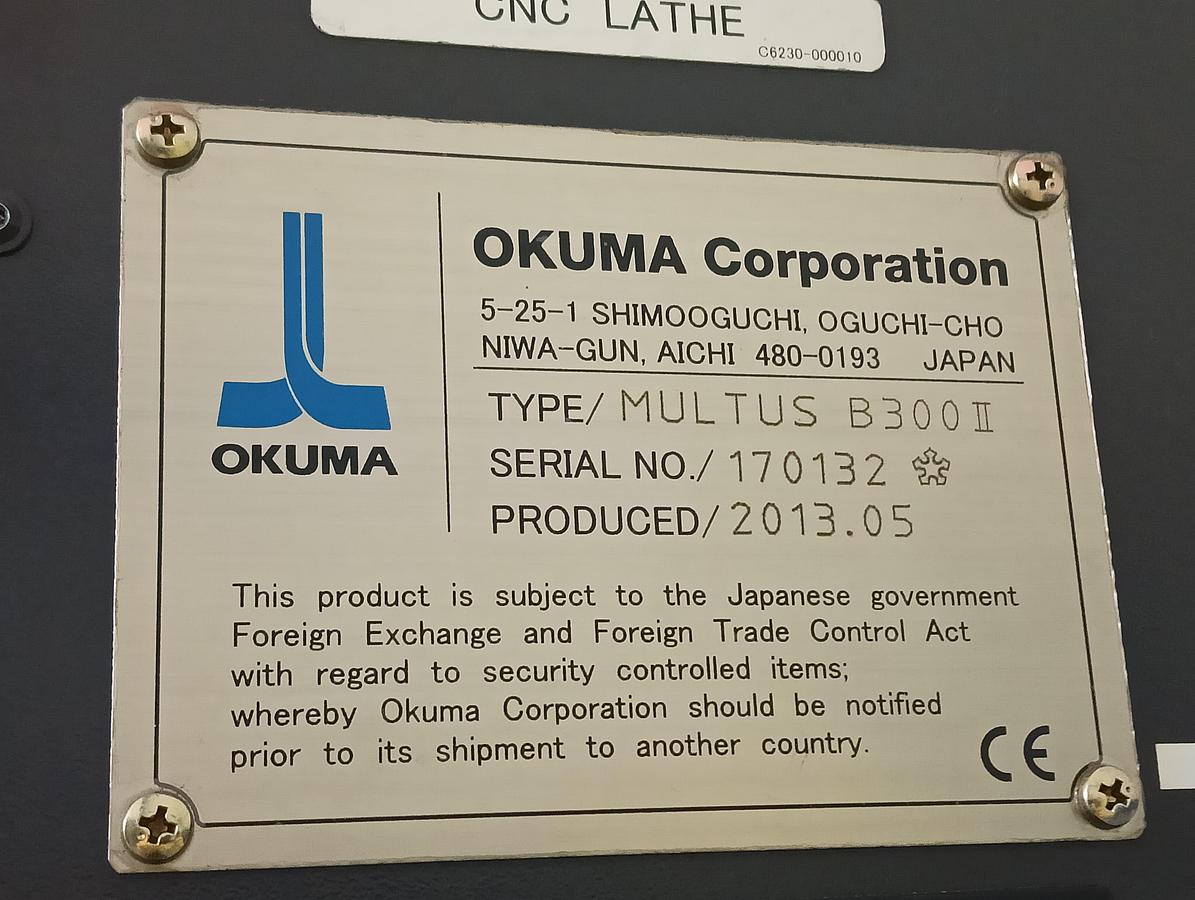

| Serial Number | 170132 |
| Stock Number | TC206-PS |
| Working hours | 3722 |
| Turning diameter | mm Ø 630 |
| Distance to tips | 900 mm |

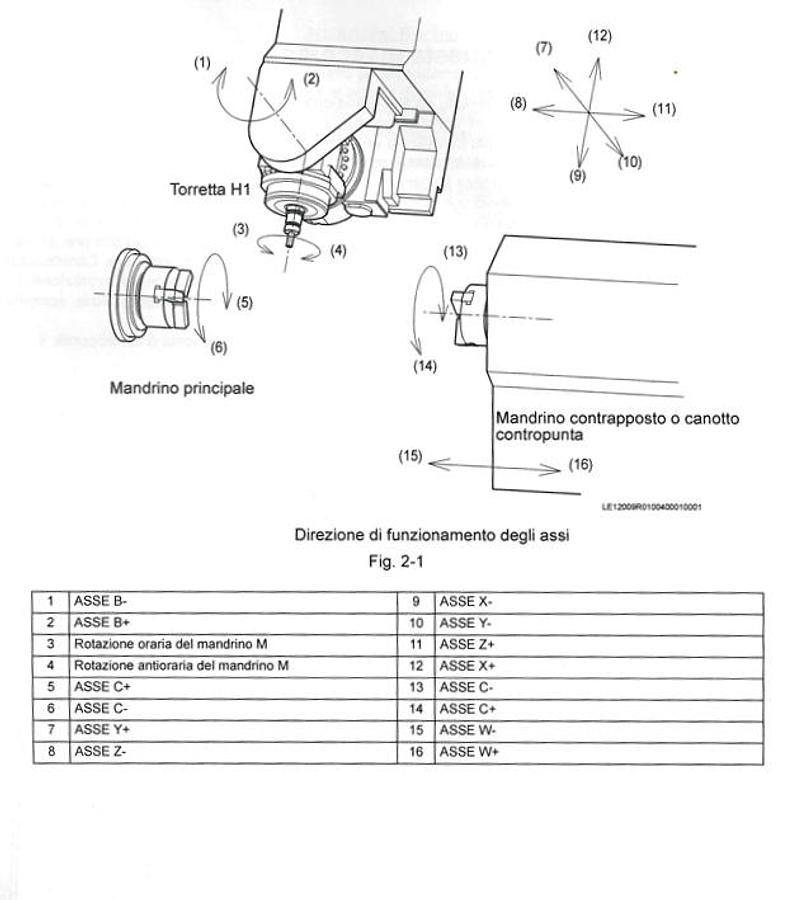

| X axis | mm 580 |
| Z axis | mm 935 |
| Y axis | mm 160 (+80/-80 mm) |
| B-axis continuous | 225° (-30/+195) |
| Continuous c-axis | 360 ° |
| Speed' | rpm. 10000 |
| Power | 16/11 kW |
| N 2 double pressure self-centering clamping by codes m | MAIN SPINDLE/COUNTER SPINDLE |
