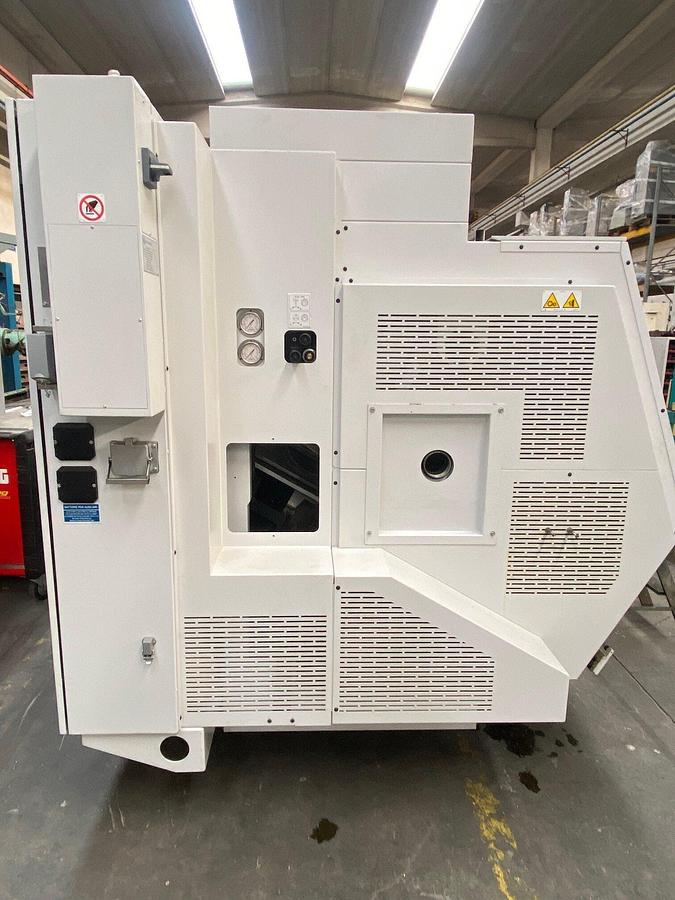

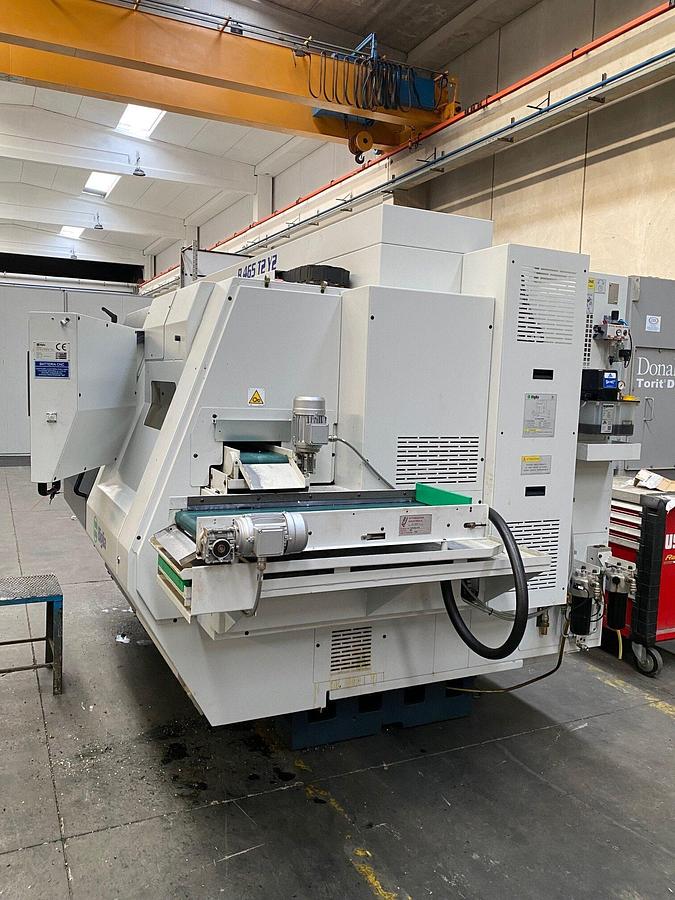

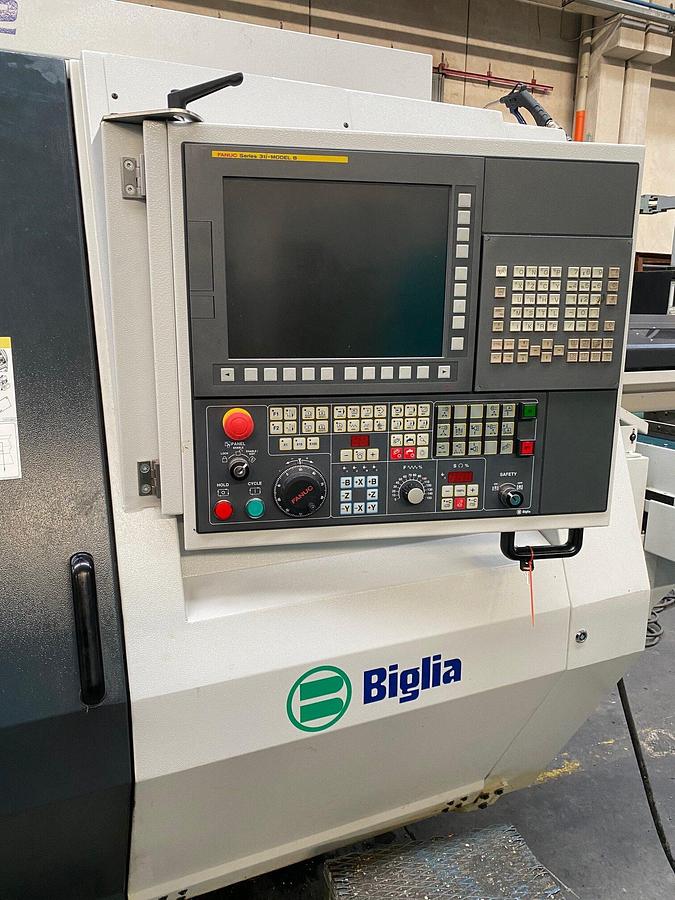

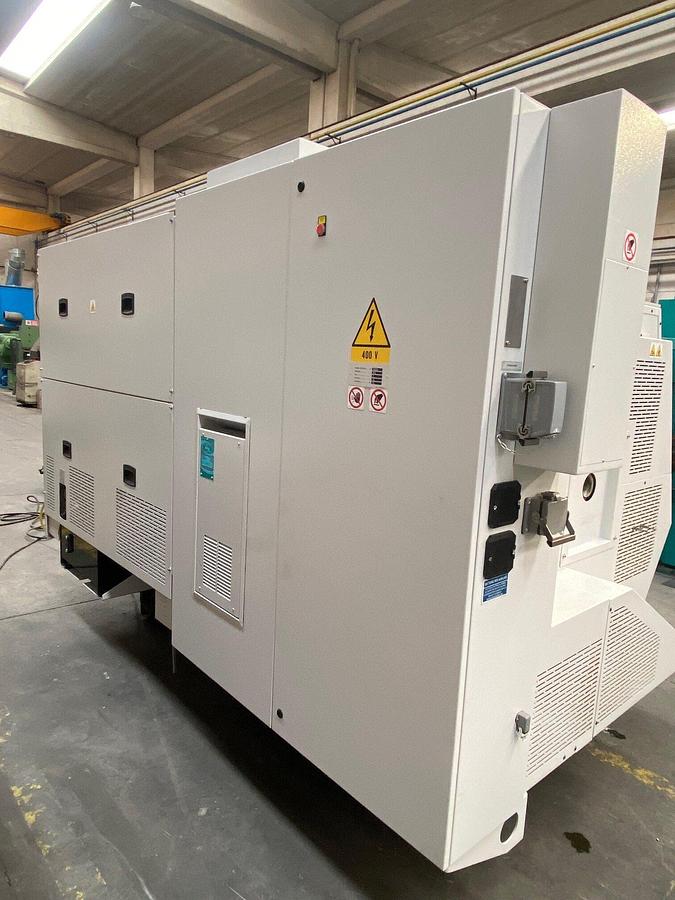

CNC LATHE BIGLIA VERSION WITH TWO MOTORIZED TURRETS, TWO Y-AXES, COUNTERHEAD AND TWO C-AXES

MOD. B 465-T2-Y2 MARK BIGLIA TECHNICAL FEATURES: Working Range Max turning diam.from bar 70 mm Max turning diam. 200 mm Spindle Max revolutions 4000 Spindle Nose ASA 6'' Spindle bore 78 mm Dia. Inside of front three bearings 110 mm Spindle motor power 26 Kw Spindle motor power continuous duty 22 Kw Constant power from rpm 1000 Gripper closing cylinder thrust section cm.q. 183 Gripper closing cylinder stroke 30 mm Closing force in thrust adjustable from 5 to 30 bar 5490 daN Max self-centering diam applicable 210 mm Counter spindle Max rpm 5000 Spindle nose ASA5'' Spindle hole 55 mm Bar passage tube bore 45 mm Spindle motor power 11 Kw Spindle motor power in continuous duty 7.5 Kw Constant power from 1000 rpm Gripper closing cylinder stroke 25 mm Closing force in thrust adjustable from 5 to 30 bar daN 3285 max Max applicable chuck diameter 165 mm Ejector stroke 100 mm
