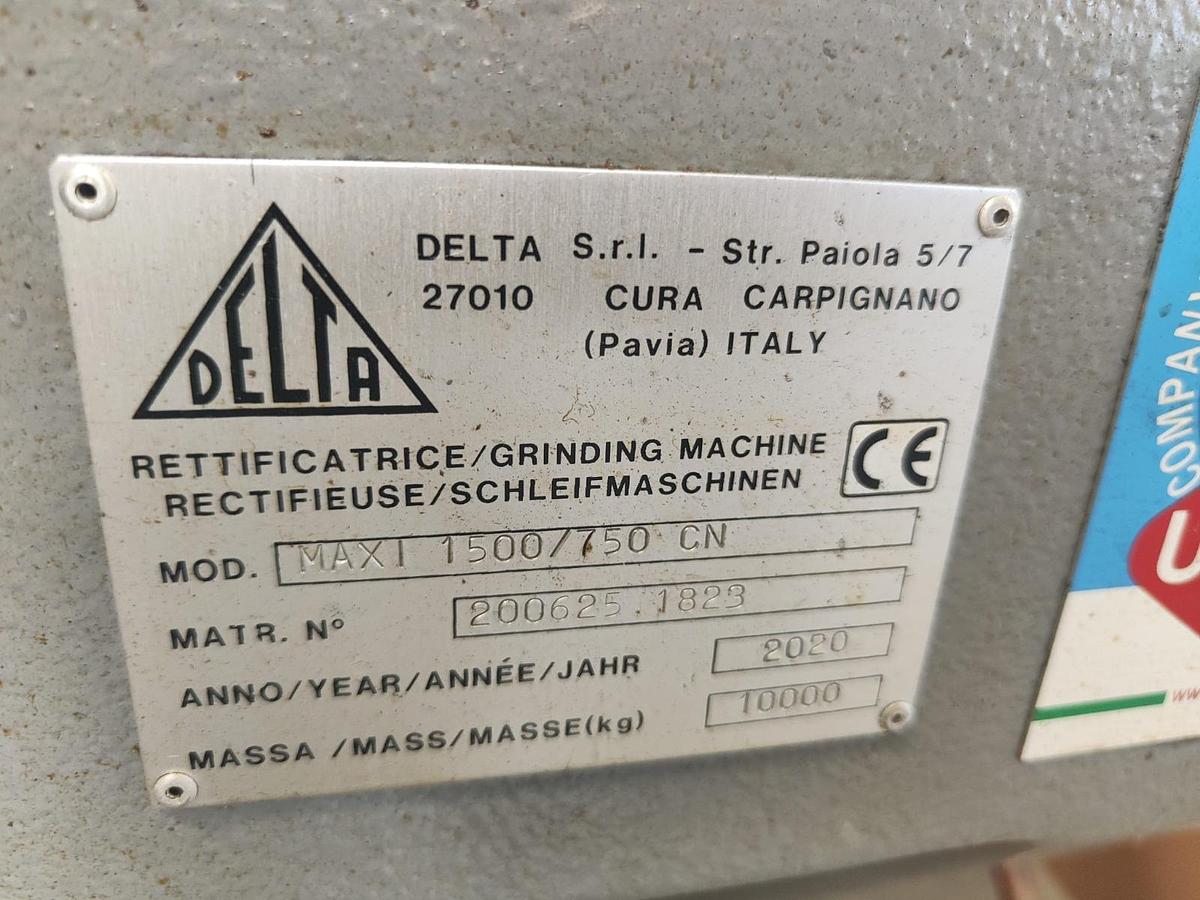

2020 TANGENTIAL DELTA GRAZING mod.MAXI CN

YEAR 2020
N/S 200625.1623
Maximum grindable surface 1500×775 mm
Table support surface 1500×600 mm
Longitudinal working speed 0/40
Maximum longitudinal travel 1800 mm
Transverse working speed 0/5 m/min
Minimum transverse increment prog.0.001 mm
Spindle rpm 1450 rpm
Vertical rapid traverse 2 m/min
Minimum vertical increment prog. 0.001 mm
Spindle motor power S1 15 (18) Kw
Net weight of the machine 10000 kg
Permissible table load 2300 Kg
Wheel dimension 400x76x127 mm
Transverse stroke 675 mm
Table width 600 mm
Grindable width 775 mm
Maximum distance spindle axis/table surface 950 mm
Footprint 5000x6600x2700 (H) mm
NON-BINDING DATA TO BE VERIFIED
