2019 TRIMMER FMB model TRITON

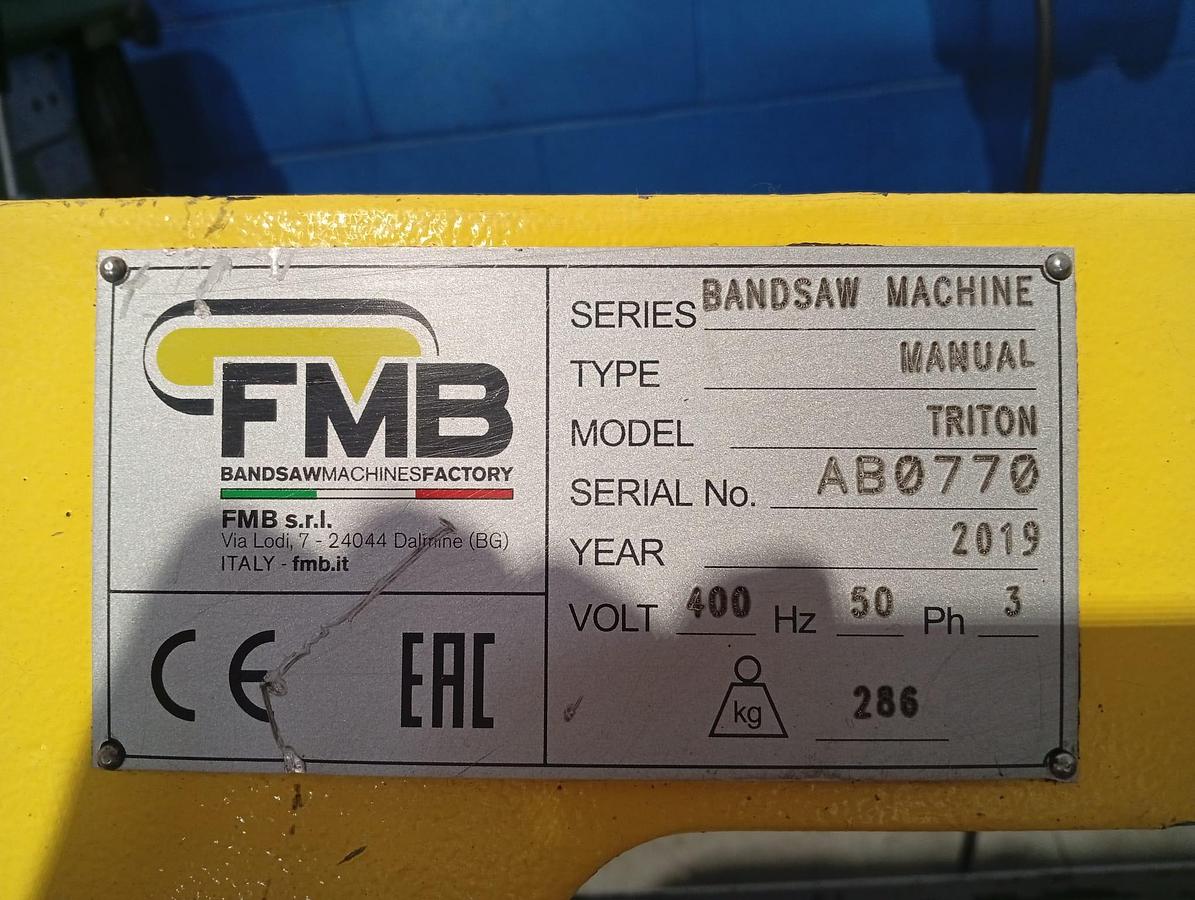

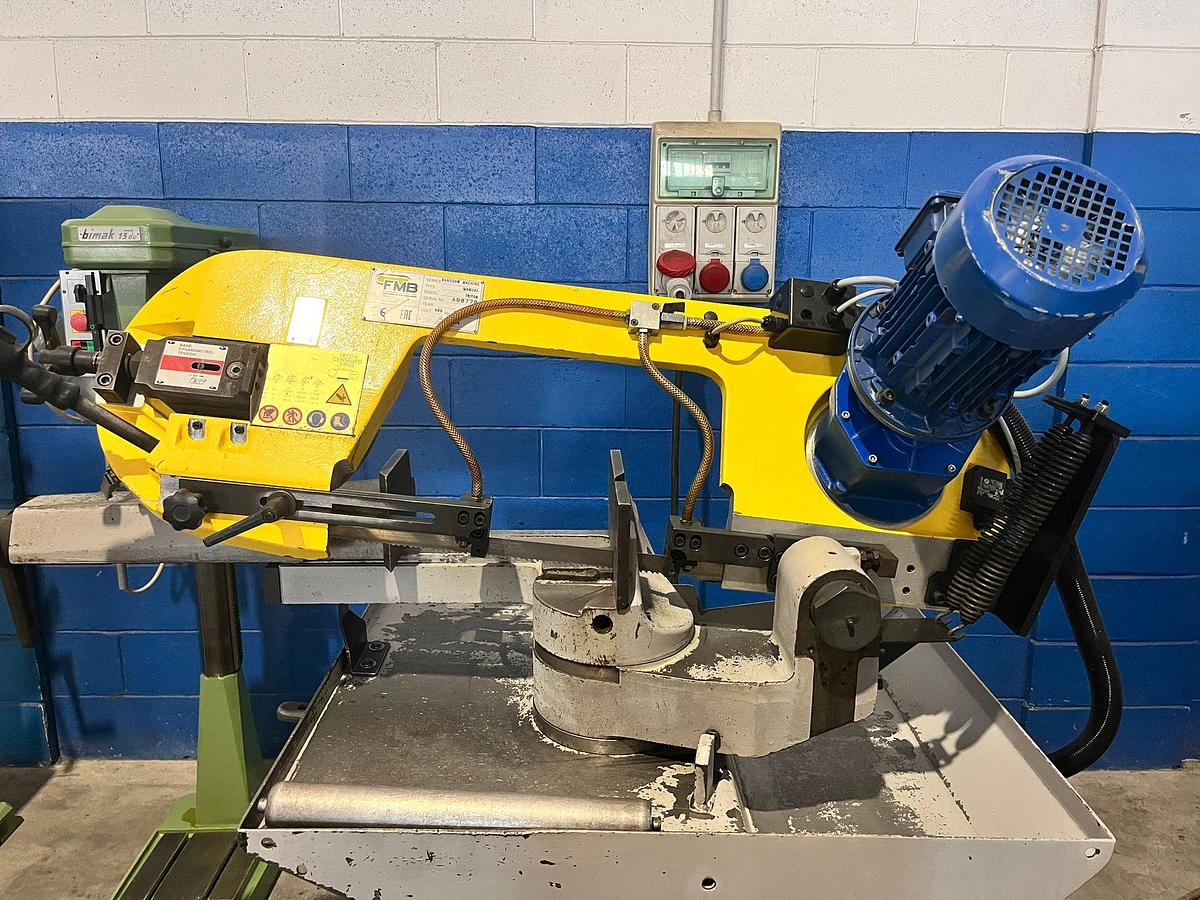

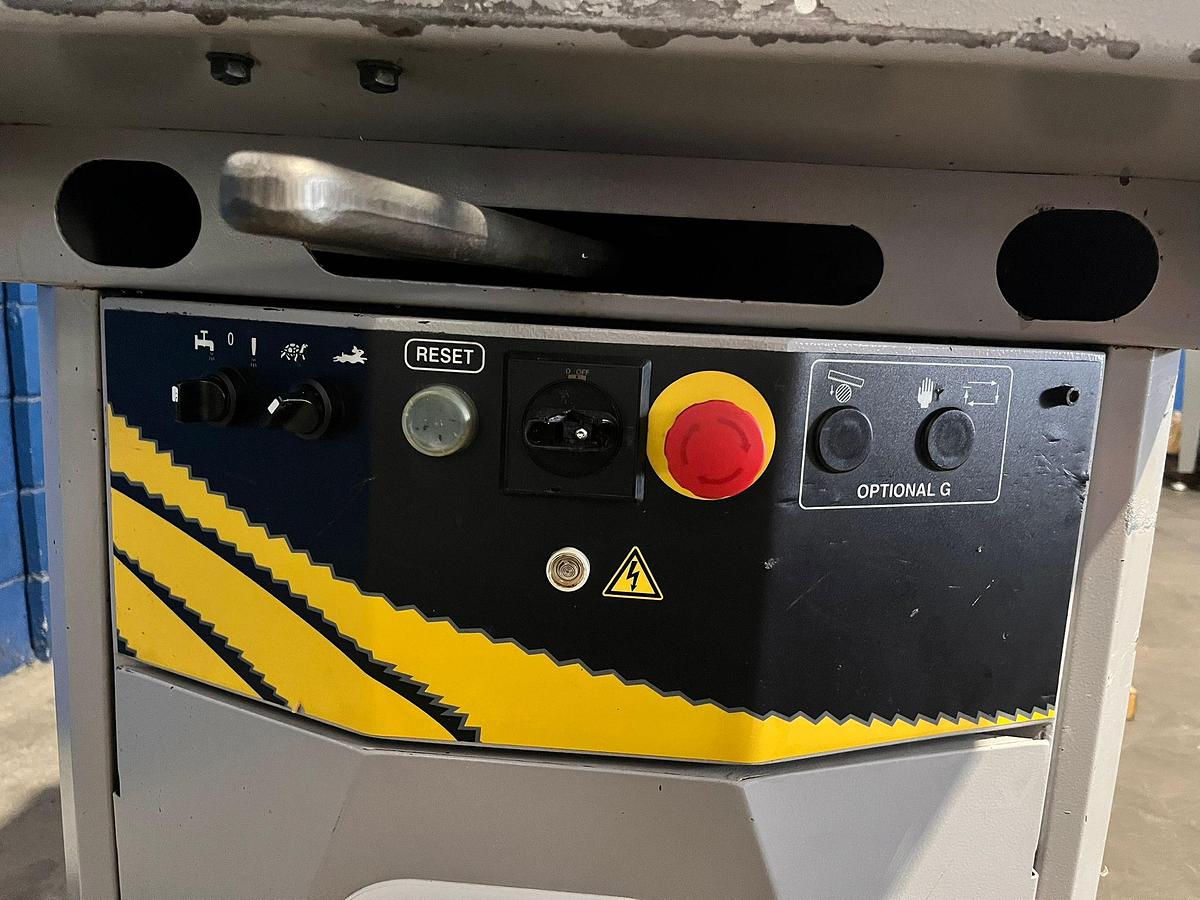

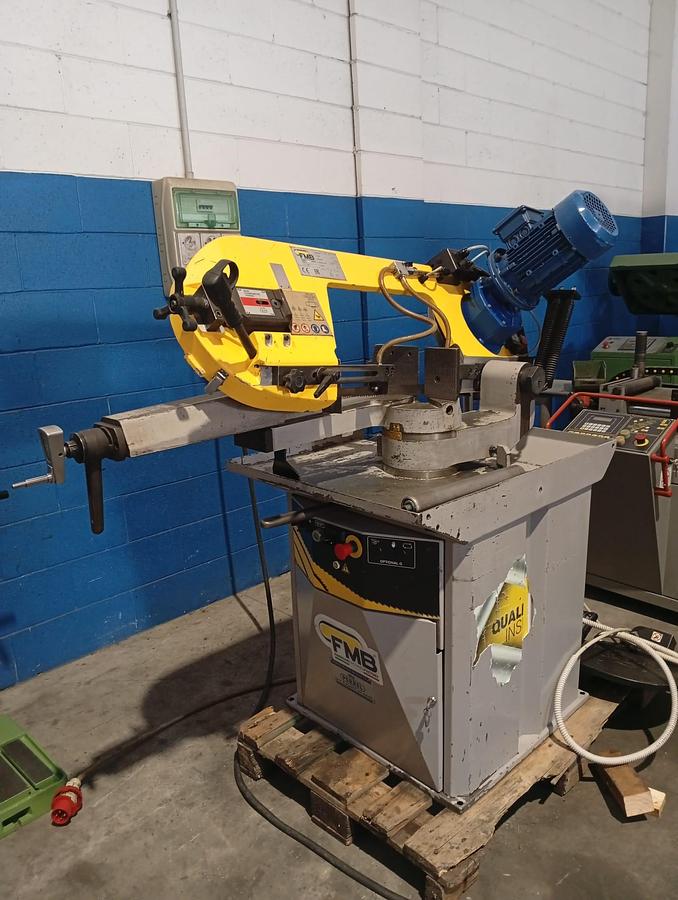

Year 2019 N/s AB0770 Manual angle cutting saw from 0° to 60° to the right Arc frame made of special aluminum alloy. Dynamic tensioning device for the blade. Integrated blade cleaning brush in the arc housing. Arc handle with control button. Adjustable blade guide with carbide inserts and guide bearings. Gear reducer with cemented, ground and long-life grease-lubricated helical gears. Output shaft of the reducer Ø 40 mm, with coupling of the motor drive wheel via friction bushing without key. Material clamping vise with manual positioning and quick-clamp system. Arc rotation with mechanical stops at 0°, 45° and 60°. Graduated scale for reading the angle and robust locking lever. Load-side roller with sturdy dual-position support. Millimeter-scale bar with robust length stop for cuts from 0 ÷ 600 mm. Robust welded steel base with differentiated-thickness panels. 20-liter coolant tank with electric pump for lubrication and cooling of the blade guide. Electrical panel with auxiliary supply 24 VAC, operator controls and lockable main switch. Full protection against overvoltages and short circuits. IP55 protection rating. NON-OBLIGATORY DATA TO BE VERIFIED
