2005 HWACHEON LATHE MOD. HI-TECH 700
2005 HWACHEON LATHE MOD. HI-TECH 700
Contact us for price
Location:Bergamo, Italy
or
Call +39 0451 117 6498
Description
Complete with C-axis, motorized spindles, and hydraulic steady rest support

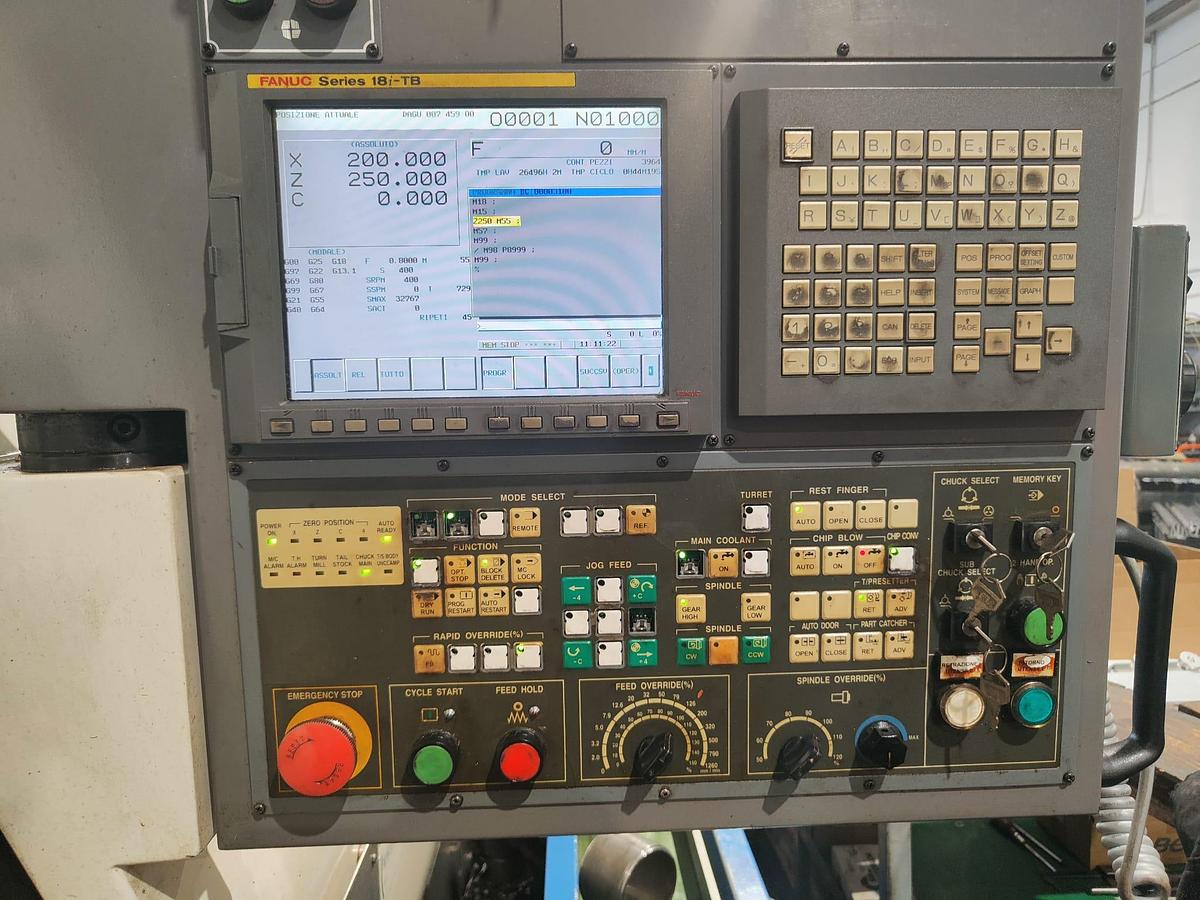

Fanuc 18i CNC
Maximum rotation on the bench: 900 mm
Maximum turning: 700 mm
Bar passage: 115 mm
X-axis rapid traverse: 24 m/min
Ranges: 2

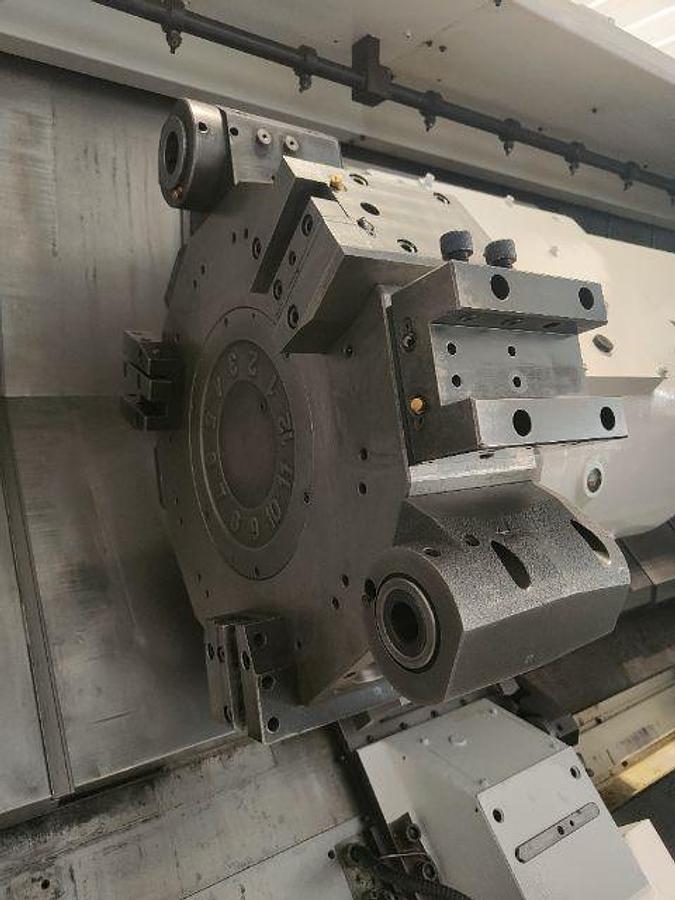

Tool positions: 12
63
NON-BINDING DATA TO BE VERIFIED
Specifications
| Year | 2005 |
| Condition | Used |
| Serial Number | HI-TRCH700 |
| Stock Number | TC0069-PS |
| Max turning length | 2000 mm |
| Distance between the tips | 2000 mm |
| Stroke x axis | 385 mm |
| Travel axis z | 2070 mm |
| Rapid y axis | M/Min 24 |
| Spindle rotation speed | RPM 1800 |
| Spindle nose attachment | Asa 11 |
| Spindle motor power kw | 37 |
| Max tool size | Mm 32 |
| Tailstock sleeve | 150 mm |
| Race dinghy | 150 mm |
| Tailstock cone type | 5 Mt |
| Self-centering autoblock | diameter 400 mm |
