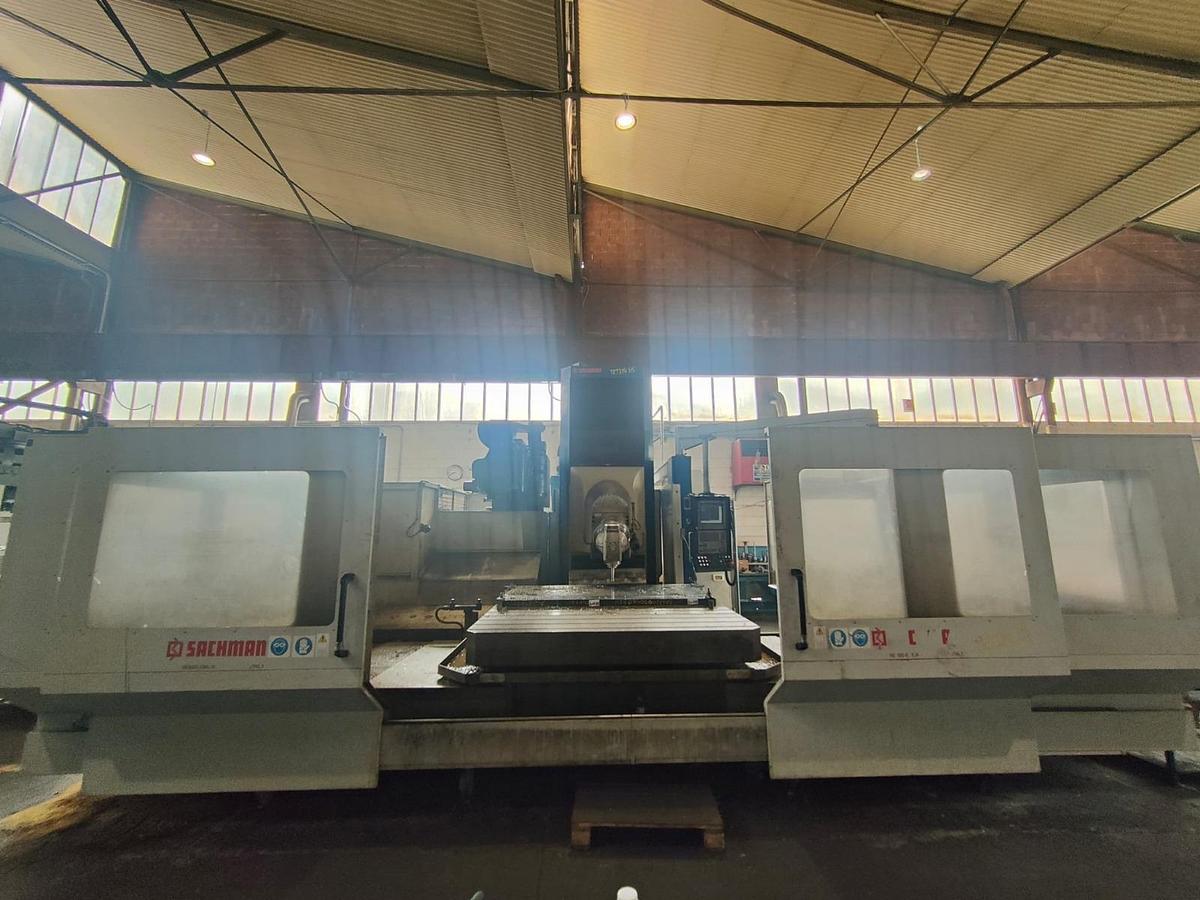

2008 SACHMAN milling machine mod. TRT314 HS

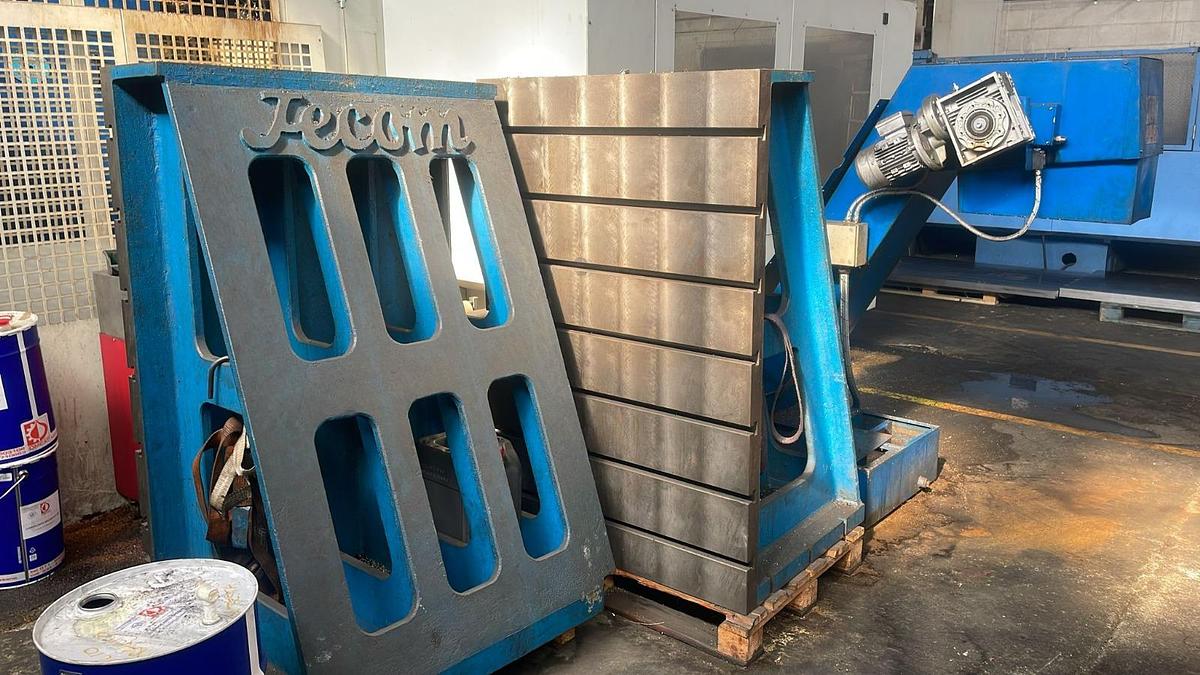

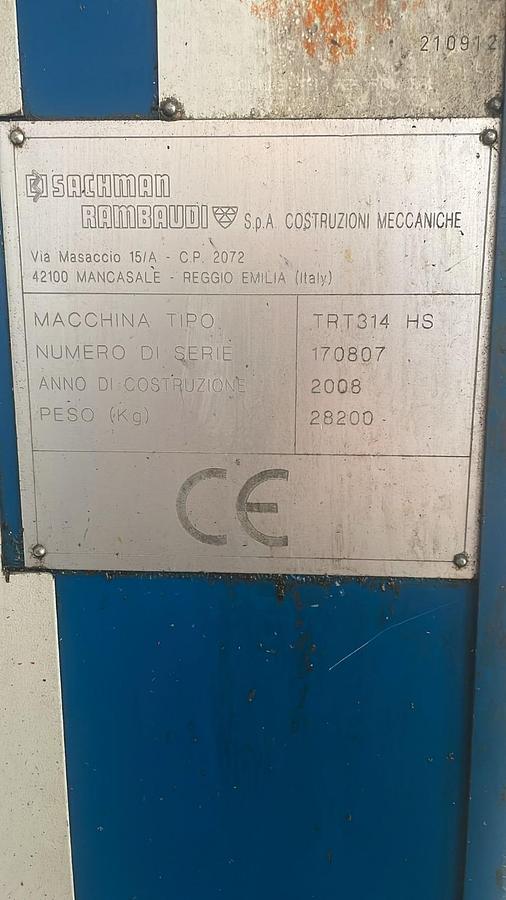

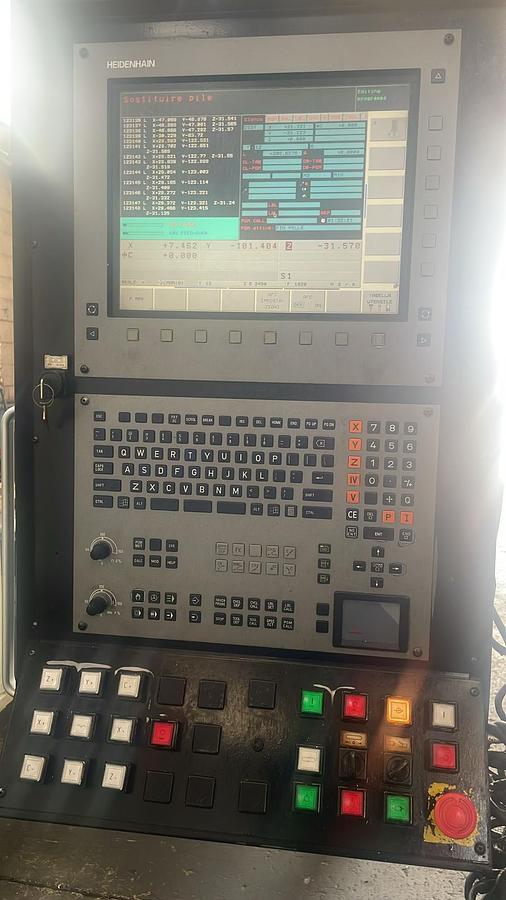

YEAR 2008 SERIAL NO. 170807 CNC HEIDENHAIN ITNC 530 TABLE Dimension mm 2000×2000 T-slot 22 H7 (TRT 2000×2000) No. 11 Allowable weight Kg 10000 COURSES Longitudinal X-axis mm 3000 Y-axis transverse mm 1600 Z-axis vertical travel mm 1500 ADVANCES Rapid speed (X/Y/Z axis) m/min 18 Working thrust on (X-Y-Z axis) Kg 1300 MANDRIN Continuous power Kw 28 Spindle speed kosmo3 head n/1' 5000 Tool taper DIN 69871-A50 Tie rod DIN 69872-28 (50) TOOL WAREHOUSE No. 40 tool magazine stations GENERAL Max. machine weight Kg 28200 Max. installed power Kw 48 MACHINE COMPLETE WITH: Automatic indexed rotating head 2.5° the rear, 1° the front Coolant at the center of the spindle No. 2 squares Chip conveyor Tool holder
