CAMI B42
CAMI B42
Contact us for price
Location:Cassina Rizzardi, Italy
or
Call +39 0451 117 6498
Description
Technical Specifications
MANDRIN B42
CONTROLLED AXIS TURRET
RADIAL SLITS
AXIAL SLITS
GRIPPER OPENING AND CLOSING
GENERAL
Three-phase + neutral supply voltage: V 400

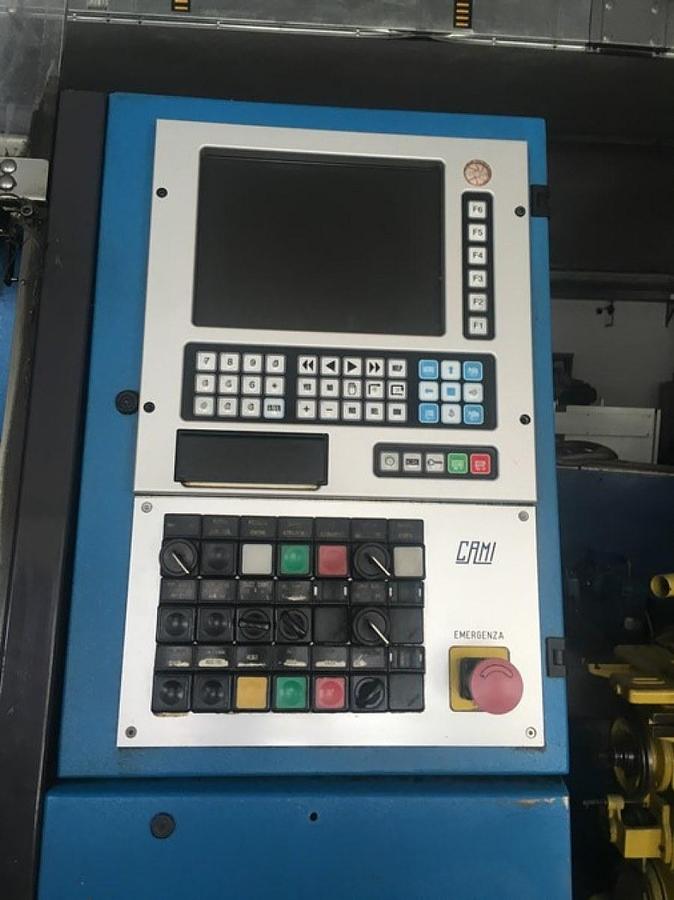

C. N. C. numerical control max. expansion: (axes)12
REFRIGERATOR
SIZE - WEIGHT
Data Sheet
Accessories
THREAD CUTTER/POLYGONATOR
IEMCA BOSS 542 CNC BAR LOADER
Specifications
| Manufacturer | CAMI |
| Model | B42 |
| Condition | Used |
| Max. machinable diameter from bar | 42 mm |
| Max. spindle rotation speed | 4000 rpm |
| Power vector motor | Kw 12 |
| Resolution in positioning | Degrees 0.5 |
| Max torque | Nm 230 |
| Max. turret stroke in z | 120 mm |
| Max. distance between turret - gripper | 200 mm |
| Min. distance between turret - gripper | 80 mm |
| Tool holes | No. 6/8 |
| Diameter of the holes of the bore turret | mm 31.75/25.4 |
| Rapid speed | m/min 10 |
| Max. thrust force | daN 1200 |
| X1,x2, x3,x4 slides | No. 4 |
| Max. run | mm 48 |
| Max strength. | daN 720 |
| Sled z1stroke max. | 90 mm |
| Sled z4corsa max. | mm 40 |
| Hydraulics to c.n.c. management. | max Bar 35 |
| Clamp system in use | Din 6343 |
| Installed power | Kw 14.7 |
| Work pressure | Bar 70 |
| Refrigeration flow rate | lt/m 50 |
| Tank capacity | lt 140 |
| Net weight | kg 2200 |
| Dimensions(lxp) evacuator not included | mm 2450×1100 |
| Dimensions(h) | mm 2450 |
